19" PCAP Panel mount PC Q1900B (OBSOLETE)
Net price (excl.VAT) €1139,00
Art.No.:
1020152924 Brand:
A1Touch Solution
Type: All in one A1Touch-Q1900B-quatro 2.0Ghz/AOD190-GPCAP-TPMB: AOD / ATS 19" PCAP panel mount (touch)Computer Q1900B
Description: 19 inch panel pc with pcap touchscreen. Bezel free tempered front glass. Metal casing with mini itx format pc for hufter proof and long life use.
| Monitor specs: | |
| Color/ material panel: | 4mm glare tempered glass with black borders |
| Model: | 19 inch XGA TFT LCD Monitor |
| Type: | 19 inch Color Active Matrix TFT LCD (LG LM190EOA) |
| Resolution (max): | 1280 x 1024 (SXGA) |
| Color: | 16,7 million |
| Pixel: | 0.0976 x 0.2928 mm |
| Brightness: | 300 cd/m² |
| Contrast ratio: | 800:1 |
| Viewing angle: | 89°/89° horizontal & 89°/89° vertical |
| Response time | 8 ms |
| Active area: | 376,32 (H) x 301,056 (V) mm |
| Computer specs: | |
| Type computerboard | Intel Q1900B Quad core 2Ghz, passive cooled |
| Chipset | No seperate chipset |
| Memory | 2 x DDR3/DDR3L SO-DIMM Slots |
| Processor | Intel Q1900B Quad core 2Ghz processor |
| Flashmodule/ Harddisk | Sata SSD and SATA Harddisk.possible |
| VGA | Intel® 7th generation (Gen 7) graphics |
| LAN (RJ-45) | • PCIE x1 Gigabit LAN 10/100/1000 Mb/s • Realtek RTL8111GR • Support Wake-On-WAN • Support Wake-On-LAN |
| Audio | 5.1 CH HD Audio (Realtek ALC662 Audio Codec) |
| IDE, SATA, Flash | 2 x SATA2 3.0 Gb/s Connectors, supports NCQ, AHCI en Hot Plug |
| Hardware Monitor + Power Management | Temperature, Voltage, Case open function, Watch Dog timer (manufacturing option) |
| Operating system | Windows 7, 8, 10 Linux, Win CE, XPe. |

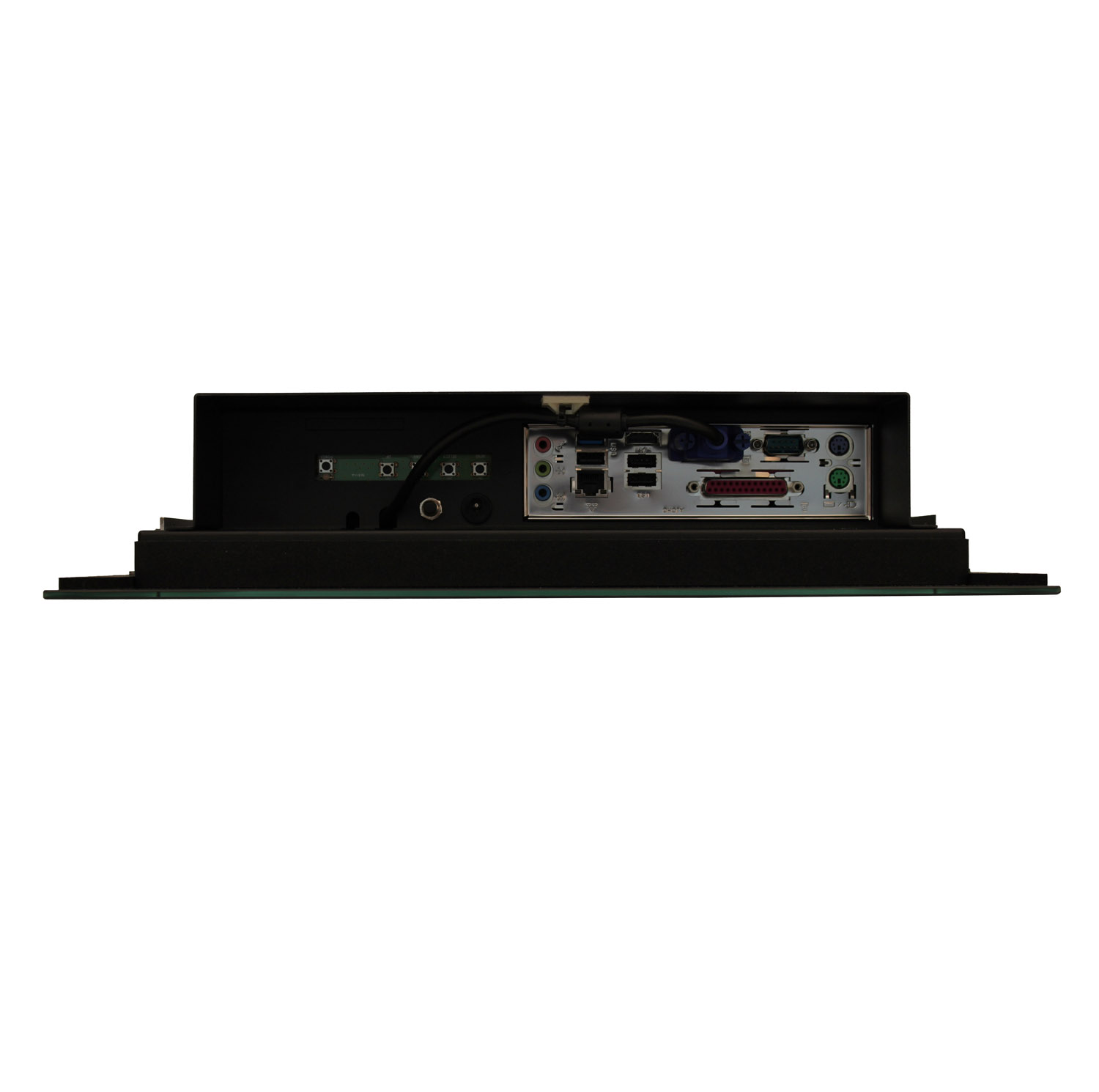

| I/O system: | 1 x On/Off switch 1 PS2 mouse port 1 PS2 keyboard port 1 Serial port (COM1) 1 parallel port (ECP/EPP support) 1 VGA port (occupied) 1 HDMI port 1 RJ-45 LAN connector 3 USB 2.0 ports 1 USB 3.0 port 3 Audio jacks for MIC-In, Line-In & Line-Out |
| Internal I/O: | 1 x Mini-PCI socket 1 x PCI-Express x1 slot |
| Energy requirements | 35W normal use; 80 W max.; 5 W stand by. |
| Power | Power supply 84 W External |
| Weight | 5 Kg |
| Mounting: | VESA 100mm |
| Dimensions system(B x H x D) | 485x413x88 mm |
| Touch info: | |
| Touch type: | Projected Capacitive touchscreen |
| Touch spec: | -Standard glare. -Touchable with finger, glove and pcap stylus. -2,4 or 10 points touch (2 standard, more on request) -activation force less than 1 gramm. |
| External protection: | Front completely glass, so 100% watertight |
| Glass sensor: | 4mm thick tempered glass with black ceramic borders. |
| Surface hardness: | Mohs' hardness = 6 |
| Responstime: | Max. 20 msec. |
| Options: | |
| Standard delivery: | With psu, EU power cable and dvi cable. Other psu-cable options on request. |
| Memory capacity: | No memory (standard), 2, 4 or 8 Gb SoDimm |
| Storage capacity Sata: | No strage (standard), Harddisk 250/500 Gb or SSD in 60/120/240 or 480 Gb. |
| Operating system: | NO OS (standard), Win7 embedded WSP7 multilangual, Win7Pro, Win8Home and Pro, Win10Home and Pro. |
| Input equipment: | None (standard) or wireless keyboard/mouse |
| Accoustic options: |
- No speakers/microphone (Standard),
- with usb stereo soundbar 2x2 Watt/ no microphone or
- with usb stereo soundbar 2x2Watt and microphone with 3.5mm plug. |
|
Specifications / Manual : |
 |
| Dimensions : | |
| Driver downloads : |  |
