A1Touch-V2, i7 passive cooled desktop mini pc

desktop computer v2
A1Touch-V2, i7 passive cooled desktop mini pc
Net price (excl.VAT) €525,00
Art.No.:
1020153566
Brand:
A1Touch Solution

Type A1Touch-V2-i7-7560U barebone.​

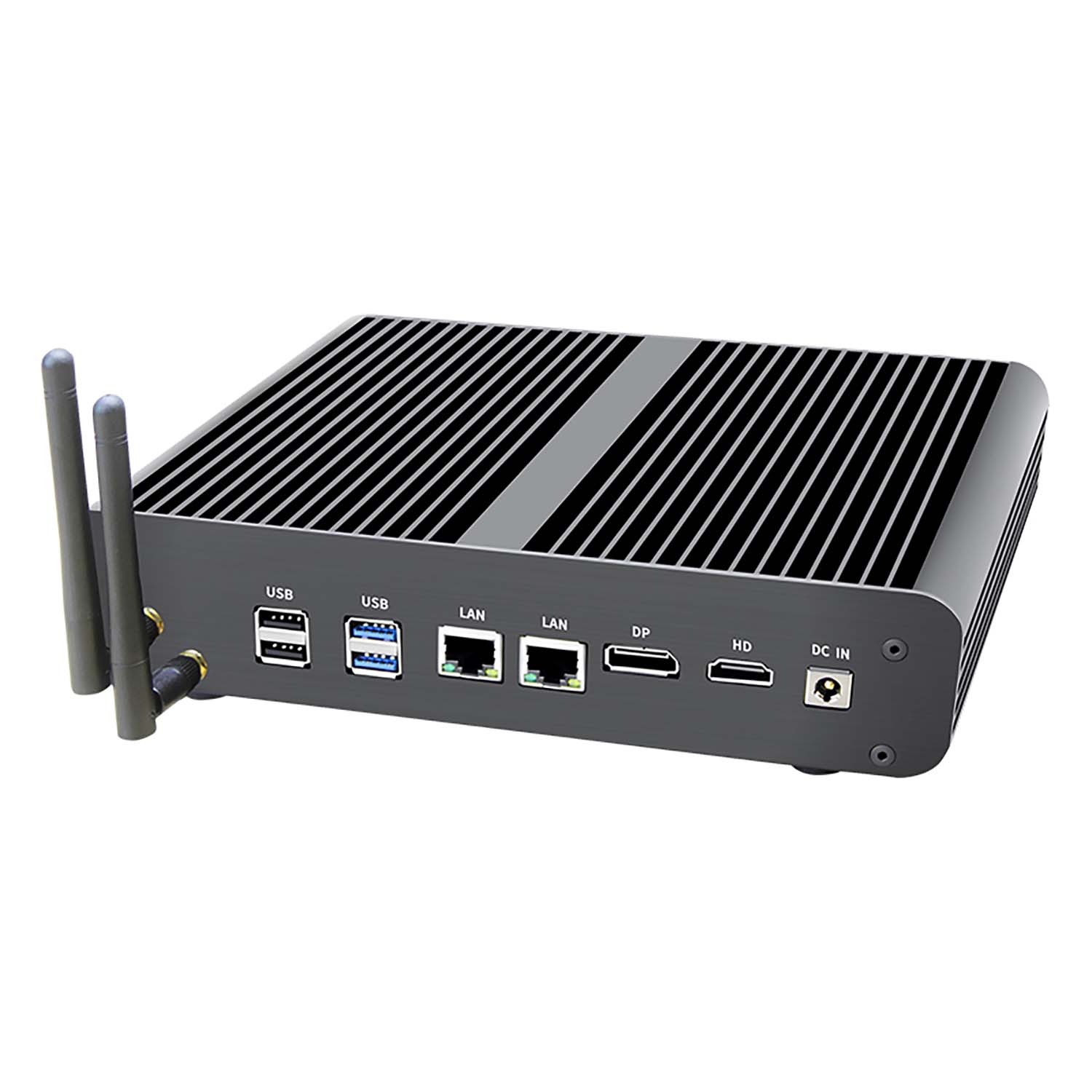

Description: Passive cooled desktop mini computer, model V2, with Intel i7 dc 2.4 upto 3.8 Ghz Processor. This black anodized aluminium Mini pc is build for allround use with all necessary connections: FRONT: On/Off button, 4xUSB3, SDcard, Optical, mic, spk. BACK: 4xUSB2 2x Gb LAN, 1x HDMI, 1x DP, 12-19Vdc in, wifi (option). Dimension: 225*158*45mm.
​​Unit is in stock.

Processor
Type i7-7560U Intel KABY LAKE
Cores 64-bit 2 core, 4 thread
Clock speed 2.4 up to 3.8 Ghz
Cache 4 Mb smartCache
TDP 15W
Chipset Intel KABYLAKE
Memory

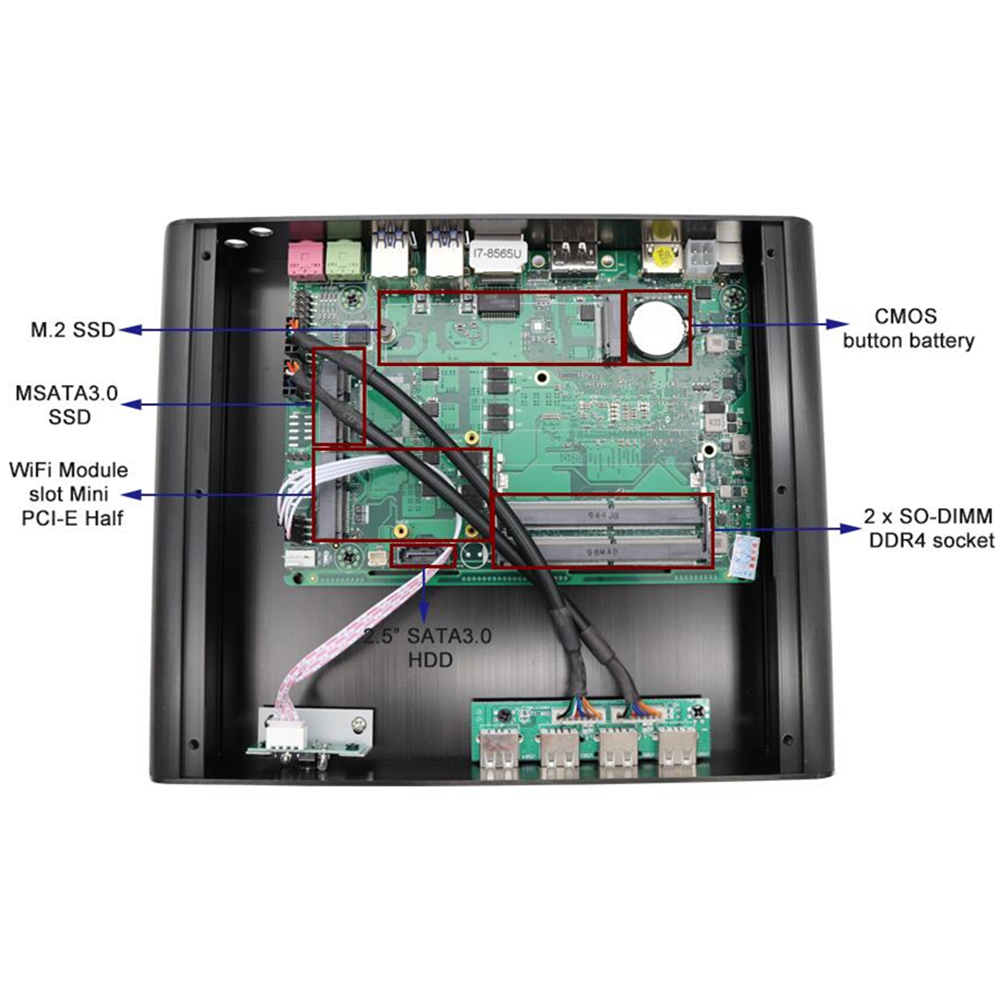

Supported 2x SO-DIMM 260-pin DDR4 memory slots
Up to 32GB (2x 16GB) DDR4
Installed None; option 2*4, 2*8, 2*16 Gb
Storage
Supported 1x SATA 1 x 2.5inch x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
1x M.2 2280 (NVMe) SSD
Installed mSATA SSD None, Option: 30, 60, 120, 240, 480 Gb and 1 Tb
Installed SATA HD/SSD None, option: HD: 500, 2000 Gb; SSD: 120, 240, 480, 960 Gb
Graphics
GPU Intel® Iris® Plus Graphics 640
Base Frequency 300 Mhz
Graphics Max Dynamic Frequency 1.05 GHz
Graphics Video Max Memory 16 GB
Display Interface 1 HDMI up to 4096x2304@30Hz
Display Interface 2 DP up to 4096x2304@60Hz
Supported: Dual display mode supported
  4K/ 3D blue ray mode supported
  DirectX* Support: 12
  OpenGL* Support 4.5
  Intel® Quick Sync Video
  Intel® InTru™ 3D Technology
  Intel® Clear Video Technology
  Intel® Clear Video HD Technology
  Intel® Wireless Display
  Intel® Insider™
Audio
Codec Realtek ALC897 chip, 7.1 channel sound
Intel Lynx Point-LP HDA
Audio Output Optical SPDIF
Analog stereo output, 3.5mm jack
Audio Input Analog stereo Microphone input
3.5mm jack
Networking
LAN 2x GbE LAN ports:
Realtek RTL8168/8111/8112 PCI-E Gigabit Ethernet NIC
10/100Mbps/1000Mbps BaseT LAN
installed Wireless/ Bluetooth none, option via mini PCIe dual antenna
Connectivity
USB 4x USB 3.0
  4x USB 2.0
Serials -
Special ports/connections 1x SD Card Reader (option)
Expansion 1 * 3G SIM Card slot (option)
1* Half-size mini-PCIe socket
  1* Full-size mini-PCIe/mSATA socket
Advanced Technologies
  Intel® Hyper-Threading Technology
  Intel® Virtualization Technology (VT-x)
  Intel® Virtualization Technology for Directed I/O (VT-d)
  Intel® VT-x with Extended Page Tables (EPT)
  Intel® 64
  Idle States
  Enhanced Intel SpeedStep® Technology
  Thermal Monitoring Technologies
  Intel® Fast Memory Access
  Intel® Flex Memory Access
  Intel® Identity Protection Technology
  Intel® Small Business Advantage
  Intel® Smart Response Technology

Special Functionality Auto-On
Wake-on-LAN
Wake-on-Timer
PXE Boot
Watchdog
Bootloader
Vendor AMI (American Megatrends)
Features ACPI supported
UEFI 2.4 supported
support call on function automatically
Operating System
Supported Windows 7/8/10/11/ 10IOT ent 2021, 32-bits and 64-bit
Windows Server 2019
Linux 32-bit and 64-bit
Embedded OS
Official Linux
Linux Ubuntu 20.04 LTS  (64-bits)
Installed None, Optional
Operating Conditions
Input Voltage DC 12-19V
Power Consumption 6W – 15W, Idle: 0.8W
Storage Temperature -20°C~85°C
Operational Temperature HDD models: 0°C – 50°C
SSD models: 0°C – 70°C
Humidity 0%-90%
Enclosure
Material Full Aluminum enclosure, black anodized
Cooling Passive Cooling Fanless Design

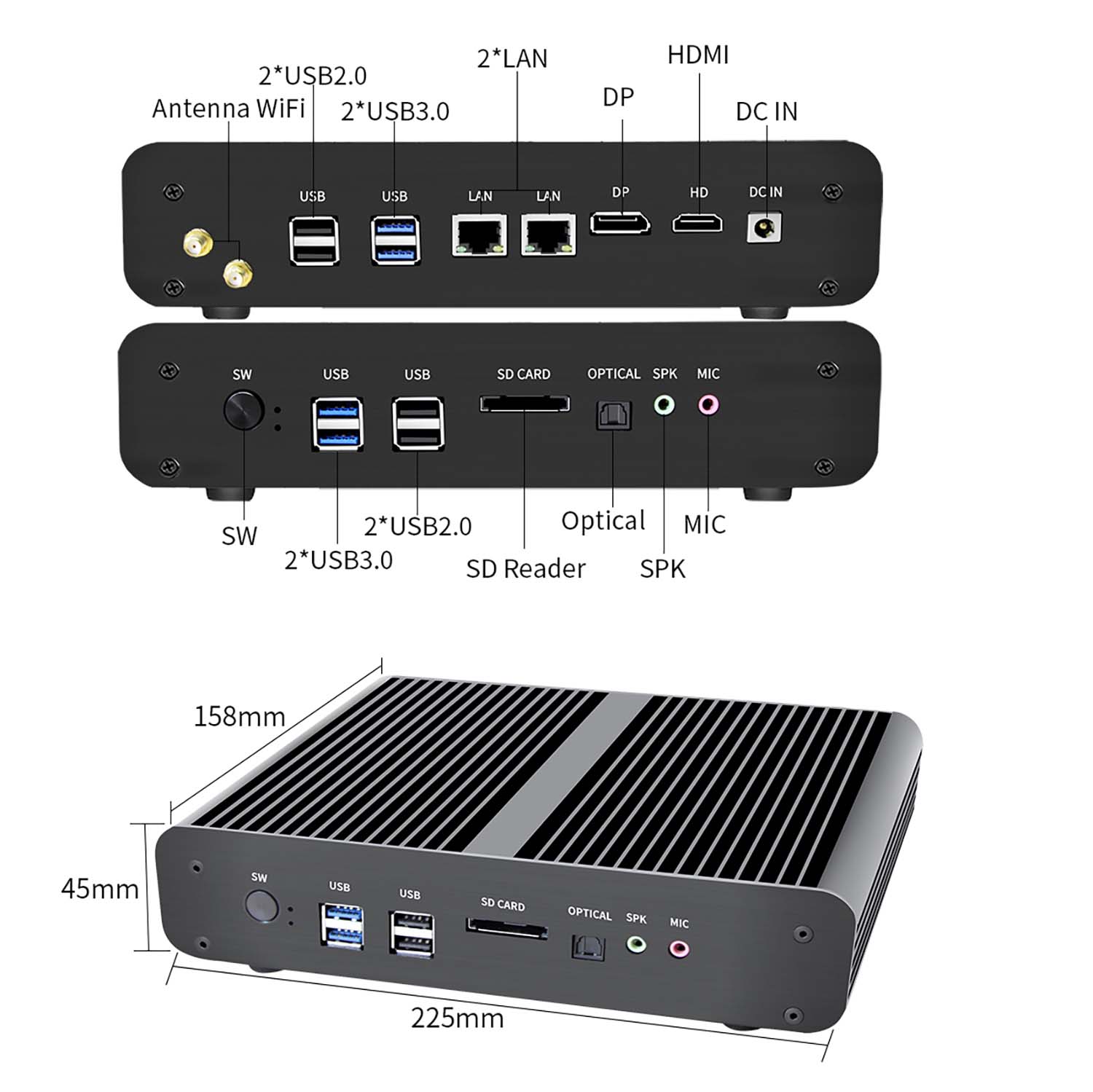

Dimensions (WxDXH) 225*158*45mm
Weight computer 1800 gramm
Weight total package 2500 gramm
Certifications
Documents CE, FCC, ROHS
Package

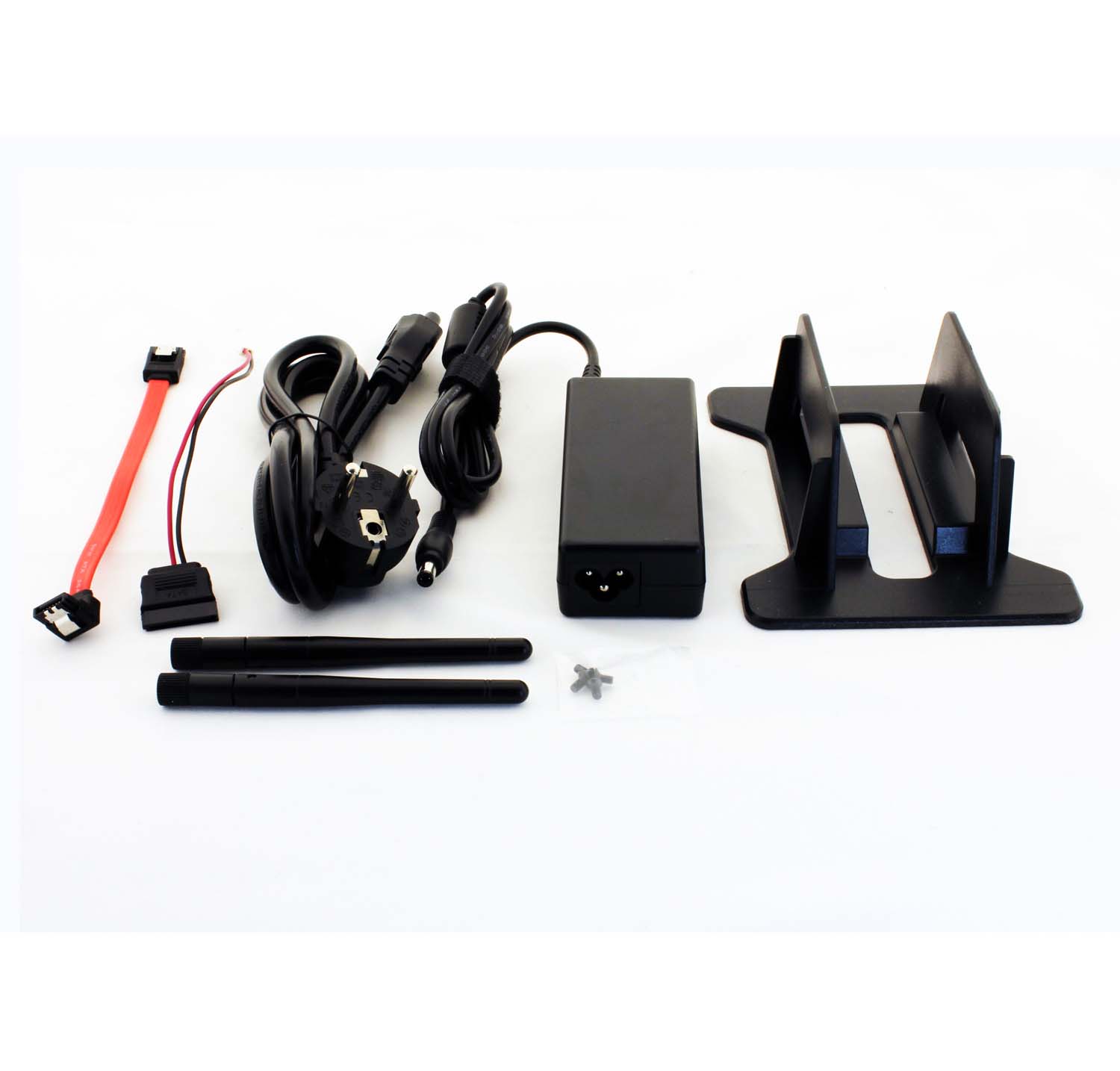

In the Box 1. Computer
2. Power supply: input 100-240VAC 50/60Hz, 60W output 12VDC 5A,
EU power cable (UK or USA on request)

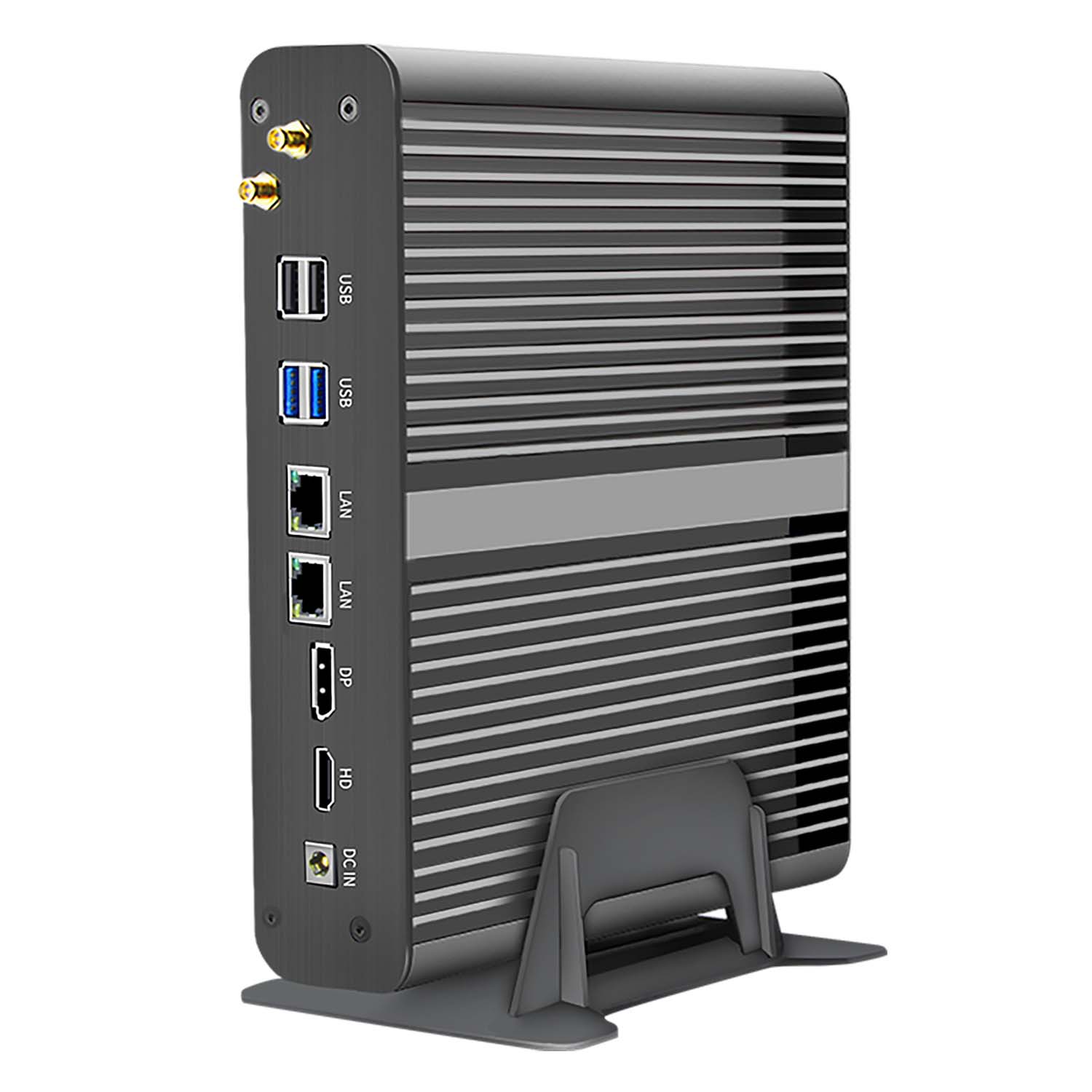

3. PC Holder
4. WiFi 2.4GHz/5GHz band 2 antennas (wifi option)

Warranty 2 years bring-in

General specifications :

Specs mini pc
Driver downloads : Driver downloads
Options: (including installation)
Standard delivery: With PSU and EU power cable kabel and pc holder.
Memory capacity: No memory (standard), 4, 8, 16 or 32 Gb SoDimm
Storage capacity mSata: No storage (standard),  30/ 60/ 120/ 240/ 480 Gb or 1 Tb mSata
Storage capacity Sata: No storage (standard), Harddisk 500 or 2000 Gb or SSD in 60/ 120/ 240/ 480 or 960 Gb.
Operating system (OS):
No OS (standard), Ubuntu 20.04LTS, Win10 or Win11 Home and Pro, Win 10 IOT 2021.
OS will be installed by default on the mSata SSD if sata and msata storage is chosen.
Wlan/ Bluetooth
-Without Wlan/ Bluetooth (strandard),
-with Wlan Wifi card DNXA-95 incl. kabels en 2 antennes, of
-with WLAN+BlueTooth; MiniPCIe Qualcom Atheros model: QCWB335,driver: QCA 9565, Freq. Range: 2.4GHz/5GHz Dual band, 802.11a/b/g,802.11n + Bluetooth 4.0 incl.cables and 2 antennas
Input equipment: None (standard) or wireless keyboard/ mouse

You can purchase by selecting below mentioned options (if available). More info on tab "Options")
​Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.

Discount on prices:

  • Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
  • For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
Options (incl. installation):
