Type A1Touch-V4-2-i7-1355U barebone in black..

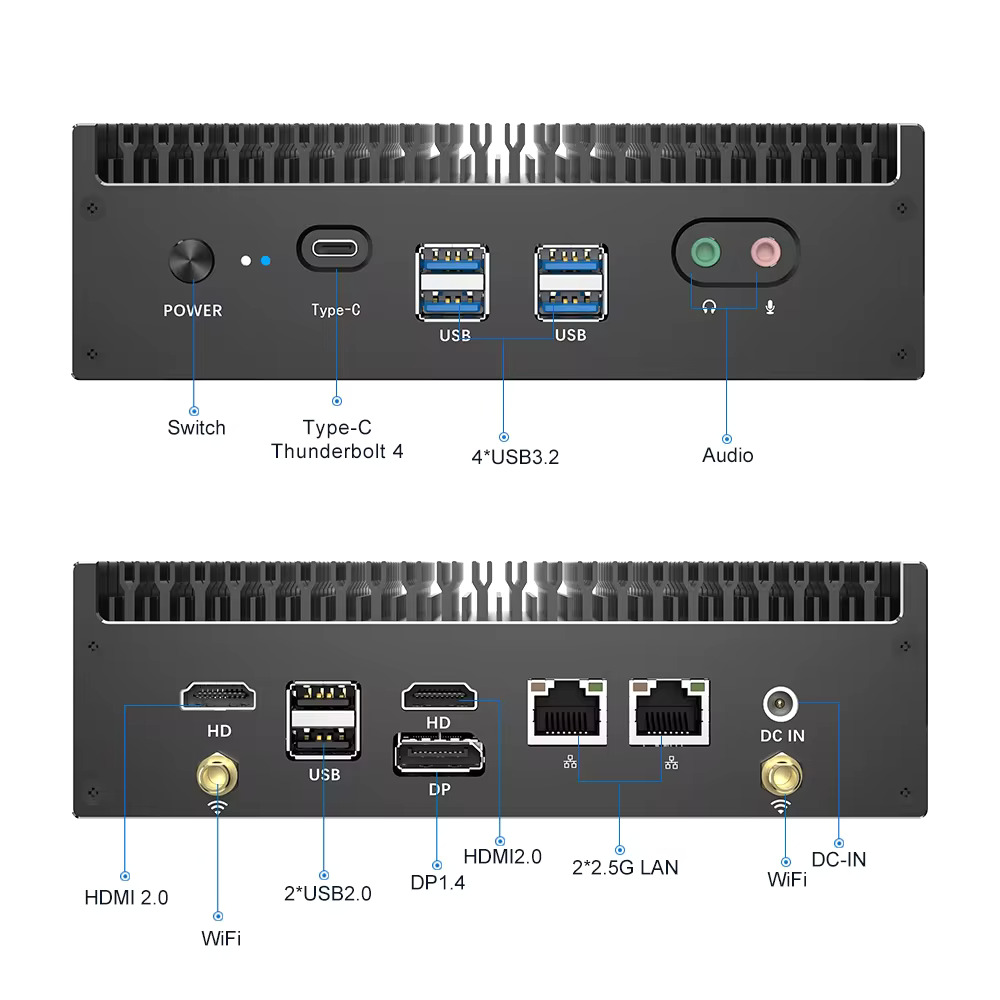

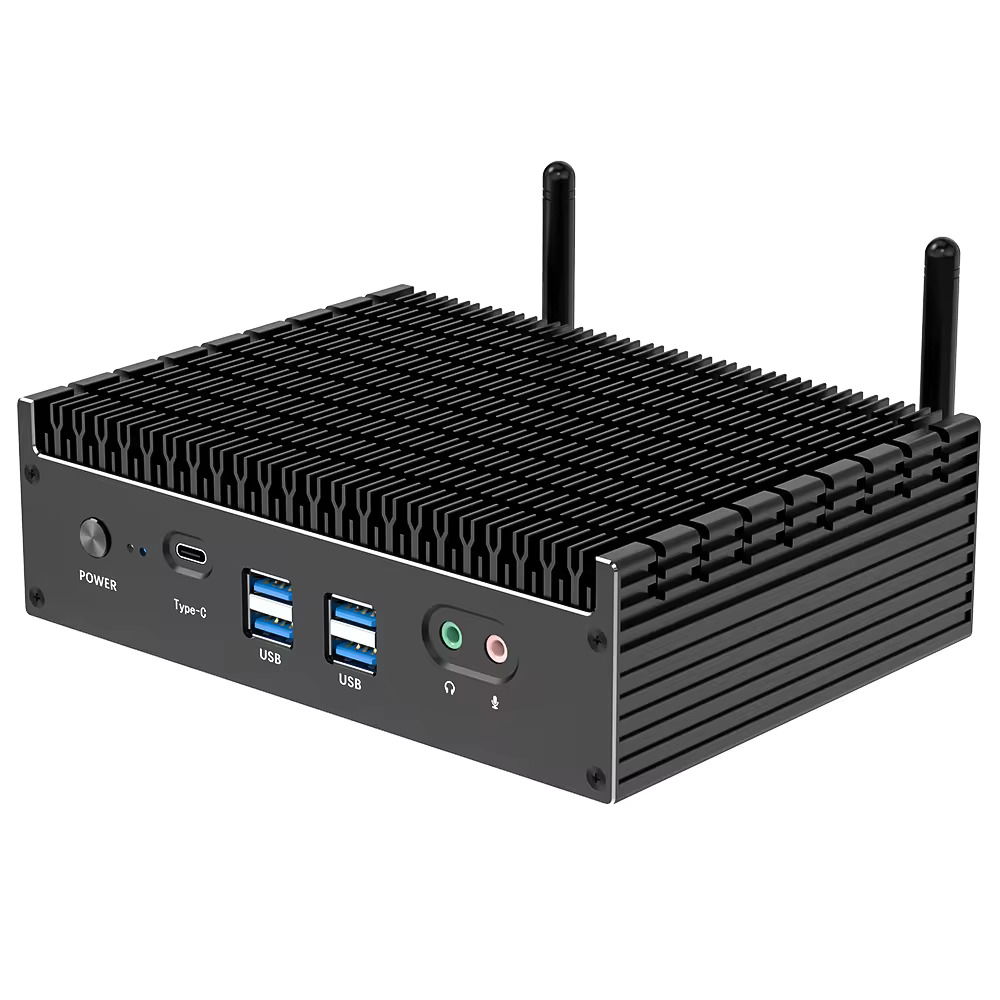

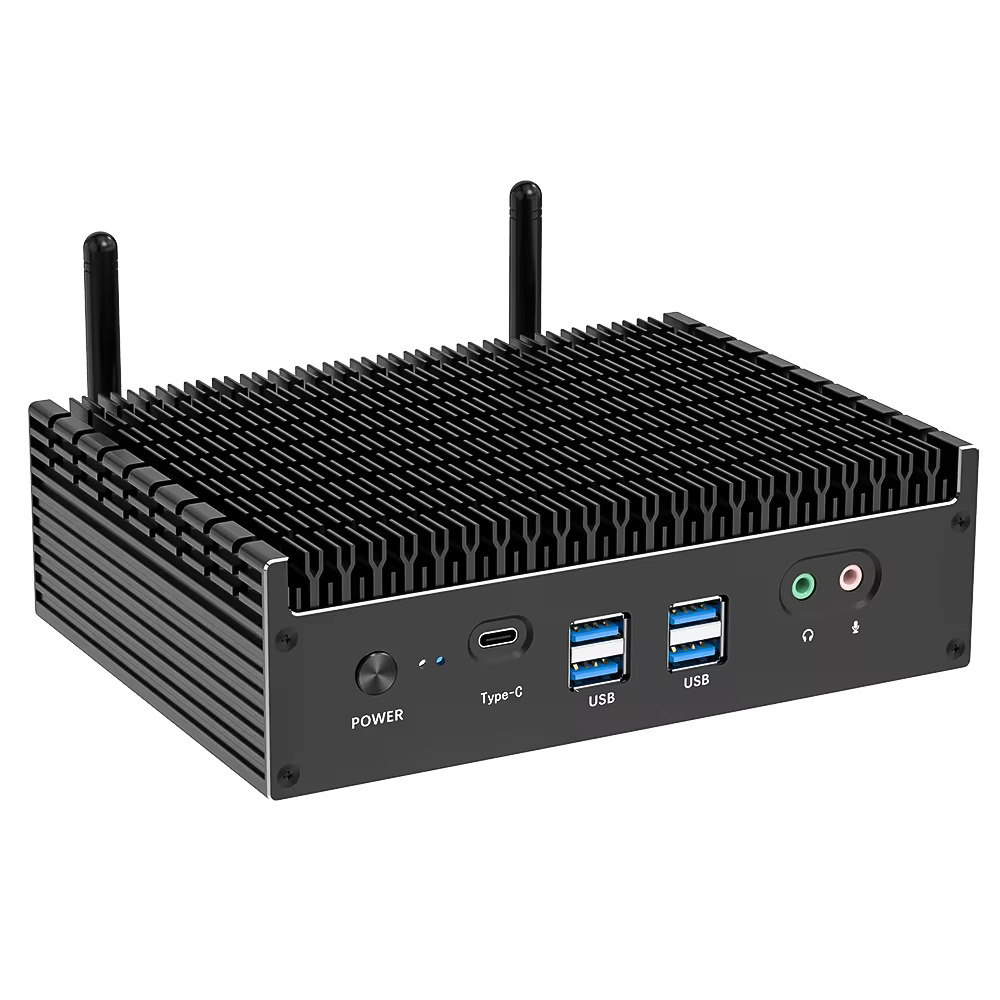

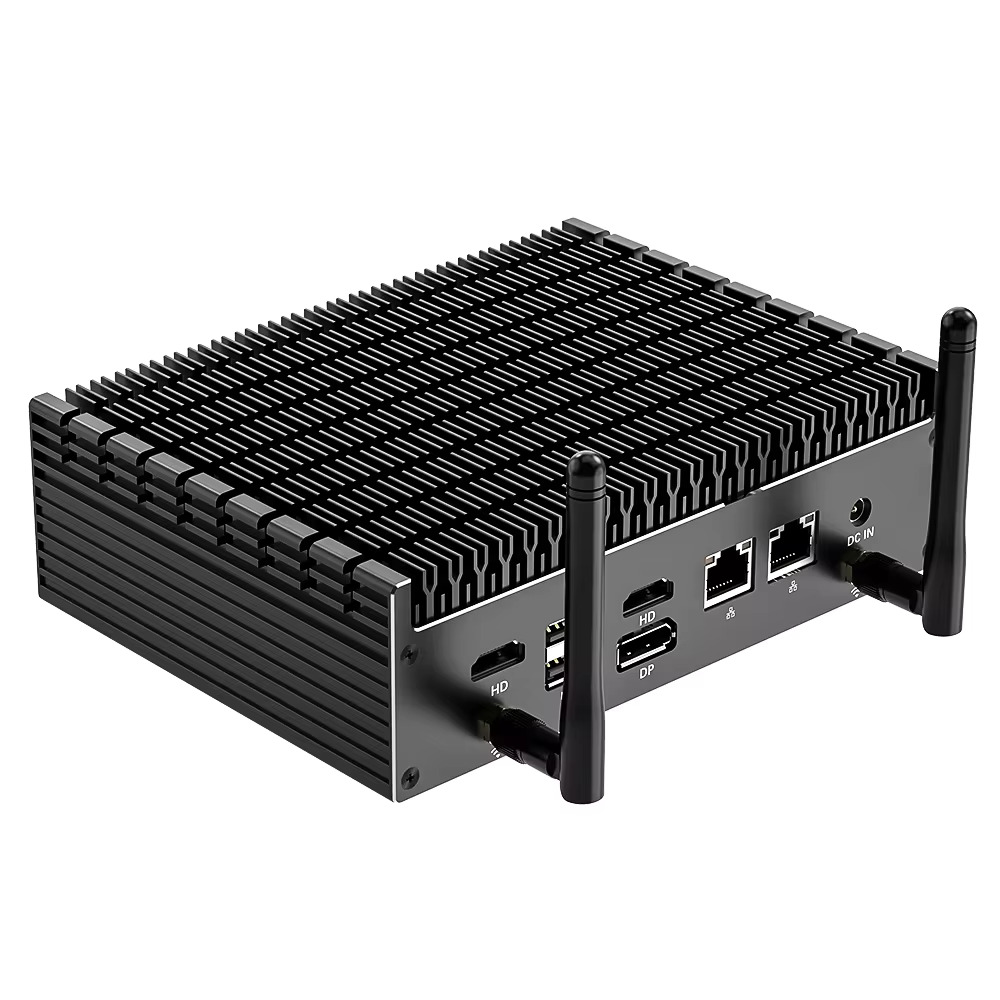

Description: Passive cooled micro computer, model V4-2, with Intel i7 dc 3.7 upto 5 Ghz Processor.This black anodized aluminium pc is build for space saving but high performance applications with connections: Front: On/Off button,2x USB3.0, 1xUSB-C, 2x Audio 3.5 jack. Rear: 2x USB2.0, 1x DP, 2x HDMI, 2x LAN, 1x 19VDC-in. Incl. PSU + EU power cable. Dimensions: 170x126x51mm.
IN STOCK
|
Processor |
|
||
|
Type |
i7-1355U, Raptor Lake |
|
|
|
Cores |
64-bit 10 cores, 12 threads |
|
|
|
Clock speed |
3.7 up to 5.0 Ghz |
|
|
|
Cache |
12 Mb smartCache |
|
|
|
TDP |
15W |
|
|
|
Chipset |
Intel Raptor Lake |
|
|
|
|
|
||
|
Memory |
|
||
|
Supported |
2x SO-DIMM DDR5 memory slots |
|
|
|
Up to 64GB (2x 32GB) DDR5-3200Mhz |
|
||
|
Installed |
None; option 1*4, 2*4, 1*8, 2*8, 1*16, 2*16 Gb |
|
|
|
|
|
||
|
Storage |
|
||
|
Supported |
1x 7mm 2.5’’ SATA3.0 HDD/SSD |
|
|
|
1xM.2 2280 PCIE 4.0x4 |
|
||
|
Installed mSATA SSD |
None, Option: 120, 240, 500, 1000 Gb |
|
|
|
|
|
||
|
Graphics |
|
||
|
GPU |
Intel® Iris® Xe Graphics eligible |
|
|
|
Base Frequency 300 Mhz |
|
||
|
Graphics Max Dynamic Frequency 1.3 Ghz |
|
||
|
Display Interface 1+2 |
HDMI 2.0 up to 4096x2304@60Hz |
|
|
|
Display Interface 3 |
Display port up to 4096x2304@120Hz |
|
|
|
Supported: |
Dual display mode supported |
|
|
|
4K/ 3D blue ray mode supported |
|
||
|
DirectX* Support: 12.1 |
|
||
|
OpenGL* Support 4.6 |
|
||
|
Intel® Quick Sync Video |
|
||
|
Intel® InTru™ 3D Technology |
|
||
|
Intel® Flexible Display Interface (Intel® FDI) |
|
||
|
Intel® Clear Video HD Technology |
|
||
|
Intel® Wireless Display |
|
||
|
Intel® Insider™ |
|
||
|
Audio |
|
||
|
Codec |
Realtek High Definition Audio Azalia Codec support 2.1 channel output |
|
|
|
Audio Input/Output |
1X Headphone-out/ MIC-in phone jack |
|
|
|
|
|
||
|
Networking |
|
||
|
LAN |
2x 2.5GbE LAN ports: |
|
|
|
Onboard Intel i225/i226 2.5 Gigabit Ethernet NIC |
|
||
|
installed Wireless/ Bluetooth |
Built in wifi-bluetooth (on M2 socket) RTL8822CE Wireless NIC dual-band 802.11ac 1200Mbps M2 Wifi card + 5.0 Bluetooth |
|
|
|
|
|
||
|
Connectivity |
|
||
|
USB |
4x USB 3.2 + 2x USB 2.0 |
|
|
|
1x Type-C (Support Thunderbolt 4) |
|
||
|
Serials |
- |
|
|
|
Special ports/connections |
- |
|
|
|
Expansion |
1* Half-size M2 -PCIe socket |
|
|
|
|
|
||
|
Advanced Technologies |
|
||
|
Intel® Hyper-Threading Technology |
|
||
|
Intel® Virtualization Technology (VT-x) |
|
||
|
Intel® Virtualization Technology for Directed I/O (VT-d) |
|
||
|
Intel® VT-x with Extended Page Tables (EPT) |
|
||
|
Intel® 64 |
|
||
|
Idle States |
|
||
|
Enhanced Intel SpeedStep® Technology |
|
||
|
Thermal Monitoring Technologies |
|
||
|
Instruction Set Extensions: SSE4.1/4.2, AVX 2.0 |
|
||
|
Intel® HD Audio Technology |
|
||
|
Intel® Identity Protection Technology |
|
||
|
Intel® Rapid Storage Technology |
|
||
|
Intel® Smart Connect Technology |
|
||
|
|
|||
|
|
|
|
|
|
Special Functionality |
Auto-On |
|
|
|
Wake-on-LAN |
|
||
|
Wake-on-Timer |
|
||
|
PXE Boot |
|
||
|
Watchdog |
|
||
|
Bootloader |
|
||
|
Vendor |
AMI (American Megatrends) |
|
|
|
Features |
ACPI supported |
|
|
|
UEFI 2.4 supported |
|
||
|
support call on function automatically |
|
||
|
Operating System |
|
||
|
Supported |
Windows 7/8/10/11/ 10IOT2021, 11IOT2024, 32-bits and 64-bits |
|
|
|
Windows Server 2012/ 2016 |
|
||
|
Linux 32-bit and 64-bit |
|
||
|
Embedded OS |
|
||
|
Official Linux |
|
|
|
|
Installed |
None, Optional |
|
|
|
|
|
||
|
Operating Conditions |
|
||
|
Input Voltage |
DC 19V |
|
|
|
Power Consumption |
12W – 55W, Idle: 1W |
|
|
|
Storage Temperature |
-30°C~70°C |
|
|
|
Operating Termperature |
-20°C – 60°C |
||
|
Humidity |
10-90% |
|
|
|
|
|
||
|
Enclosure |
|
||
|
Material |
Full Aluminum enclosure, black anodized |
|
|
|
Cooling |
Passive Cooling Fanless Design |
|
|
|
Dimensions (WxDXH) |
170x126x51 mm |
|
|
|
Weight computer |
1000 gramm |
|
|
|
Weight total package |
1500 gramm |
|
|
|
|
|
||
|
Certifications |
|
||
|
Documents |
CE, FCC, ROHS |
|
|
|
|
|
||
|
Package |
|
||
|
In the Box |
1. Computer |
|
|
|
2. Power supply: input 100-240VAC 50/60Hz, 60W output 12VDC 5A, EU power cable (UK or USA on request) |
|
||
|
|
|||
|
3. Audio 3.5mm cable (option) |
|
||
|
4. WiFi 2.4GHz/5GHz band 2 antennas (wifi option) |
|
||
|
5. Vesa bracket |
|
||
|
Warranty |
2 years bring-in |
|
|
|
General specifications : |
 |
| Driver downloads : |  |
| Options: | (including installation) |
| Standard delivery: | With PSU and EU power cable, audio cable 3.5mm plug and vesa mount bracket. |
| Memory capacity: | No memory (standard), 4, 8, 16 or 32 Gb SoDimm |
| Storage capacity mSata: | No storage (standard), 120/ 240 or 480 or 1000 Gb |
| Operating system (OS): |
No OS (standard), Ubuntu 22.04LTS, Win10IOT2021, Win11IOT2024, Win10/11 Home and Pro.
OS will be installed by default on the mSata SSD if sata and msata storage is chosen.
|
| Storage capacity Sata | No storage (standard), 120/ 240/ 480/ 960 or 2000 Gb |
| Wlan/ Bluetooth |
-With or Without Wlan/ Bluetooth
|
| Input equipment: | None (standard) or wireless keyboard/ mouse |
