A1Touch-V1-i5 or -i7 passive cooled mini pc
Net price (excl.VAT) €499,00
Art.No.:
1020153137 Brand:
A1Touch Solution
Type A1Touch-V1-i5-4210U or A1Touch-V1-i7-4500U barebone.

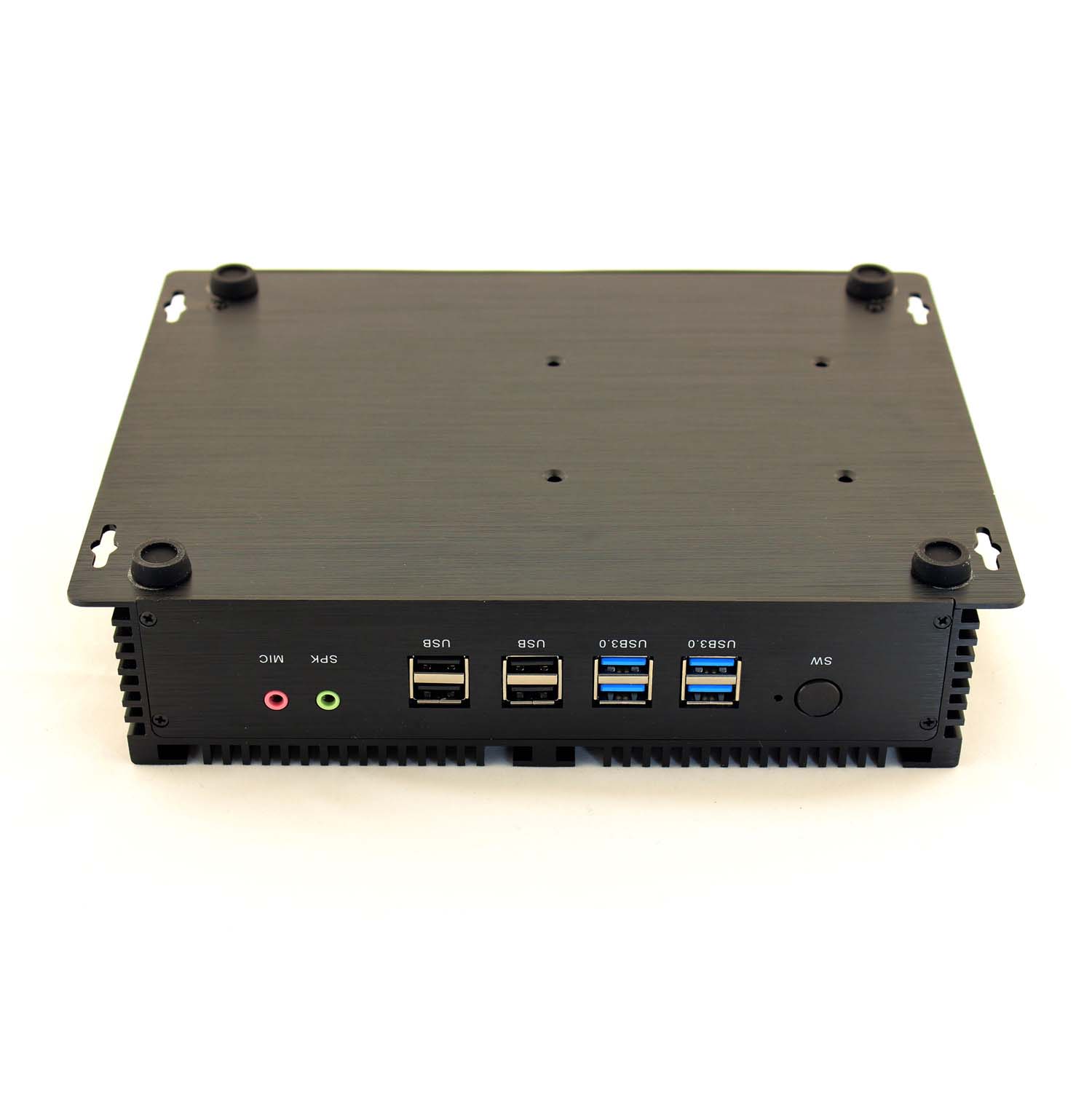

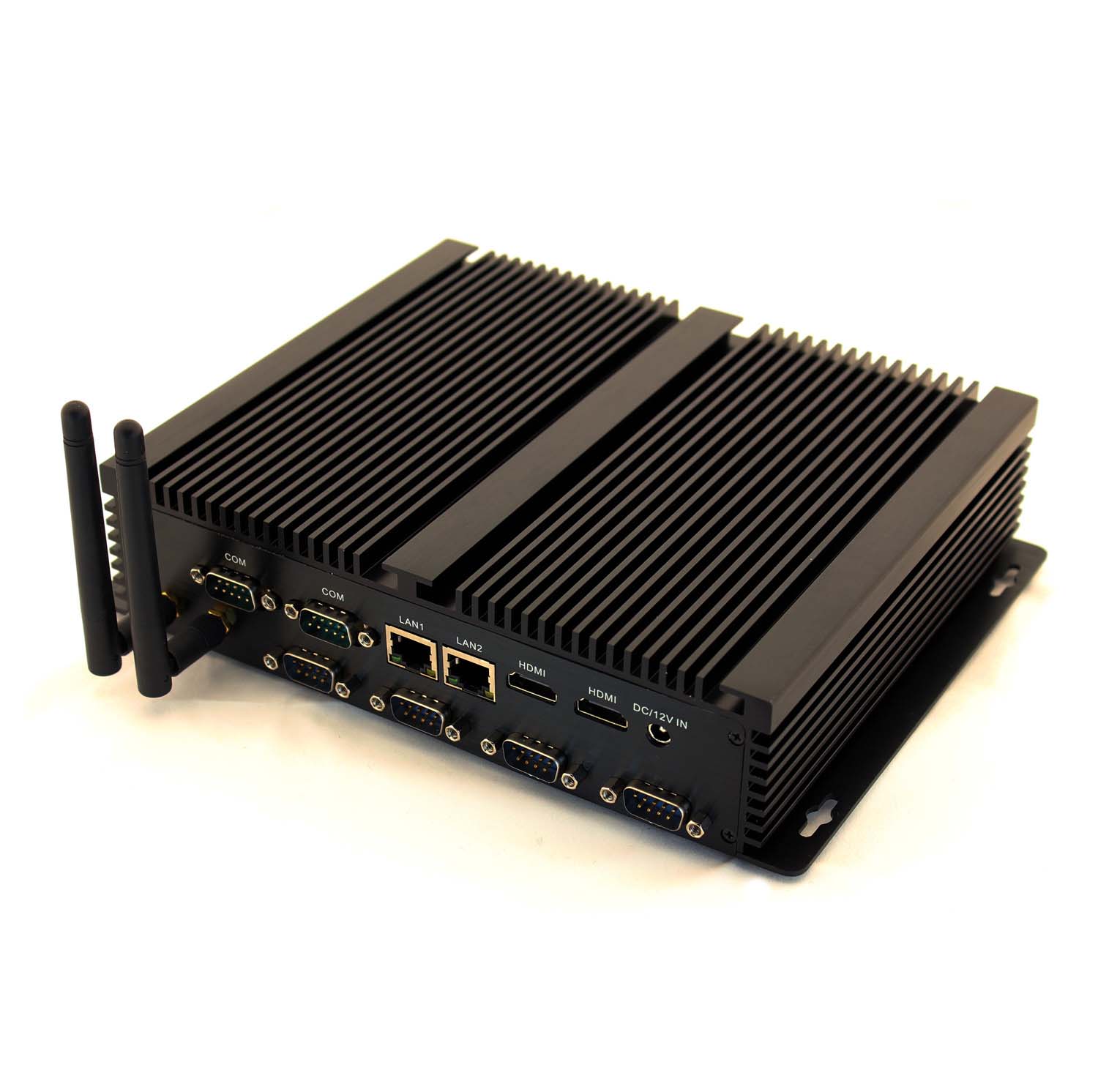

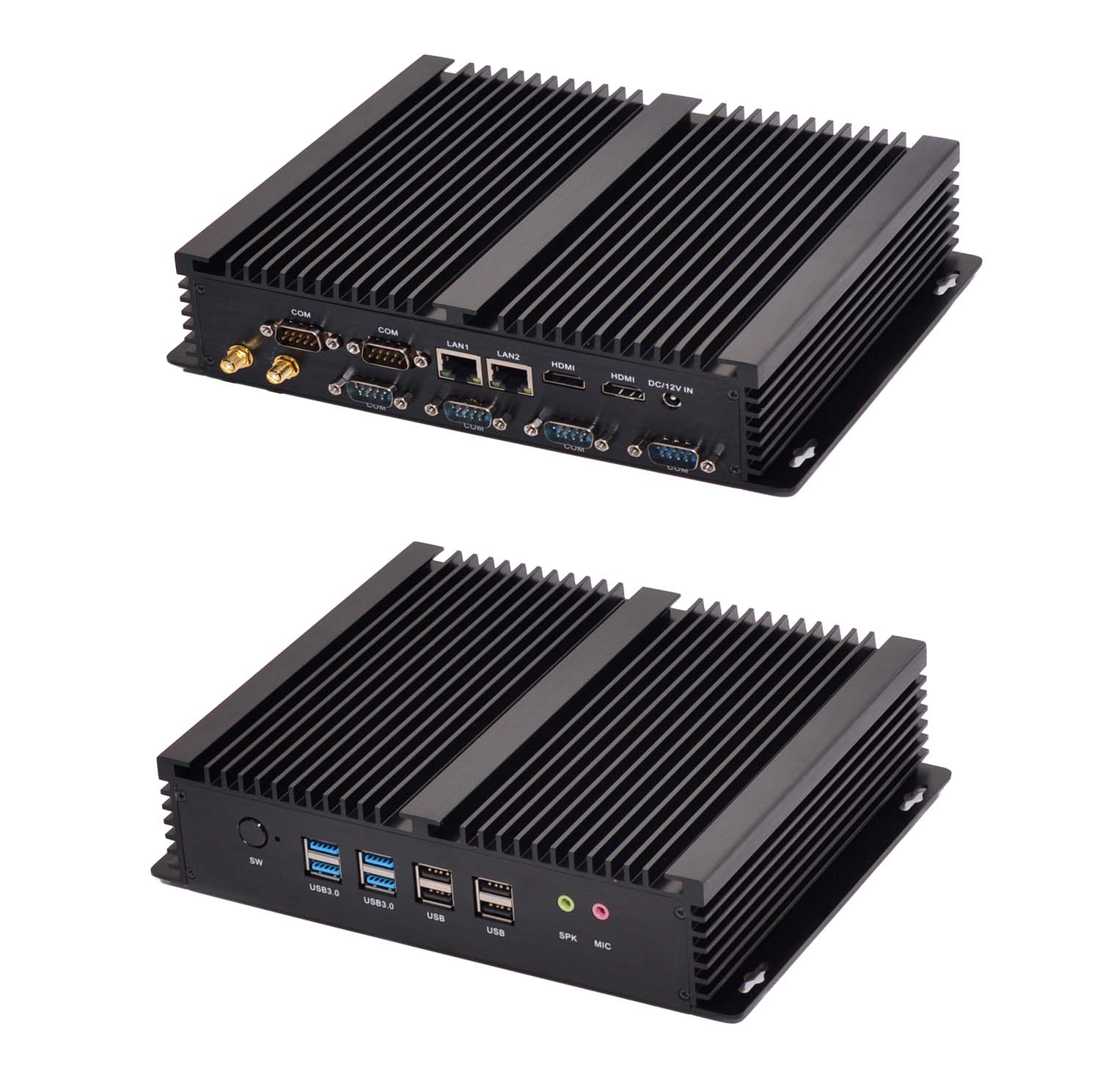

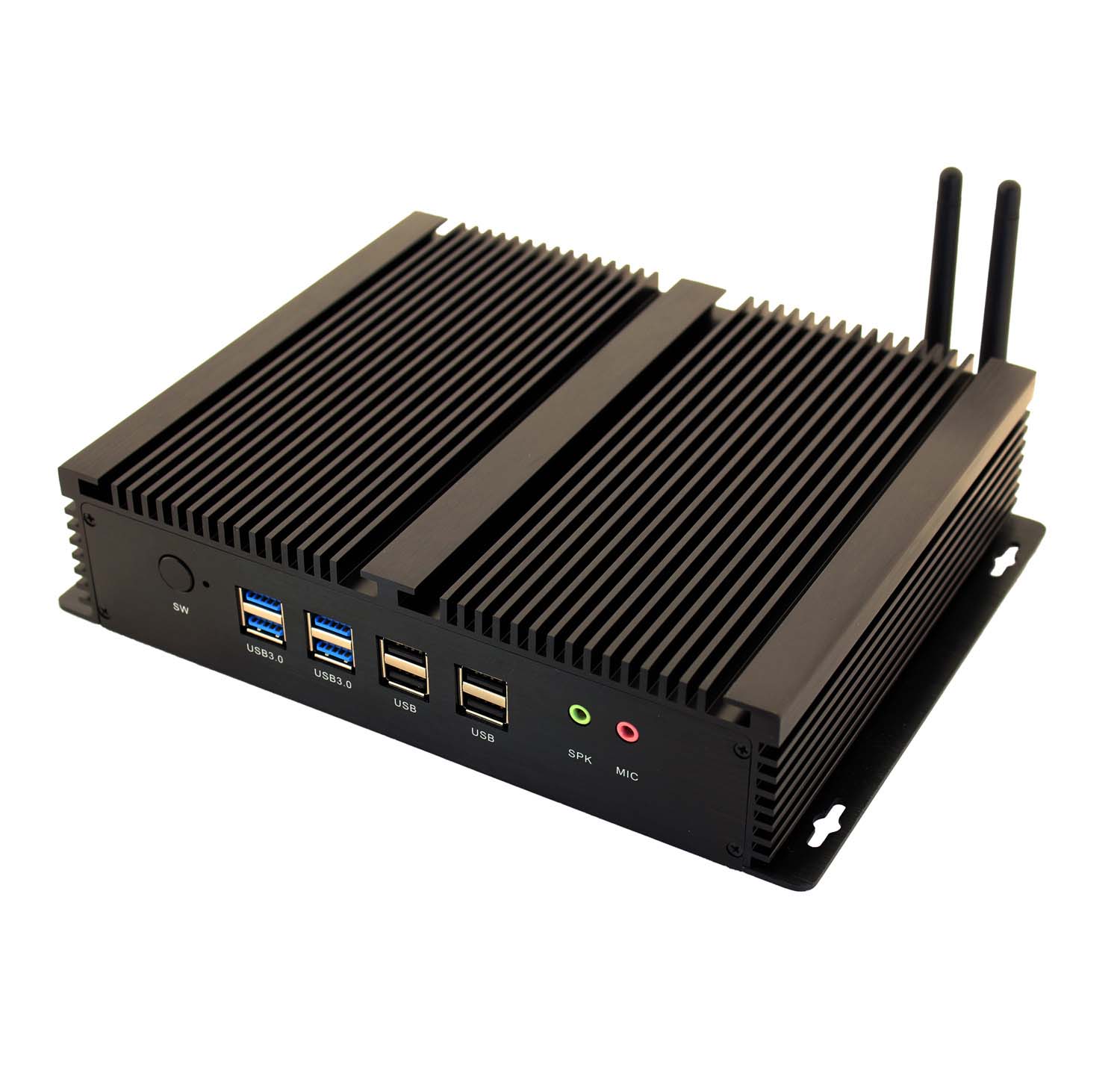

Description: Passive cooled Industrial mini computer, model V1, with Intel i5 dc 2.9 Ghz or Intel i7 dc 2-3.10 Ghz Processor.This full metal Mini pc is build for long term use with all necessary connections: FRONT: On/Off button, 4xUSB2 4xUSB3, mic, spk. BACK side: 6xRS232, 2xGb LAN, 2x HDMI. 12Vdc Dimension: 234*150*45mm.
V1-i5 and V1-i7 are in stock.
| Processor | |||
|---|---|---|---|
| Type | Intel i5--4300U or Intel i7-4510U Haswell | ||
| Cores | 64-bit 2 core, 4 thread | ||
| Clock speed | i5 version: 1.9 up to 2.9Ghz | i7 version: 2 up to 3.10 Ghz | ||
| Cache | i5 version: 3 Mb smartCache | i7 version: 4 Mb smartCache | ||
| TDP | 15W | ||
| Chipset | Haswell Lynx Point LP | ||
| Memory | |||
| Supported | 1x SO-DIMM 204-pin DDR3L SDRAM memory slots | ||
| Up to 16GB (1x 16GB) DDR3L-1333/1600 (1.35V only) | |||
| Installed | None; option 1*2, 1*4, 1*8, 1*16 Gb | ||
| Storage | |||
| Supported | 1x SATA up to 6 Gbps (SATA 3.0) for internal 2.5” HDD/SSD | ||
| 1x mSATA slot up to 6 Gbps (SATA 3.0) | |||
| Installed mSATA SSD | None, Option: 30, 60, 120, 240, 480 Gb, 1 Tb | ||
| Installed SATA HD/SSD | None, option: HD: 250, 500 Gb; SSD: 120, 240, 480 Gb, 1 Tb | ||
| Graphics | |||
| GPU | Intel HD Graphics 4400 (350~1050MHz) | ||
| Base Frequency 200 Mhz | |||
| Graphics Max Dynamic Frequency 1.1 GHz | |||
| Graphics Video Max Memory 2 GB | |||
| Display Interface 1 | HDMI 1.4a up to 3200x2000@60Hz | ||
| Display Interface 2 | HDMI 1.4a up to 3200x2000@60Hz | ||
| Supported: | Dual display mode supported | ||
| 4K mode supported | |||
| DirectX* Support: 11.2/12 | |||
| OpenGL* Support 4.3 | |||
| Intel® Quick Sync Video | |||
| Intel® InTru™ 3D Technology | |||
| Intel® Flexible Display Interface (Intel® FDI) | |||
| Intel® Clear Video HD Technology | |||
| Intel® Wireless Display | |||
| Intel® Insider™ | |||
| Audio | |||
| Codec | Realtek ALC892 HIFI sound chip, 6-channel | ||
| Audio Output | Analog stereo output | ||
| 3.5mm jack | |||
| Audio Input | |||
| Analog stereo Microphone input | |||
| 3.5mm jack | |||
| Networking | |||
| LAN | 2x GbE LAN ports: | ||
| LAN1:Intel 82583V PCI-E Gigabit Ethernet NIC (RJ-45) | |||
| LAN2:Intel 82583V PCI-E Gigabit Ethernet NIC (RJ-45) | |||
| installed Wireless/ Bluetooth | none, option via mini PCIe dual antenna | ||
| Connectivity | |||
| USB | 4x USB 3.0 | ||
| 4x USB 2.0 | |||
| Serials | 6x RS232 COM | ||
| Special ports/connections | - | ||
| Expansion | 1 * 3G SIM Card slot (option) | ||
| 1* Half-size mini-PCIe socket | |||
| 1* Full-size mini-PCIe/mSATA socket | |||
| Advanced Technologies | |||
| Intel® Turbo Boost Technology 2.0 (only i7 version) | |||
| Intel® Hyper-Threading Technology | |||
| Intel® Virtualization Technology (VT-x) | |||
| Intel® Virtualization Technology for Directed I/O (VT-d) | |||
| Intel® VT-x with Extended Page Tables (EPT) | |||
| Intel® 64 | |||
| Idle States | |||
| Enhanced Intel SpeedStep® Technology | |||
| Thermal Monitoring Technologies | |||
| Intel® ME Firmware Version 9.5 | |||
| Intel® HD Audio Technology | |||
| Intel® Identity Protection Technology | |||
| Intel® Rapid Storage Technology | |||
| Intel® Smart Connect Technology | |||
| Special Functionality | Auto-On | ||
| Wake-on-LAN | |||
| Wake-on-Timer | |||
| PXE Boot | |||
| Watchdog | |||
| Bootloader | |||
| Vendor | AMI (American Megatrends) | ||
| Features | ACPI supported | ||
| UEFI 2.4 supported | |||
| support call on function automatically | |||
| Operating System | |||
| Supported | Windows 7/8/10/11/ 10IOT ent 2021,11IOT ent 2024 | ||
| Linux 32-bit and 64-bit | |||
| Embedded OS | |||
| Official Linux |
|
||
| Installed | None, Optional | ||
| Operating Conditions | |||
| Input Voltage | DC 12V | ||
| Power Consumption | 6W – 15W, Idle: 1.0W | ||
| Storage Temperature | -20°C~80°C | ||
| Operational Temperature | HDD models: 0°C – 50°C | ||
| SSD models: 0°C – 70°C | |||
| Humidity | 10%-90% | ||
| Enclosure | |||
| Material | Full Aluminum enclosure, black anodized | ||
| Cooling | Passive Cooling Fanless Design | ||
| Dimensions (WxDXH) | 234*176*52mm (bottom), 212*176*52mm (top) | ||
| Weight computer | 1500 gramm | ||
| Weight total package | 2000 gramm | ||
| Certifications | |||
| Documents | CE, FCC, ROHS | ||
| Package | |||

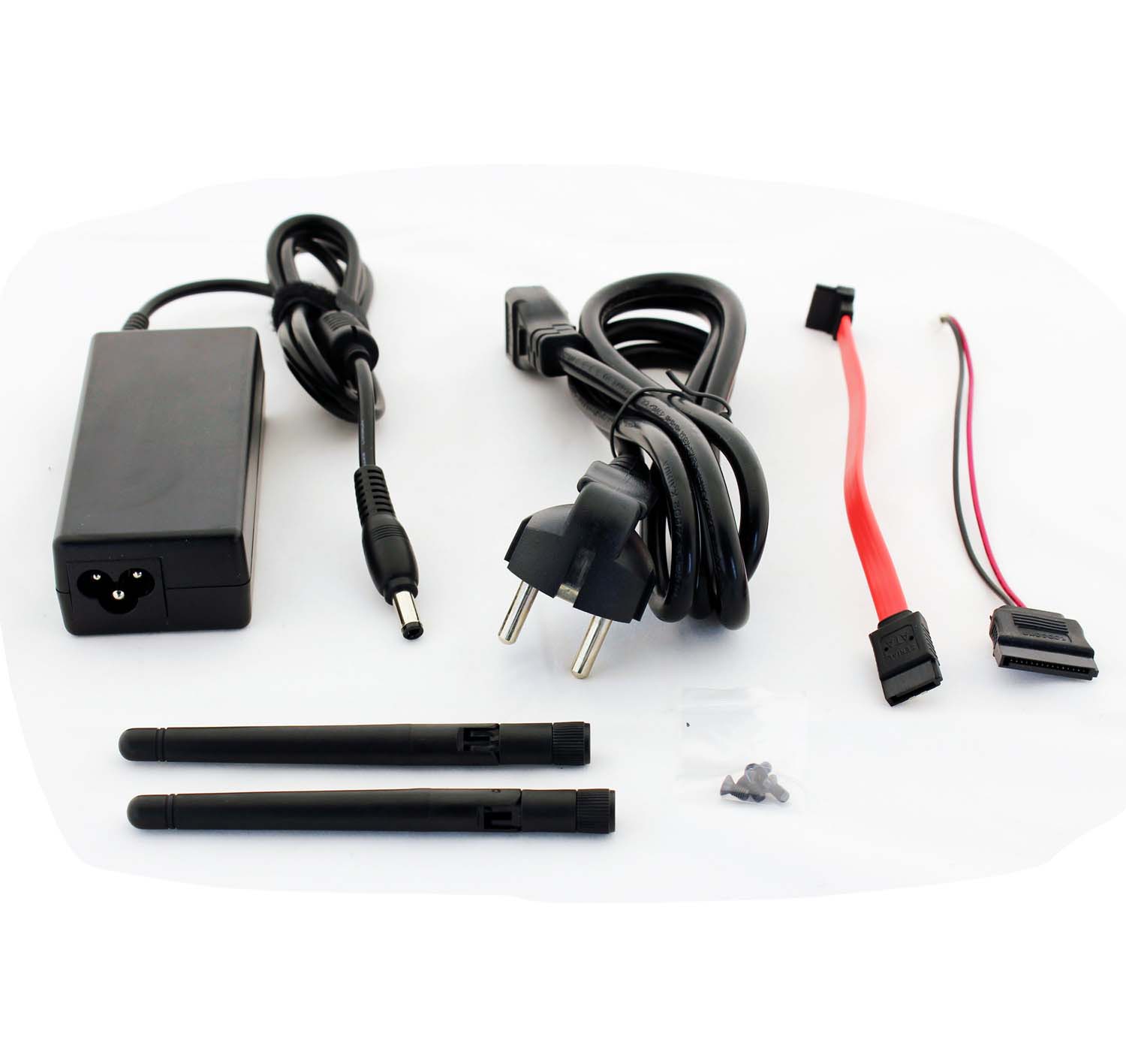

| In the Box | 1. Computer | ||
| 2. Power supply: input 100-240VAC 50/60Hz, 30W output 12VDC 2.5A (i3), 5A (i7). | |||
| EU power cable (UK or USA on request) | |||
| 3. Audio 3.5mm cable | |||
| 4. WiFi 2.4GHz/5GHz band 2 antennas (wifi option) | |||
| Warranty | 2 years bring-in | ||
|
General specifications : |
 |
|
Specifications processor Intel i7-4510U : |
|
| Driver downloads : |  |
| Options: | (including installation) |
| Standard delivery: | With PSU and EU power cable kabel and audio 3.5mm cable. |
| Memory capacity: | No memory (standard), 2, 4 or 8 Gb SoDimm |
| Storage capacity mSata: | No storage (standard), 30/ 60/ 120/ 240/ 480 Gb or 1 Tb mSata |
| Storage capacity Sata: | No storage (standard), Harddisk 250/500 Gb or SSD in 60/ 120/ 240/ 500 Gb or 1 Tb. |
| Operating system (OS): |
No OS (standard), Ubuntu 22.04LTS, Win10Home and Pro or Win10IOT2021 or Win11IOT2024
OS will be installed by default on the mSata SSD if sata and msata storage is chosen.
|
| Wlan/ Bluetooth |
-Without Wlan/ Bluetooth (strandard),
-with Wlan Wifi card DNXA-95 incl. kabels en 2 antennes, of
-with WLAN+BlueTooth; MiniPCIe Qualcom Atheros model: QCWB335,driver: QCA 9565, Freq. Range: 2.4GHz/5GHz Dual band, 802.11a/b/g,802.11n + Bluetooth 4.0 incl.cables and 2 antennas
|
| Input equipment: | None (standard) or wireless keyboard/ mouse |
