19" PCAP Panel mount PC (Extreme)

Touchscreen
19" PCAP Panel mount PC (Extreme)
Net price (excl.VAT) €1885,00
Art.No.:
1020153677
Brand:
A1Touch Solution
Type: All in one A1Touch-Z690M-i5-12400/AOD190-GPCAP-TPMB: (active cooled)
Description: 19 inch panel pc with Intel Core I5-12400 6 core 12 threads 2.5 up to 4.4 Ghz processor, with pcap touchscreen. Bezel free tempered front glass. Metal casing with mini itx format pc for hufter proof and long life use.
Unit is in stock
Monitor specs:
Color/ material panel: 4mm glare tempered glass with black borders
Model: 19 inch XGA TFT LCD Monitor
Type: 19 inch Color Active Matrix TFT LCD  (LG LM190EOA)
Resolution (max): 1280 x 1024 (SXGA)
Color: 16,7 million
Pixel: 0.0976 x 0.2928 mm
Brightness: 300 cd/m²
Contrast ratio: 800:1
Viewing angle: 89°/89° horizontal & 89°/89° vertical
Response time 8 ms
Active area: 376,32 (H) x 301,056 (V) mm

Computer specs:
Type computerboard: Intel Z690M-ITX
Chipset: Intel® Z690M
Processor: Processor Intel Core i5 12400, 65W, 12th gen. 2.5 upto 4.4Ghz, 6 core, 12 thread, UHD Graphics 730
Memory Supported memory types DDR4-UDIMM Non-ECC mode
Amount of memory slots 2
Memory slot type DIMM
Memory Channel Dual
Non-ECC yes
Supported memory clock speeds 3200 Mhz Natively
Maximum internal memory 64 GB
Not gebufferd memory yes
Bios BIOS type UEFI AMI
BIOS-memory size 256 Mbit
ACPI version 6.0
Clear CMOS jumper yes
Plug and play yes
System Management BIOS (SMBIOS) version 2.7 support
Graphics Architecture (Gen 12) Intel Xe Graphics
Built-in grafical adapter yes
Grafical adapter-family Intel
Maximum resolution 4096 x 2160 Pixels HDMI, 7680x4320 Pixels via DP
Network Ethernet LAN yes, 2 x LAN
Ethernet interface type 2.5 Gigabit Ethernet and 1 Gb Ethernet
LAN controller Realtek RTL8125BG (2.5Gb) and Intel I219V (1Gb)
Wi-Fi Yes, 802.11ax Wi-Fi 6E  Module, supports IEEE 802.11a/b/g/n/ax
Bluetooth Yes, 5.3 High speed class II
Audio Realtek® ALC897 8-Channel High Definition Audio CODEC
IDE, SATA, Flash 4 x SATA3  6.0 Gb/s Connectors, 1 x M.2 Socket M2_1 Key M, supports type 2280 PCIe Gen4x4 (64Gb/s) Mode Chipset, 1 x M.2 Socket M2_2 Key M, support type 2280 SATA3 6.0Gb/s & PCIe Gen4x4 (64Gb/s) modes
RAID: Yes, Raid 0, 1, and 5
Operating system Windows 7, 8, 10 Linux, Win CE, Win7emb, Win10IOT.

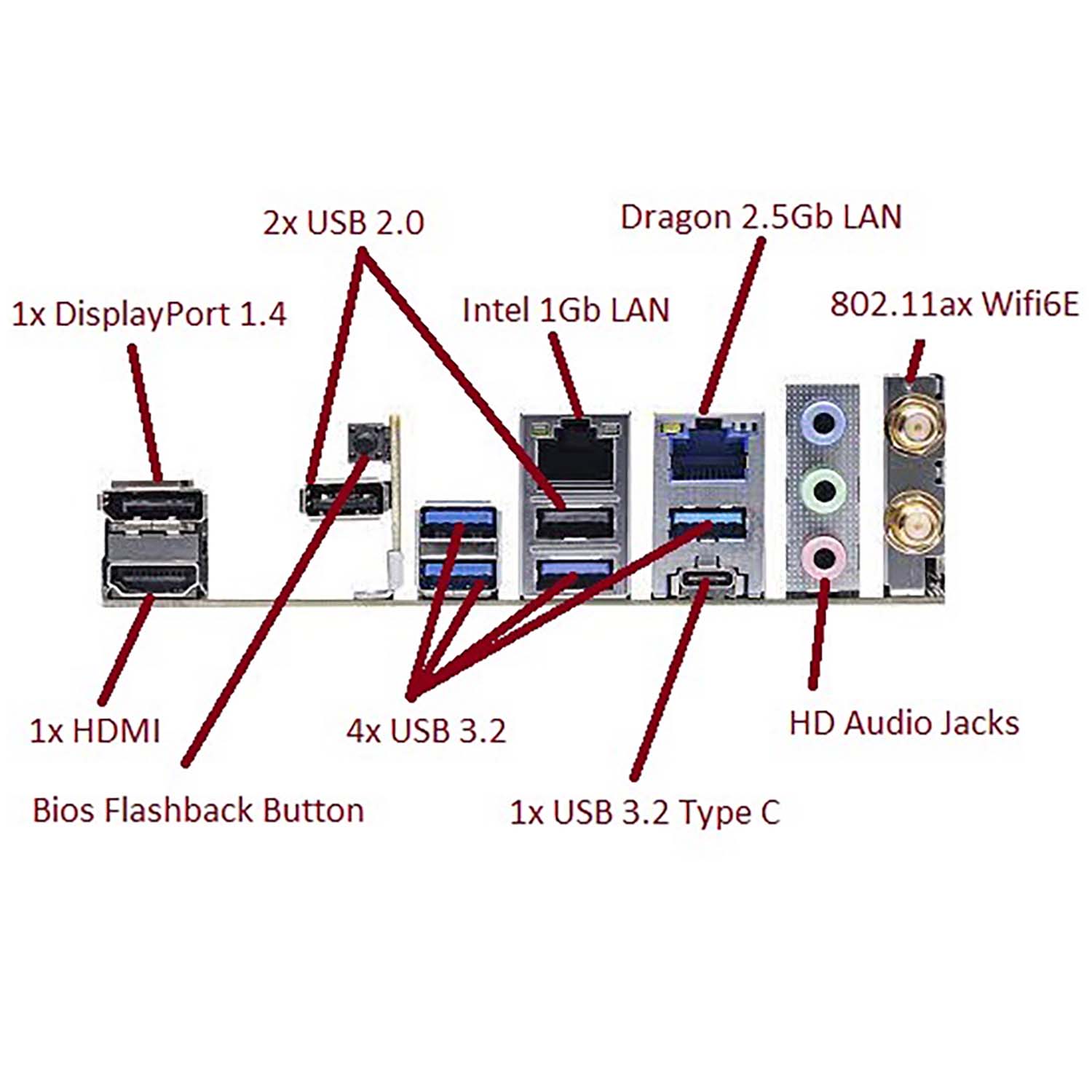

I/O connections back: USB 3.2 Gen2 Ports (10 Gb/s) (Supports ESD Protection) : 4
USB 3.2 Gen 2x2 Type-C Port (20 Gb/s) (Supports ESD Protection) : 1
Ethernet LAN (RJ-45)-ports : 2
HDMI-ports : 1
Display ports : 1
Bios Flashback Button : 1
Audio jack(s) – Mic – Line in – Line out : 3
Internal I/O: PCI Express 5.0x16 Slot (PCIE1), supports x16 mode : 1
USB 2.0 connections : 1
USB 3.1 Gen 1 (up to 5Gbps) connectors : 1
Amount of SATA 6Gb/s connectors : 4
Audioconnector : yes

General:
Energy requirements 35W normal use; 80 W max.; 5 W stand by.
Power Power supply 84 W External
Weight 5 Kg
Mounting: VESA 100mm
Dimensions system(B x H x D) 485x413x88 mm
Touch info:
Touch type: Projected Capacitive touchscreen
Touch spec: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-2,4 or 10 points touch (2 standard, more on request)
-activation force less than 1 gramm.
External protection: Front completely glass, so 100% watertight
Glass sensor: 4mm thick tempered glass with black ceramic borders.
Surface hardness: Mohs' hardness = 6
Responstime: Max. 20 msec.

Options:
Standard delivery: With psu, EU power cable and dvi cable. Other psu-cable options on request.
Memory capacity: No memory (standard), 2, 4 or 8 Gb SoDimm
Storage capacity Sata: No strage (standard), Harddisk 250/500 Gb or SSD in 60/120/240 or 480 Gb.
Operating system: NO OS (standard), Win7 embedded WSP7 multilangual, Win7Pro, Win8Home and Pro, Win10Home and Pro.
Input equipment: None (standard) or wireless keyboard/mouse
Accoustic options:
- No speakers/microphone (Standard),
- with usb stereo soundbar 2x2 Watt/ no microphone or
- with usb stereo soundbar 2x2Watt and microphone with 3.5mm plug.

Specifications / Manual :

Specs 19 inch pcap panel mount pc1900B manual
Dimensions : Dimensions  19 inch pcap panel mount pc1900B
Mounting instructions :
Driver downloads : Driver downloads
