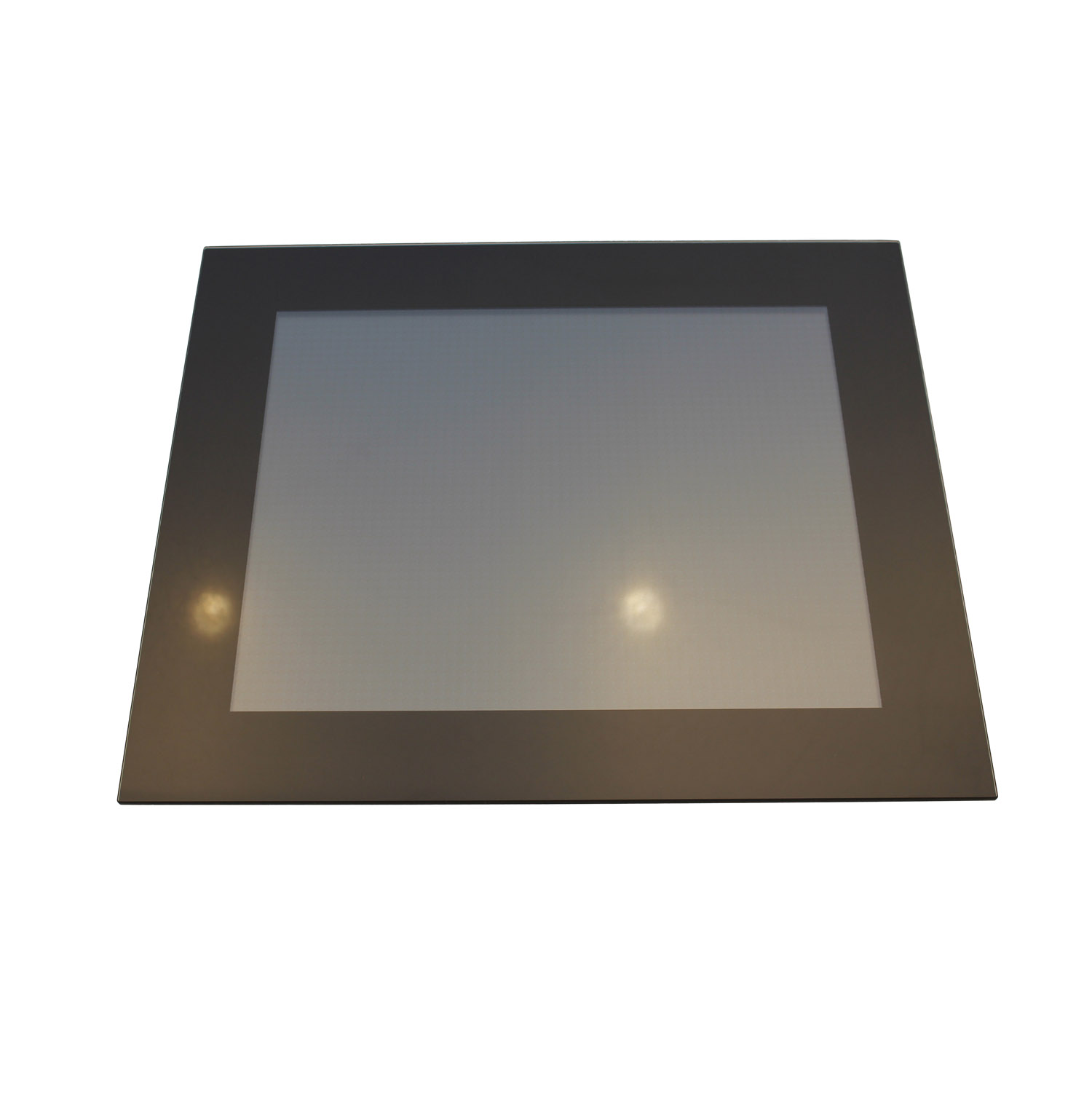

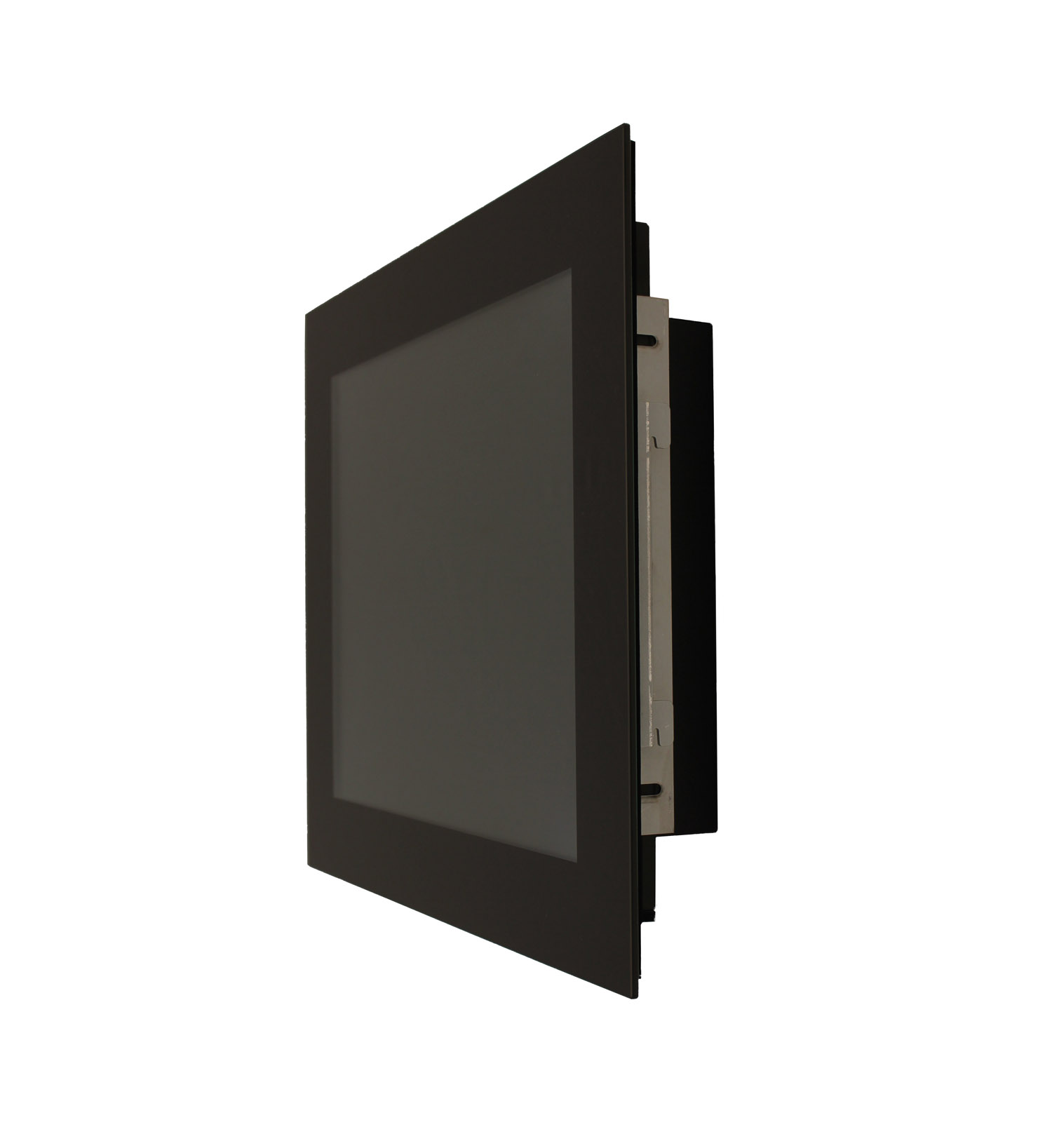

17" PCAP Panel mount PC (Passive Cooled)

pcap touchscreen - pcap touchscreen
pcap touchscreen - pcap touchscreenpcap touchscreen - pcap touchscreenpcap touchscreen - pcap touchscreenpcap touchscreen - pcap touchscreenconnections computer
17" PCAP Panel mount PC (Passive Cooled)
Net price (excl.VAT) €1185,00
Art.No.:
1020153079
Brand:
A1Touch Solution
Type: All in one A1Touch-J3455/AOD170-GPCAP-TPMB (passive cooled)
​​​​Description: 17 inch panel pc with or without touchscreen. Unit made of black powder coated metal with mini itx format computer for hufter proof and long life use.
Unit is in stock
Monitor specs:
Color panel: 4mm temepered glass with black borders
Model: 17 inch XGA TFT LCD Monitor
Type: 17 inch Color Active Matrix TFT LCD  (AUO M170ETN01.1)
Resolution (max): 1280 x 1024 (WVGA)
Color: 16,2 million
Pixel: 0.264 x 0.264 mm
Brightness: 300 cd/m²
Contrast ratio: 1000:1
Viewing angle: 88°/88° horizontal & 85°/85° vertical
Response time 5 ms
Active area: 337,9 (H) x 270,3 (V) mm
Computer specs:
Type computerboard Intel J3455 Quad core upto 2.3 Ghz, passive cooled
Chipset No seperate chipset
Memory 2 x DDR3/DDR3L SO-DIMM Slots
Bios
  • 64Mb AMI UEFI Legal BIOS with GUI support
  • Supports Plug and Play
  • ACPI 5.0 compliant wake up events
  • Supports jumperfree
  • SMBIOS 3.0 support
Processor Intel J3455 Quad core upto 2.3Ghz processor
Flashmodule/ Harddisk Sata SSD and SATA Harddisk.possible
Graphics
  • Integrated Intel® HD Graphics 500: 12 EUs inside (Up to 750MHz)
  • DirectX 12, Pixel Shader 5.0
  • Three graphics output options: D-Sub, DVI-D and HDMI
  • Supports Triple Monitor
  • Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
  • Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
  • Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
  • Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI 2.0 monitor is required)
  • Supports HW Accelerated Decoders: H.264 @ level 5.2, HEVC (H.265) 10b @MP level 5.1 (GPU accelerated), JPEG, VP8, VP9
  • Supports HDCP with DVI-D and HDMI 2.0 Ports
  • Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI 2.0 Ports
LAN (RJ-45)
  • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  • Realtek RTL8111GR
  • Supports Wake-On-WAN
  • Supports Wake-On-LAN
  • Supports Lightning/ESD Protection (ASRock Full Spike Protection)
  • Supports LAN Cable Detection
  • Supports Energy Efficient Ethernet 802.3az
  • Supports PXE
Audio
  • 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
  • Premium Blu-ray Audio support
  • Supports Surge Protection (ASRock Full Spike Protection)
  • ELNA Audio Caps
IDE, SATA, Flash 2 x SATA2 3.0 Gb/s Connectors, supporting NCQ, AHCI and
Hot Plug
Hardware Monitor + Power Management Temperature, Voltage, Case open function, Watch Dog timer (manufacturing option)
Operating system Windows 10, 11, Linux, Win CE, Win10IOT

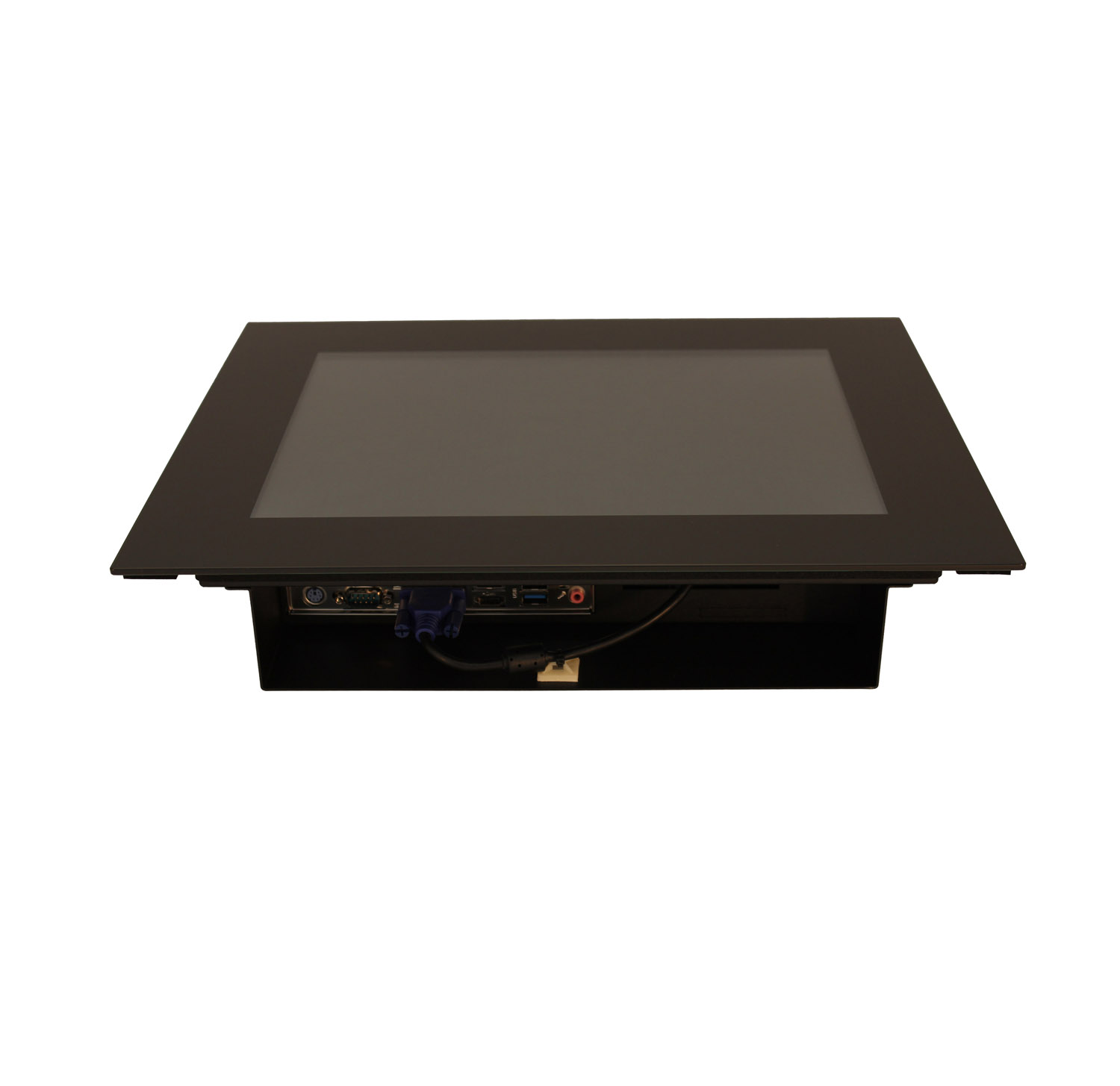

I/O system:
  • 1 x PS/2 Mouse Port
  • 1 x PS/2 Keyboard Port
  • 1 x D-Sub Port (occupied)
  • 1 x DVI-D Port
  • 1 x HDMI Port
  • 1 x Optical SPDIF Out Port
  • 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
  • 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jacks: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Internal I/O:
  • 1 x PCI Express 2.0 x1 Slot
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
  • 1 x COM Port Header
  • 1 x TPM Header
  • 1 x Chassis Intrusion and Speaker Header
  • 1 x CPU Fan Connector (3-pin)
  • 1 x Chassis Fan Connector (3-pin)
  • 1 x 24 pin ATX Power Connector
  • 1 x Front Panel Audio Connector
  • 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
  • 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Energy requirements 35W normal use; 80 W max.; 5 W stand by.
Power Power supply 84 W External
Weight 4 Kg

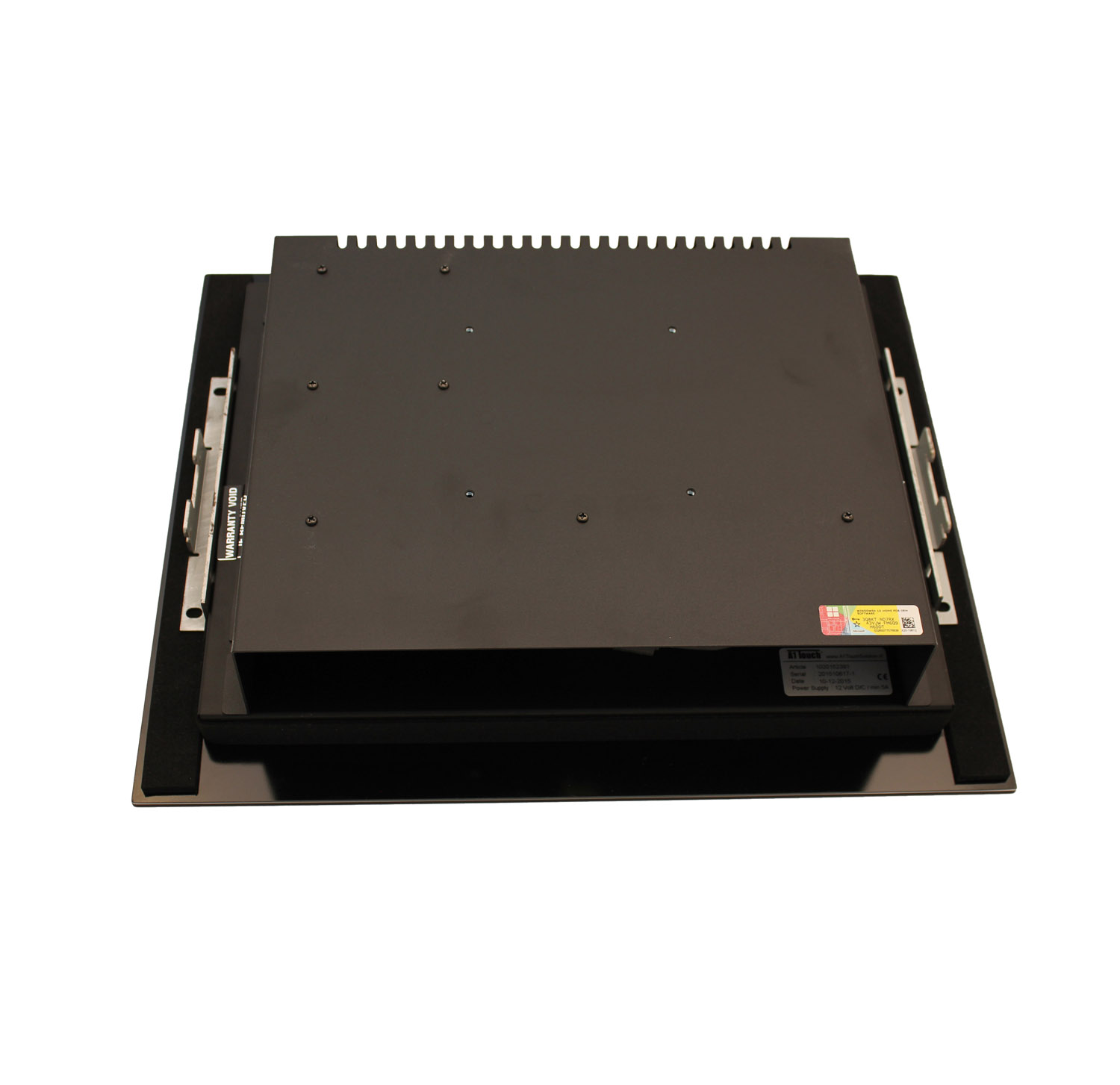

Mounting: VESA 100mm
Dimensions system(B x H x D) 440x372x87 mm
Touch info:
Touch type: Projected Capacitive
Touch spec: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-2,4 or 10 points touch (2 standard, more on request)
-activation force less than 1 gramm.
External protection: Front completely glass, so 100% watertight
Glass sensor: 4mm thick tempered glass with black ceramic borders..
Surface hardness: Mohs' hardness = 6
Responstime: Max. 20 msec.
Options:
Memory capacity: No memory (standard), 2, 4 or 8 Gb SoDimm
Storage capacity Sata: No strage (standard), Harddisk 250/500 Gb or SSD in 60/120/240 or 480 Gb.
Operating system: NO OS (standard), Win7 embedded WSP7 multilangual, Win7Pro, Win8Home and Pro, Win10Home and Pro.
Input equipment: None (standard) or wireless keyboard/mouse
Accoustic options:
- No speakers/microphone (Standard),
- with usb stereo soundbar 2x2 Watt/ no microphone or
- with usb stereo soundbar 2x2Watt and microphone with 3.5mm plug.
