15" Black Panel mount PC (Passive Cooled)

Brand:

A1Touch Solution

Type: All in one A1Touch J3455/AOD150-PMB; AOD / ATS 15" Black panel mount (touch)Computer J3455 passive cooled.

Description: 15 inch panel pc with or without touchscreen. Unit made of black powder coated metal with mini itx format computer for hufter proof and long life use.

Unit is in stock.

Specs
Options
Downloads
Purchase

Monitor specs:
Color panel:	Black powder Coated (other colors on request)
Model:	15 inch XGA TFT LCD Monitor
Type:	15" Color Active Matrix TFT LCD (AUO G150XG03 V5)
Resolution (max):	1024 x 768 (XGA)
Color:	16,2 million
Pixel:	0.297 x 0.1297 mm
Brightness:	350 cd/m²
Contrast ratio:	700:1
Viewing angle:	85°/85° horizontal & 80°/80° vertical
Respons time	8 ms
Active area:	304,1 (H) x 228,1 (V) mm
Touchscreen specs:	See tab "Options".

Computer specs:
Type computerboard	Intel J3455 Quad core upto 2.3 Ghz, passive cooled
Chipset	No seperate chipset
Memory	2 x DDR3/DDR3L SO-DIMM Slots
Bios	64Mb AMI UEFI Legal BIOS with GUI support Supports Plug and Play ACPI 5.0 compliant wake up events Supports jumperfree SMBIOS 3.0 support
Processor	Intel J3455 Quad core upto 2.3Ghz processor
Flashmodule/ Harddisk	Sata SSD and SATA Harddisk.possible
Graphics	Integrated Intel® HD Graphics 500: 12 EUs inside (Up to 750MHz) DirectX 12, Pixel Shader 5.0 Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI 2.0 monitor is required) Supports HW Accelerated Decoders: H.264 @ level 5.2, HEVC (H.265) 10b @MP level 5.1 (GPU accelerated), JPEG, VP8, VP9 Supports HDCP with DVI-D and HDMI 2.0 Ports Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI 2.0 Ports
LAN (RJ-45)	PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111GR Supports Wake-On-WAN Supports Wake-On-LAN Supports Lightning/ESD Protection (ASRock Full Spike Protection) Supports LAN Cable Detection Supports Energy Efficient Ethernet 802.3az Supports PXE
Audio	7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)* Premium Blu-ray Audio support Supports Surge Protection (ASRock Full Spike Protection) ELNA Audio Caps
IDE, SATA, Flash	2 x SATA2 3.0 Gb/s Connectors, supporting NCQ, AHCI and Hot Plug
Hardware Monitor + Power Management	Temperature, Voltage, Case open function, Watch Dog timer (manufacturing option)
Operating system	Windows 10, 11, Linux, Win CE, Win10IOT

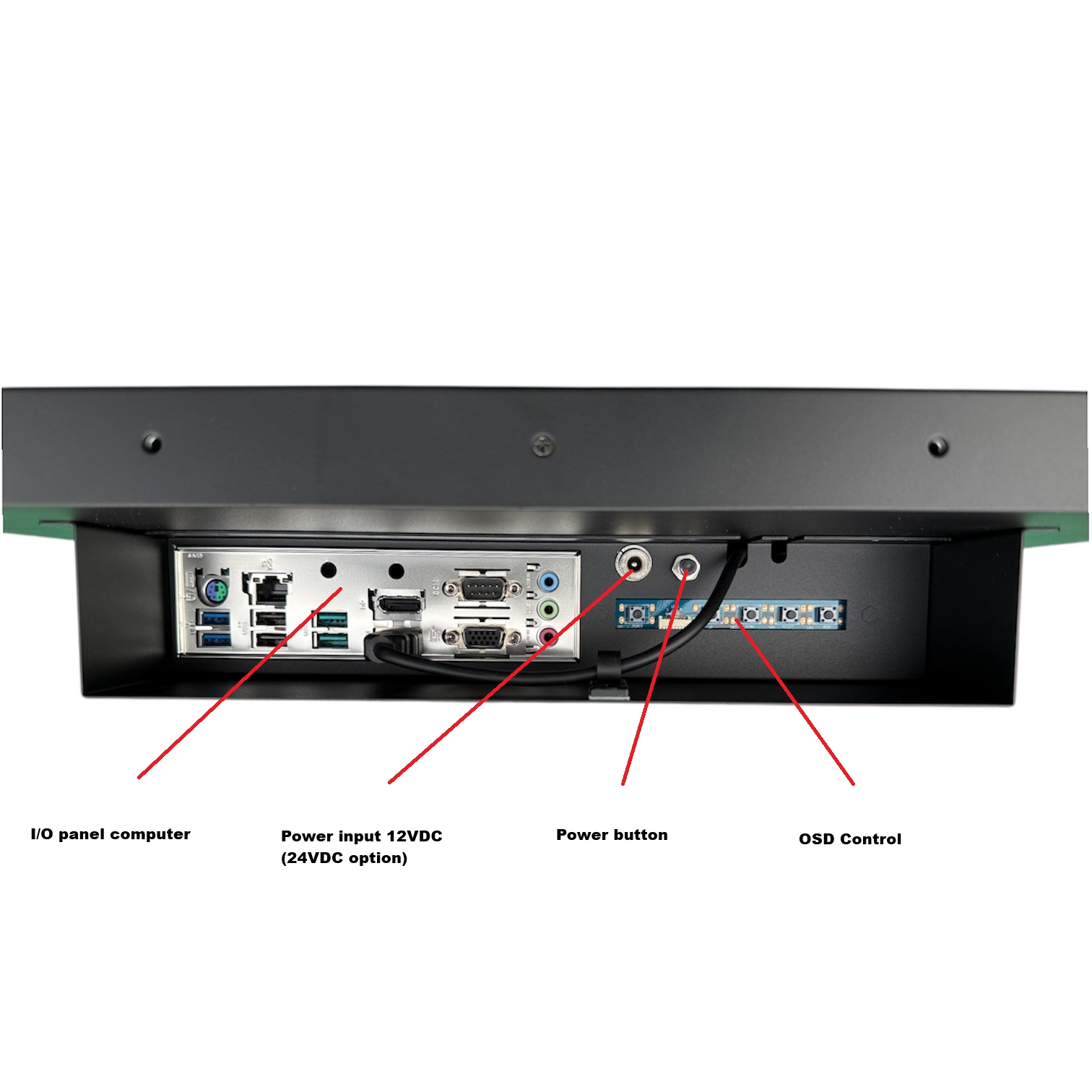

I/O system:	1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 1 x D-Sub Port (occupied) 1 x DVI-D Port 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection)) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Internal I/O:	1 x PCI Express 2.0 x1 Slot 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module 1 x COM Port Header 1 x TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (3-pin) 1 x Chassis Fan Connector (3-pin) 1 x 24 pin ATX Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Energy requirements	35W normal use; 80 W max.; 5 W stand by.
Power	Power supply 84 W External
Weight	4 Kg
Mounting:	VESA 100mm
Dimensions system(B x H x D)	410x334x83 mm

Options:
Standard delivery:	With psu, EU power cable and dvi cable. Other psu - cable options on request.
Functionality:	With or without touch
- without touch:	Acrylic or glass
- with touch: Type of Touch:	5 wire resitive, Surface Accoustic Wave or Projected Capacitive Not sure what to use? Call us at +31 (0)45 5748190 or send us contactform
- 5 wire resistive :	-Standard non-glare. -Touchable with finger, glove and stylus. -Single touch -activation force less than 40 gramm.
- SAW:	-Standard glare. -Touchable with finger and glove. -Single touch -activation force less than 85 gramm.
- Projected Capacitive:	-Standard glare. -Touchable with finger, glove and pcap stylus. -10 points touch -activation force less than 1 gramm.
External protection:	Standard IP44 or IP65 or higher (not for SAW)
Memory capacity:	No memory (standard), 2, 4 or 8 Gb SoDimm
Storage capacity Sata:	No strage (standard), Harddisk 250/500 Gb or SSD in 60/120/240 or 480 Gb.
Operating system:	NO OS (standard), Win7 embedded WSP7 multilangual, Win7Pro, Win8Home and Pro, Win10Home and Pro.
Input equipment:	None (standard) or wireless keyboard/mouse
Accoustic options:	- No speakers/microphone (Standard), - with usb stereo soundbar 2x2 Watt/ no microphone or - with usb stereo soundbar 2x2Watt and microphone with 3.5mm plug.
Accoustic options:	- No speakers/microphone (Standard), - with usb stereo soundbar 2x2 Watt/ no microphone or - with usb stereo soundbar 2x2Watt and microphone with 3.5mm plug.

Specifications / Manual :
Dimensions :
Driver downloads :

You can purchase by selecting below mentioned options (if available). More info on tab "Options")
Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.

Discount on prices:

Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.

Options (incl. installation):
