15" PCAP Panel mount PC (Extreme)
Net price (excl.VAT) €1395,00
Art.No.:
1020153671 Brand:
A1Touch Solution
Type: All in one A1Touch Z790M-i5-12400/AOD150-GPCAP-TPMB (active cooled)
Description: 15 inch panel pc with Intel Core I5-12400 6 core 12 threads 2.5 up to 4.4 Ghz processor, with pcap touchscreen. Bezel free tempered front glass. Metal casing with mini itx format pc for hufter proof and long life use.
Unit is in stock.
| Monitor specs: | |
| Color/ material panel: | 4mm glare temepered glass with black borders |
| Model: | 15 inch XGA TFT LCD Monitor |
| Type: | 15" Color Active Matrix TFT LCD |
| Resolution (max): | 1024 x 768 (XGA) |
| Color: | 16,2 million |
| Pixel: | 0.297 x 0.1297 mm |
| Brightness: | 350 cd/m² |
| Contrast ratio: | 700:1 |
| Monitor specs: | |
| Color/ material panel: | 4mm glare temepered glass with black borders |
| Model: | 15 inch XGA TFT LCD Monitor |
| Type: | 15" Color Active Matrix TFT LCD |
| Resolution (max): | 1024 x 768 (XGA) |
| Color: | 16,2 million |
| Pixel: | 0.297 x 0.1297 mm |
| Brightness: | 350 cd/m² |
| Contrast ratio: | 700:1 |
| Viewing angle: | 85°/85° horizontal, 80°/80° vertical |
| Respons time | 8 ms |
| Active area: | 304,1 (H) x 228,1 (V) mm |
| Computer specs: | ||
| Type computerboard: | Intel Z790M-ITX | |
| Chipset: | Intel® Z790M | |
| Processor: | Processor Intel Core i5 12400, 65W, 12th gen. 2.5 upto 4.4Ghz, 6 core, 12 thread, UHD Graphics 730 | |
| Memory | Supported memory types | DDR4-UDIMM Non-ECC mode |
| Amount of memory slots | 2 | |
| Memory slot type | DIMM | |
| Memory Channel | Dual | |
| Non-ECC | yes | |
| Supported memory clock speeds | 3200 Mhz Natively | |
| Maximum internal memory | 64 GB | |
| Not gebufferd memory | yes | |
| Bios | BIOS type | UEFI AMI |
| BIOS-memory size | 256 Mbit | |
| ACPI version | 6.0 | |
| Clear CMOS jumper | yes | |
| Plug and play | yes | |
| System Management BIOS (SMBIOS) version | 2.7 support | |
| Graphics | Architecture (Gen 12) | Intel Xe Graphics |
| Built-in grafical adapter | yes | |
| Grafical adapter-family | Intel | |
| Maximum resolution | 4096 x 2160 Pixels HDMI, 7680x4320 Pixels via DP | |
| Network | Ethernet LAN | yes, 2 x LAN |
| Ethernet interface type | 2.5 Gigabit Ethernet and 1 Gb Ethernet | |
| LAN controller | Realtek RTL8125BG (2.5Gb) and Intel I219V (1Gb) | |
| Wi-Fi | Yes, 802.11ax Wi-Fi 6E Module, supports IEEE 802.11a/b/g/n/ax | |
| Bluetooth | Yes, 5.3 High speed class II | |
| Audio | Realtek® ALC897 8-Channel High Definition Audio CODEC | |
| IDE, SATA, Flash | 4 x SATA3 6.0 Gb/s Connectors, 1 x M.2 Socket M2_1 Key M, supports type 2280 PCIe Gen4x4 (64Gb/s) Mode Chipset, 1 x M.2 Socket M2_2 Key M, support type 2280 SATA3 6.0Gb/s & PCIe Gen4x4 (64Gb/s) modes | |
| RAID: | Yes, Raid 0, 1, and 5 | |
| Operating system | Windows 7, 8, 10 Linux, Win CE, Win7emb, Win10IOT. | |

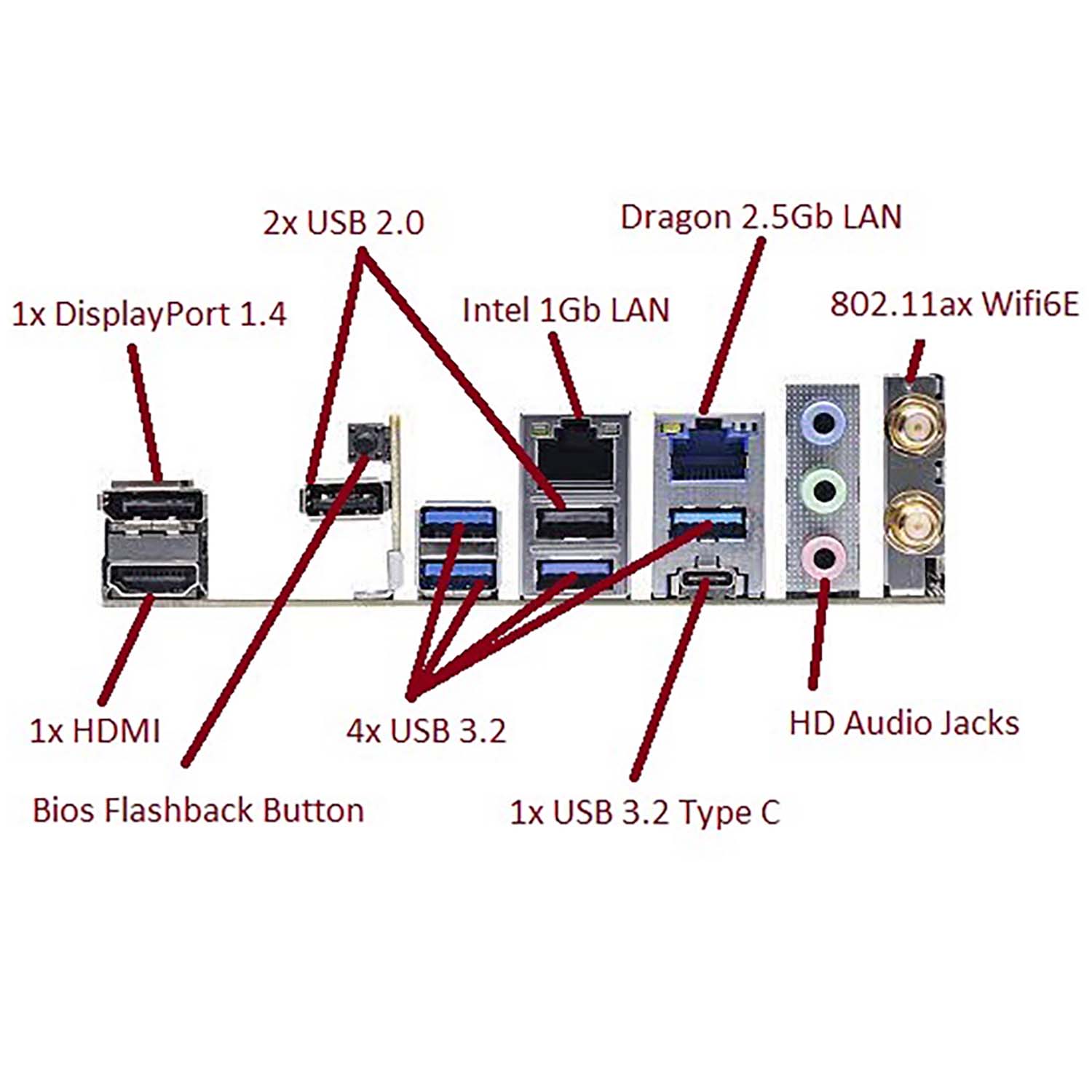

| I/O connections back: | USB 3.2 Gen2 Ports (10 Gb/s) (Supports ESD Protection) | : 4 |
| USB 3.2 Gen 2x2 Type-C Port (20 Gb/s) (Supports ESD Protection) | : 1 | |
| Ethernet LAN (RJ-45)-ports | : 2 | |
| HDMI-ports | : 1 | |
| Display ports | : 1 | |
| Bios Flashback Button | : 1 | |
| Audio jack(s) – Mic – Line in – Line out | : 3 | |
| Internal I/O: | PCI Express 5.0x16 Slot (PCIE1), supports x16 mode | : 1 |
| USB 2.0 connections | : 1 | |
| USB 3.1 Gen 1 (up to 5Gbps) connectors | : 1 | |
| Amount of SATA 6Gb/s connectors | : 4 | |
| Audioconnector | : yes | |
| General: | ||
| Energy requirements | 35W normal use; 80 W max.; 5 W stand by. | |
| Power | Power supply 84 W External | |
| Weight | 4 Kg | |
| Mounting: | VESA 100mm | |
| Dimensions system(B x H x D) | 395X326x83 mm | |
| Touch info: | ||
| Touch type: | Projected Capacitive touchscreen | |
| Touch spec: | -Standard glare. -Touchable with finger, glove and pcap stylus. -2,4 or 10 points touch (2 standard, more on request) -activation force less than 1 gramm. | |
| External protection: | Front completely glass, so 100% watertight | |

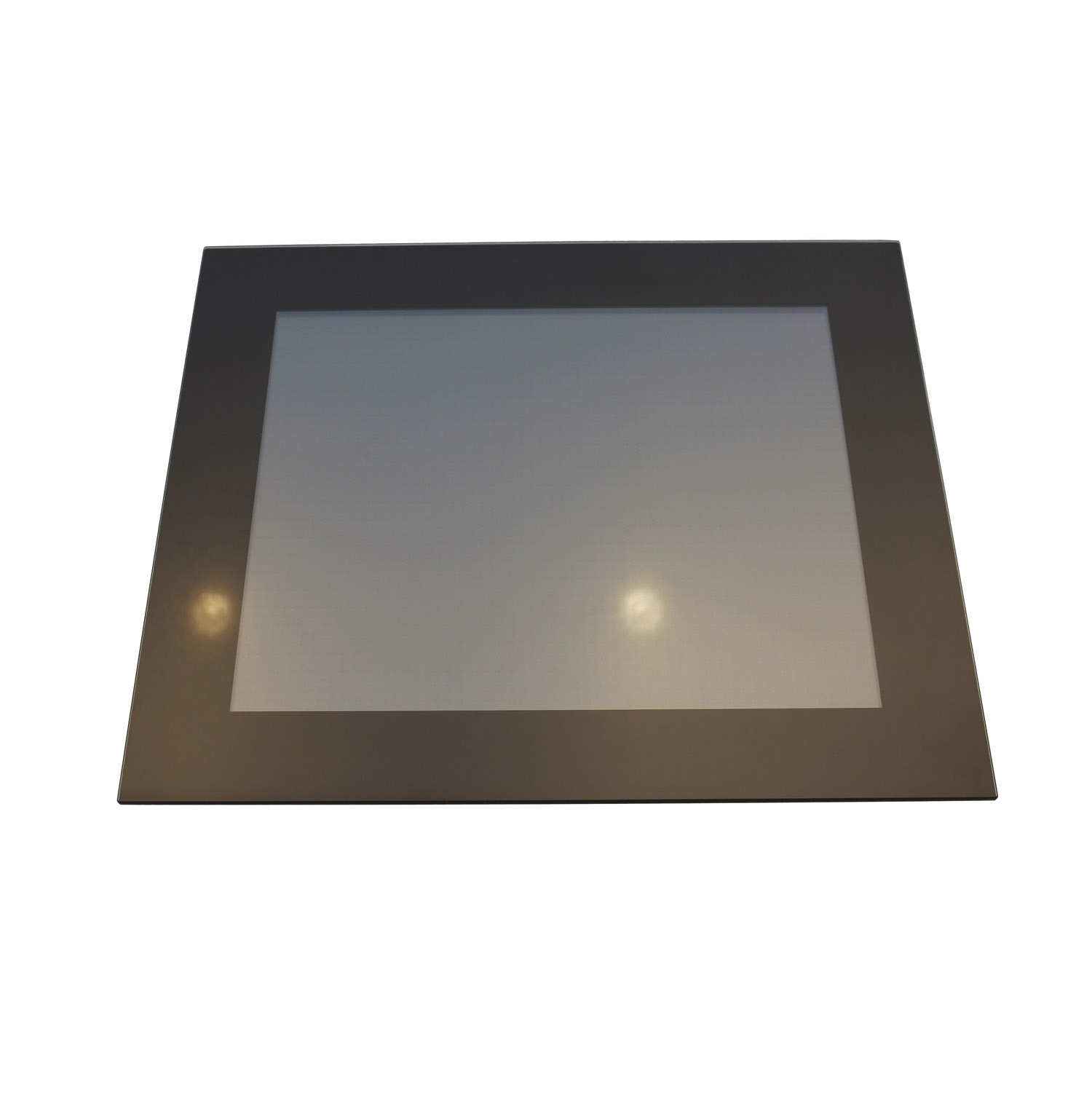

| Glass sensor: | 4mm thick tempered glass with black ceramic borders. | |
| Surface hardness: | Mohs' hardness = 6 | |
| Responstime: | Max. 20 msec. | |
| Options: | |
| Standard delivery: | With psu, EU power cable and dvi cable. Other psu-cable options on request. |
| Memory capacity: | No memory (standard), 2, 4 or 8 Gb SoDimm |
| Storage capacity Sata: | No strage (standard), Harddisk 250/500 Gb or SSD in 60/120/240 or 480 Gb. |
| Operating system: | NO OS (standard), Win7 embedded WSP7 |
| Options: | |
| Standard delivery: | With psu, EU power cable and dvi cable. Other psu-cable options on request. |
| Memory capacity: | No memory (standard), 2, 4 or 8 Gb SoDimm |
| Storage capacity Sata: | No strage (standard), Harddisk 250/500 Gb or SSD in 60/120/240 or 480 Gb. |
| Operating system: | NO OS (standard), Win7 embedded WSP7 multilangual, Win7Pro, Win8Home and Pro, Win10Home and Pro. |
| Input equipment: | None (standard) or wireless keyboard/mouse |
| Accoustic options: | - No speakers/microphone (Standard), - with usb stereo soundbar 2x2 Watt/ no microphone or - with usb stereo soundbar 2x2Watt and microphone with 3.5mm plug. |
|
Specifications / Manual : |
 |
| Dimensions : | |
| Mounting instructions : | |
| Driver downloads : |  |
You can purchase by selecting below mentioned options (if available). More info on tab "Options")
Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.
Discount on prices:
- Resellers/ installers and
You can purchase by selecting below mentioned options (if available). More info on tab "Options")
Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.
Discount on prices:
- Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
- For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
