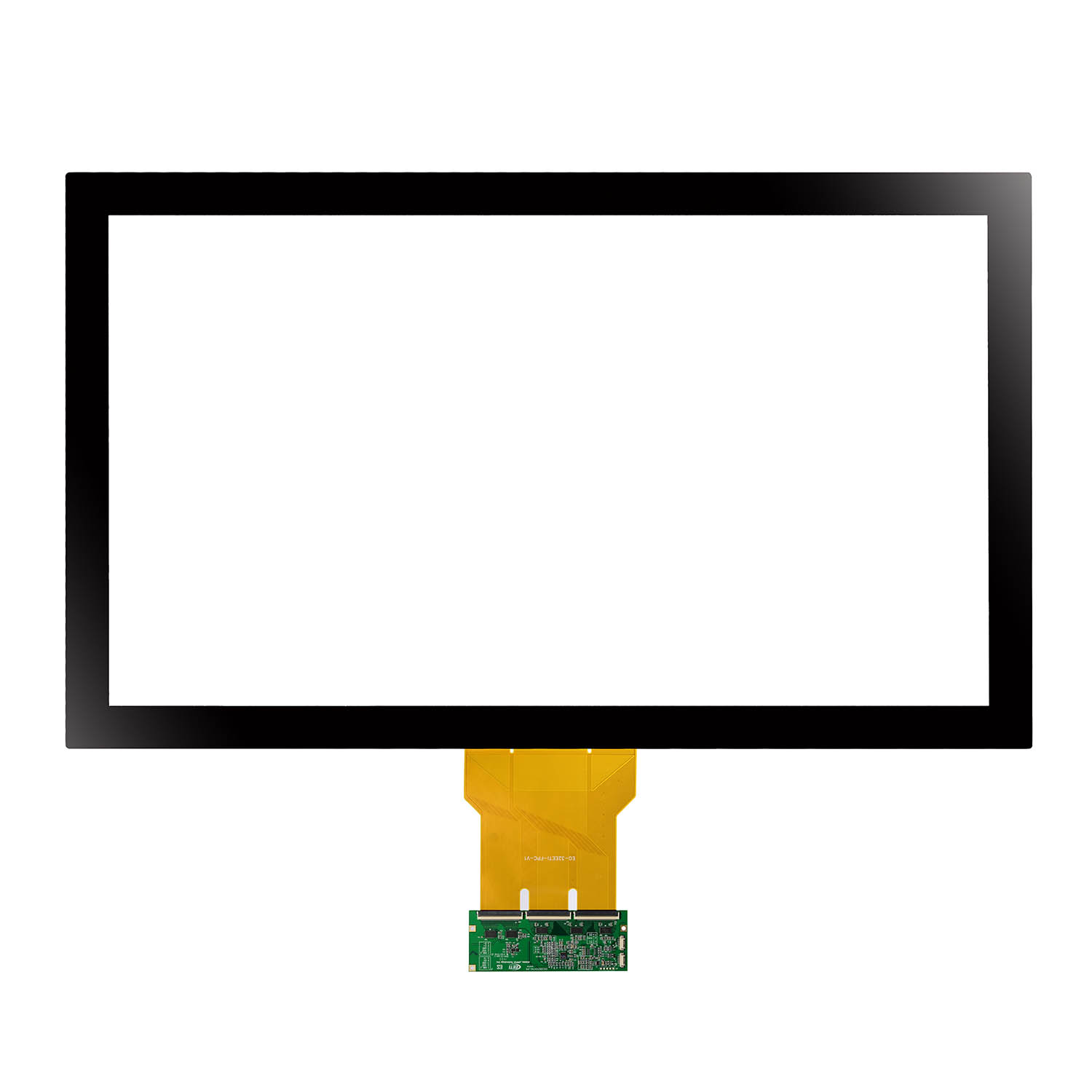

42" PCAP touchscreen kit with 6mm cover glass

Size:

42"

Structure sensor:

G+G

Structure cover glass:

Glare HARDENED glass with black border

Outside dimensions cover glass (wxh)

1001.24 x 594.26 +/-0.8mm

Outside dimensions sensor (wxh)

962.34 x 564.65 +/-0.5mm

Visual area cover glass (wxh)

931.24 x 524.26 +/-0.5mm

Active area (wxh)

932.24 x 525.26 +/-0.5mm

Thickness sensor:

1.1 mm +/-0.05

OCA bonding  thickness:

0.2 mm

Thickness cover glass:

6 mm

Total Thickness:

7.3 +/-0.3 mm

Sensor Process:

Print process (ITO Pattern + Metal line)

Weight:

5.6 Kg

Surface Hardness:

>6H

Detected touches

10 touches.

Endurance:

>300.000.000 times

Maximum Pixel:

4096x4096

Response time:

<10ms

Interface:

USB, 4 wire, 2.0 Full speed

Controller type:

EETI chipset 31xx.

Operating System Support:

Windows 98, NT, 2000, XP, 7, 8, 10, Android, MAC en Linux.

Power Requirements:

3.5 - 5.5 Volt, Typical 5 Volt

Power Dissipation:

<0.35W

Operating Temperature:

-10°C to +70°C

Humidity:

0 to 95% RH @ 60°C. RH non condensing

Durability:

Unsurpassed vandal and shock resistance

What it Detects:

Finger, gloved or ungloved. Conductive stylus

Resistance to Contamination:

Resistance to contamination – Sensing media protected by glass, exceeds requirements of ASTM-F1598-96

MTBF (Sensor):

Excellent, no known wear-out mechanism
