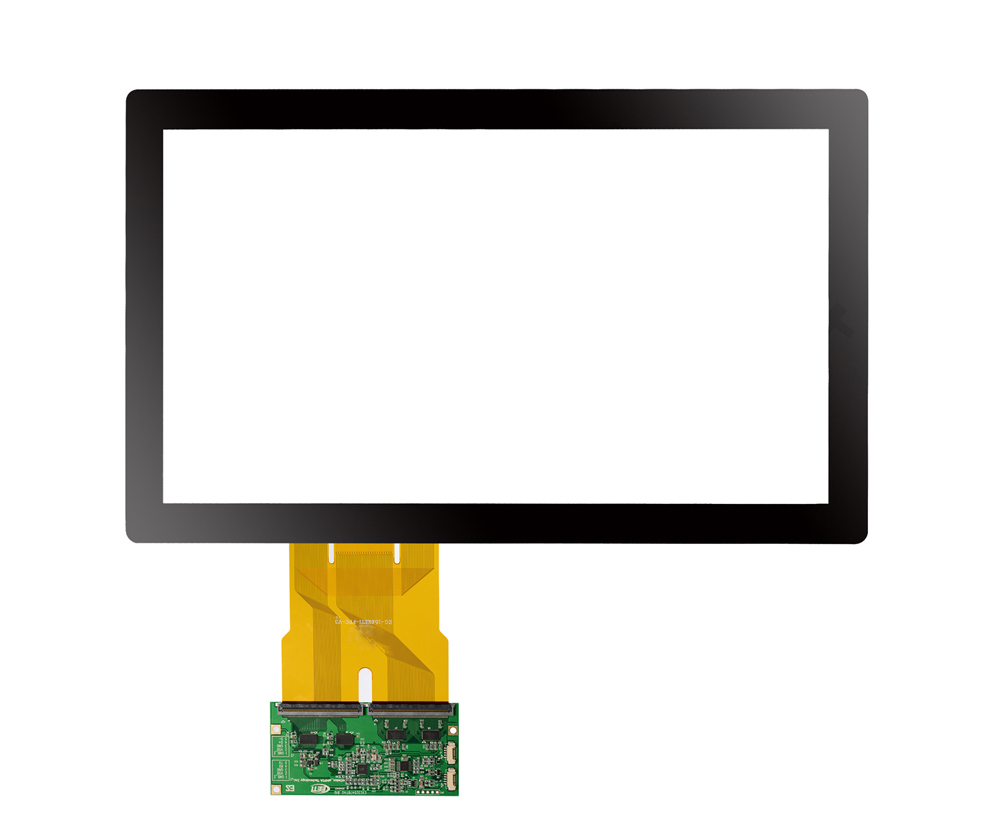

18.5" PCAP touchscreen kit with 3mm cover glass
Net price (excl.VAT) €171,00
Art.No.:
1020152169 Brand:
A1Touch Solution
Model: A1touch-BI-TFT18.5-GPCAP10-3T-USB
Name: A1touch PCT 18.5" touchscreen with 3mm cover glass, transparent border, drawing EG-18.5-ZJ-V1, USB controller EETI chipset, 10pts
Description: The 18.5 inch touch sensor of clear G+G glass and cover glass can be used on all 18.5 inch lcd systems for building hufter proof (10pts) system for outside or inside applications. We can adjust all parameters to have best outcome for your project.
Unit is NOT in stock
Our kit includes: sensor + controller + cables
| Size: | 18.5" |
| Structure: | G+G |
| Structure cover glass: | Glare float glass with TRANSPARENT border |
| Outside dimensions cover glass (wxh) | 454.80 x 275.40 +/-0.15mm |
| Outside dimensions sensor (wxh) | 426.00 x 247.28 +/-0.15mm |
| Visual area cover glass (wxh) | 409.80 x 230.40 +/-0.2mm |
| Active area (wxh) | 410.80 x 231.40 +/-0.2mm |
| Thickness sensor: | 0.55 mm |
| OCA bonding thickness: | 0.2 mm |
| Thickness cover glass: | 3 mm |
| Total Thickness: | 3.75 mm |
| Sensor Process: | Print process (ITO Pattern + Metal line) |
| Surface Hardness: | >6H |
| Detected touches | 10 touches. |
| Endurance: | >300.000.000 times |
| Maximum Pixel: | 4096x4096 |
| Response time: | <10ms |
| Interface: | USB, 4 wire, 2.0 Full speed |
| Controller type: | EETI chipset 31xx. |
| Operating System Support: | Windows 98, NT, 2000, XP, 7, 8, 10, Android, MAC en Linux. |
| Power Requirements: | 3.5 - 5.5 Volt, Typical 5 Volt |
| Power Dissipation: | <0.35W |
| Operating Temperature: | -10°C to +70°C |
| Humidity: | 0 to 95% RH @ 60°C. RH non condensing |
| Durability: | Unsurpassed vandal and shock resistance |
| What it Detects: | Finger, gloved or ungloved. Conductive stylus |
| Resistance to Contamination: |
Resistance to contamination – Sensing media protected by glass, exceeds requirements of ASTM-F1598-96 |
| MTBF (Sensor): | Excellent, no known wear-out mechanism |
| Drawing sensor : |  |
| Specs touchscreen kit : | |
|
Spec. controller : |
|
| Driver downloads : |  |
| General information : | |
