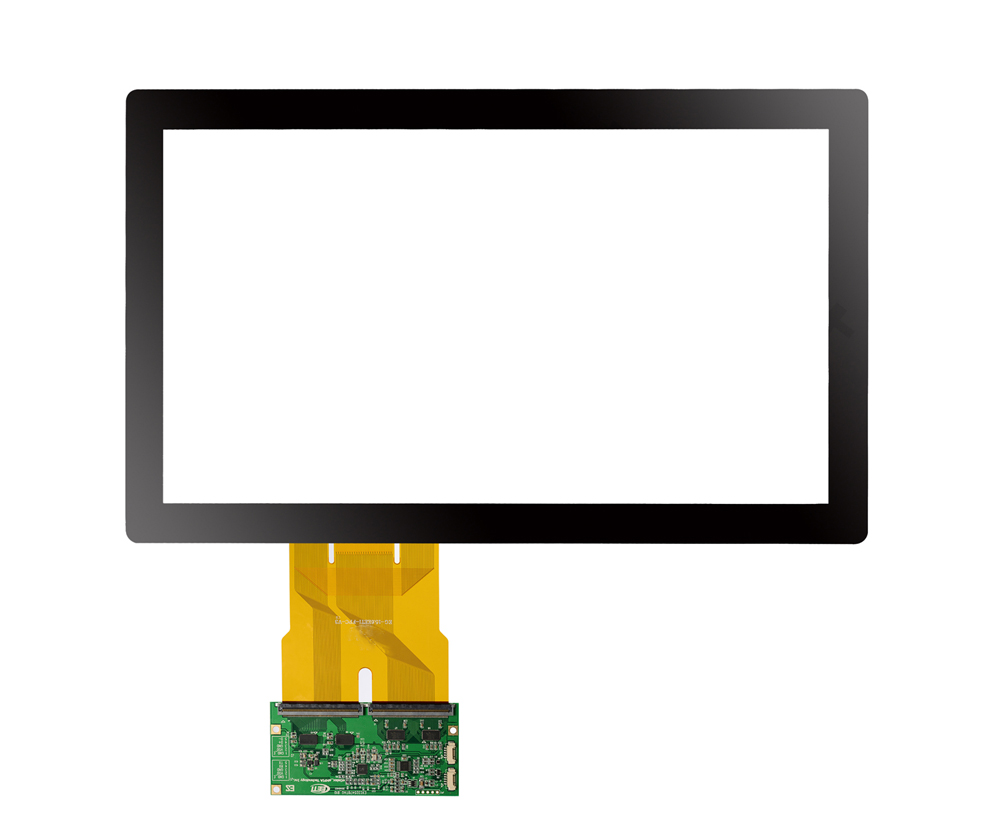

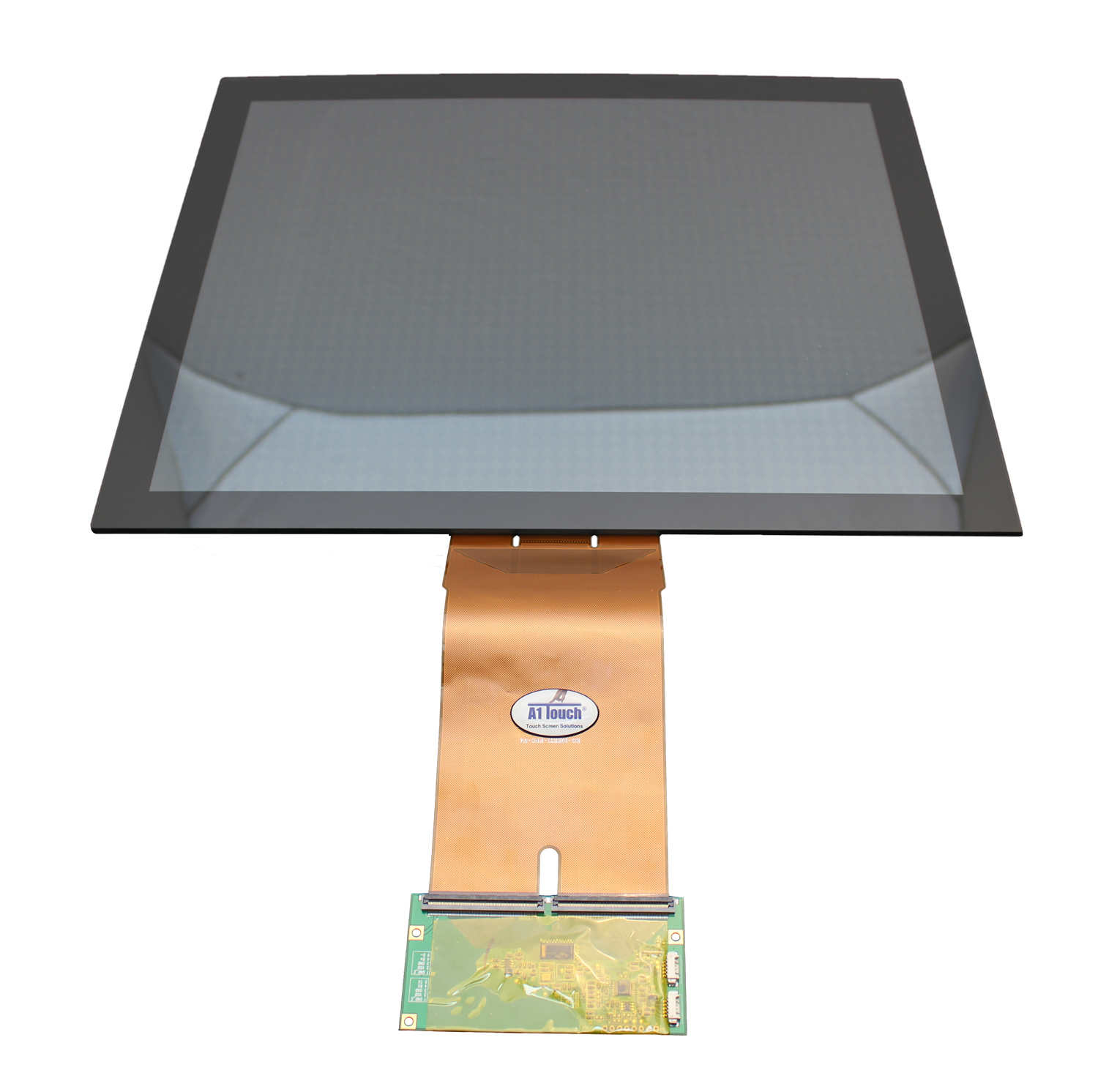

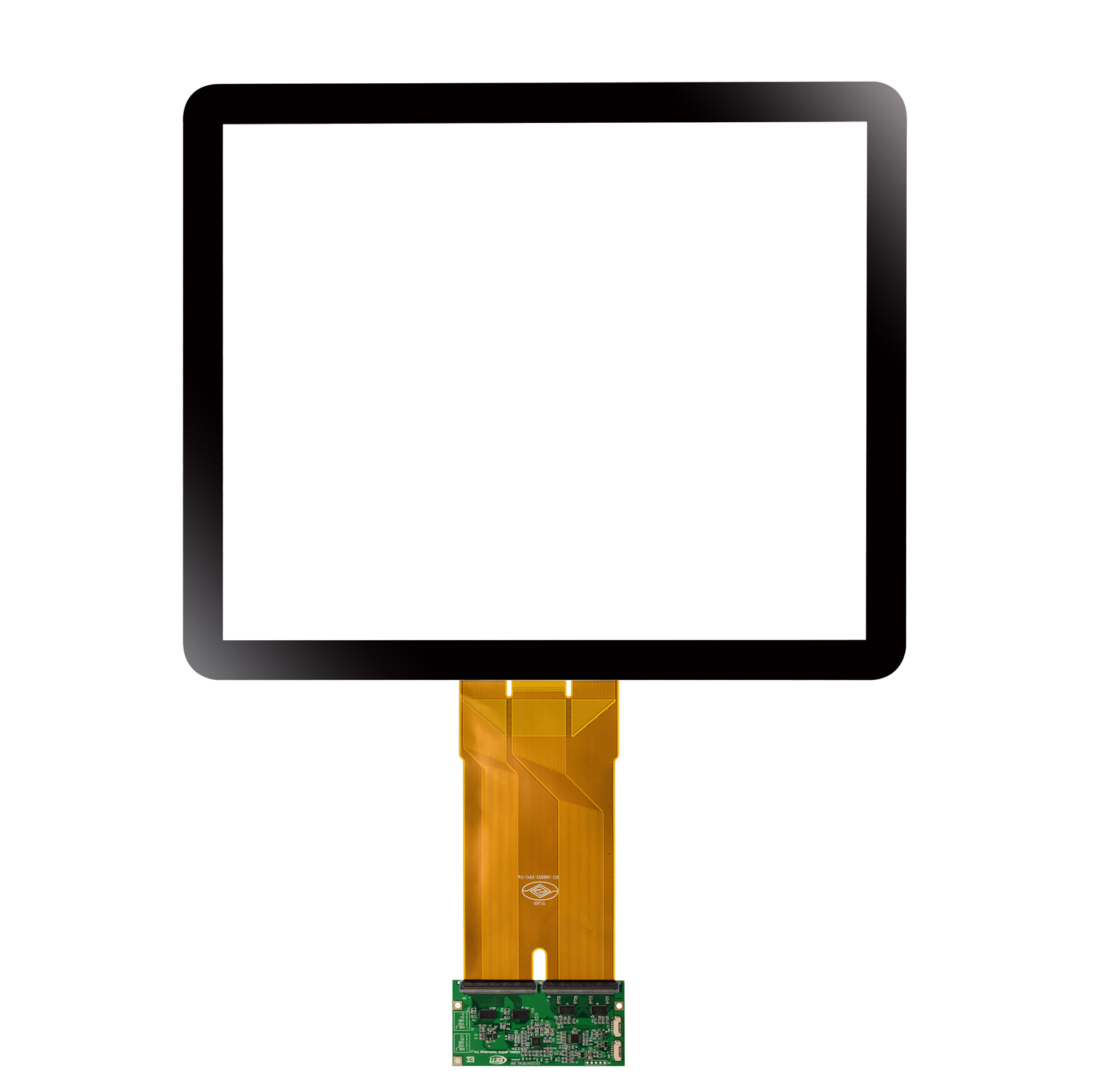

19" PCAP touchscreen kit with 4mm cover glass
Net price (excl.VAT) €159,00
Art.No.:
1020152468 Brand:
A1Touch Solution
Model: A1touch-BI-TFT19-GPCAP10-4-USB
Name: A1touch PCT 19" 4mm thick touchscreen with HARDENED glass, black border, drawing ATS19-014-V3, USB controller EETI chipset, 10pts
Description: The 19 inch touch sensor of clear G+G glass and cover glass can be used on all 19 inch lcd systems for building hufter proof (10pts) system for outside or inside applications. We can adjust all parameters to have best outcome for your project.
Unit is in stock
Our kit includes: sensor + controller + cables
| Size: | 19" |
| Structure: | G+G |
| Structure cover glass: | Glare HARDENED glass with black border |
| Outside dimensions cover glass (wxh) | 421.60 x 346.60 +/-0.25mm |
| Outside dimensions sensor (wxh) | 393.20 x 316.34 +/-0.15mm |
| Visual area cover glass (wxh) | 376.32 x 301.06 +/-0.2mm |
| Active area (wxh) | 376.32 x 301.06 +/-0.2mm |
| Thickness sensor: | 0.7 mm |
| OCA bonding thickness: | 0.2 mm |
| Thickness cover glass: | 2.8 mm |
| Total Thickness: | 3.7 mm |
| Sensor Process: | Print process (ITO Pattern + Metal line) |
| Surface Hardness: | >6H |
| Detected touches | 10 touches. |
| Endurance: | >300.000.000 times |
| Maximum Pixel: | 4096x4096 |
| Response time: | <10ms |
| Interface: | USB, 4 wire, 2.0 Full speed |
| Controller type: | EETI chipset 31xx. |
| Operating System Support: | Windows 98, NT, 2000, XP, 7, 8, 10, Android, MAC en Linux. |
| Power Requirements: | 3.5 - 5.5 Volt, Typical 5 Volt |
| Power Dissipation: | <0.35W |
| Operating Temperature: | -10°C to +70°C |
| Humidity: | 0 to 95% RH @ 60°C. RH non condensing |
| Durability: | Unsurpassed vandal and shock resistance |
| What it Detects: | Finger, gloved or ungloved. Conductive stylus |
| Resistance to Contamination: |
Resistance to contamination – Sensing media protected by glass, exceeds requirements of ASTM-F1598-96 |
| MTBF (Sensor): | Excellent, no known wear-out mechanism |
| Drawing sensor : |  |
| Specs touchscreen kit : | |
|
Spec. controller : |
|
| Driver downloads : |  |
| General information : | |
