17" PCAP touchscreen kit without cover glas
Net price (excl.VAT) €156,00
Art.No.:
1020152220 Brand:
A1Touch Solution
Model: A1touch-BI-TFT17-PCAP10-USB

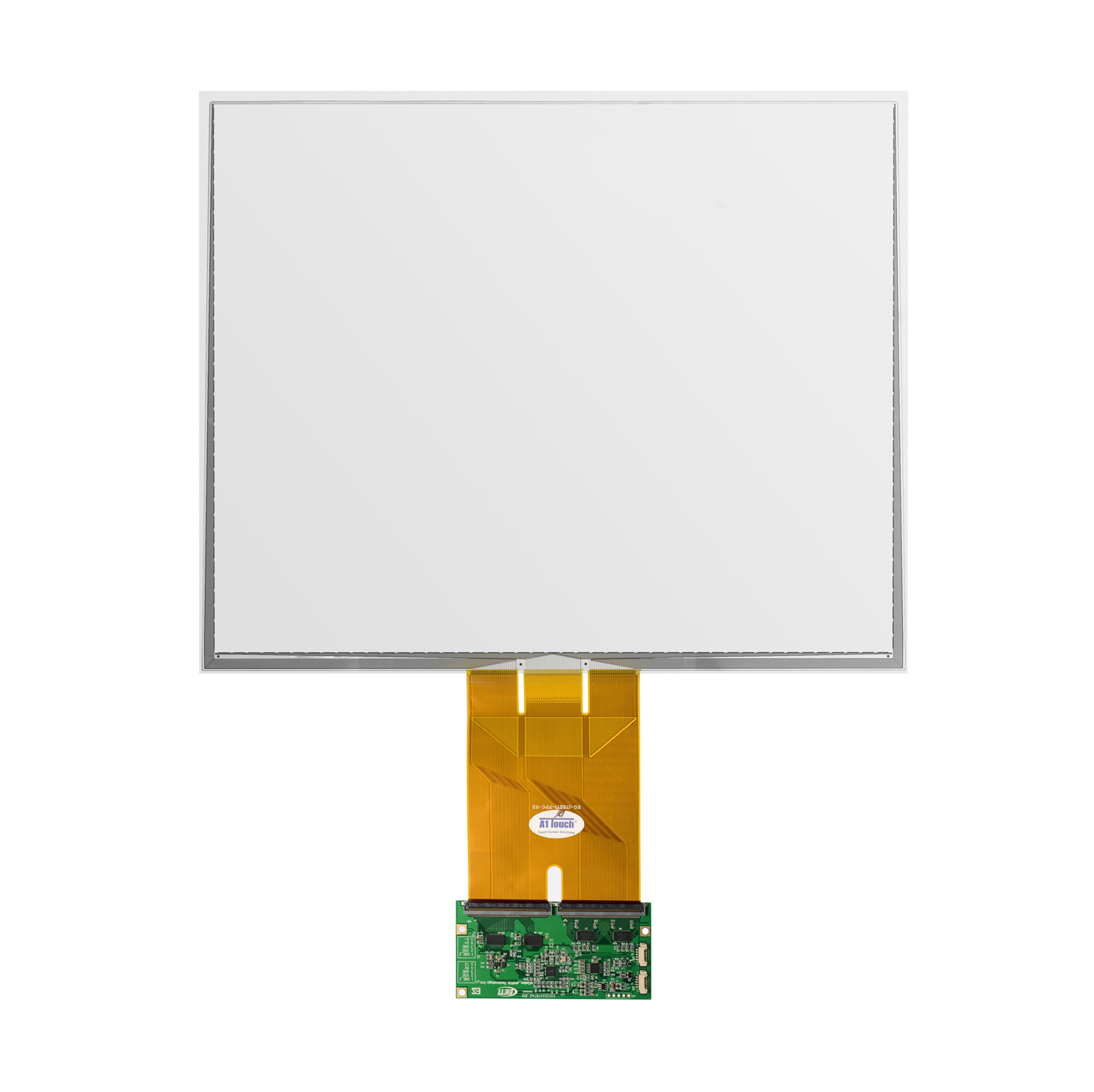

Name: A1touch PCT 17" sensor without cover glass, drawing EG-17-sensor-FPC-v1, USB controller EETI chipset, 10pts
Description: The 17 inch touch sensor of clear G+G glass can be placed under glass of max 6mm thick (or 3mm acrylic glass) to build hufter proof multitouch (10pts) system for outside or inside applications. We can adjust all parameters to have best outcome for your project.
Unit is in stock

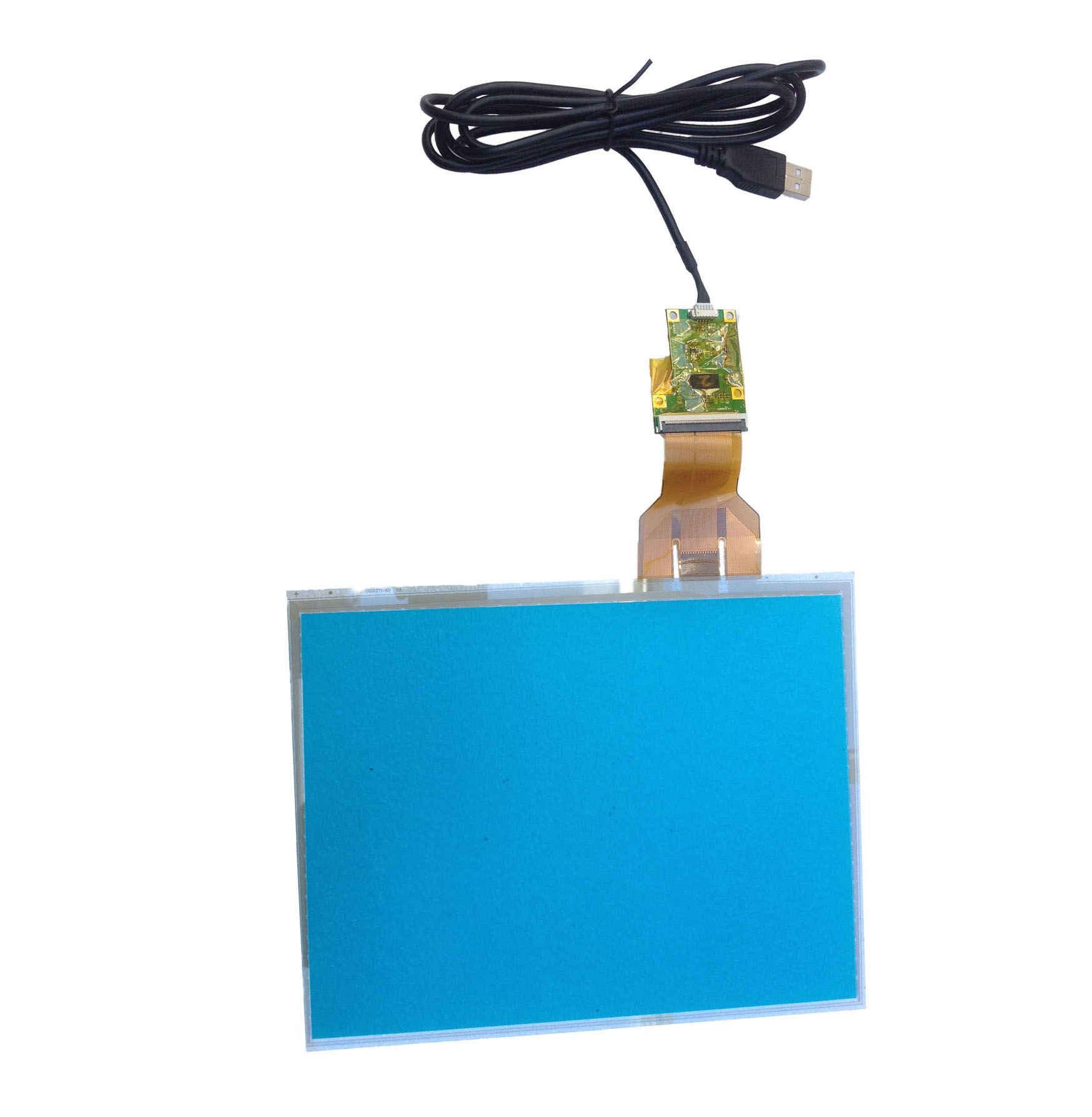

Our kit includes: sensor + controller + cables
| Size: | 17" |
| Structure: | G+G |
| Outside dimensions (wxh) | 355.32 x 286.17 +/-0.15mm |
| Active area (wxh) | 338.92 x 271.34 +/-0.2mm |
| Thickness sensor: | 0.7 mm |
| Sensor Process: | Print process (ITO Pattern + Metal line) |
| Glass options: |
touchable through max. 6mm float-, hardened- or laminated glass or max. 3mm acrylic/plexy glass |
| Detected touches | 10 touches. |
| Endurance: | >300.000.000 times |
| Maximum Pixel: | 4096x4096 |
| Response time: | <10ms |
| Interface: | USB, 4 wire, 2.0 Full speed |
| Controller type: | EETI chipset 31xx. |
| Operating System Support: | Windows 98, NT, 2000, XP, 7, 8, 10, Android, MAC en Linux. |
| Power Requirements: | 3.5 - 5.5 Volt, Typical 5 Volt |
| Power Dissipation: | <0.35W |
| Operating Temperature: | -10°C to +70°C |
| Humidity: | 0 to 95% RH @ 60°C. RH non condensing |
| Durability: | Unsurpassed vandal and shock resistance |
| What it Detects: | Finger, gloved or ungloved. Conductive stylus |
| Resistance to Contamination: |
Resistance to contamination – Sensing media protected by glass, exceeds requirements of ASTM-F1598-96 |
| MTBF (Sensor): | Excellent, no known wear-out mechanism |
| Drawing sensor : |  |
| Specs touchscreen kit : | |
|
Spec. controller : |
|
| Driver downloads : |  |
| General information : | |
