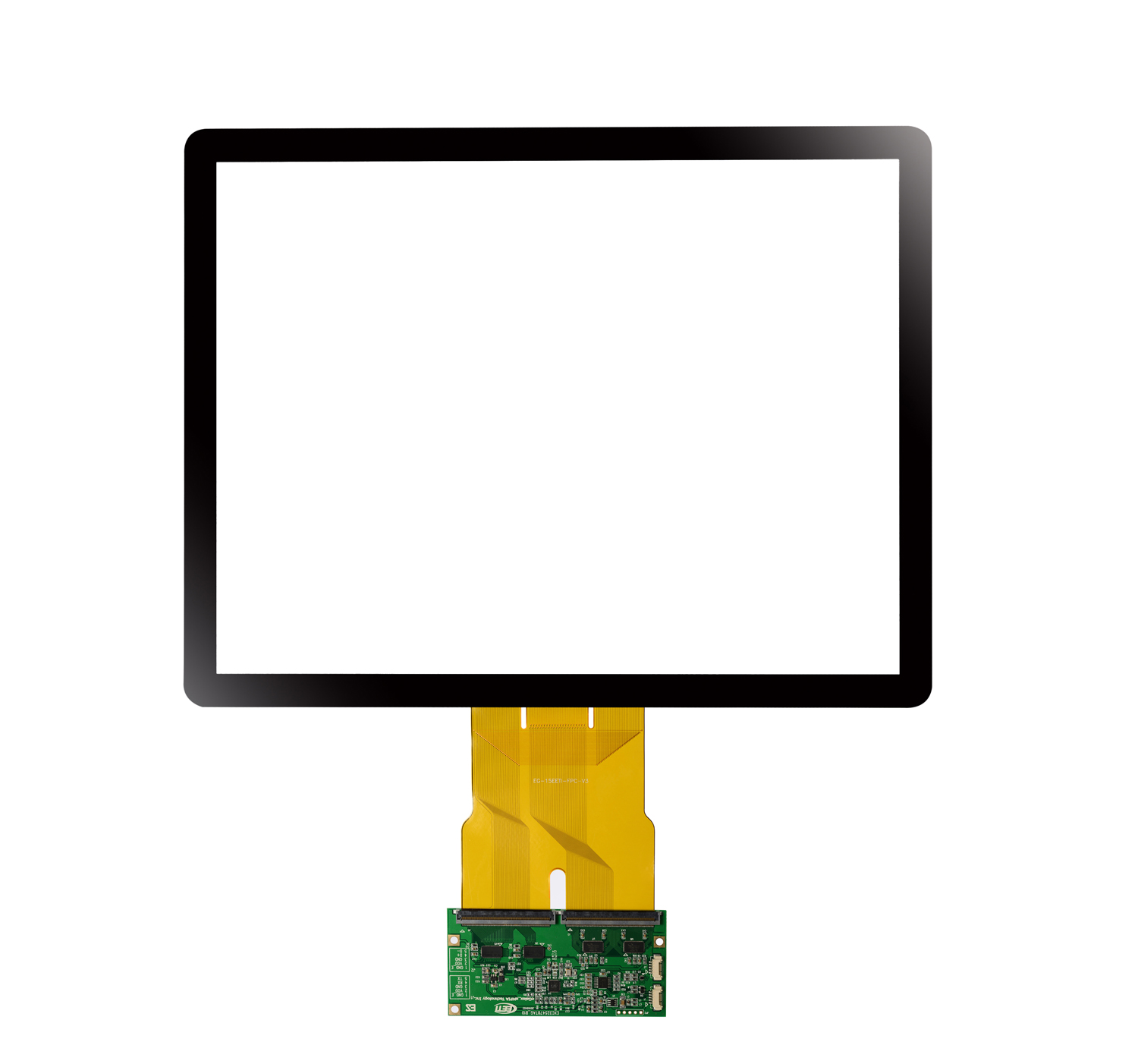

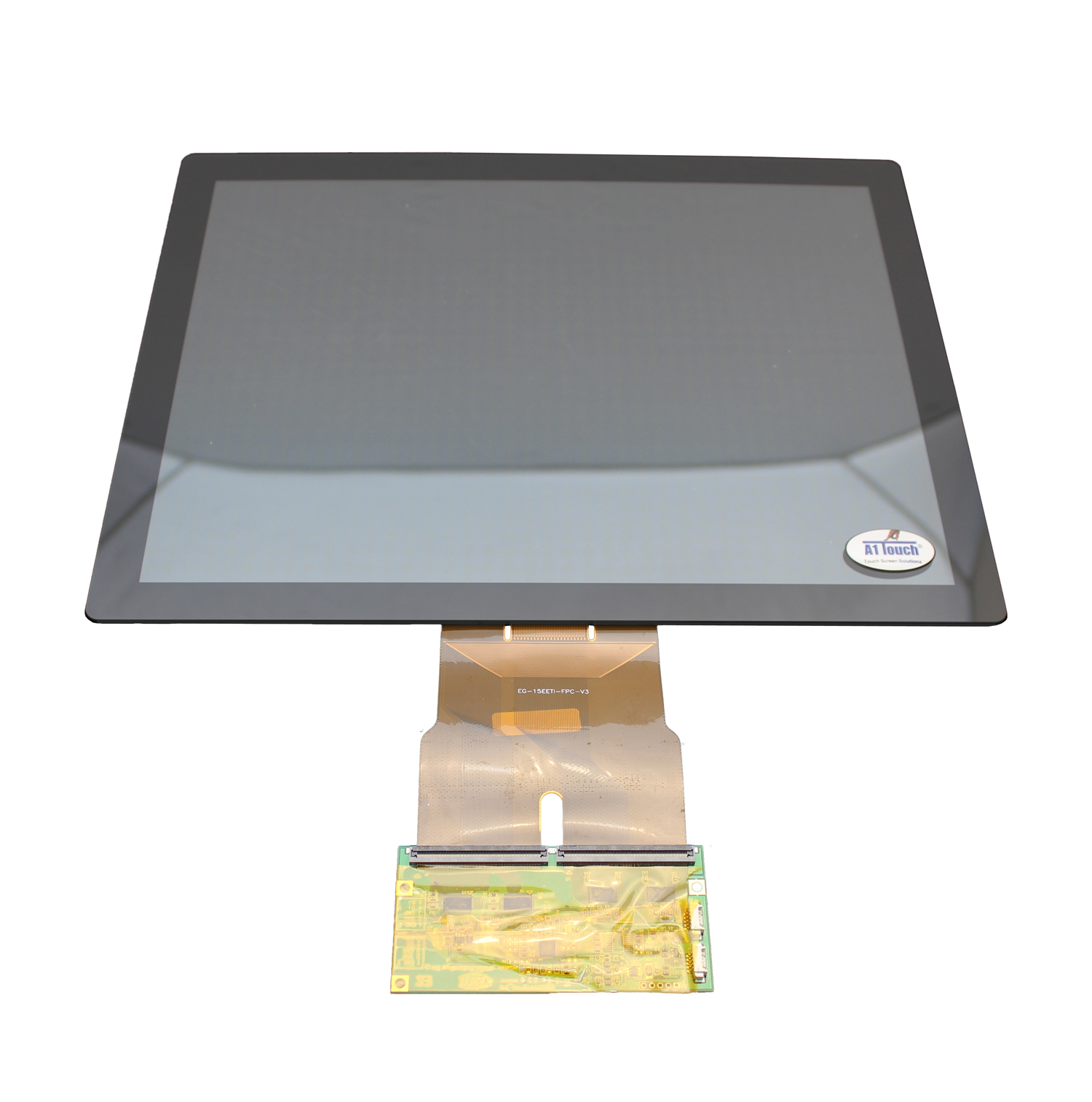

15" PCAP touchscreen kit with 3mm cover glass

pcap touchscreen
15" PCAP touchscreen kit with 3mm cover glass
Net price (excl.VAT) €139,00
Art.No.:
1020152160
Brand:
A1Touch Solution
Model: A1touch-BI-TFT15-GPCAP10-3-USB
Name: A1touch PCT 15" touchscreen with 3mm hardened cover glass, black border, drawing EG-15-YD-JG-V11, USB controller EETI chipset, 10pts
Description: The 15 inch touch sensor of clear G+G glass and cover glass can be used on all 15 inch lcd systems for building hufter proof (10pts) system for outside or inside applications. We can adjust all parameters to have best outcome for your project.
Unit is in stock

Our kit includes: sensor + controller + cables

Size: 15"
Structure: G+G
Structure cover glass: Glare hardened glass with black border
Outside dimensions cover glass (wxh) 339.50 x 264.00 +/-0.15mm
Outside dimensions sensor (wxh) 322.96 x 245.40 +/-0.15mm
Visual area cover glass (wxh) 304.00 x 228.00 +/-0.2mm
Active area (wxh) 305.30 x 339.60 +/-0.2mm
Thickness sensor: 0.55 mm
OCA bonding thickness: 0.2 mm
Thickness cover glass: 3 mm
Total Thickness: 3.75 mm
Sensor Process: Print process (ITO Pattern + Metal line)
Surface Hardness: >6H
Detected touches 10 touches.
Endurance: >300.000.000 times
Maximum Pixel: 4096x4096
Response time: <10ms
Interface: USB, 4 wire, 2.0 Full speed
Controller type: EETI chipset 31xx.
Operating System Support: Windows 98, NT, 2000, XP, 7, 8, 10, Android, MAC en Linux.
Power Requirements: 3.5 - 5.5 Volt,  Typical 5 Volt
Power Dissipation: <0.35W
Operating Temperature: -10°C to +70°C
Humidity: 0 to 95% RH @ 60°C. RH non condensing
Durability: Unsurpassed vandal and shock resistance
What it Detects: Finger, gloved or ungloved. Conductive stylus
Resistance to Contamination:

Resistance to contamination – Sensing media protected by glass, exceeds requirements of ASTM-F1598-96
MTBF (Sensor): Excellent, no known wear-out mechanism
Drawing  sensor :
Specs touchscreen kit :

Spec.  controller :

Driver downloads : More Info
General information : More Info

You can purchase by selecting below mentioned options (if available). More info on tab "Options")
​Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.

Discount on prices:

  • Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
  • For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
Available options:
