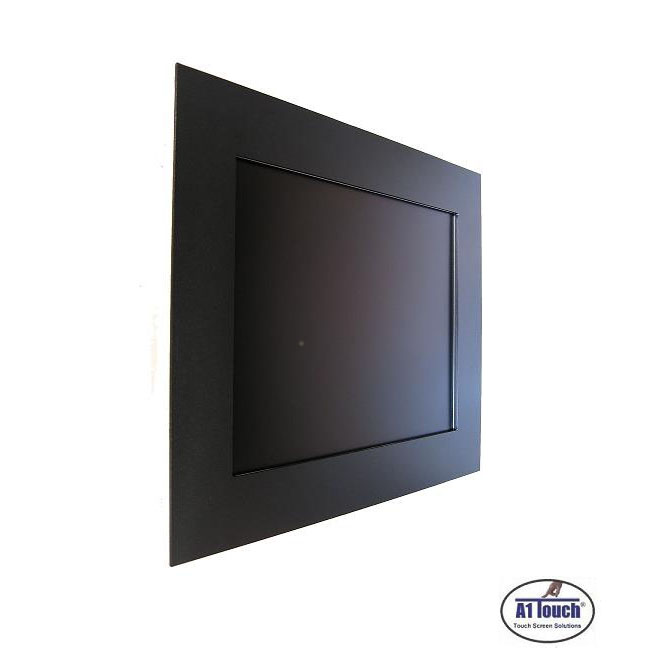

21.5" Black panel mount (touch)Monitor

panel mnt aod black 3d front
21.5" Black panel mount (touch)Monitor
Net price (excl.VAT) €489,00
Art.No.:
1020151576
Brand:
A1Touch Solution
Type: AOD 215-PMB, 21.5" powder coated panel mount (touch) monitor, VGA+DVI.
Description: 21,5 inch panel mount monitor to be assembled inside an unfinished hole of panel or control box. Built-in touchmonitor with or without touchscreen; touchscreen options like pcap, resistive, saw, ir or with protection glass. Black coated metal case for vandal proof 24/7 use is public spaces.
Unit is in stock
Color panel: Black powder Coated (other colors on request)
Model: 21,5 inch XGA TFT LCD Monitor
Type: 21.5 inch, 16:9 Color Active Matrix TFT LCD LM215WF3 (LG Philips LCD)
Resolution (max): 1920 x 1080 (Full HD)
Color: 16,7 million
Pixel: 0.2475mm x 0.2475mm
Brightness: 300 cd/m²
Contrast ratio: 300:1
Viewing angle: 89°/89° horizontal & 89°/89° vertical
Response time 5 ms
Active area: 476.64 (H) x 268.11 (V) mm
VGA input Analog RGB (D-Sub 15-pins) + DVI
Plug and play: Yes DDC1 /DDC2B
Power: 12 Volts. included Adapter
Power consumption: 29 watt stand, 40 watt max.
Power consumption stand by: <4 watt max.
Temperature opration mode: 0 °C - 50 °C
Humidity operation mode: 10% ~ 90% R.H.
Size 579x373x53mm (wxlxd)
Weight ~9 Kg
Mounting: VESA 200x100mm

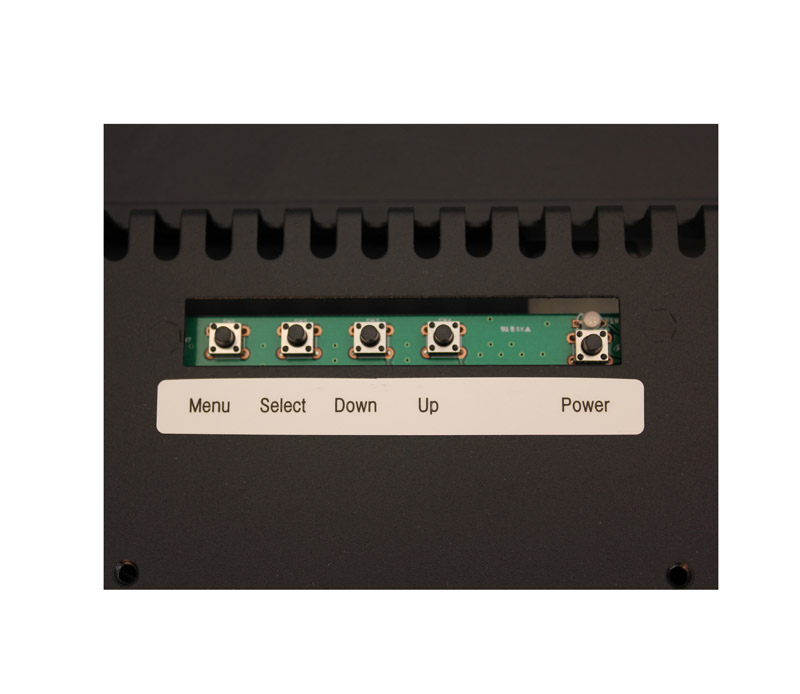

Users Mode: OSD Key:  Menu / Select / Power / Down / Up
Compatibility: VESA / IBM / MAC
Options:
Functionality: With or without touch
-        without touch: Acrylic or glass
-        with touch:
Type of Touch:
5 wire resitive, Surface Accoustic Wave or Projected Capacitive
Not sure what to use?  Call us at +31 (0)45 5748190 or send us contactform
-    5 wire resistive : -Standard non-glare.
-Touchable with finger, glove and stylus.
-Single touch
-activation force less than 40 gramm.
-     SAW: -Standard glare.
-Touchable with finger and glove.
-Single touch
-activation force less than 85 gramm.
-     Projected Capacitive: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-10 points touch
-activation force less than 1 gramm.
External protection: Standard IP44 or IP65 or higher (not for SAW)
Touch controller interface: USB, RS232 with external power or RS232 with internal power
Video input: VGA+DVI or VGA+DVI+AV.

Specifications / Manual :

specs 21.5 inch black panel mount touch monitor
Dimensions : dimensions 21.5 inch black panel mount touch monitor
Driver downloads : touchscreen driver downloads
