12.1" PCAP panel mount touchmonitor
Net price (excl.VAT) €529,00
Art.No.:
1020152413 Brand:
A1Touch Solution
Type: AOD 121 PG-GPCAP10-...-FPMB; AOD / ATS 12.1 inch projected capacitive panel mount (touch) monitor, VGA+DVI.

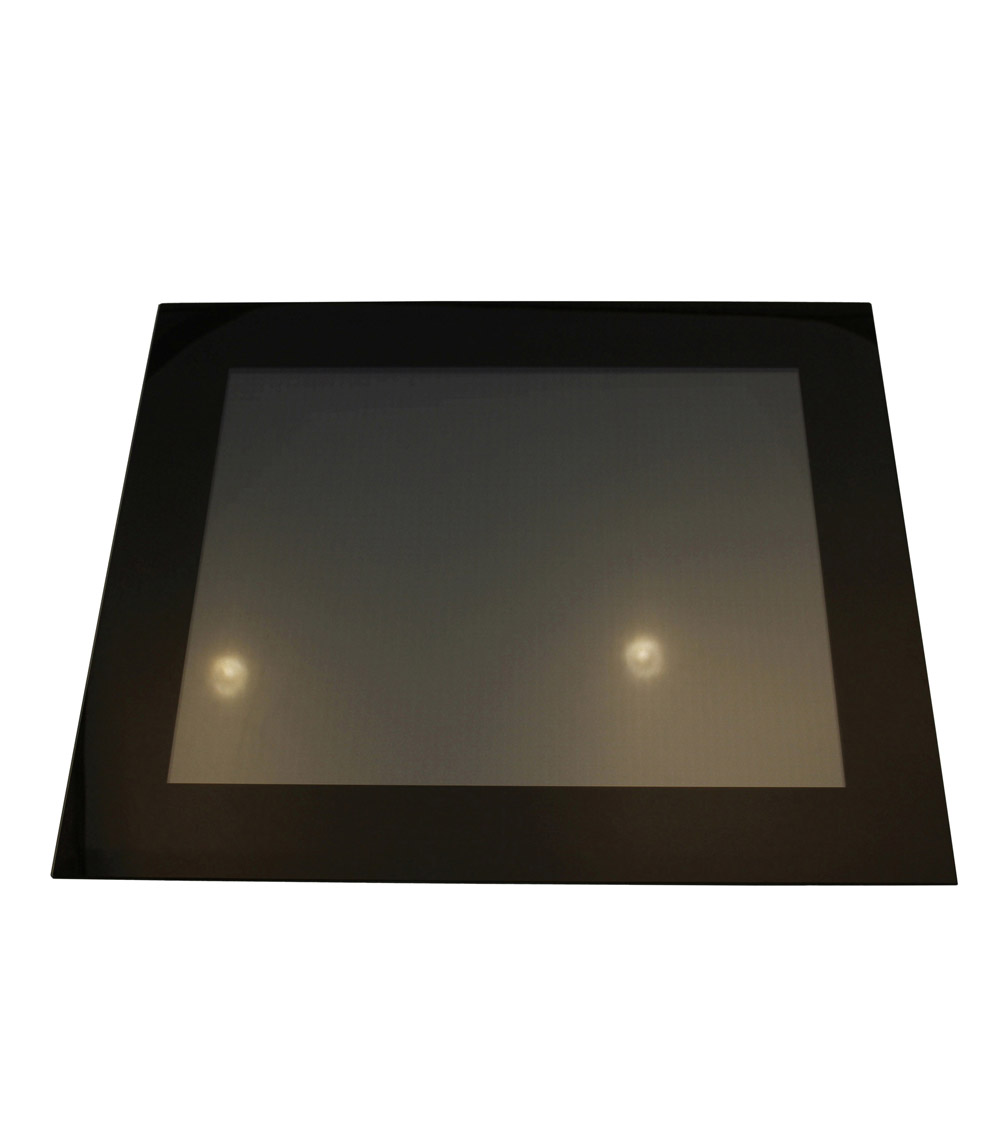

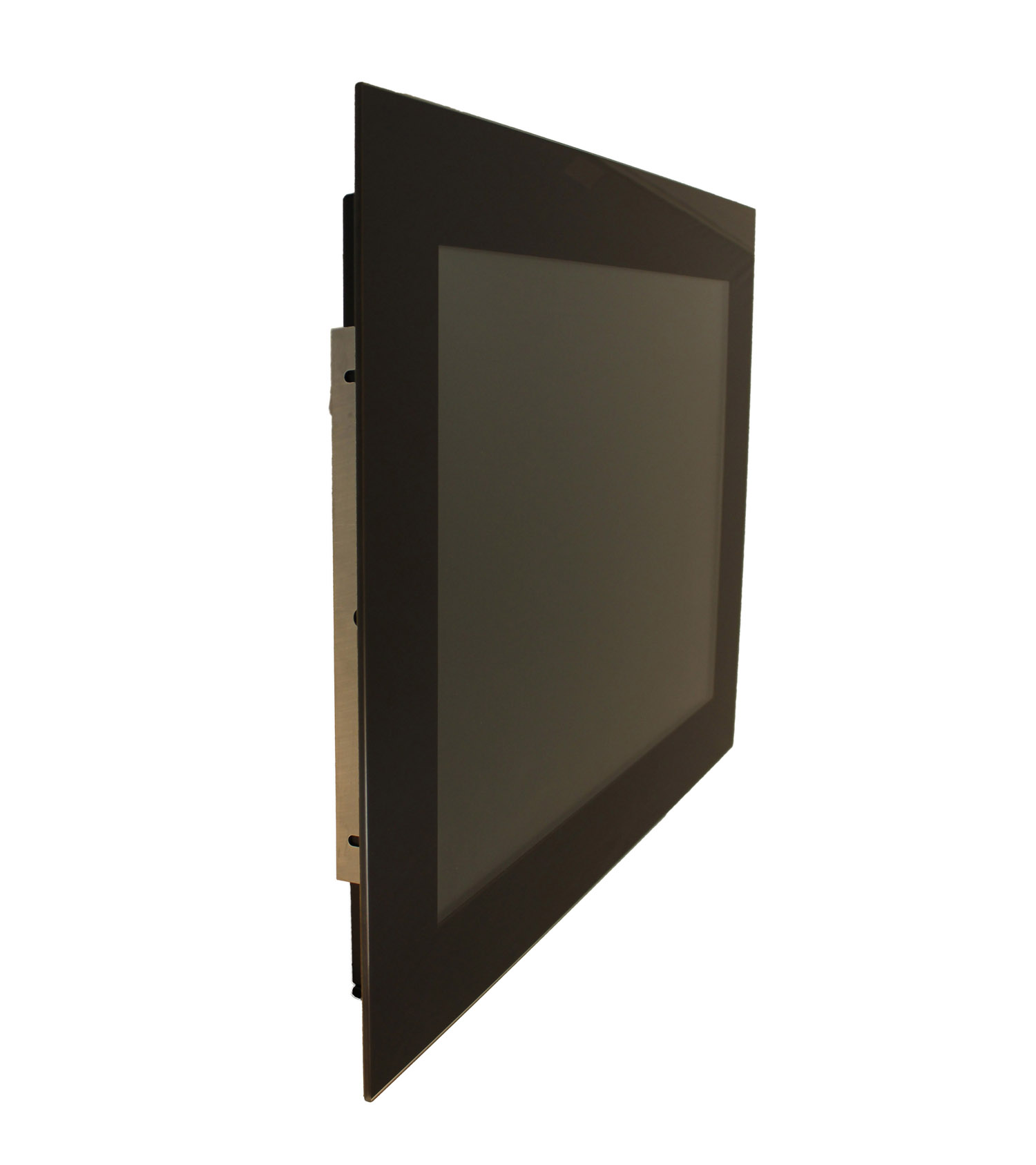

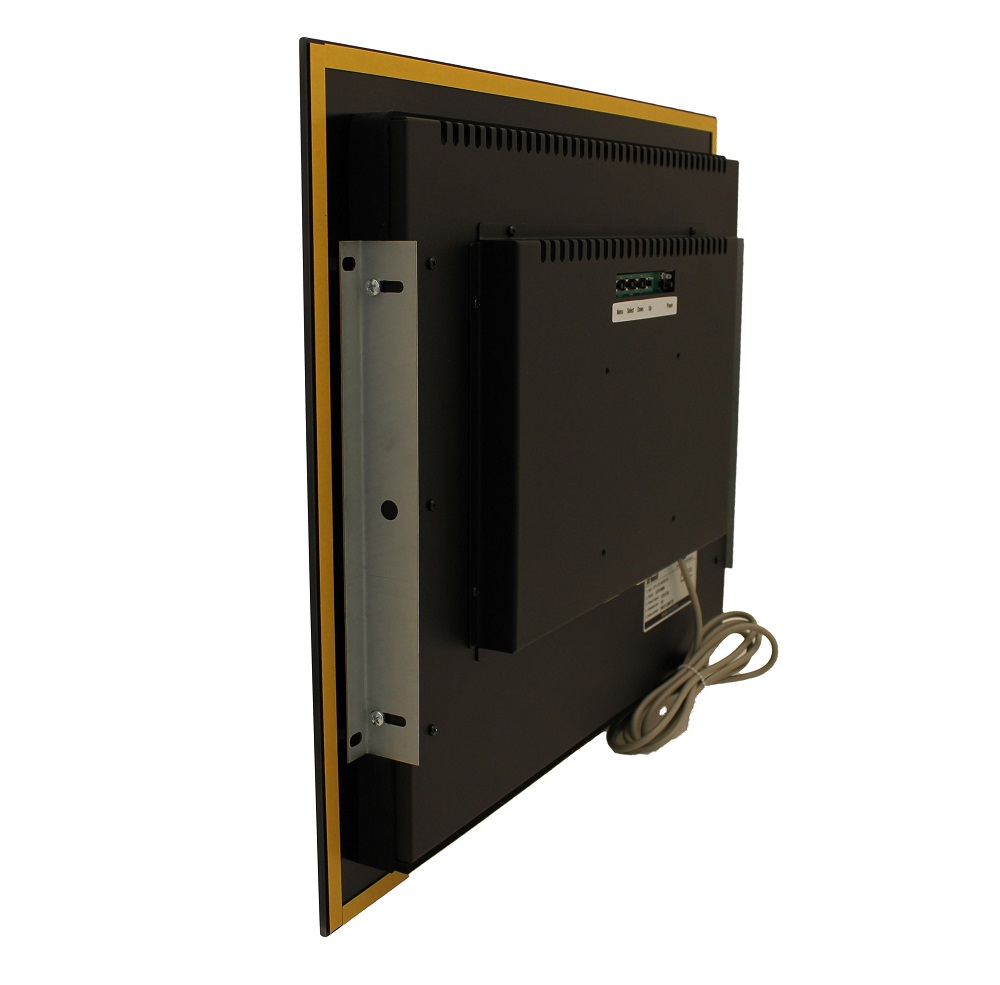

Description: 12,1 inch panel mount monitor to be assembled inside an unfinished hole of panel or control box. Built-in touchmonitor with or without touchscreen; touchscreen options like pcap, resistive, saw, ir or with protection glass. Black coated metal case for vandal proof 24/7 use is public spaces.
Unit is in stock.
| Color panel: | Float Glass with black borders |
| Model: | 12.1 inch XGA TFT LCD Monitor |
| Type: | 12,1" Color Active Matrix TFT LCD (AUO G121XN01 V0 ) |
| Resolution (max): | 1024 x 768 (SVGA) |
| Color: | 262,144 (6bit) |
| Pixel: | 0.24 x 0.24 mm |
| Brightness: | 500 cd/m² |
| Contrast ratio: | 700:1 |
| Viewing angle: | 80°/80° horizontal & 80°/80° vertikal |
| Respons time | 35 ms |
| Active area: | 246 (H) x 184,5 (V) mm |
| VGA input | Analog RGB (D-Sub 15-pins) + DVI |
| Plug and play: | Yes DDC1 /DDC2B |
| Power: | 12 Volts. included Adapter |
| Power consumption: | <35 watt max. |
| Power consumption stand by: | <4 watt max. |
| Temperature opration mode: | 0 °C - 50 °C |
| Humidity operation mode: | 10% ~ 90% R.H. |
| Size | 360x300x46mm (wxhxd) |
| Weight | 2,4 Kg |
| Mounting: | VESA 75mm |

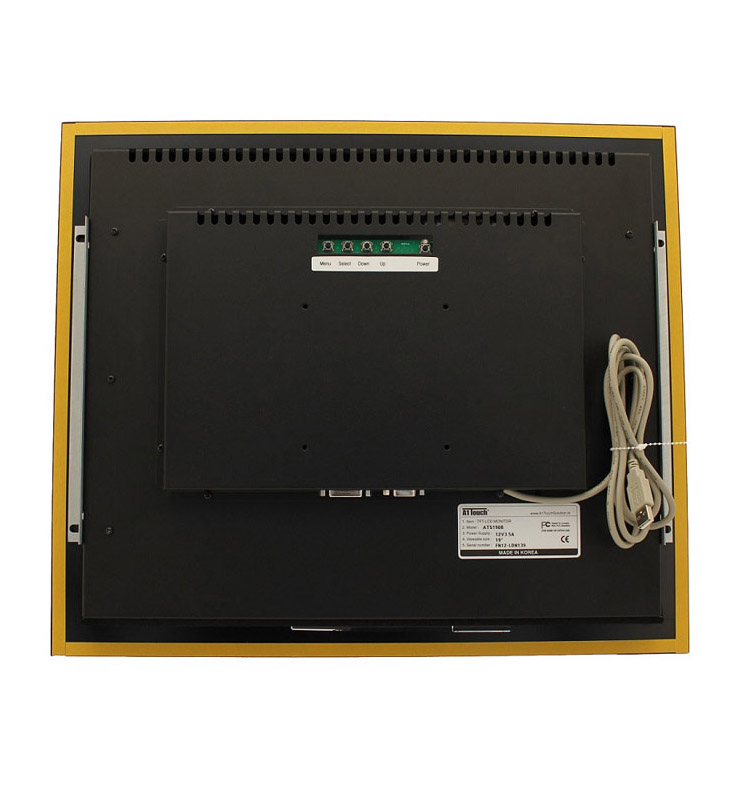

| Users Mode: | OSD Key: Menu / Select / Power / Down / Up |
| Compatibility: | VESA / IBM / MAC |
| Touch info: | |
| Touch type: | Projected Capacitive |
| Touch spec: | -Standard glare. -Touchable with finger, glove and pcap stylus. -4 points touch -activation force less than 1 gramm. |
| External protection: | Front completely glass, so 100% watertight |
| Glass sensor: | 4mm thick float glass with black borders.. |
| Surface hardness: | Mohs' hardness = 6 |
| Responstime: | Max. 20 msec. |
| Options: | |
| Touch controller interface: | USB, RS232 with external power or RS232 with internal power |
|
Specifications / Manual : |
 |
| Installation dimensions : | |
| Drawing : | |
| Mounting instructions : | |
| Driver downloads : |  |
