Specification:
|
General |
|
|
Model: |
AOD420 |
|
Size: |
42" ( 42.02” active area) |
|
Panel Type: |
a-Si TFT active matrix |
|
Backlight: |
LED |
|
Display colour: |
16.7M/1073M |
|
Color: |
Black |
|
Material: |
Metal housing, Glass: 6mm hardened cover glass |
|

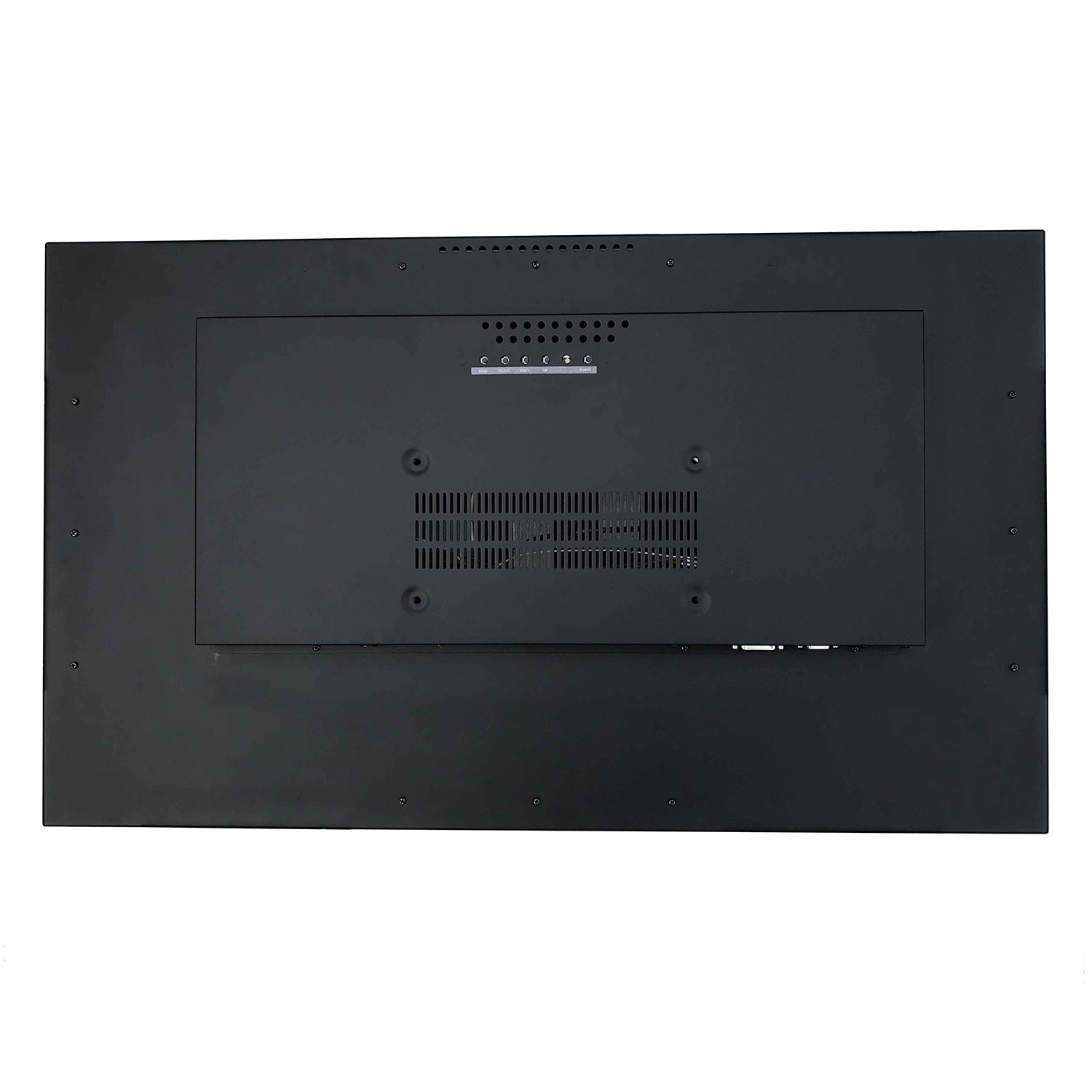

Mounting Option: |
VESA 200x100 mm |
|

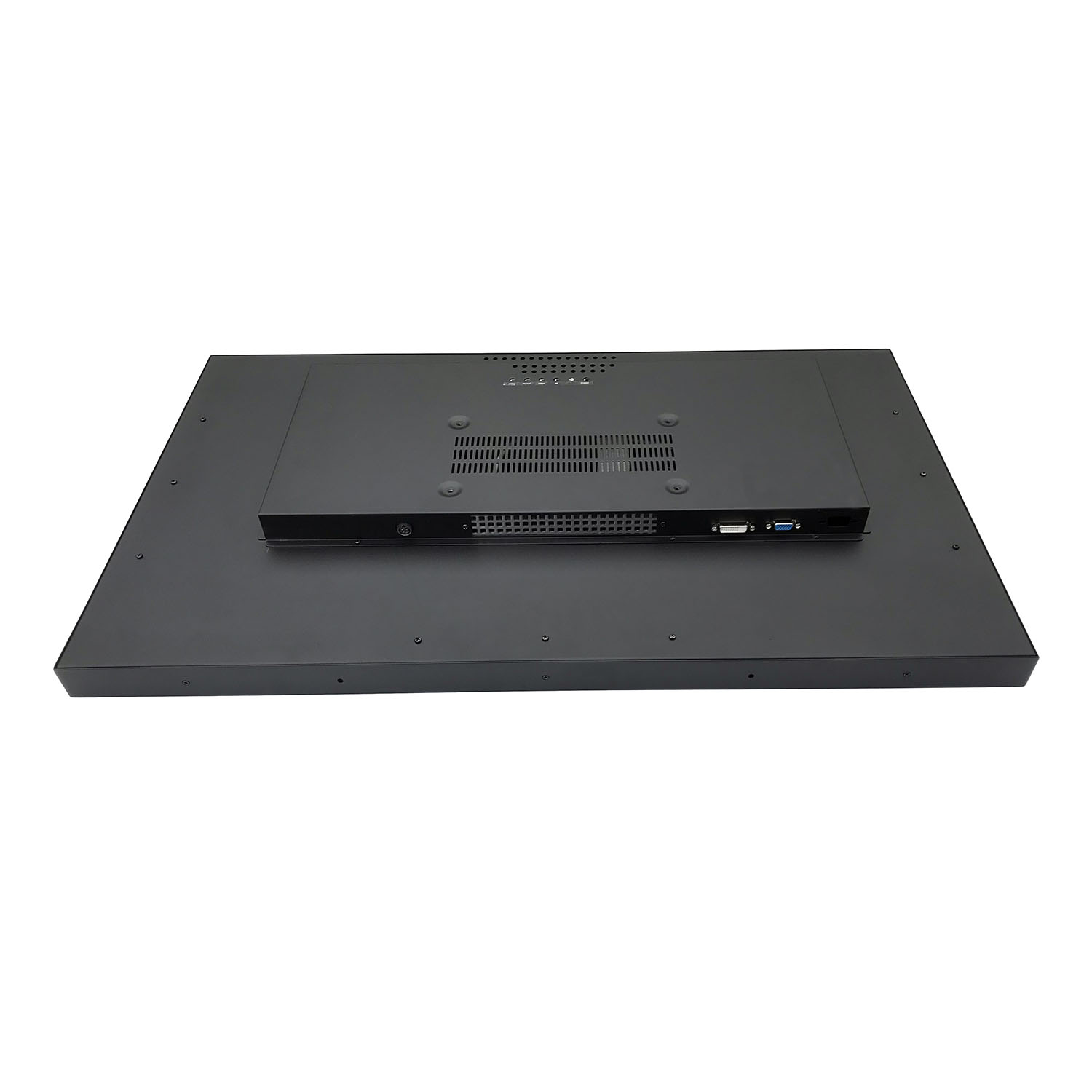

Video Inputs |
Inputs: VGA/ DVI |
|
Dimensions |
|
|
Outside dimensions metal frame |
984.0 x 577.0 x 68 mm (wxhxd) |
|

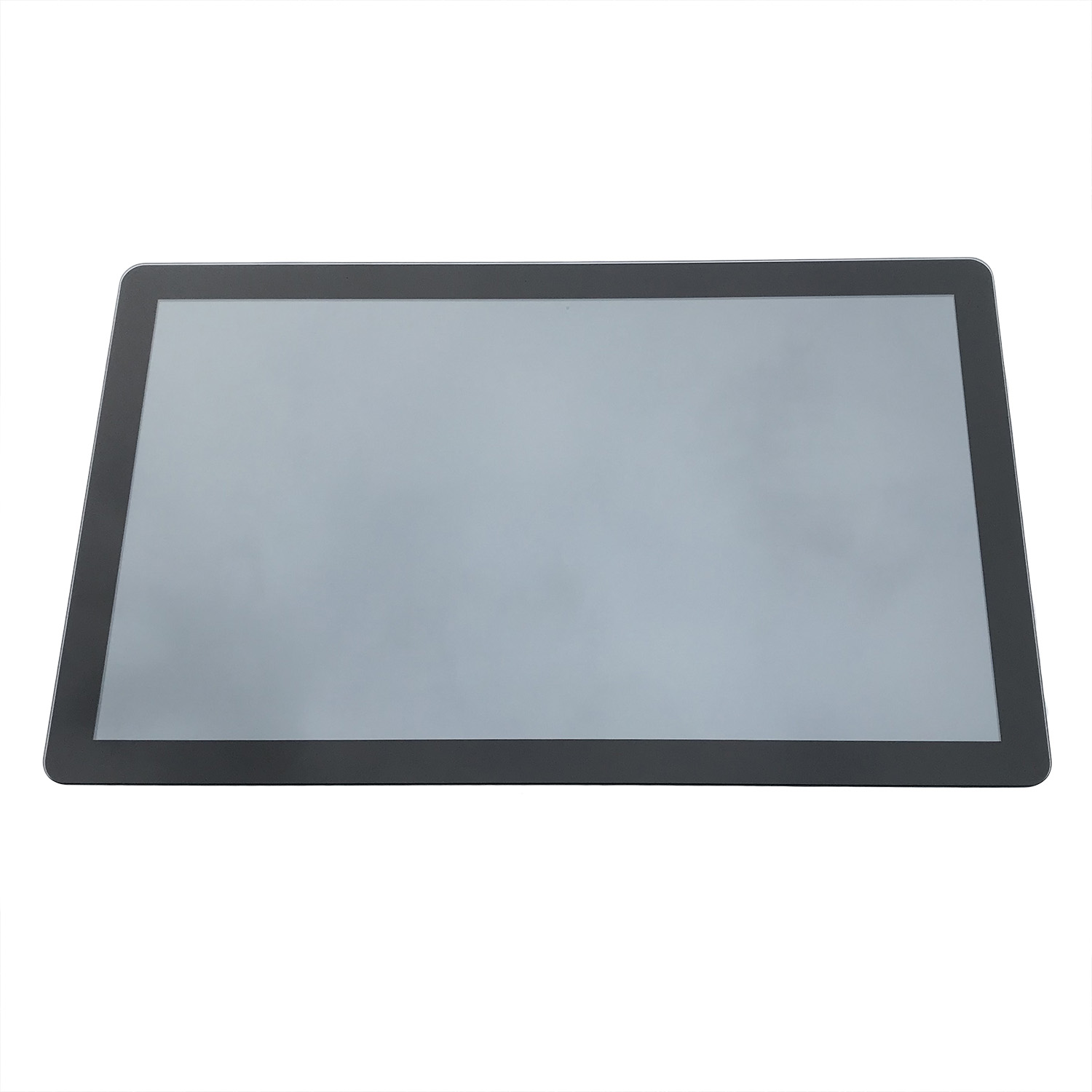

Outside dimensions for option pcap panel |
1001.3 x 594.3 x 68 mm (wxhxd) |
|
Display area |
930.24 x 523.26 (wxh) |
|
Display |
|
|
Native resolution: |
1920 x 1080 @60HZ |
|
Ratio: |
16:9 |
|
Contrast: |
4000:1 |
|
Brightness: |
500 cd/m |
|
Viewing Angle (H/V): |
178/178 |
|
Response time: |
<8ms |
|
Backlight life: |
50.0000 hrs |
|
Control: |
OSD Control (Remote control is option) |
|
Touchscreen |
|
|
Touch Technology: |
Projected capacitive Touch (G+G) |
|
Detected touches |
10 touches. |
|
Response time: |
<10ms |
|
Input Method: |
Finger, hand gloves, or conductive stylus |
|
Touch times: |
Unlimited |
|
Touch Activation Force: |
No minimum touch activation force is required. |
|
Controller type: |
EETI chipset 31xx |
|
Operating System Support: |
Windows2000, XP, 7, 8, 10, Android, MAC and Linux. |
|
Environment |
|
|
Temperature: |
Operating: -10°C ~ 70°C Storage: -20°C ~ 80°C |
|
Relative Humidity: |
Operating: 90%(non-condensing at max 40°C) Storage: 90%(non-condensing at max 40°C) |
|
Altitude: |
Up to 3000m |
|
Electrical |
|
|
Scan frequency: |
60Hz |
|
Power Supply: |
110-240V AC |
|
Power: |
59 W |
|
Packing |
|
|
Agency Approvals: |
CE, FCC, RoHS |
|
Weight net.: |
+/-24 Kg ( 29.6 Kg for option PCAP). |
| Options: | |
| Functionality: | With or without touch |
| - without touch: | Acrylic or glass |
| - with touch for option "Mounting behind glass = YES": Type of Touch: |
Projected Capacitive A1touch and Zytronic®. Not sure what to use? Call us at +31 (0)45 5748190 or send us contactform |
| + Projected Capacitive (A1touch): | -For glass upto 5mm or Acrylic glass upto 2.5mm. -Touchable with finger, glove and pcap stylus. -10 points touch -activation force less than 1 gramm. |
| + Projected Capacitive (Zytronic®): | -For glass upto 20mm or Acrylic glass upto 10mm. -Touchable with finger, glove and pcap stylus. -2 points touch -activation force less than 1 gramm. |
| - with touch for option "Mounting behind glass = NO": | Surface Accoustic Wave or Projected Capacitive |
| - SAW: | -Standard glare. -Touchable with finger and glove. -Single touch -activation force less than 85 gramm. |
| - Projected Capacitive: | -Standard glare. -Touchable with finger, glove and pcap stylus. -10 points touch -activation force less than 1 gramm. |
| External protection: | Standard IP44 or IP65 or higher (not for SAW) |
| Touch controller interface: | USB, RS232 with external power or RS232 with internal power |
| Video input: | VGA+DVI |
|
Specifications / Manual : |
 |
