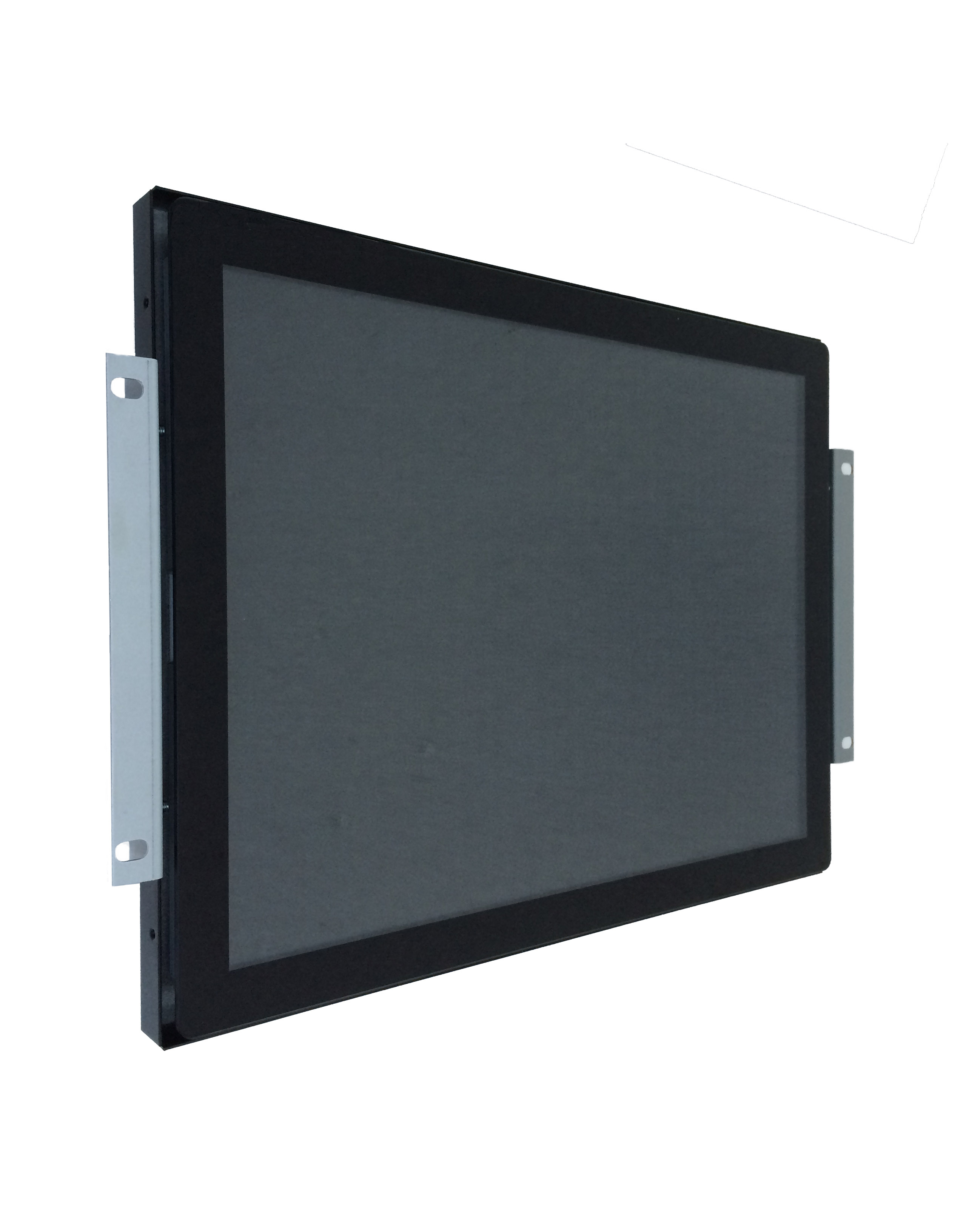

21.5" Rear (glass) mount (touch)Monitor

Brand:

A1Touch Solution

Type: AOD215-....-OF; AOD / ATS 21.5" Rear (glass) mount (touch) monitor, VGA+DVI - HDMI - DisplayPort - mini DisplayPort.

Description: 21,5 inch rear mount monitor to be assembled behind glass or a finished hole of panel or control box. Built-in touchmonitor with or without touchscreen; touchscreen options like pcap behind glass or resistive, saw, ir or protection glass behind hole. Black coated metal case for vandal proof 24/7 use is public spaces.

Unit is in stock.

Color panel:	Black powder Coated (other colors on request)
Model:	21,5 inch XGA TFT LCD Monitor
Type:	21.5 inch, 16:9 Color Active Matrix TFT LCD LM215WF3 (LG Philips LCD)
Resolution (max):	1920 x 1080 (Full HD)
Color:	16,7 million
Pixel:	0.2475mm x 0.2475mm
Brightness:	300 cd/

Color panel:	Black powder Coated (other colors on request)
Model:	21,5 inch XGA TFT LCD Monitor
Type:	21.5 inch, 16:9 Color Active Matrix TFT LCD LM215WF3 (LG Philips LCD)
Resolution (max):	1920 x 1080 (Full HD)
Color:	16,7 million
Pixel:	0.2475mm x 0.2475mm
Brightness:	300 cd/m²
Contrast ratio:	300:1
Viewing angle:	89°/89° horizontal & 89°/89° vertical
Response time	5 ms
Active area:	476.64 (H) x 268.11 (V) mm
VGA input	Analog RGB (D-Sub 15-pins) + DVI
Plug and play:	Yes DDC1 /DDC2B
Power:	12 Volts. included Adapter
Power consumption:	29 watt stand, 40 watt max.
Power consumption stand by:	<4 watt max.
Temperature opration mode:	0 °C - 50 °C
Humidity operation mode:	10% ~ 90% R.H.
Size	519x323x53mm (wxlxd)
Weight	~9 Kg

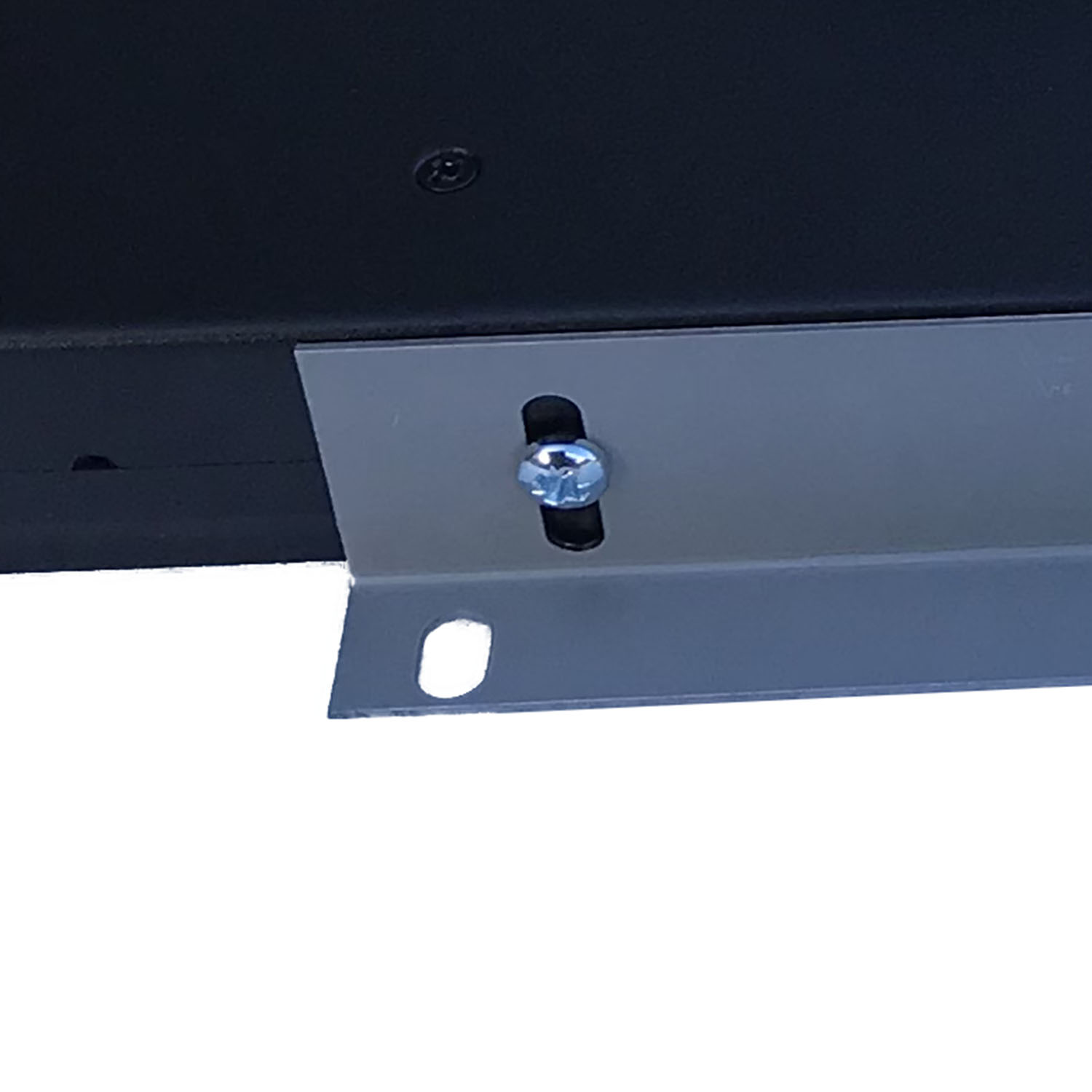

Mounting:	VESA 200x100mm; (No bracket/ stand included in delivery; See: mounting_brackets)

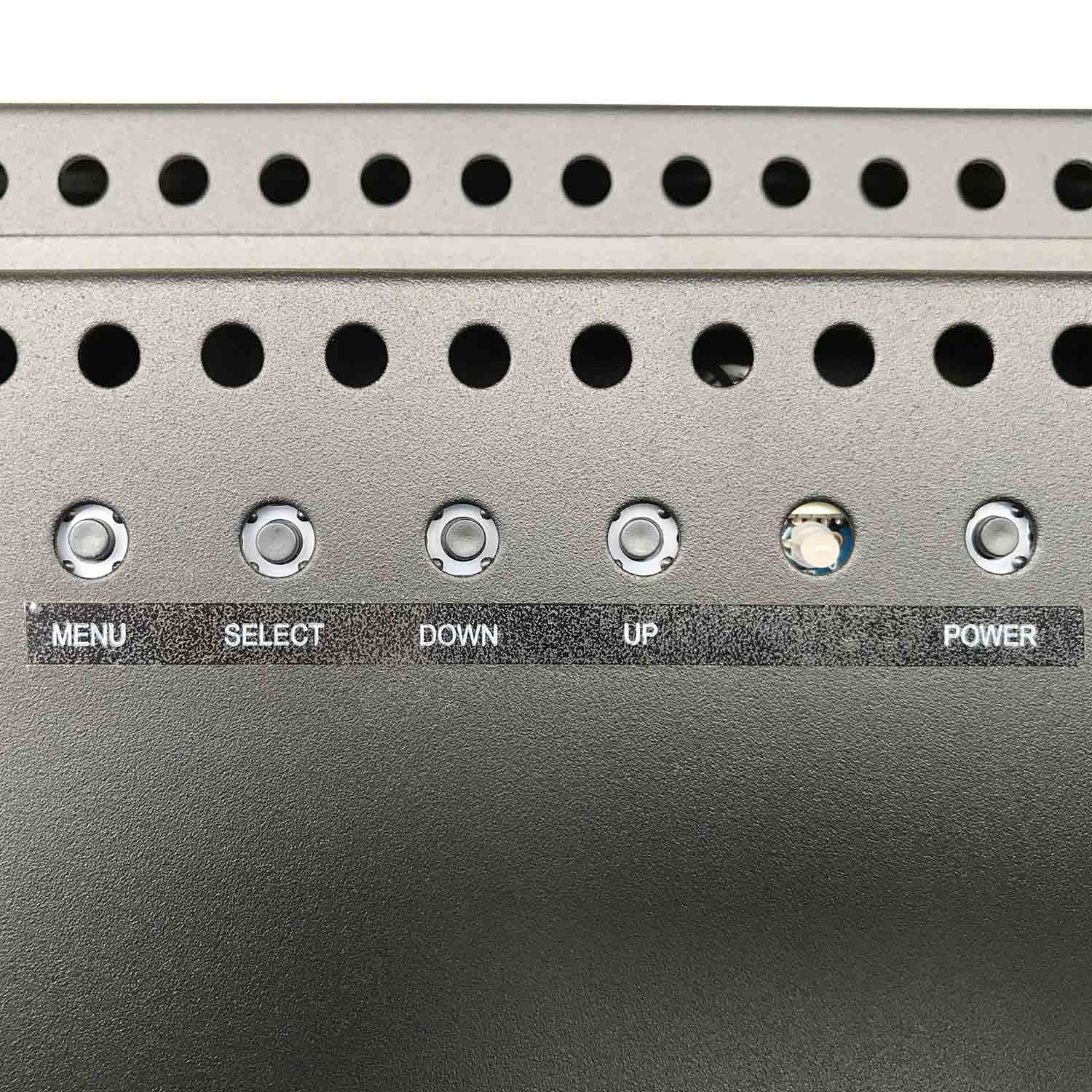

Users Mode:	OSD Key: Menu / Select / Power / Down / Up
Compatibility:	VESA / IBM / MAC

Options:
Functionality:	With or without touch
- without touch:	Acrylic or glass
- with touch for option "Mounting behind glass = YES": Type of Touch:	Projected Capacitive A1touch and Zytronic®. Not sure what to use? Call us at +31 (0)45 5748190 or send us

Options:
Functionality:	With or without touch
- without touch:	Acrylic or glass
- with touch for option "Mounting behind glass = YES": Type of Touch:	Projected Capacitive A1touch and Zytronic®. Not sure what to use? Call us at +31 (0)45 5748190 or send us contactform
+ Projected Capacitive (A1touch):	-For glass upto 5mm or Acrylic glass upto 2.5mm. -Touchable with finger, glove and pcap stylus. -10 points touch -activation force less than 1 gramm.
+ Projected Capacitive (Zytronic®):	-For glass upto 20mm or Acrylic glass upto 10mm. -Touchable with finger, glove and pcap stylus. -2 points touch -activation force less than 1 gramm.
- with touch for option "Mounting behind glass = NO":	5 wire resitive, Surface Accoustic Wave or Projected Capacitive
- 5 wire resistive :	-Standard non-glare. -Touchable with finger, glove and stylus. -Single touch -activation force less than 40 gramm.
- SAW:	-Standard glare. -Touchable with finger and glove. -Single touch -activation force less than 85 gramm.
- Projected Capacitive:	-Standard glare. -Touchable with finger, glove and pcap stylus. -10 points touch -activation force less than 1 gramm.
External protection:	Standard IP44 or IP65 or higher (not for SAW)
Touch controller interface:	USB, RS232 with external power or RS232 with internal power
Video input:	VGA+DVI
