13.3" Bezel Free Rear mount PCAP Touch Monitor

Rear mount touchscreen front
13.3" Bezel Free Rear mount PCAP Touch Monitor
Net price (excl.VAT) €380,00
Art.No.:
1020153177**
Brand:
A1Touch Solution
Type: BFR133-OF; 13.3" Rear mount projected capacitive touch monitor, VGA+HDMI.
Description: 13.3 inch Full HD rear mount PCAP monitor to be assembled behind a finished hole of panel or control box. Touchscreen of full glass and black coated metal case for vandal proof 24/7 use is public spaces.
Unit is in stock

Applications:

Multimedia system
POS system
Exhibition
Education training
Public query machine
Self-service machine
Surveillance system
And more

Product Features:

- Bezel free design with glass surface.
- Precise multi-point (10 points) touching.
- Maintenance free.
- Complete metal monitor with strong stability.
- Supporting plug and play for win-7,-8 and -10. (Mac | Linux | Android with driver).
- Unit can be touched with finger, hand gloves or stylus pencil.
- Fast touch response (less than 10 ms).


Specifications:

General

Model:
BFR133-OF
Size:
13.3"
Panel Type:
IPS
Backlight:
LED
Display colour:
262K
Color:
Black
Material:
Metal housing, Glass cover glass
Mounting Option:
VESA 75x75 and 100x100 mm
Video Inputs

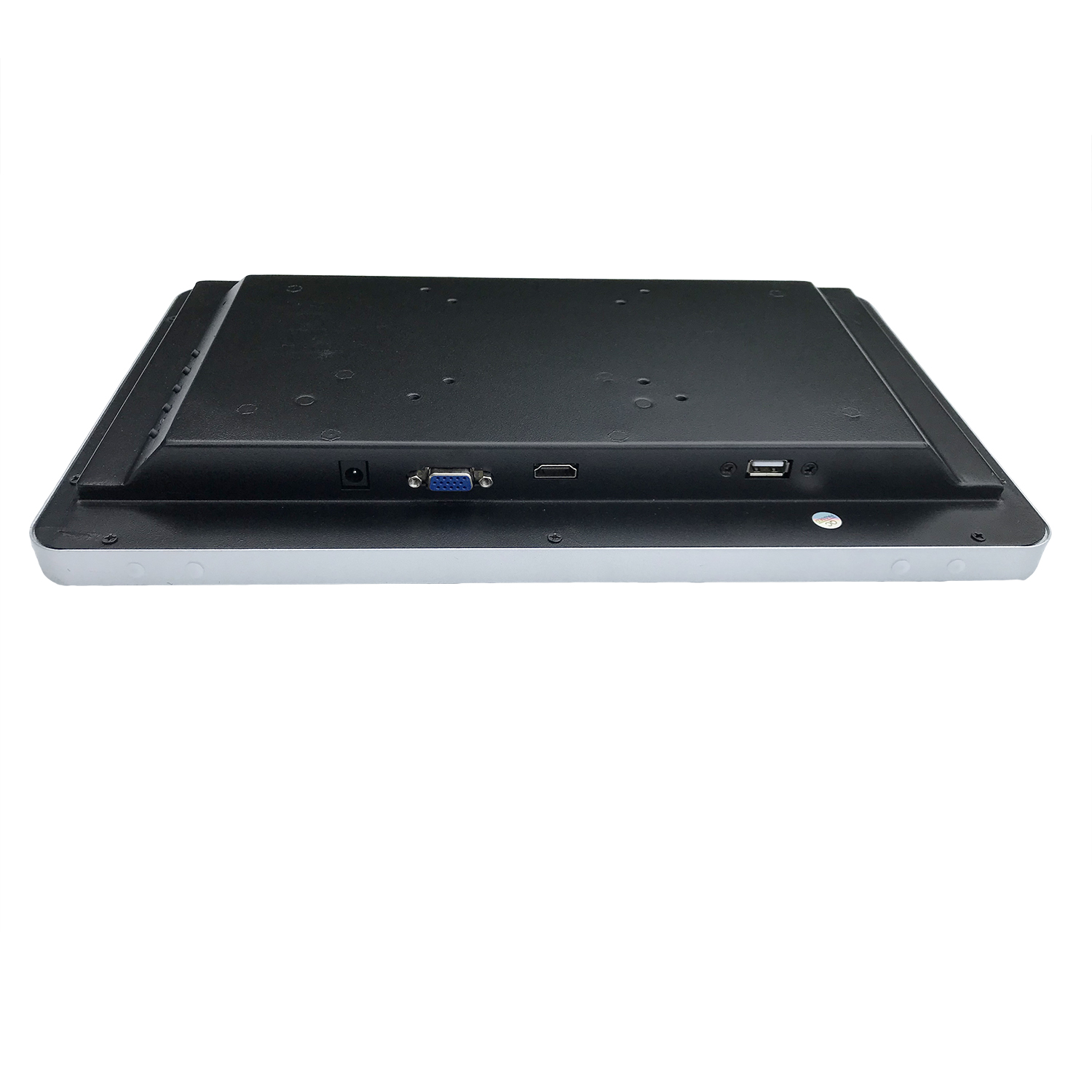

Inputs: VGA/ HDMI
Dimensions

Outside dimensions frame (wxhxd) (without hinges)
354*224*38 mm
Active area (wxh)
293.76*165.24 mm
Display

Native resolution:
1920*1080 @60HZ
Ratio:
16:9
Contrast:
800:1
Brightness:
350 cd/m
Viewing Angle (H/V):
178/178
Backlight life:
Min.15.0000 hrs
Control:
OSD Control
Touchscreen

Touch Technology:
Projected capacitive Touch (G+G)
Detected touches
10 touches.
Response time:
<10ms
Input Method:
Finger, hand gloves, or conductive stylus
Touch times:
Unlimited
Touch Activation Force:
No minimum touch activation force is required.
Controller type:
EETI chipset 31xx
Operating System Support:
Windows2000, XP, 7, 8, 10, Android, MAC and Linux.
Environment

Temperature:
Operating: 0°C ~ 50°C Storage: -20°C ~ 60°C
Relative Humidity:
Operating: 90%(non-condensing at max 40°C)
Storage: 90%(non-condensing at max 40°C)
Altitude:
Up to 3000m
Electrical

Scan frequency:
60Hz
Operation Voltage:
Typical +DC 12V, +/- 10% (24 volt option).
Power Supply:
110-220V AC to 12Volt DC, min. 2A
Power:
6.4 W
Packing

Agency Approvals:
CE, FCC, RoHS
Weight net.:
2.02 kg

Options:


Standard delivery: Our touchscreen monitor standard includes: pcap touchscreen with integrated USB controller chassis mount with USB-A-A cable 1.5 meter and 220 – 12 Volt Power Supply, VGA + HDMI cable + mounting hinges,
Power supply Cables:
 Ask us if you need 24VDC on monitor. Power supply delivered with EU connection or without power supply or cables

Accessories:

- With stylus pen and holder which can be sold HERE:


Specifications/ Drawings :

Specs BFR133 rear mount touch Monitor manual
Driver downloads : Touchscreen driver downloads

You can purchase by selecting below mentioned options (if available). More info on tab "Options")
​Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.

Discount on prices:

  • Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
  • For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
