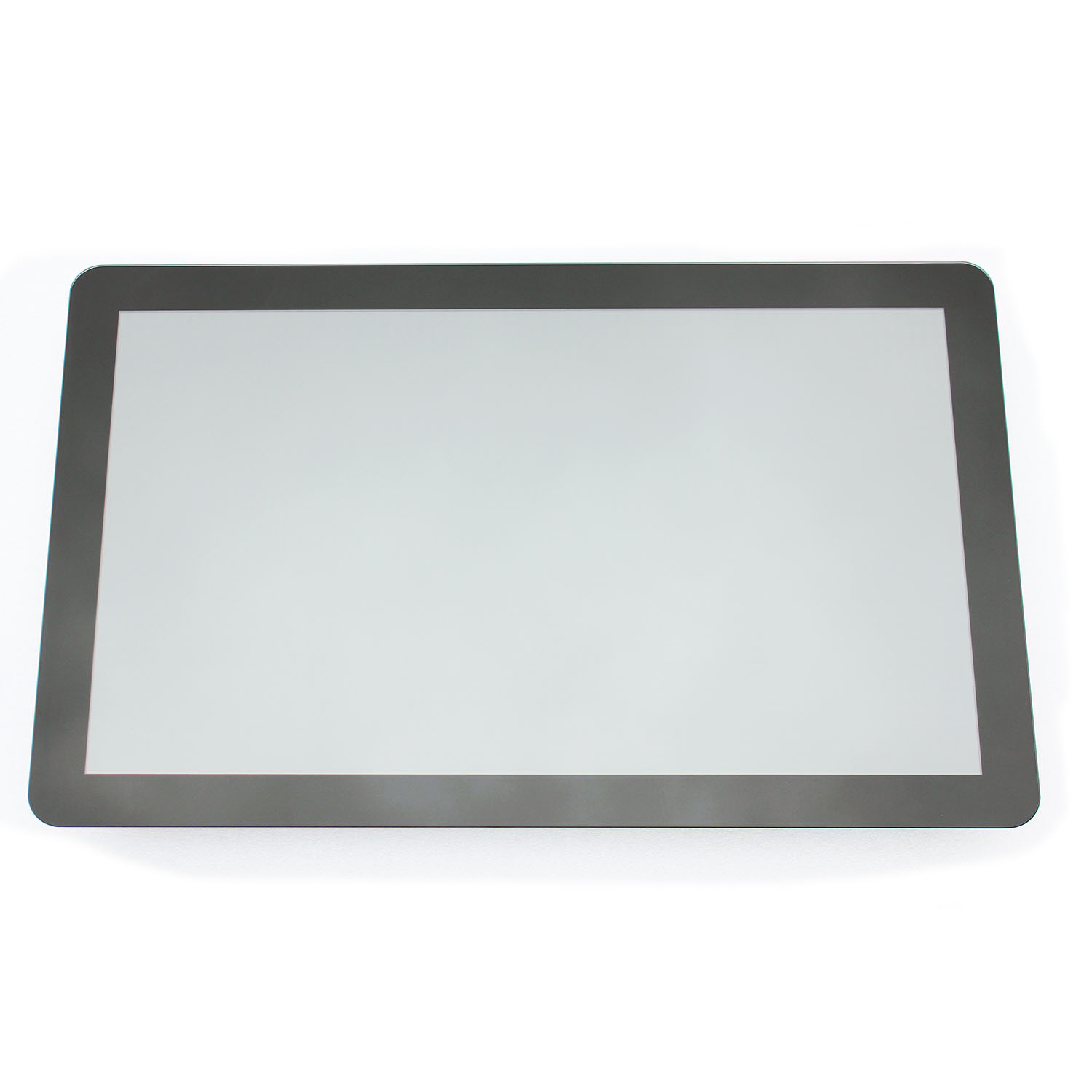

23.8" On Wall mount PCAP touchmonitor
Net price (excl.VAT) €738,00
Art.No.:
AOD 238 PG-GPCAP-...-NB Brand:
A1Touch Solution
Name: AOD / ATS 23.8 inch On-wall mount projected capacitive 10 points touchscren monitor, VGA+DVI.
Description: 23,8 inch pcap touchscreen monitor for mounting on a wall. Built-in PCAP 10 points touchscreen with 4mm hardened glass. Unit can be delivered with USB or RS232 interface. Very stable and good looking solution for use with finger, gloves or pedncil.
Unit is in stock.
| Color monitor: | Black powder coated touchscreen |
| Model: | M238HVN01.0 (AUO) |
| Type: | 23.8 inch, 16:9, a-Si TFT-LCD |
| Resolution (max): | 1920 x 1080 Full HD |
| Color: | 16,7 miljoen |
| Pixel: | 0.2745×0.2745 mm (H×V) |
| Brightness: | 250 cd/m² |
| Contrast ratio: | 3000:1 |
| Viewing angle: | 89°/89° horizontal & 89°/89° vertikal |
| Respons time | 5 ms |
| Active area: | 527.04×296.46 mm (H×V) |

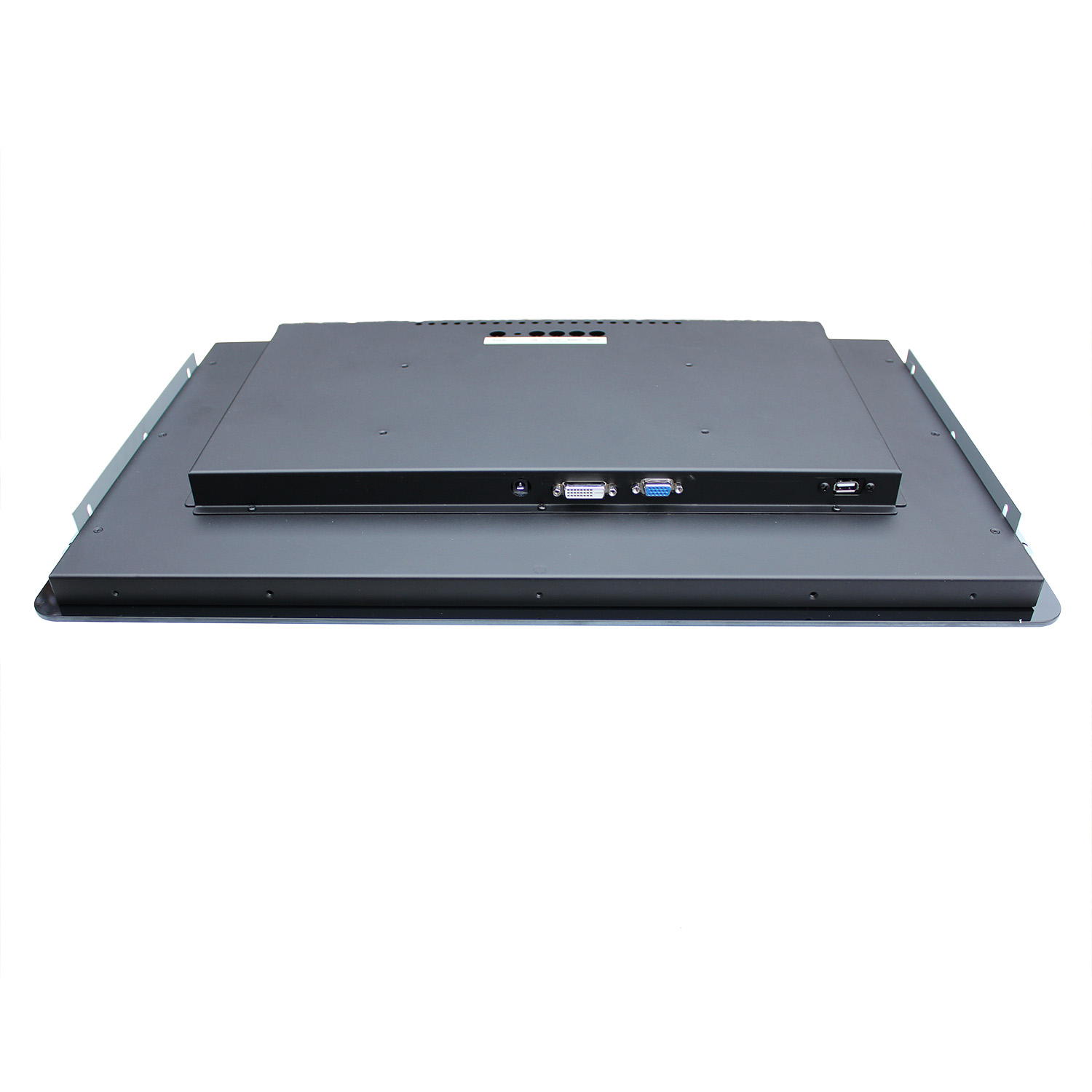

| VGA input | VGA + DVI |
| Plug and play: | Yes VESA DDC 1/2B |
| Power: | 12 Volts. included Adapter (24 volt on request) |
| Power consumption: | 29 watt stand, 40 watt max. |
| Power consumption stand by: | 4 watt max. |
| Temperature opration mode: | 0 °C - 50 °C |
| Humidity operation mode: | 10% ~ 90% R.H. |
| Size | Enclosure560x337x50 mm (wxlxd) |
| Weight | 9 Kg |

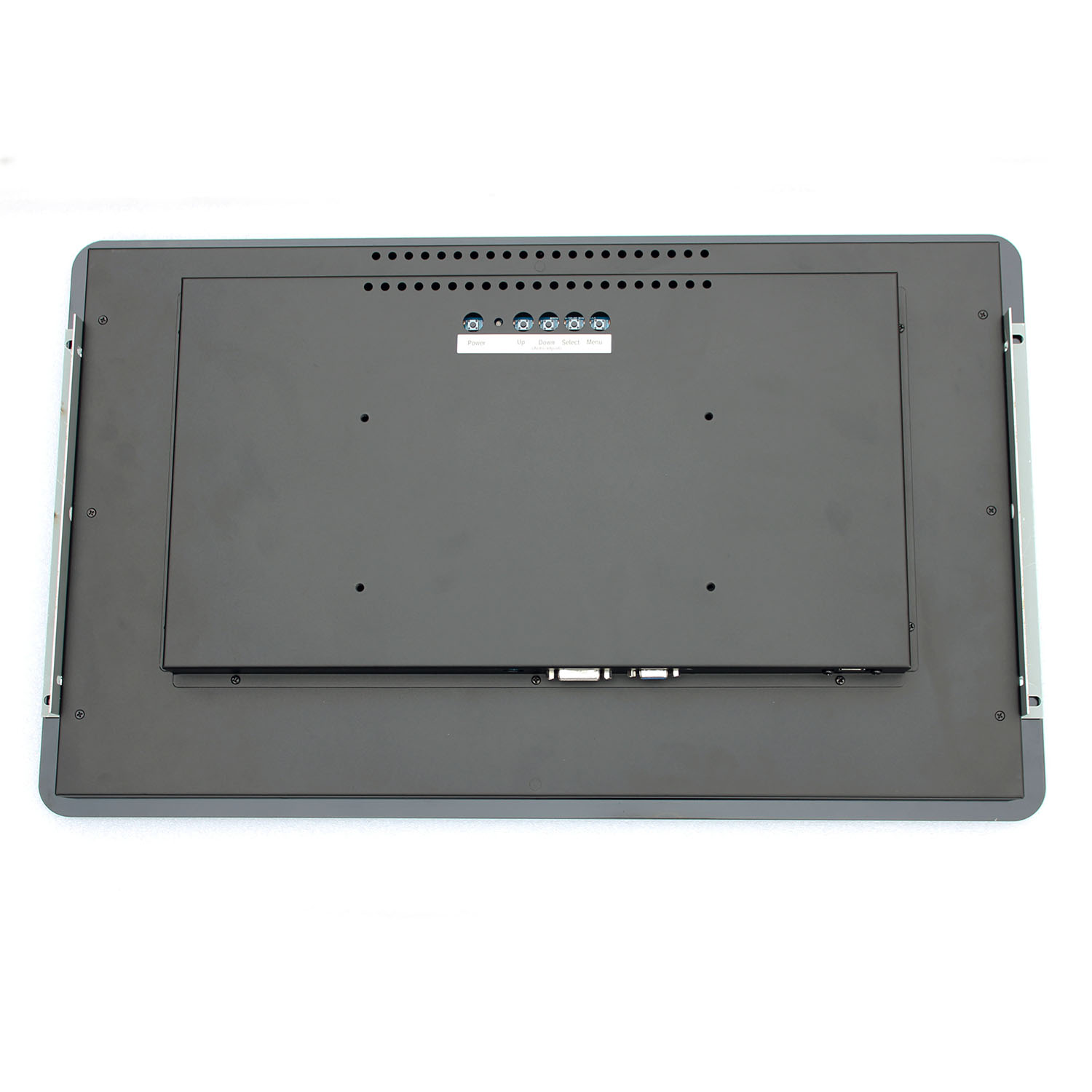

| Mounting: | VESA 200x100mm |

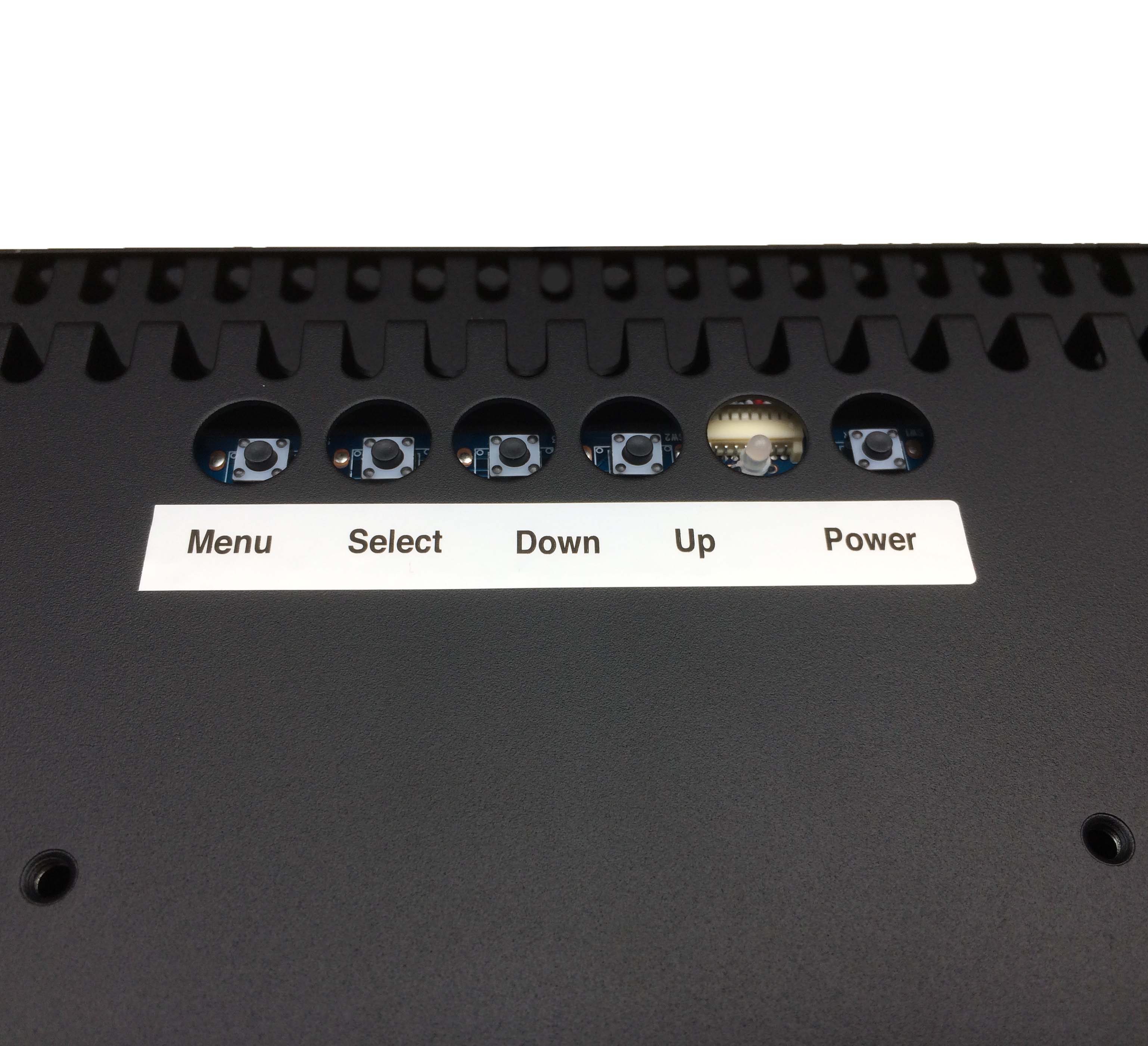

| Users Mode: | OSD Key: Menu / Select / Power / Down / Up |
| Compatibility: | VESA / IBM / MAC |
| Touch info: | |
| Touch type: | Projected Capacitive |
| Touch spec: | -Standard glare. -Touchable with finger, glove and pcap stylus. -10 points touch -activation force less than 1 gramm. |
| External protection: | Front IP65 sealed |
| Glass sensor: | 4mm thick hardened glass with black borders. (other type of glass or colour on request) |
| Surface hardness: | Mohs' hardness = 5 |
| Responstime sensor: | Max. 20 msec. |
| Options: | |
| Touch controller interface: | USB, RS232 with external power or RS232 with internal power |
|
Specifications / Manual : |
 |
| Driver downloads : |  |
You can purchase by selecting below mentioned options (if available). More info on tab "Options")
Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.
Discount on prices:
- Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
- For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
Available options:
