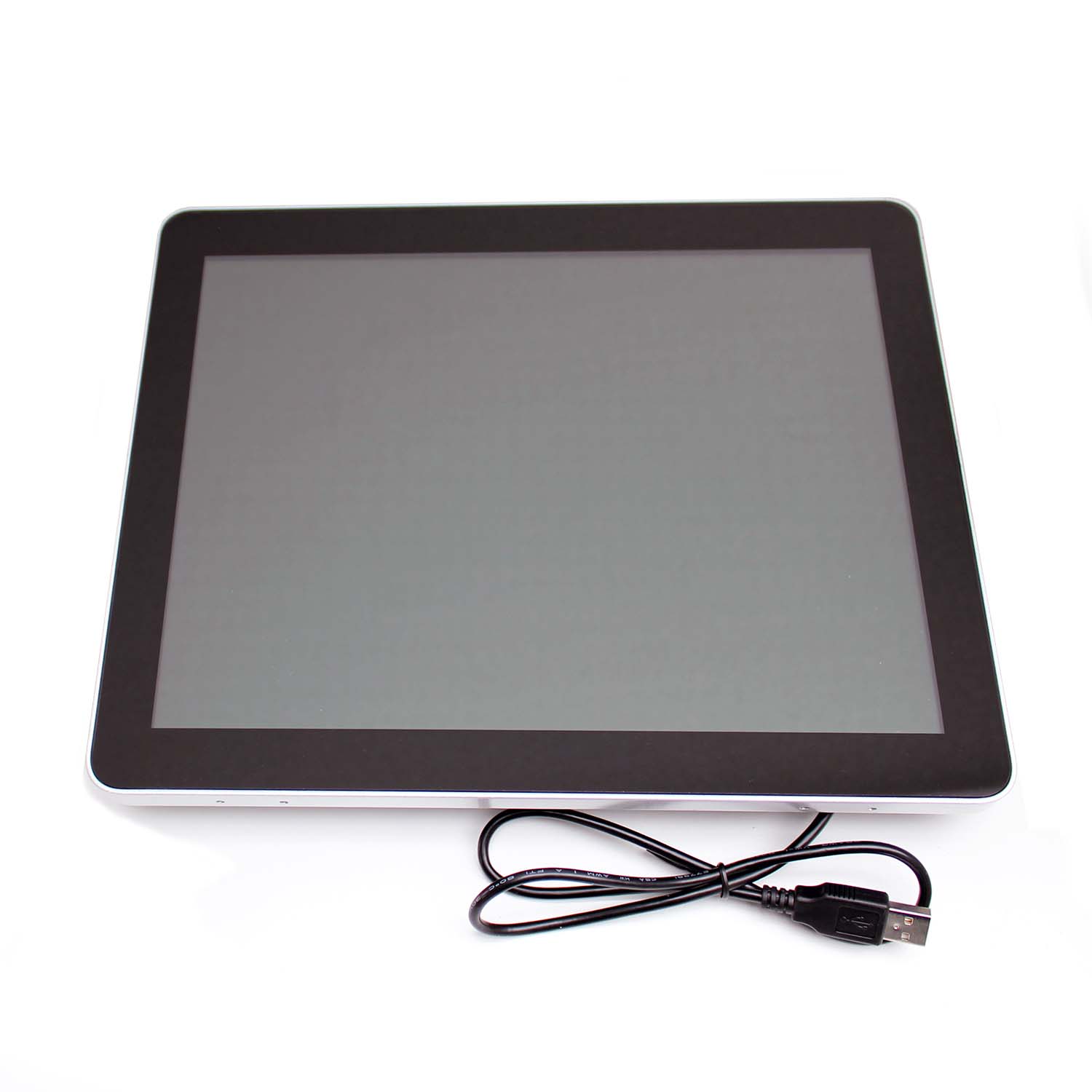

15" Bezel free PCAP wall mount Monitor
Net price (excl.VAT) €362,00
Art.No.:
1020152831* Brand:
A1Touch Solution
Name:BFR 15" wall mount projected capacitive touchscreen monitor, VGA/ HDMI/ BNC/ Composite and USB.
Descriptions: 15 inch on wall monitor with pcap touchscreen, bezel free with 4mm thick full glass and black coated metal case for vandal proof 24/7 use in public spaces.
Unit is in stock
Applications:
|
Multimedia system
|
POS system
|
|
Exhibition
|
Education training
|
|
Public query machine
|
Self-service machine
|
|
Surveillance system
|
And more
|
Product Features: |
| - Bezel free design with glass surface. |
| - Precise multi-point (10 points) touching. |
| - Camera and Television function (via BNC) and Digital Picture Frame (via USB). |
| - Maintenance free. |
| - Complete metal monitor with strong stability. |
| - Supporting plug and play for win-7,-8 and -10. (Mac | Linux | Android with driver). |
| - Unit can be touched with finger, hand gloves or stylus pencil. |
| - Fast touch response (less than 10 ms). |
Specifications:
|
General
|
|
|
Model:
|
BFR150
|
|
Size:
|
15" ( 15” active area)
|
|
Panel Type:
|
TFT-LCD
|
|
Backlight:
|
LED
|
|
Display colour:
|
16.7M
|
|
Color:
|
Black
|
|
Material:
|
Metal housing, Glass cover glass
|
|
Mounting Option:
|
VESA 75x75 and 100x100 mm
|
|
Video Inputs
|
Inputs: VGA/ HDMI/ BNC/ Composite/ USB
|
|
Dimensions
|
|
|
Outside dimensions frame (wxhxd)
|
345 x 27 x 50 mm
|
|
Active area (wxh)
|
304.1 x 228.1 mm
|
|
Display
|
|
|
Native resolution:
|
1024*768 @60HZ
|
|
Ratio:
|
4:3
|
|
Contrast:
|
800:1
|
|
Brightness:
|
300 cd/m
|
|
Viewing Angle (H/V):
|
170/160
|
|
Backlight life:
|
50.0000 hrs
|
|
Control:
|
OSD Control (Remote control is option)
|
|
Touchscreen
|
|
|
Touch Technology:
|
Projected capacitive Touch (G+G)
|
|
Detected touches
|
10 touches.
|
|
Response time:
|
<10ms
|
|
Input Method:
|
Finger, hand gloves, or conductive stylus
|
|
Touch times:
|
Unlimited
|
|
Touch Activation Force:
|
No minimum touch activation force is required.
|
|
Controller type:
|
EETI chipset 31xx
|
|
Operating System Support:
|
Windows2000, XP, 7, 8, 10, Android, MAC and Linux.
|
|
Environment
|
|
|
Temperature:
|
Operating: -10°C ~ 70°C Storage: -20°C ~ 80°C
|
|
Relative Humidity:
|
Operating: 90%(non-condensing at max 40°C)
Storage: 90%(non-condensing at max 40°C)
|
|
Altitude:
|
Up to 3000m
|
|
Electrical
|
|
|
Scan frequency:
|
60Hz
|
|
Operation Voltage:
|
Typical +DC 12V, +/- 10% (24 volt option).
|
|
Power Supply:
|
110-220V AC to 12Volt DC, min. 2A
|
|
Power:
|
10 W
|
|
Packing
|
|
|
Agency Approvals:
|
CE, FCC, RoHS
|
|
Weight net.:
|
3.08 kg
|
Options: |
|
| Standard delivery: Our touchscreen monitor standard includes: pcap touchscreen with integrated USB controller with USB-A cable 0.5 meter and 220 – 12 Volt Power Supply. | |
| Power supply Cables: - With power supply and (analog) vga cable (power supply is 110-220VAC to 12VDC). Ask us if you need 24VDC on monitor. Power supply delivered with EU connection. - With power supply and (digital) HDMI cable. -Without power supply or cables |
|
| Vesa wall mount bracket: - Without bracket (standard). You can use your own vesa bracket. - With our wall mount bracket:  |
|
| Accessories: - No accessories (standard) - With stylus pen and holder:  - With remote controller:  -With Stylus pencil, holder and remote controller. |
|
Specifications : |
 |
| Driver downloads : |  |
