12.1" Bezel free PCAP wall mount Monitor

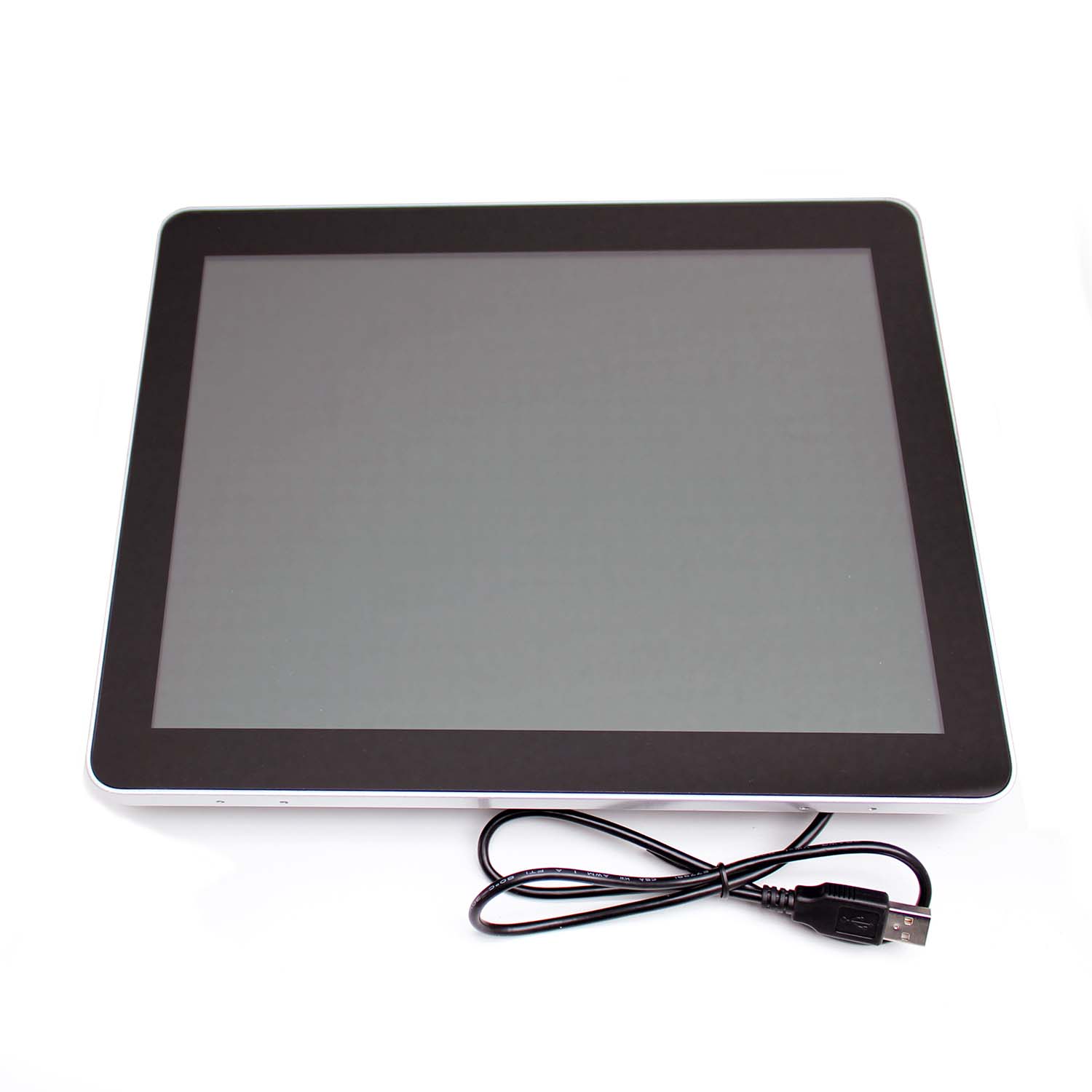

touchscreen monitor on wall mount 12.1 inch front
12.1" Bezel free PCAP wall mount Monitor
Net price (excl.VAT) €373,00
Art.No.:
1020153405*
Brand:
A1Touch Solution
Name:BFR 12.1" wall mount projected capacitive touchscreen monitor with bezelfree IP65 watertight front, VGA/ HDMI/ DVI
Descriptions: 12.1 inch wall monitor with pcap touchscreen, bezel free glass and black coated metal case for vandal proof 24/7 use in public spaces.
Unit is in stock

Applications:

Multimedia system
POS system
Exhibition
Education training
Public query machine
Self-service machine
Surveillance system
And more

Product Features:

- Bezel free design with glass surface.
- Precise multi-point (10 points) touching.
- Maintenance free.
- Complete metal monitor with strong stability.
- Supporting plug and play for win-7,-8 and -10. (Mac | Linux | Android with driver).
- Unit can be touched with finger, hand gloves or stylus pencil.
- Fast touch response (less than 10 ms).


Specifications:



General



Model:

BFR121

Size:

12.1" ( 12.1” active area)

Panel Type:

TFT-LCD

Backlight:

LED

Display colour:

16,7M

Color:

Black

Material:

Metal housing, Glass cover glass

Mounting Option:

VESA 75x75

Video Inputs

VGA/ HDMI/ DVI

Dimensions



Outside dimensions frame (wxhxd)

293 x 223 x 33,6 mm

Active area (wxh)

245,7 x 184.3 mm

Display



Native resolution:

1024*768 @60HZ

Ratio:

4:3

Contrast:

700:1

Brightness:

500 cd/m

Viewing Angle (H/V):

160/450

Response time:

16ms

Backlight life:

50.0000 hrs

Control:

OSD Control

Touchscreen



Touch Technology:

Projected capacitive Touch (G+G)

Detected touches

10 touches.

Response time:

<10ms

Input Method:

Finger, hand gloves, or conductive stylus

Touch times:

Unlimited

Touch Activation Force:

No minimum touch activation force is required.

Controller type:

Ilitek chipset

Operating System Support:

Windows2000, XP, 7, 8, 10, Android, MAC and Linux.

Environment



Temperature:

Operating:  0°C ~ 40°C

Storage: -10°C ~ 60°C

Relative Humidity:

Operating: 90%(non-condensing at max 40°C)

Storage: 90%(non-condensing at max 40°C)

Altitude:

Up to 3000m

Electrical



Scan frequency:

60Hz

Operation Voltage:

Typical +DC 12V, +/- 5%  (24 volt option).

Power Supply:

110-220V AC to 12Volt DC, min. 2A

Power:

Max 10 W



Packing



Agency Approvals:

CE, FCC, RoHS

Weight net.:

2,5 kg

Options:


Standard delivery: Our touchscreen monitor standard includes: pcap touchscreen with integrated USB controller with USB-A cable 0.5 meter and 220 – 12 Volt Power Supply.
Power supply Cables:
- With power supply and (analog) vga cable  (power supply is 110-220VAC to 12VDC).  Ask us if you need 24VDC on monitor. Power supply delivered with EU connection.
- With power supply and (digital) HDMI cable.
-Without power supply or cables

Vesa wall mount bracket:
- Without bracket (standard). You can use your own vesa bracket.
- With our wall mount bracket:

Accessories:
- No accessories (standard)
- With stylus pen and holder:
