17 inch Bezel free PCAP Touchscreen Monitor

PCAP touchscreen monitor desktop 17 inch
17 inch Bezel free PCAP Touchscreen Monitor
Net price (excl.VAT) €395,00
Art.No.:
1020153132
Brand:
A1Touch Solution
Name:BFR 17" desktop mount projected capacitive touchscreen monitor, VGA/ DVI and HDMI.
Descriptions: 17 inch desktop monitor with pcap touchscreen, bezel free with real glass and black coated metal case for vandal proof 24/7 use in public spaces.
Unit is in stock

Applications:

Television
POS system
Exhibition
Education training
Public query machine
Self-service machine
Surveillance system
And more

Product Features:

- Bezel free design with glass surface.
- Precise multi-point (10 points) touching.
- Maintenance free.
- Complete metal monitor with strong stability.
- Supporting plug and play for win-7,-8 and -10. (Mac | Linux | Android with driver).
- Unit can be touched with finger, hand gloves or stylus pencil.
- Fast touch response (less than 10 ms).

Specifications:

General



Model:

BFR170

Size:

17" ( 17” active area)

Panel type

TFT-LCD

Backlight:

LED

Display colour:

16.7M

Color:

Black

Material:

Metal housing, Glass cover glass

IP (between touchscreen and frame):

IP65

Mounting Option:

VESA 75x75 and 100x100 mm

Video Inputs

VGA/ DVI/ HDMI

Dimensions



Outside dimensions frame (wxhxd)

384.17 x 316.59 x 39.5 mm (without stand)

Active area (wxh)

337.92 (H)mm x 270.336 (V) mm

Display



Native resolution:

1280 x 1024 @60HZ

Ratio:

4:3

Contrast:

1000:1

Brightness:

250 cd/m

Viewing Angle (H/V):

175/165

Response time:

<5ms

Backlight life:

50.0000 hrs

Control:

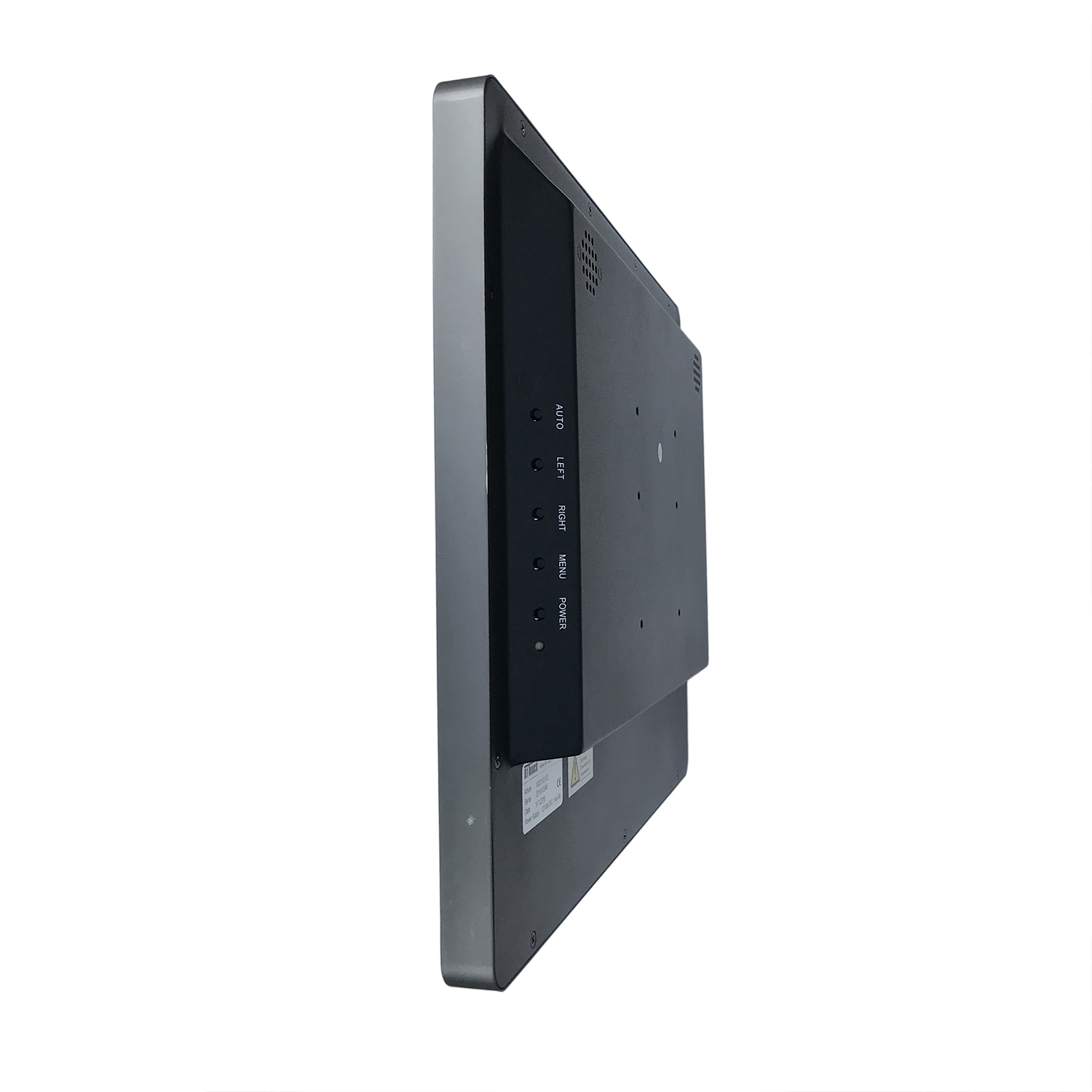

OSD Control

Touchscreen



Touch Technology:

Projected capacitive Touch (G+G)

Detected touches

10 touches.

Response time:

<10ms

Input Method:

Finger, hand gloves, or conductive stylus

Touch times:

Unlimited

Touch Activation Force:

No minimum touch activation force is required.

Controller type:

EETI chipset 31xx

Operating System Support:

Windows2000, XP, 7, 8, 10, Android, MAC and Linux.

Environment



Temperature:

Operating: 0°C ~ 40°C

Storage: -20°C ~ 60°C

Relative Humidity:

Operating: 20-80%(non-condensing at max 40°C)

Storage: 90%(non-condensing at max 40°C)

Altitude:

Up to 3000m

Electrical



Scan frequency:

60Hz

Operation Voltage:

Typical +DC 12V, +/- 10% (24 volt option).

Power Supply:

110-220V AC to 12Volt DC, min. 2A

Power:

17 W



Packing



Agency Approvals:

CE, FCC, RoHS

Weight net.:

4 kg





Options:


Standard delivery: Our touchscreen monitor standard includes: pcap touchscreen with integrated USB controller with USB-A/B cable 1.8 meter and 220 – 12 Volt Power Supply.
Power supply Cables:
- With power supply and (analog) vga cable  (power supply is 110-220VAC to 12VDC).  Ask us if you need 24VDC on monitor. Power supply delivered with EU connection.
- With power supply and (digital) HDMI cable.
-Without power supply or cables

Vesa desktop mount bracket:
- Without stand (standard). You can use your own vesa standard.
- With our heavy duty desktop stand:


- With height adjustable desktop stand from brand Newstar:

Accessories:
- No accessories (standard)
- With stylus pen and holder:




Specifications :

Specs 07 inch AOD desktop touch Monitor manual
Driver downloads : Touchscreen driver downloads
