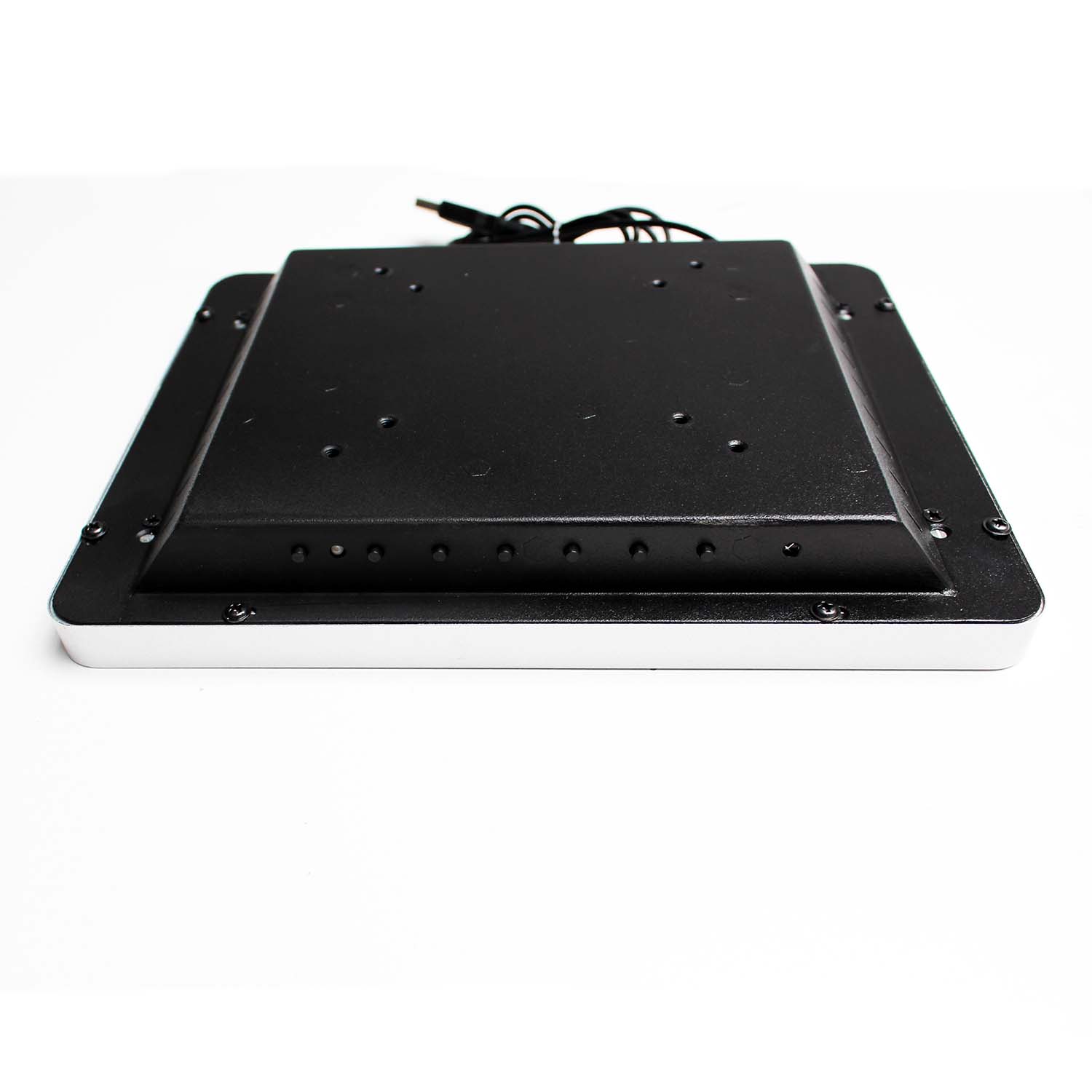

09.7" Bezel free PCAP Touchscreen Monitor
Net price (excl.VAT) €308,00
Art.No.:
1020152828 Brand:
A1Touch Solution
Name: BFR 9.7" desktop mount projected capacitive touchscreen monitor, VGA/ HDMI/ BNC/ Composite and USB.
Descriptions: 9.7 inch desktop monitor with pcap touchscreen, bezel free with 4mm thick full glass and black coated metal case for vandal proof 24/7 use in public spaces.
Unit is NOT in stock
Applications:
|
Television
|
POS system
|
|
Exhibition
|
Education training
|
|
Public query machine
|
Self-service machine
|
|
Surveillance system
|
And more
|
Product Features: |
| - Bezel free design with glass surface. |
| - Precise multi-point (10 points) touching. |
| - Camera and Television function (via BNC) and Digital Picture Frame (via USB). |
| - Maintenance free. |
| - Complete metal monitor with strong stability. |
| - Supporting plug and play for win-7,-8 and -10. (Mac | Linux | Android with driver). |
| - Unit can be touched with finger, hand gloves or stylus pencil. |
| - Fast touch response (less than 10 ms). |
Specifications:
|
General
|
|
|
Model:
|
BFR097
|
|
Size:
|
9.7" ( 9.7” active area)
|
|
Panel Type:
|
TFT-LCD
|
|
Backlight:
|
LED
|
|
Display colour:
|
262K
|
|
Color:
|
Black
|
|
Material:
|
Metal housing, Glass cover glass
|
|
Mounting Option:
|
VESA 75x75 and 100x100
|
|
Video Inputs
|
Inputs: VGA/ HDMI/ BNC/ USB
|
|
Dimensions
|
|
|
Outside dimensions frame (wxh)
|
230 x 181 x 34 mm
|
|
Active area (wxh)
|
196.6 x 147.4 mm
|
|
Display
|
|
|
Native resolution:
|
1024*768 @60HZ
|
|
Ratio:
|
4:3
|
|
Contrast:
|
500:1
|
|
Brightness:
|
350 cd/m
|
|
Viewing Angle (H/V):
|
160/150
|
|
Response time:
|
<20ms
|
|
Backlight life:
|
50.0000 hrs
|
|
Control:
|
OSD Control (Remote control is option)
|
|
Touchscreen
|
|
|
Touch Technology:
|
Projected capacitive Touch (G+G)
|
|
Detected touches
|
10 touches.
|
|
Response time:
|
<10ms
|
|
Input Method:
|
Finger, hand gloves, or conductive stylus
|
|
Touch times:
|
Unlimited
|
|
Touch Activation Force:
|
No minimum touch activation force is required.
|
|
Controller type:
|
EETI chipset 31xx
|
|
Operating System Support:
|
Windows2000, XP, 7, 8, 10, Android, MAC and Linux.
|
|
Environment
|
|
|
Temperature:
|
Operating: -10°C ~ 70°C
Storage: -20°C ~ 80°C
|
|
Relative Humidity:
|
Operating: 90%(non-condensing at max 40°C)
Storage: 90%(non-condensing at max 40°C)
|
|
Altitude:
|
Up to 3000m
|
|
Electrical
|
|
|
Scan frequency:
|
60Hz
|
|
Operation Voltage:
|
Typical +DC 12V, +/- 10% (24 volt option).
|
|
Power Supply:
|
110-220V AC to 12Volt DC, min. 2A
|
|
Power:
|
8 W
|
|
|
|
|
Packing
|
|
|
Agency Approvals:
|
CE, FCC, RoHS
|
|
Weight net.:
|
1,5 kg
|
|
|
|
Options: |
|
| Standard delivery: Our touchscreen monitor standard includes: pcap touchscreen with integrated USB controller with USB-A cable 0.5 meter and 220 – 12 Volt Power Supply. | |
| Power supply Cables: - With power supply and (analog) vga cable (power supply is 110-220VAC to 12VDC). Ask us if you need 24VDC on monitor. Power supply delivered with EU connection. - With power supply and (digital) HDMI cable. -Without power supply or cables |
|

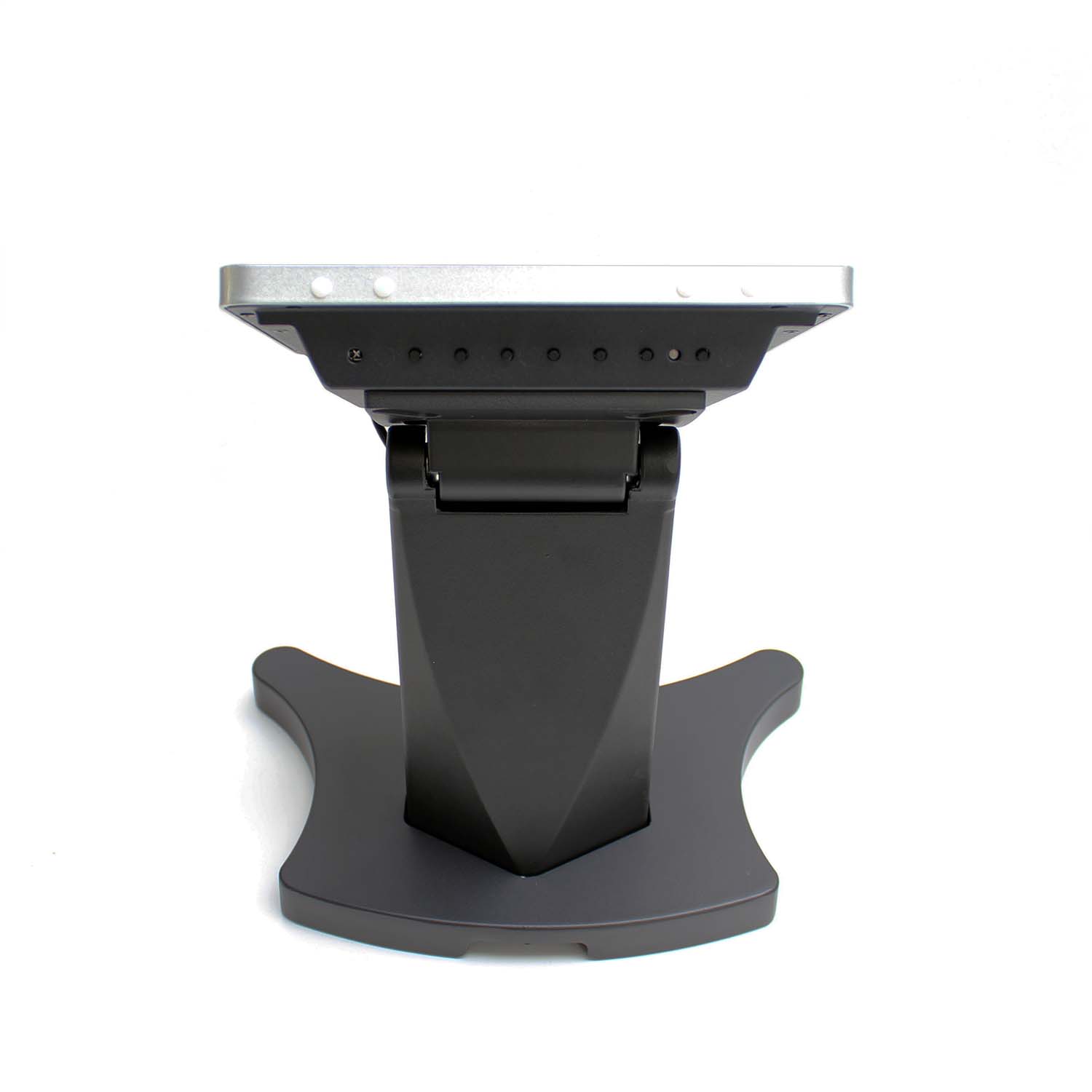

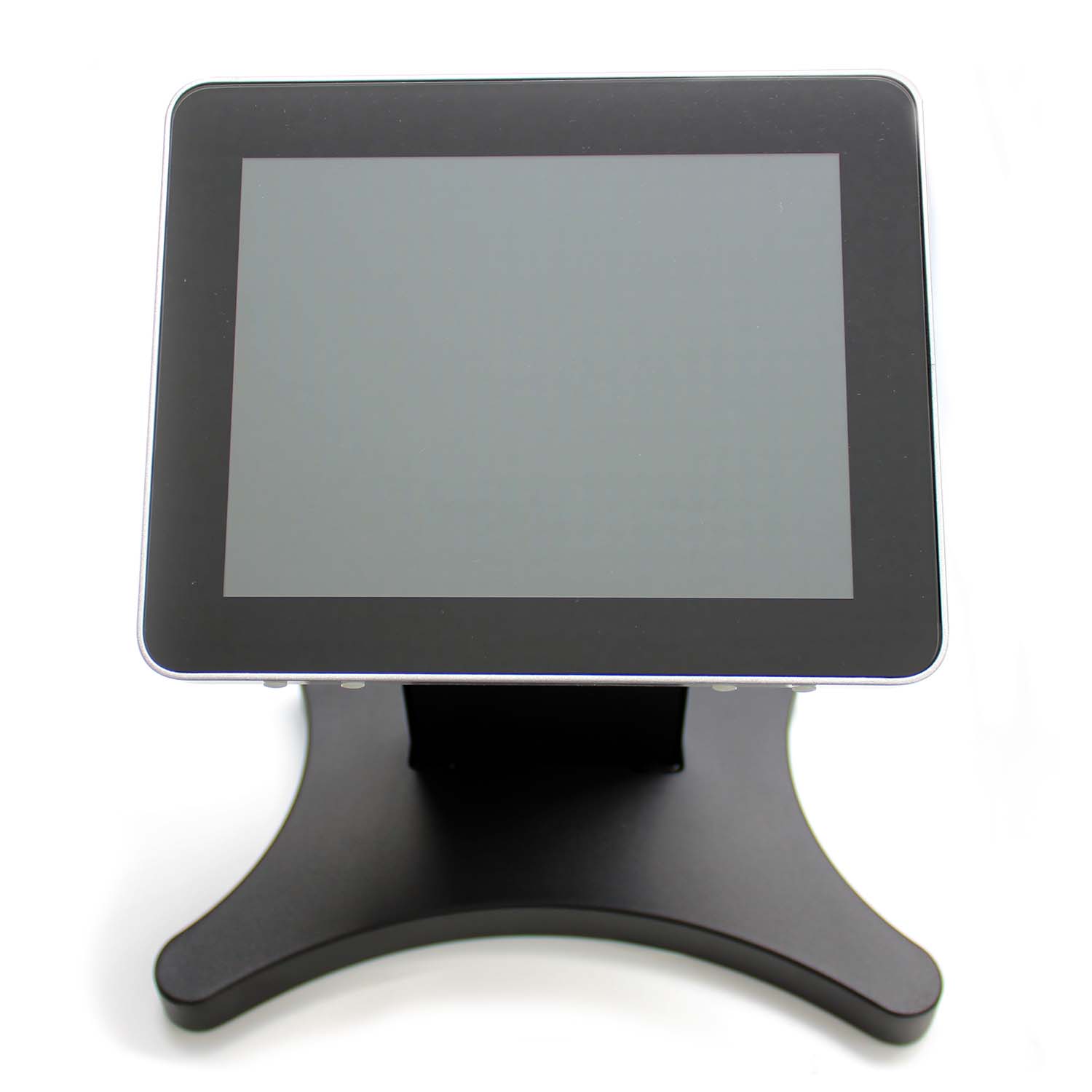

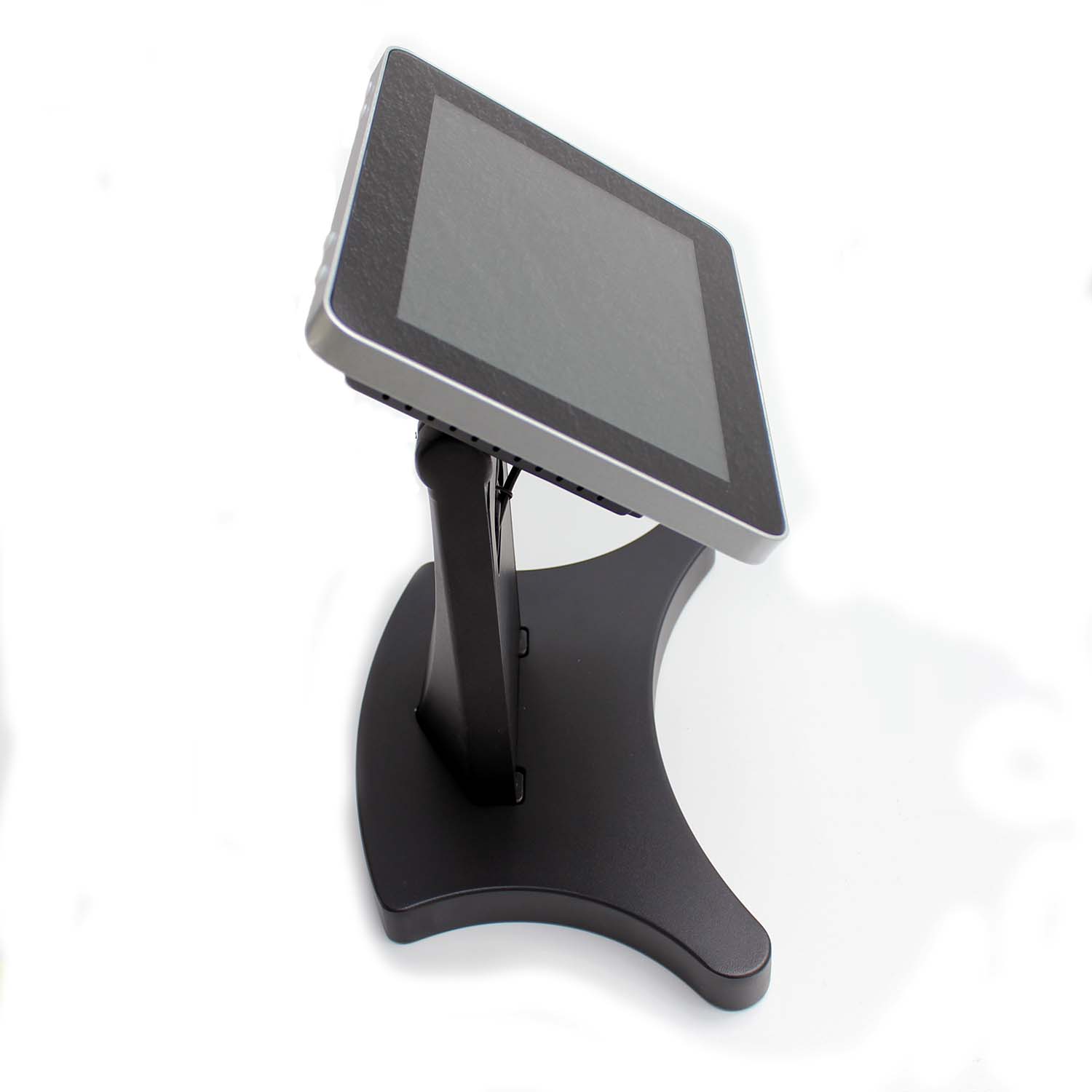

| Vesa desktop mount bracket: - Without stand (standard). You can use your own vesa standard. - With our heavy duty desktop stand:  - With height adjustable desktop stand from brand Newstar:  |
|
| Accessories: - No accessories (standard) - With stylus pen and holder:  - With remote controller:  -With Stylus pencil, holder and remote controller. |
|
Specifications : |
 |
| Driver downloads : |  |
You can purchase by selecting below mentioned options (if available). More info on tab "Options")
Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.
Discount on prices:
- Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
- For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
Available options:
