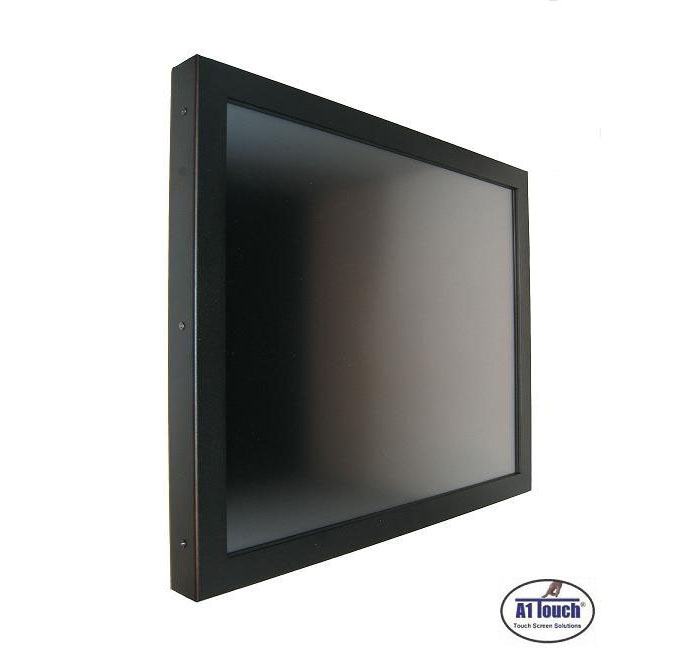

23.8" desktop PCAP touch monitor
Net price (excl.VAT) €748,00
Art.No.:
AOD 238 PG-GPCAP-...-DNB Brand:
A1Touch Solution
Name: AOD / ATS 23.8 inch projected capacitive desktop (touch) monitor, VGA+DVI.

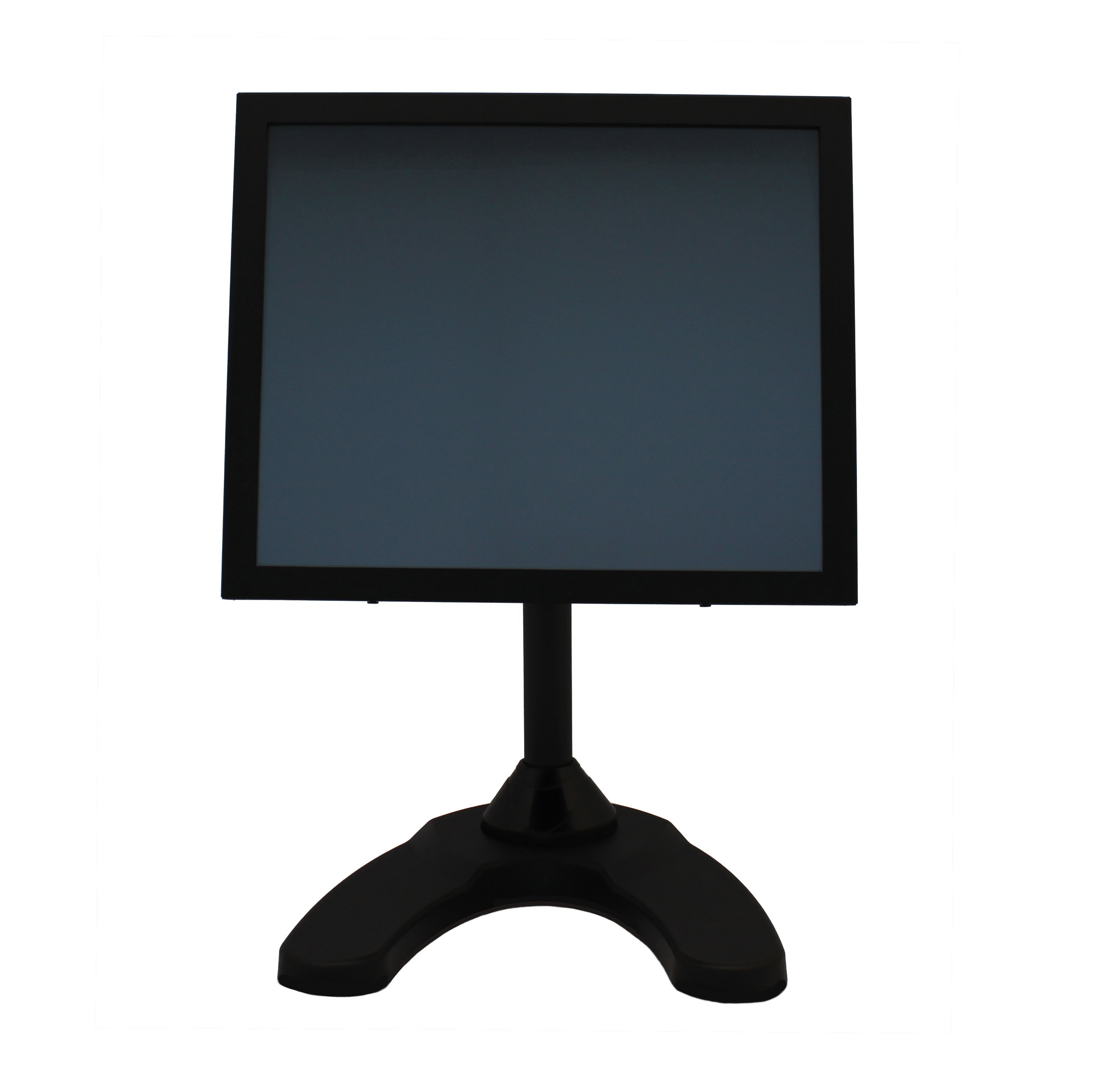

Description: 23,8 inch touchscreen monitor for use on a desktop. Built-in PCAP 10 points touchscreen. Unit can be delivered with USB or RS232 interface. Very stable and good looking solution for use with finger, gloves or pedncil.
Unit is in stock.
| Color monitor: | Black powder coated touchscreen |
| Model: | M238HVN01.0 (AUO) |
| Type: | 23.8 inch, 16:9, a-Si TFT-LCD |
| Resolution (max): | 1920 x 1080 Full HD |
| Color: | 16,7 miljoen |
| Pixel: | 0.2745×0.2745 mm (H×V) |
| Brightness: | 250 cd/m² |
| Contrast ratio: | 3000:1 |
| Viewing angle: | 89°/89° horizontal & 89°/89° vertikal |
| Respons time | 5 ms |
| Active area: | 527.04×296.46 mm (H×V) |
| VGA input | VGA + DVI |
| Plug and play: | Yes VESA DDC 1/2B |
| Power: | 12 Volts. included Adapter (24 volt on request) |
| Power consumption: | 29 watt stand, 40 watt max. |
| Power consumption stand by: | 4 watt max. |
| Temperature opration mode: | 0 °C - 50 °C |
| Humidity operation mode: | 10% ~ 90% R.H. |
| Size | Enclosure560x337x50 mm (wxlxd) |
| Weight | 9 Kg |
| Mounting: | VESA 200x100mm |

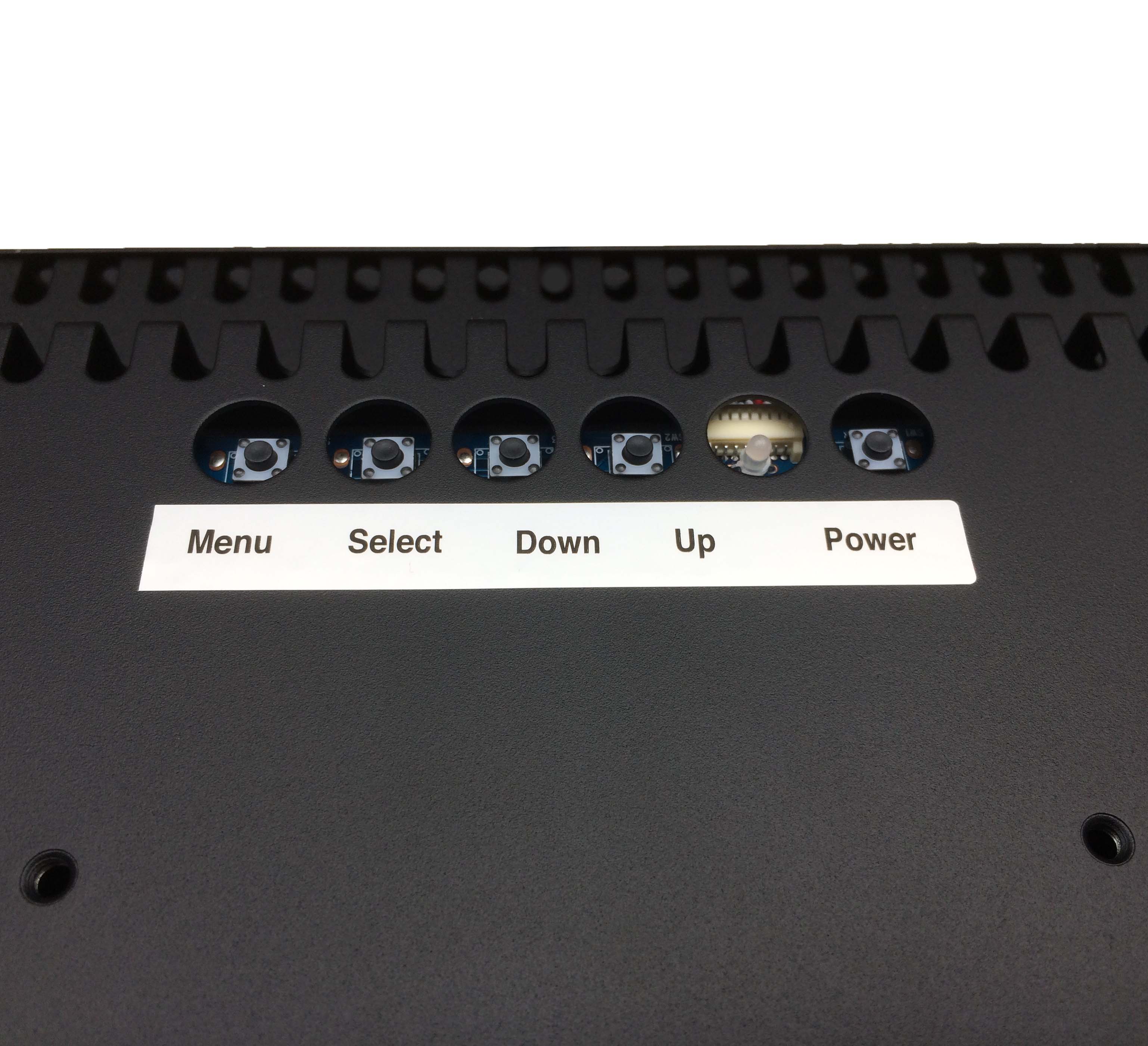

| Users Mode: | OSD Key: Menu / Select / Power / Down / Up |
| Compatibility: | VESA / IBM / MAC |
| Touch info: | |
| Touch type: | Projected Capacitive |
| Touch spec: | -Standard glare. -Touchable with finger, glove and pcap stylus. -10 points touch -activation force less than 1 gramm. |
| External protection: | Front IP65 sealed |
| Glass sensor: | 4mm thick float glass with black borders. (other type of glass or colour on request) |
| Surface hardness: | Mohs' hardness = 5 |
| Responstime sensor: | Max. 20 msec. |
| Options: | |
| Touch controller interface: | USB, RS232 with external power or RS232 with internal power |
|
Specifications / Manual : |
 |
| Driver downloads : |  |
