Keyboard type: A1touch_299J-1

Unit is in stock

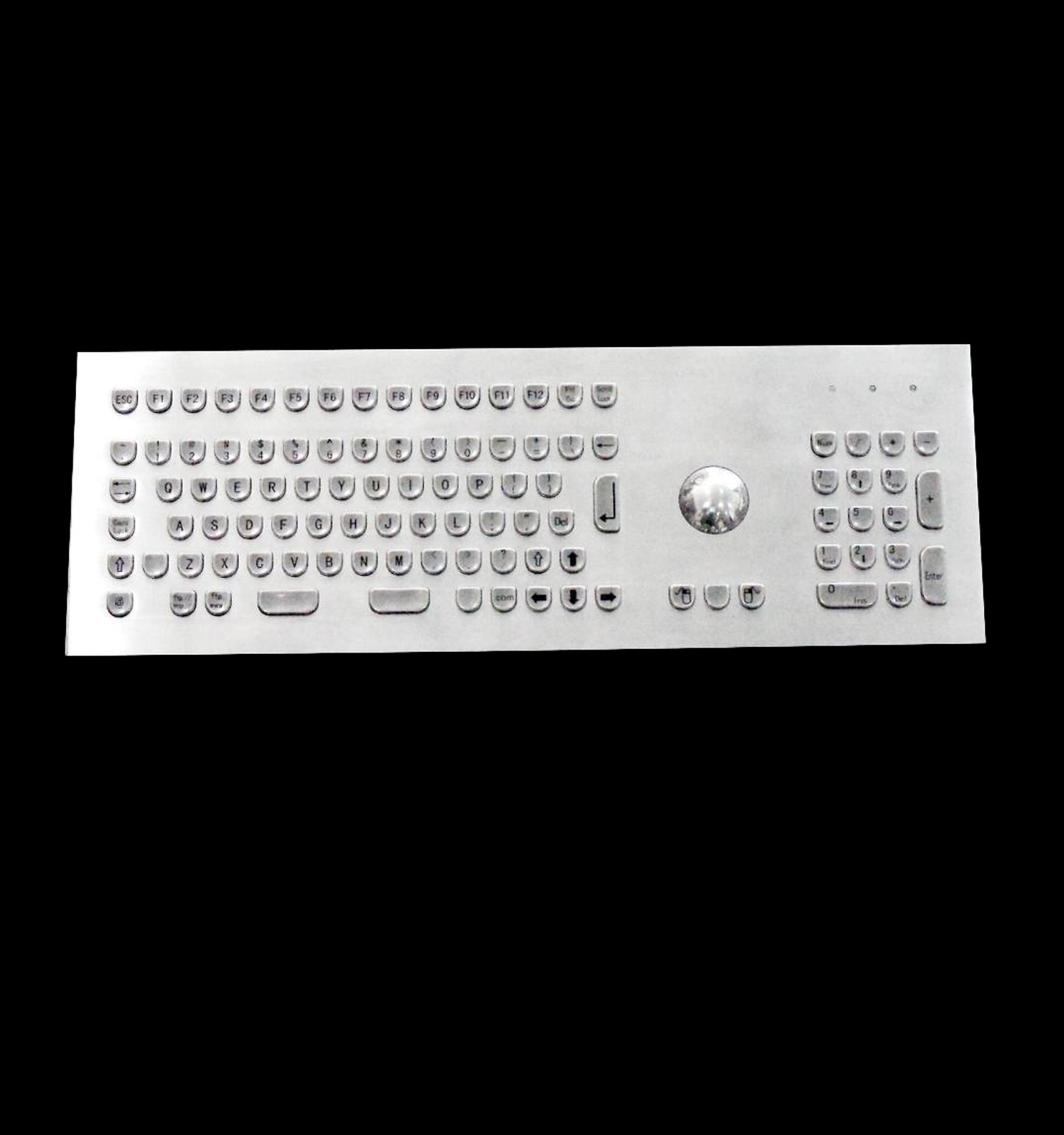

Description: RVS panel mount Keyboard, type 299J-1 with qwerty keyboard for industial use. Vandal- + water- + dust-proof unit for long endurance.

Features:

• 98 keys stainless steel top panel mount keyboard with trackball and numeric keypad
• Humanized “U” shape key design to fit fingers better​
• Standard layout: QWERTY - US
• Support OS: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux and Unix
• Waterproof and dustproof
• Very rugged vandal proof design
• Can be cleaned with soapy water, disinfectant or other cleaning agents
• Carbon-on-Gold key switch technology PCB
• PS/2 or USB interface available
• Customized language layout available



Material:

• Front Panel: 304# stainless steel
• Keys: 304# stainless steel
• Back panel: Aluminum
• Trackball: 304# stainless steel



Dimensions (see detailed drawing as below):

• Front Panel: 420 ×145mm



Mechanical Performance:

• Operating Temperature: 0°to+45°
• Storage Temperature: -40°to +60°
• Relative humidity: 30%～90%
• Atmospheric pressure: 50 to 110KPa
• Lifespan: >1 million operations per key
• Key trip: 2mm
• Key pressure: ≈120g
• Weight: 2.0kg



Electrical Performance:

• Voltage: 5.0V DC ± 5%
• Electric current: 10mA
• EMC Emission: EN55022(B)



Reliability：

• MTBF: >20,000 hours
• MTTR: < 30 minutes
• CE, FCC, RoHS, ESD compliant
• Waterproof and dustproof Class: IP65

• Vandal resistant: IK07

Specifications + Drawing :
