Keyboard type: A1touch_299H

Unit is in stock

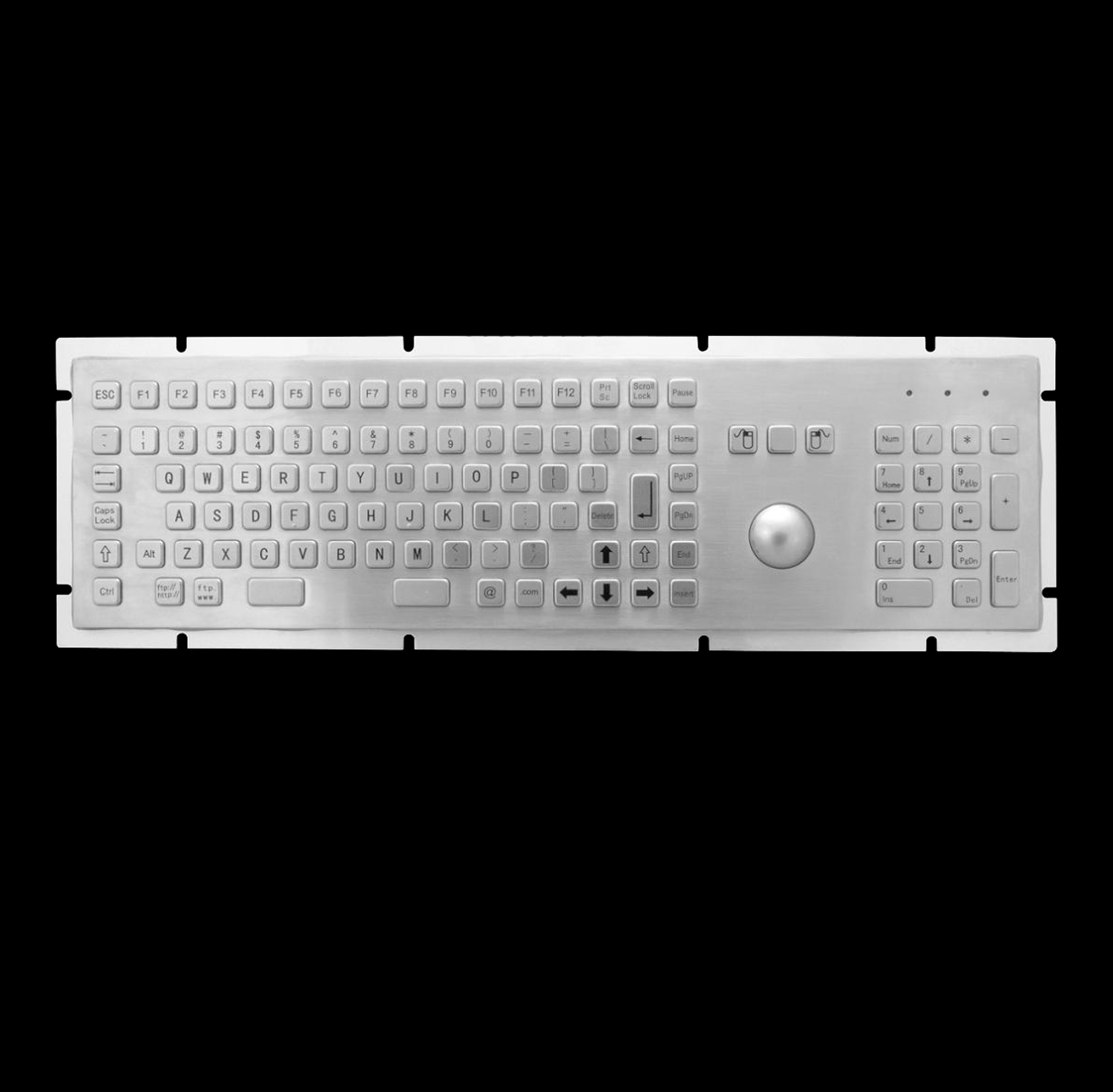

Description: RVS panel mount Keyboard, type 299H with qwerty keyboard for industial use. Vandal- + water- + dust-proof unit for long endurance.

Features:

• 104 keys stainless steel rear-panel mount keyboard with trackball and numeric keypad​
• Standaard layout: QWERTY - US
• Support OS: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux and Unix
• Waterproof and dustproof
• Very rugged vandal proof design
• Can be cleaned with soapy water, disinfectant or other cleaning agents
• Carbon-on-Gold key switch technology PCB
• PS/2 or USB interface available
• Customized language layout available
• Mechanical and Optical trackball are both available
• Protuberant rectangular keys, raised Braille keys are available



Material:

• Front Panel: High quality stainless steel
• Keys: High quality stainless steel
• Back panel: Aluminum
• Trackball: High quality stainless steel



Dimensions:

• Front Panel: 478 × 135mm
• Overall: 502 x 159 mm
• Trackball: 38mm diameter



Mechanical Performance:

• Operating Temperature:0°to+45°
• Storage Temperature: -20°to +60°
• Relative humidity: 30%～95%
• Atmospheric pressure: 50 to 110kPa
• Lifespan: >1 million operations per key
• Key trip: 2mm
• Key pressure: 120g
• Weight: 2.6kg



Electrical Performance:

• Voltage: 5.0VDC±5%
• Electric current: 10mA
• EMC Emission: EN55022(B)



Reliability：

• MTBF: >20,000 hours
• MTTR: < 30 minutes
• CE, FCC, RoHS compliant
• Waterproof and dustproof Class: IP65
• Vandal resistant: IK07

Specifications + Drawing :
