Keyboard type: A1touch_299B-1

Unit is in stock

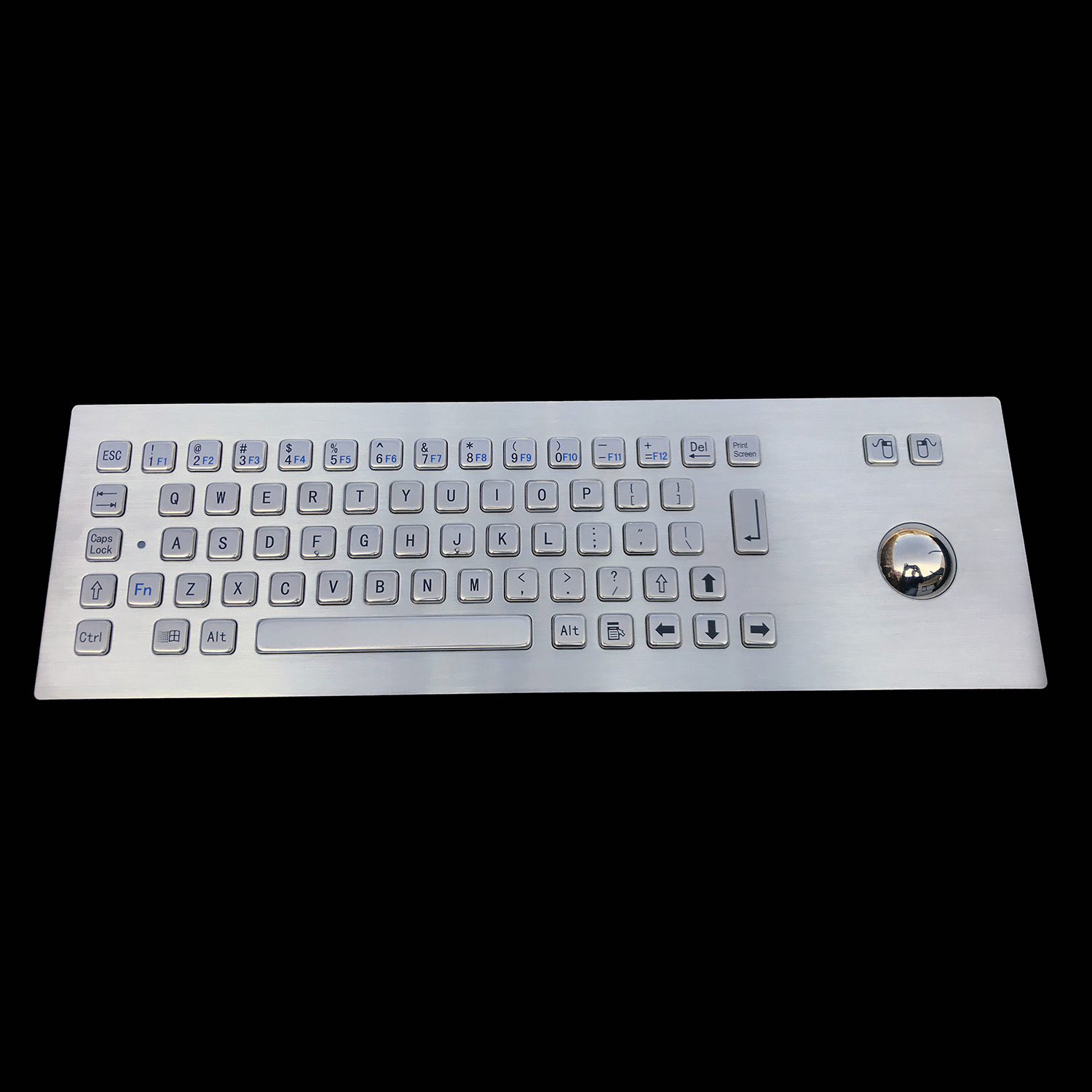

Description: RVS panel mount Keyboard, type 299B with qwerty keyboard for industial use. Vandal- + water- + dust-proof unit for long endurance.

​Features:

• 65 keys stainless steel panel mount keyboard
• Standard layout: QWERTY - US
• Support OS: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux and Unix
• Waterproof and dustproof
• Very rugged vandal proof design
• Can be cleaned with soapy water, disinfectant or other cleaning agents
• Carbon-on-Gold key switch technology PCB
• PS/2 or USB interface available
• Customized language layout available
• Front Panel mounting solution



Material:

• Front Panel: High quality stainless steel
• Keys: High quality stainless steel
• Back panel: Aluminum
• Trackball: High quality stainless steel



Dimensions:

• Front Panel: 400 ×124mm



Mechanical Performance:

• Operating Temperature:-10°to+50°
• Storage Temperature: -30°to +80°
• Relative humidity: 30%～95%
• Atmospheric pressure: 50 to 110kPa
• Lifespan: >1 million operations per key
• Key trip: 2mm
• Key pressure: 120g
• Weight: 2.1kg



Electrical Performance:

• Voltage: 5.0VDC±5%
• Electric current: 10mA
• EMC Emission: EN55022(B)



Reliability：

• MTBF: >20,000 hours
• MTTR: < 30 minutes
• CE, FCC, RoHS compliant
• Waterproof and dustproof Class: IP65
• Vandal resistant: IK07

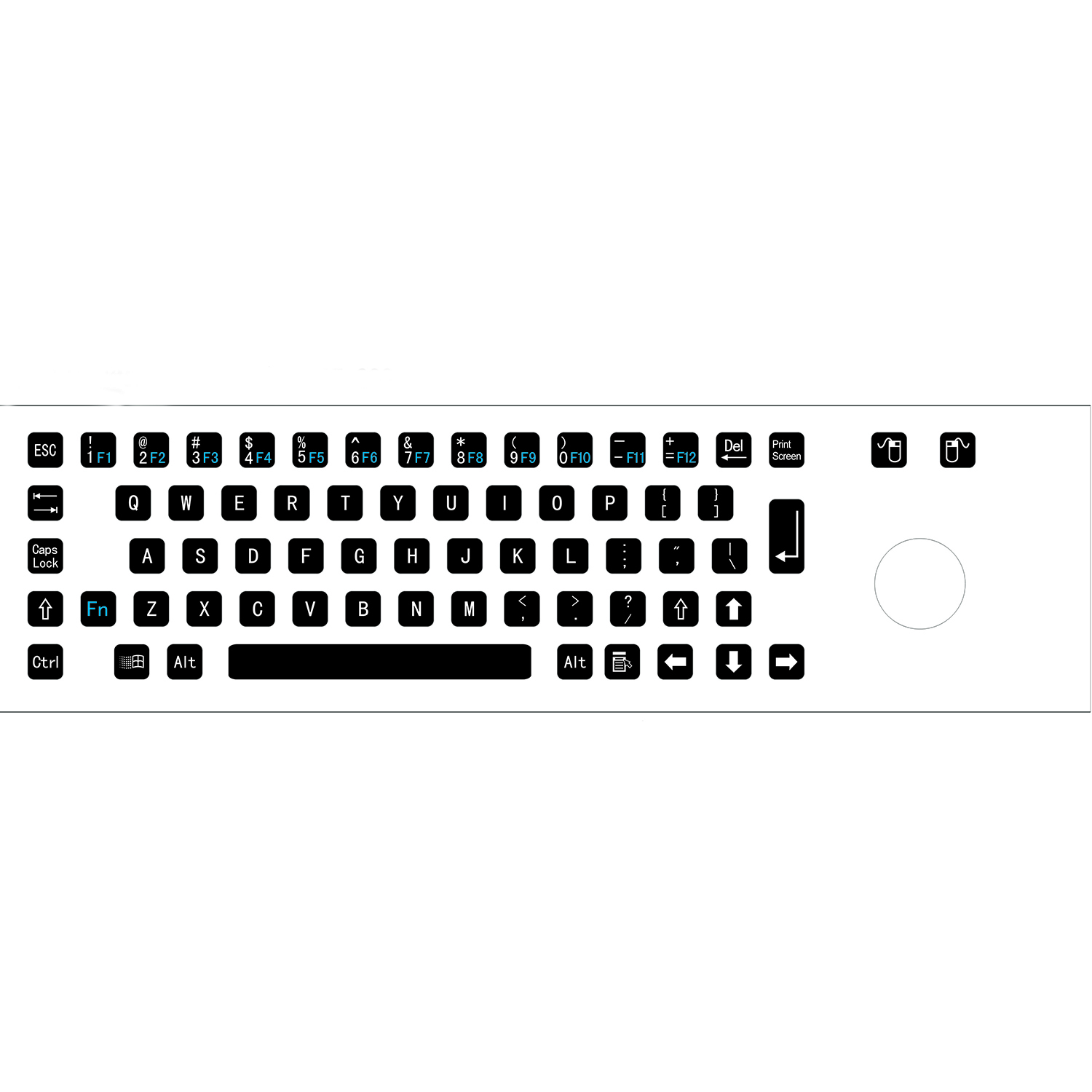

Specifications + Drawing :
