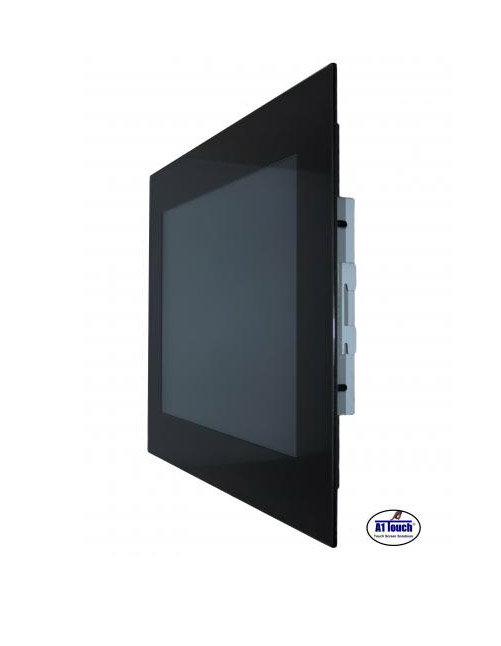

19" PCAP In-wall mount (touch)Monitor
Net price (excl.VAT) €915,00
Art.No.:
1020152480 Brand:
A1Touch Solution
Type: AOD190PG-GPCAP-USB-TPMB-DOMO-L: AOD / ATS 19 inch projected capacitive In-wall mount (touch) monitor, VGA+DVI.

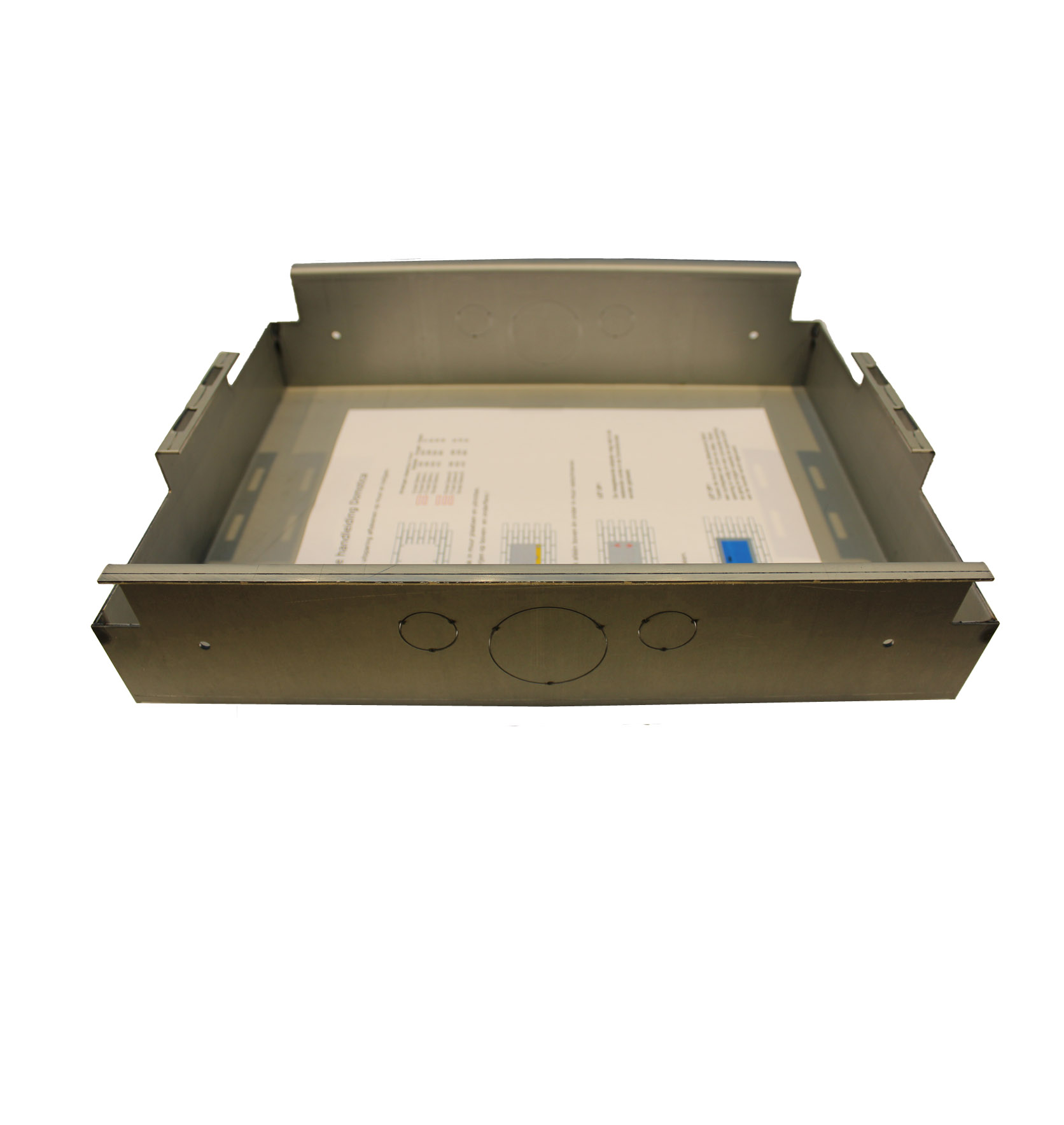

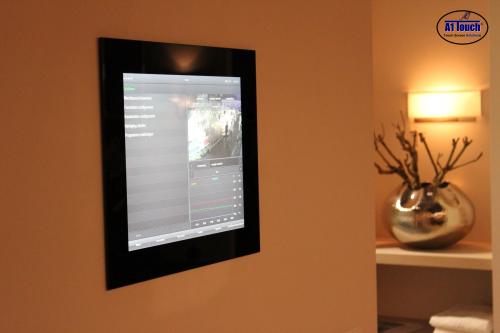

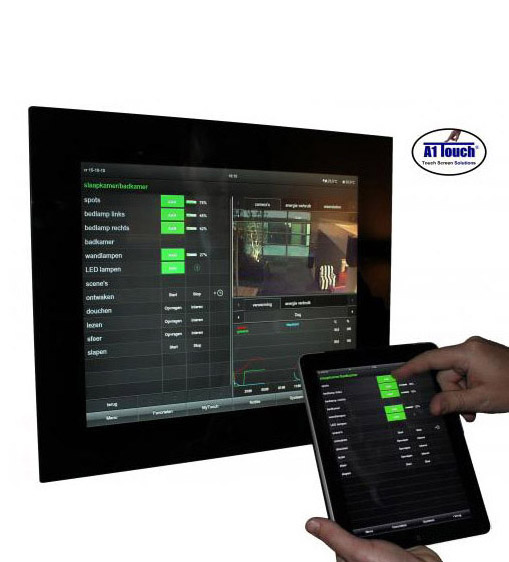

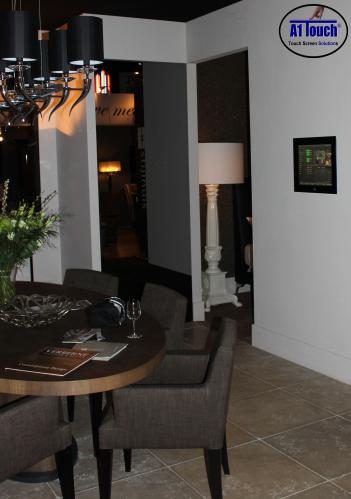

Description: 19 inch home automation bezel free pcap touchsreen monitor for assembly inside wall. Delivery complete with enclosure and psu/cable
Unit is in stock.
| Color panel: | Glass with black borders |
| Model: | 19 inch XGA TFT LCD Monitor |
| Type: | 19 inch Color Active Matrix TFT LCD (LG LM190EOA) |
| Resolution (max): | 1280 x 1024 (SXGA) |
| Color: | 16,7 million |
| Pixel: | 0.0976 x 0.2928 mm |
| Brightness: | 300 cd/m² |
| Contrast ratio: | 800:1 |
| Viewing angle: | 89°/89° horizontal & 89°/89° vertical |
| Response time | 8 ms |
| Active area: | 376,32 (H) x 301,056 (V) mm |
| VGA input | Analog RGB (D-Sub 15-pins) + DVI |
| Plug and play: | Yes DDC1 /DDC2B |
| Power: | 12 Volts. included Adapter |
| Power consumption: | <35 watt max. |
| Power consumption stand by: | <4 watt max. |
| Temperature opration mode: | 0 °C - 50 °C |
| Humidity operation mode: | 10% ~ 90% R.H. |
| Size | 485X410X95mm (wxhxd) |
| Weight | 6 Kg |

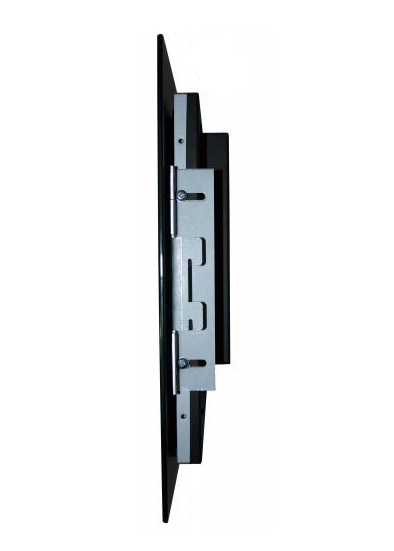

| Mounting: | VESA 100mm |

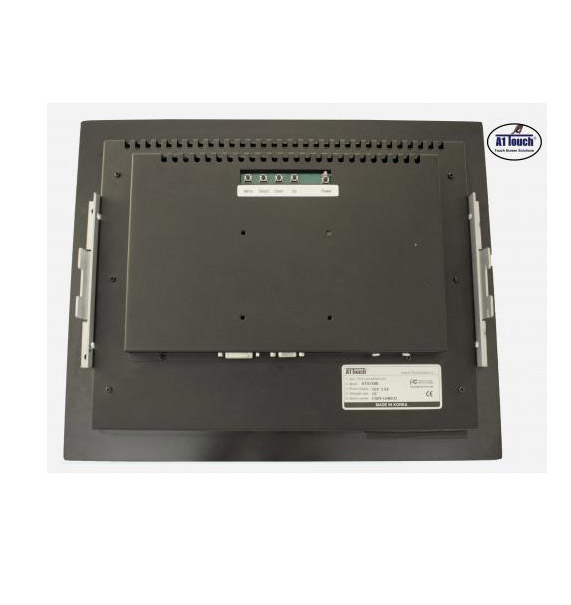

| Users Mode: | OSD Key: Menu / Select / Power / Down / Up |
| Compatibility: | VESA / IBM / MAC |
| Touch info: | |
| Touch type: | Projected Capacitive |
| Touch spec: | -Standard glare. -Touchable with finger, glove and pcap stylus. -4 points touch -activation force less than 1 gramm. |
| External protection: | Front completely glass, so 100% watertight |

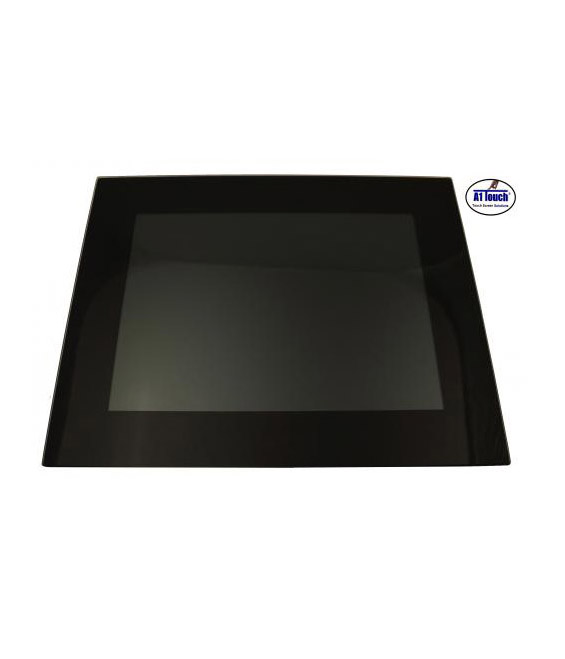

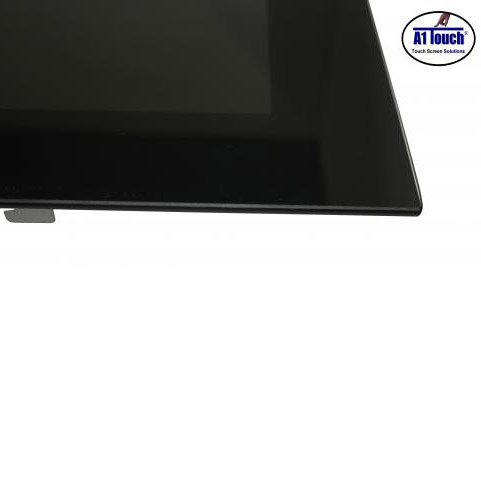

| Glass sensor: | 4mm thick heat tempered glass with black ceramic borders, C-grinded r=2mm. |
| Surface hardness: | Mohs' hardness = 7 |
| Response time: | Max. 20 msec. |
| Options: | |
| Touch controller interface: | USB, RS232 with external power or RS232 with internal power |
|
Specifications / Manual : |
 |
| Dimensions : | |
| Driver downloads : |  |
You can purchase by selecting below mentioned options (if available). More info on tab "Options")
Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.
Discount on prices:
- Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
- For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
Available options:
