15" PCAP In-wall mount (touch)Monitor

pcap touchscreen - pcap touchscreen
15" PCAP In-wall mount (touch)Monitor
Net price (excl.VAT) €815,00
Art.No.:
1020152910
Brand:
A1Touch Solution
Type: AOD 150 PG-GPCAP-USB-TPMB-DOMO-L; AOD / ATS 15 inch projected capacitive In-wall mount (touch) monitor, VGA+DVI.

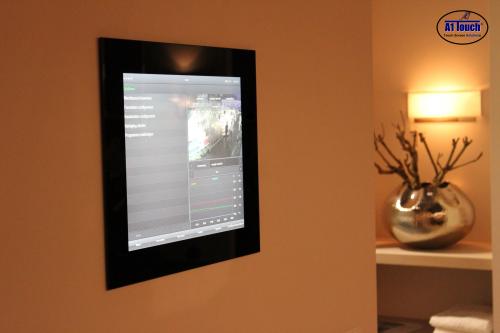

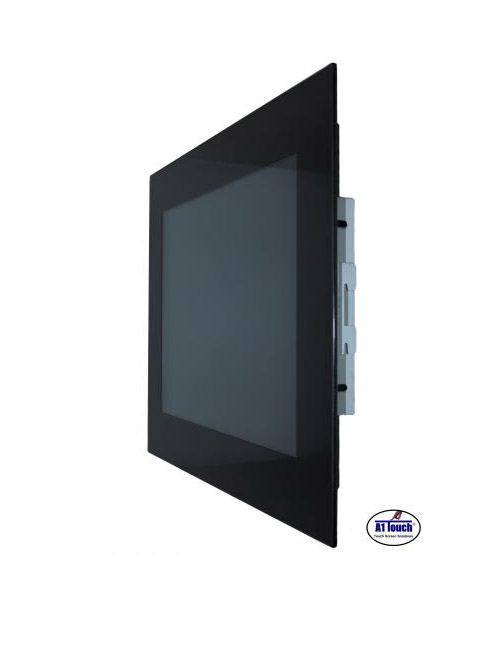

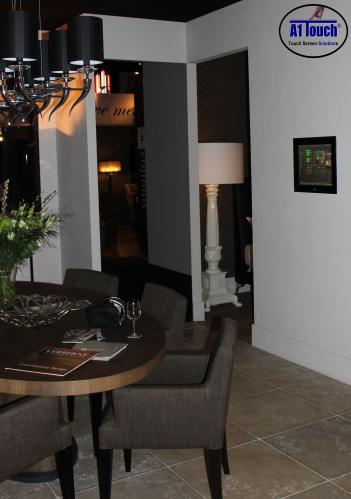

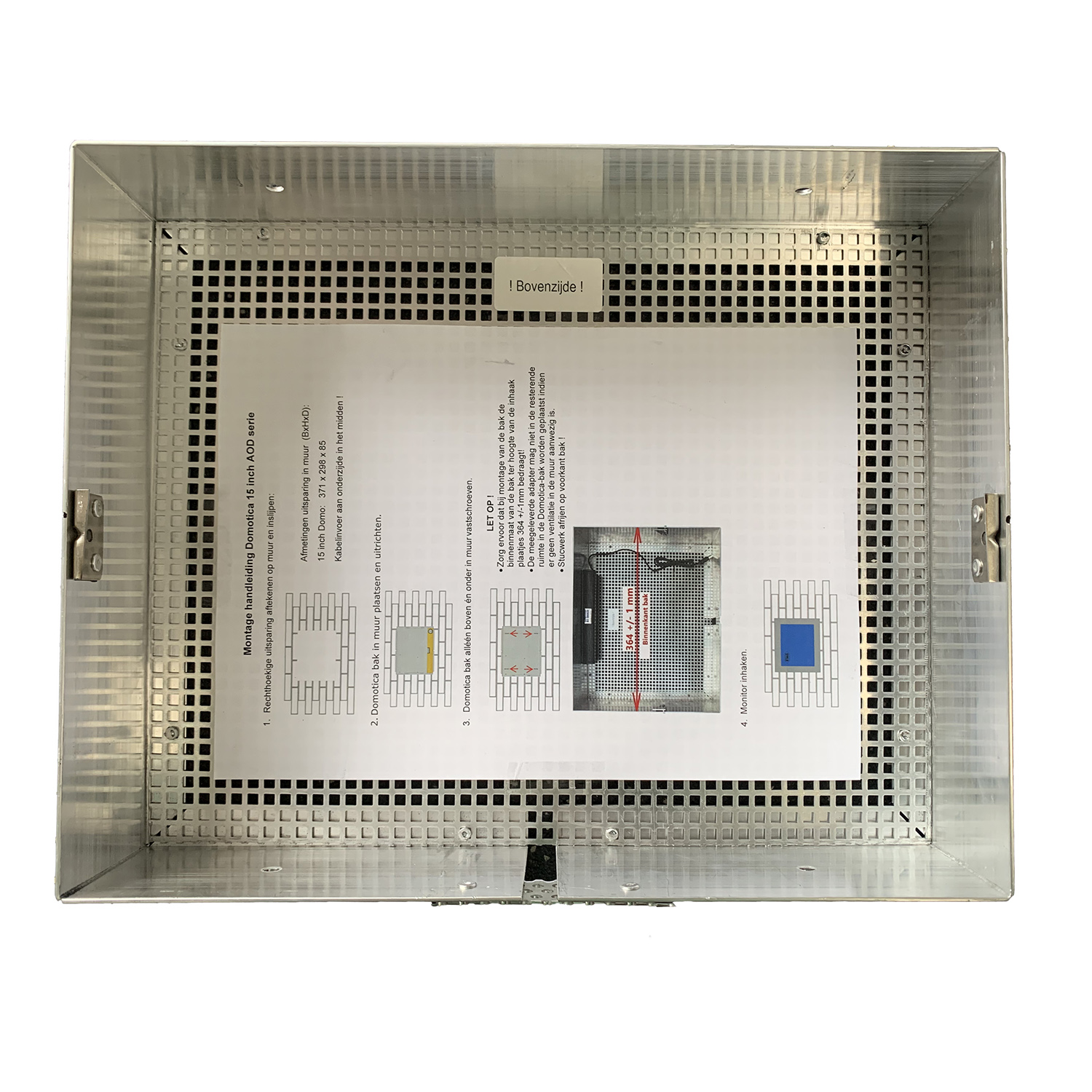

​​Description: 15 inch domotics bezel free pcap touchsreen monitor for assembly inside wall. Delivery complete with enclosure and psu/cable
Unit is in stock

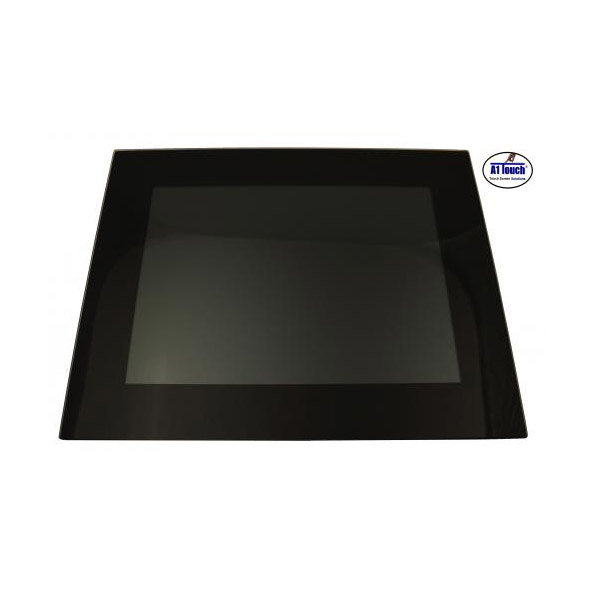

Color panel: Glass with black borders
Model: 15 inch XGA TFT LCD Monitor
Type:

15" Color Active Matrix TFT LCD
 (AUO G150XG03 V5)

Resolution (max): 1024 x 768 (XGA)
Color: 16,2 miljoen
Pixel: 0.297 x 0.297 mm
Brightness: 350 cd/m²
Contrast ratio: 700:1
Viewing angle: 85°/85° horizontal & 80°/80° vertikal
Respons time 8 ms
Active area: 304,1 (H) x 228,1 (V) mm
VGA input Analog RGB (D-Sub 15-pins) + DVI
Plug and play: Yes DDC1 /DDC2B
Power: 12 Volts. included Adapter
Power consumption: <35 watt max.
Power consumption stand by: <4 watt max.
Temperature opration mode: 0 °C - 50 °C
Humidity operation mode: 10% ~ 90% R.H.
Size 395x326x95mm (wxhxd)
Weight 3,3 Kg

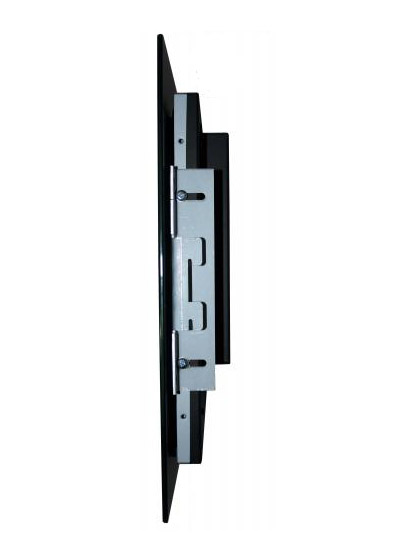

Mounting: VESA 75mm

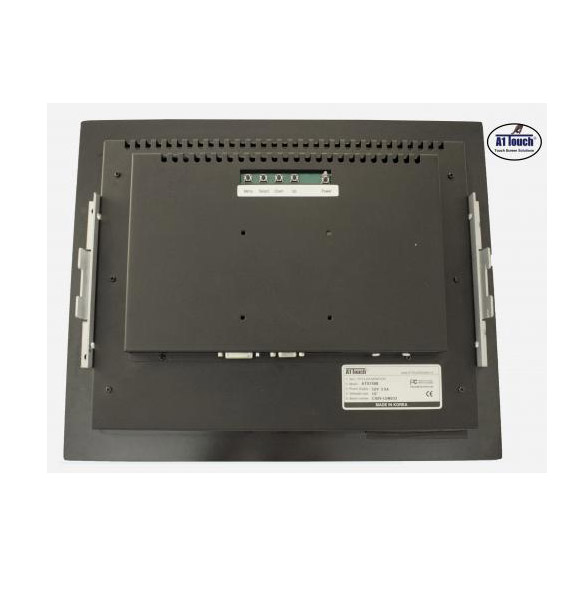

Users Mode: OSD Key:  Menu / Select / Power / Down / Up
Compatibility: VESA / IBM / MAC
Touch info:
Touch type: Projected Capacitive
Touch spec: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-4 points touch
-activation force less than 1 gramm.
External protection: Front completely glass, so 100% watertight

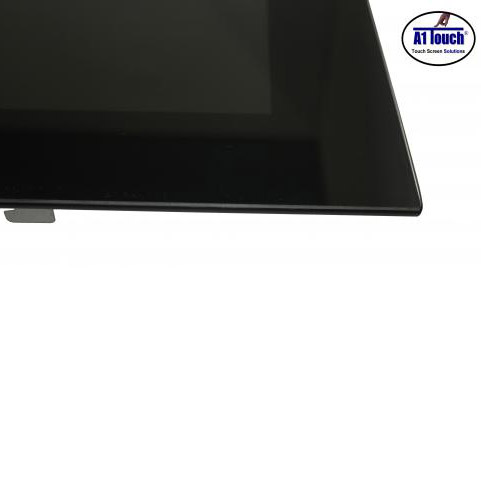

Glass sensor: 4mm thick heat tempered glass with black ceramic borders, C-grinded r=2mm.
Surface hardness: Mohs' hardness = 7
Responstime: Max. 20 msec.

Options:
Touch controller interface: USB, RS232 with external power or RS232 with internal power

Specifications / Manual :

specs 15 inch pcap in-wall mount touch monitor manual
Dimensions : Dimensions 15 inch pcap in-wall mount touch monitor
Driver downloads : Touchscreen driver downloads
