32" Black On-wall mount PC Q1900B

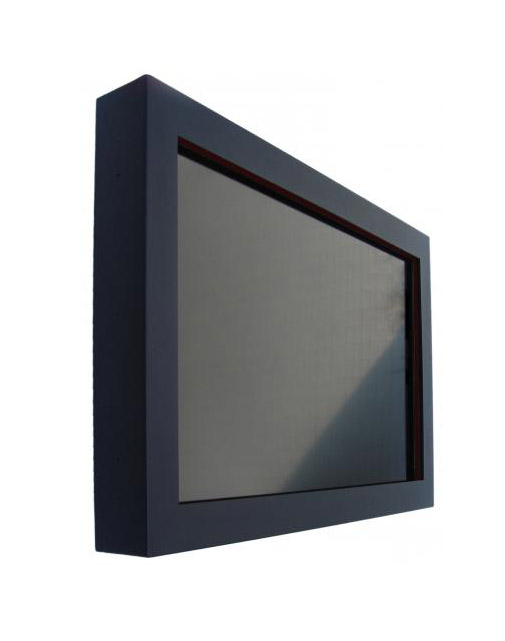

aod32 42 front 3d
32" Black On-wall mount PC Q1900B
Net price (excl.VAT) €1185,00
Art.No.:
All in one A1Touch Q1900B-quatro 2.0Ghz/.../AOD320-...-NOB
Brand:
A1Touch Solution
Name: AOD / ATS 32" On-wall mount (touch)Computer Q1900B
Description: all in one pc with or without touchscreen for mounting on wall. Complete metal unit for hufter proof 24/7 use in public spaces. With mini-itx format computer for long lasting availability of components.
PLEASE NOTICE; WE HAVE ANOTHER MODEL ALREADY IN STOCK AND WILL INTRODUCE IT SOON. PLEASE ASK US FOR SPECS.
Monitor specs:
Color panel: Black powder Coated (other colors on request)
Model: 32 inch WUXGA TFT LCD Monitor
Type: AUO P320HVN01.1
Resolution (max): FULL HD 1920 x 1080 WUXGA
Color: 16,7 million
Pixel: 0.36375 x 0.36375 mm
Brightness: 500 cd/m²
Contrast ratio: 30.000:1
Viewing angle: 88°/88° horizontal & 88°/88° vertical
Response time 5 ms
Active area: 698.4 (H) x 392.85(V)
Touchscreen specs: See tab "Options"
Computer specs:
Type computerboard Intel Q1900B Quad core 2Ghz, passive cooled
Chipset No seperate chipset
Memory 2 x DDR3/DDR3L SO-DIMM Slots
Processor Intel Q1900B Quad core 2Ghz processor
Flashmodule/ Harddisk Sata SSD and SATA Harddisk.possible
VGA Intel® 7th generation (Gen 7) graphics
LAN (RJ-45) • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111GR
• Supports Wake-On-WAN
• Supports Wake-On-LAN
Audio 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
IDE, SATA, Flash 2 x SATA2 3.0 Gb/s Connectors, supporting NCQ, AHCI and
Hot Plug
Hardware Monitor + Power Management Temperature, Voltage, Case open function, Watch Dog timer (manufacturing option)
Operating system Windows 10, 11, Linux, Win CE, Win10IOT
I/O  system: 1 x On/Off switch
1 x VGA
1 x DVI
4 x USB 2.0
1 x PS/2 Keyboard
1 x PS/2 Mouse
2 x RS232,422,485 COM ports
2 x RJ45 LAN ports 10/100Mb Ethernet (internet connection. Standard)
1 x Mic-in
1 x Line-in
1 x Line-out
Internal I/O: 1 x Mini-PCI socket
1 x PCI-Express x1 slot
Energy requirements 35W normal use; 140 W max.; 10 W max. stand by.
Power 110-220V internal.
Weight 22 Kg
Mounting: VESA 200x100mm;  (No bracket included in delivery; See: mounting_brackets)
Dimensions system(W x H x D) 803x498x132 mm
Options:
Functionality: With or without touch
-        without touch: Acrylic or glass
-        with touch: Surface Accoustic Wave or Projected Capacitive
-     SAW: -Standard glare.
-Touchable with finger and glove.
-Single touch
-activation force less than 85 gramm.
-     Projected Capacitive: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-10 points touch
-activation force less than 1 gramm.
External protection: Standard IP44 or IP65 or higher (not for SAW)
Memory capacity: No memory (standard), 2, 4 or 8 Gb SoDimm
Storage capacity Sata: No strage (standard), Harddisk 250/500 Gb or SSD in 60/120/240 or 480 Gb.
Operating system: NO OS (standard), Win7 embedded WSP7 multilangual, Win7Pro, Win8Home and Pro, Win10Home and Pro.
Input equipment: None (standard) or wireless keyboard/mouse
Accoustic options:
- No speakers/microphone (Standard),
- with usb stereo soundbar 2x2 Watt/ no microphone or
- with usb stereo soundbar 2x2Watt and microphone with 3.5mm plug.

Specifications / Manual :

Dimensions :
Driver downloads : More Info

You can purchase by selecting below mentioned options (if available). More info on tab "Options")
​Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.

Discount on prices:

  • Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
  • For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
Options (incl. installation):
