19" (touch) Computer in 19" Rackmount (Extreme)
Net price (excl.VAT) €1359,00
Art.No.:
1020153684 Brand:
A1Touch Solution
Type: All in one A1Touch Z690M-i5-12400/AOD190-RMB; (active cooled)
Description: 19 inch rackmount pc with Intel Core I5-12400 6 core 12 threads 2.5 up to 4.4 Ghz processor, with or without touchscreen for mounting in 19" rack. Unit made of black coated metal with mini itx format computer for vandal proof en 24/7 use.
Unit is in stock.
| Monitor specs: | |
| Color panel: | Black powder Coated (other colors on request) |
| Model: | 19 inch XGA TFT LCD Monitor |
| Type: | 19 inch Color Active Matrix TFT LCD (LG LM190EOA) |
| Resolution (max): | 1280 x 1024 (SXGA) |
| Color: | 16,7 million |
| Pixel: | 0.0976 x 0.2928 mm |
| Brightness: | 300 cd/m² |
| Contrast ratio: | 800:1 |
| Viewing angle: | 89°/89° horizontal & 89°/89° vertical |
| Response time | 8 ms |
| Active area: | 376,32 (H) x 301,056 (V) mm |
| Touchscreen specs: | See tab "Options" |
| Computer specs: | ||
| Type computerboard: | Intel Z690M-ITX | |
| Chipset: | Intel® Z690M | |
| Processor: | Processor Intel Core i5 12400, 65W, 12th gen. 2.5 upto 4.4Ghz, 6 core, 12 thread, UHD Graphics 730 | |
| Memory | Supported memory types | DDR4-UDIMM Non-ECC mode |
| Amount of memory slots | 2 | |
| Memory slot type | DIMM | |
| Memory Channel | Dual | |
| Non-ECC | yes | |
| Supported memory clock speeds | 3200 Mhz Natively | |
| Maximum internal memory | 64 GB | |
| Not gebufferd memory | yes | |
| Bios | BIOS type | UEFI AMI |
| BIOS-memory size | 256 Mbit | |
| ACPI version | 6.0 | |
| Clear CMOS jumper | yes | |
| Plug and play | yes | |
| System Management BIOS (SMBIOS) version | 2.7 support | |
| Graphics | Architecture (Gen 12) | Intel Xe Graphics |
| Built-in grafical adapter | yes | |
| Grafical adapter-family | Intel | |
| Maximum resolution | 4096 x 2160 Pixels HDMI, 7680x4320 Pixels via DP | |
| Network | Ethernet LAN | yes, 2 x LAN |
| Ethernet interface type | 2.5 Gigabit Ethernet and 1 Gb Ethernet | |
| LAN controller | Realtek RTL8125BG (2.5Gb) and Intel I219V (1Gb) | |
| Wi-Fi | Yes, 802.11ax Wi-Fi 6E Module, supports IEEE 802.11a/b/g/n/ax | |
| Bluetooth | Yes, 5.3 High speed class II | |
| Audio | Realtek® ALC897 8-Channel High Definition Audio CODEC | |
| IDE, SATA, Flash | 4 x SATA3 6.0 Gb/s Connectors, 1 x M.2 Socket M2_1 Key M, supports type 2280 PCIe Gen4x4 (64Gb/s) Mode Chipset, 1 x M.2 Socket M2_2 Key M, support type 2280 SATA3 6.0Gb/s & PCIe Gen4x4 (64Gb/s) modes | |
| RAID: | Yes, Raid 0, 1, and 5 | |
| Operating system | Windows 7, 8, 10 Linux, Win CE, Win7emb, Win10IOT. | |

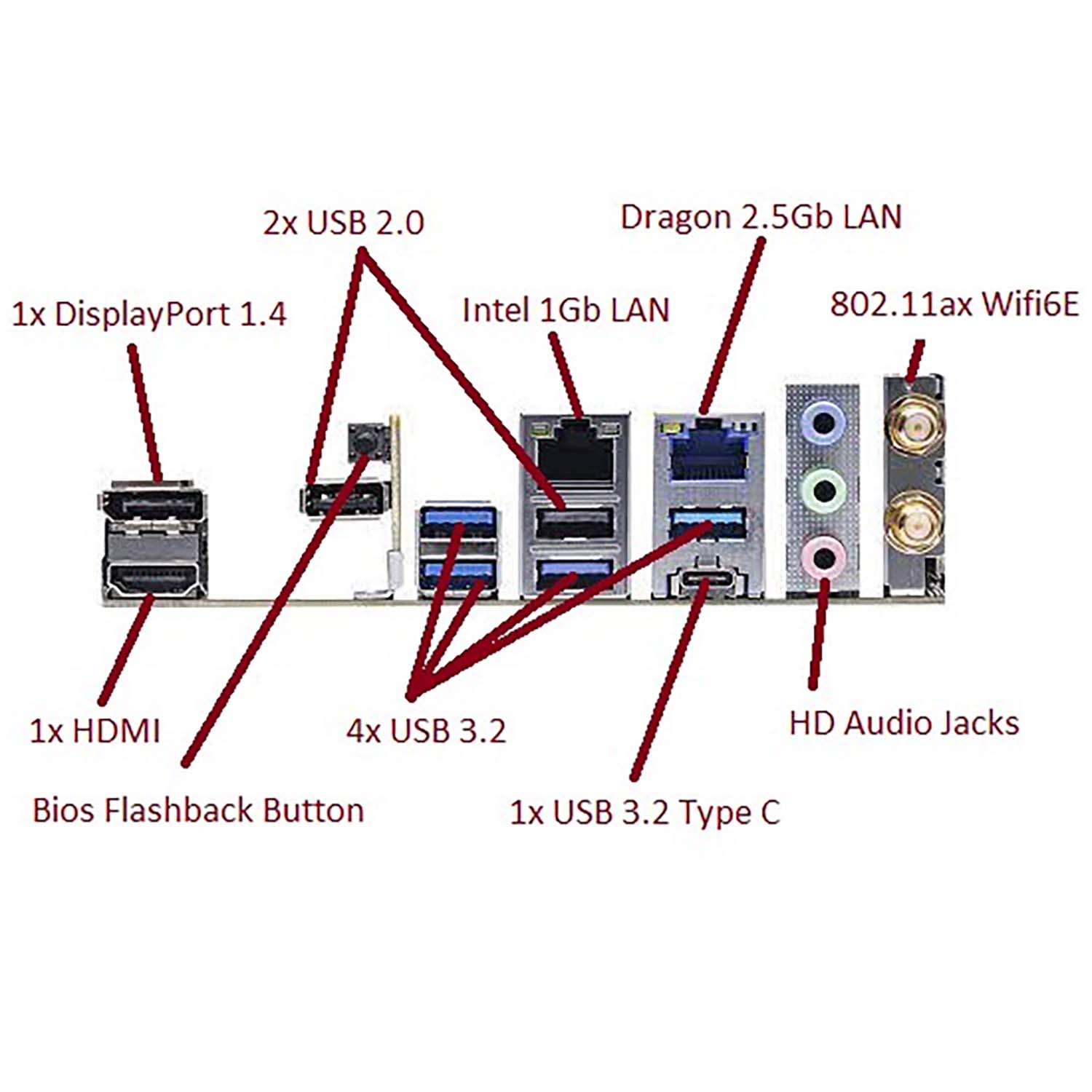

| I/O connections back: | USB 3.2 Gen2 Ports (10 Gb/s) (Supports ESD Protection) | : 4 |
| USB 3.2 Gen 2x2 Type-C Port (20 Gb/s) (Supports ESD Protection) | : 1 | |
| Ethernet LAN (RJ-45)-ports | : 2 | |
| HDMI-ports | : 1 | |
| Display ports | : 1 | |
| Bios Flashback Button | : 1 | |
| Audio jack(s) – Mic – Line in – Line out | : 3 | |
| Internal I/O: | PCI Express 5.0x16 Slot (PCIE1), supports x16 mode | : 1 |
| USB 2.0 connections | : 1 | |
| USB 3.1 Gen 1 (up to 5Gbps) connectors | : 1 | |
| Amount of SATA 6Gb/s connectors | : 4 | |
| Audioconnector | : yes | |
| General: | ||
| Energy requirements | 35W normal use; 80 W max.; 5 W stand by. | |
| Power | Power supply 84 W External | |
| Weight | 5 Kg | |
| Mounting: | VESA 100mm additional | |
| Dimensions system(B x H x D) | 483x356x88 mm | |
| Options: | |
| Functionality: | With or without touch |
| - without touch: | Acrylic or glass |
| - with touch: Type of Touch: |
5 wire resitive, Surface Accoustic Wave or Projected Capacitive Not sure what to use? Call us at +31 (0)45 5748190 or send us contactform |
| - 5 wire resistive : | -Standard non-glare. -Touchable with finger, glove and stylus. -Single touch -activation force less than 40 gramm. |
| - SAW: | -Standard glare. -Touchable with finger and glove. -Single touch -activation force less than 85 gramm. |
| - Projected Capacitive: | -Standard glare. -Touchable with finger, glove and pcap stylus. -10 points touch -activation force less than 1 gramm. |
| External protection: | Standard IP44 or IP65 or higher (not for SAW) |
| Memory capacity: | No memory (standard), 2, 4 or 8 Gb SoDimm |
| Storage capacity Sata: | No strage (standard), Harddisk 250/500 Gb or SSD in 60/120/240 or 480 Gb. |
| Operating system: | NO OS (standard), Win7 embedded WSP7 multilangual, Win7Pro, Win8Home and Pro, Win10Home and Pro. |
| Input equipment: | None (standard) or wireless keyboard/mouse |
| Accoustic options: |
- No speakers/microphone (Standard),
- with usb stereo soundbar 2x2 Watt/ no microphone or
- with usb stereo soundbar 2x2Watt and microphone with 3.5mm plug. |
|
Specifications / Manual : |
 |
| Dimensions : | |
| Driver downloads : |  |
You can purchase by selecting below mentioned options (if available). More info on tab "Options")
Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.
Discount on prices:
- Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
- For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
Options (incl. installation):
