17" Desktop PC (Passive Cooled)
Net price (excl.VAT) €766,00
Art.No.:
1020153084 Brand:
A1Touch Solution
Type: All in one A1Touch J3455/AOD170-DNB; (passive cooled)
Description: 17 inch desktop computer with or without touchscreen. Unit made of black powder coated metal with mini itx format computer for hufter proof and long life use.
Unit is in stock.
| Monitor specs: | |
| Color panel: | Black powder Coated (other colors on request) |
| Model: | 17 inch XGA TFT LCD Monitor |
| Type: | 17 inch Color Active Matrix TFT LCD (AUO M170ETN01.1) |
| Resolution (max): | 1280 x 1024 (WVGA) |
| Color: | 16,2 million |
| Pixel: | 0.264 x 0.264 mm |
| Brightness: | 300 cd/m² |
| Monitor specs: | |
| Color panel: | Black powder Coated (other colors on request) |
| Model: | 17 inch XGA TFT LCD Monitor |
| Type: | 17 inch Color Active Matrix TFT LCD (AUO M170ETN01.1) |
| Resolution (max): | 1280 x 1024 (WVGA) |
| Color: | 16,2 million |
| Pixel: | 0.264 x 0.264 mm |
| Brightness: | 300 cd/m² |
| Contrast ratio: | 1000:1 |
| Viewing angle: | 88°/88° horizontal & 85°/85° vertical |
| Response time | 5 ms |
| Active area: | 337,9 (H) x 270,3 (V) mm |
| Computer specs: | |
| Type computerboard | Intel J3455 Quad core upto 2.3 Ghz, passive cooled |
| Chipset | No seperate chipset |
| Memory | 2 x DDR3/DDR3L SO-DIMM Slots |
| Bios |
|
| Processor | Intel J3455 Quad core upto 2.3Ghz processor |
| Flashmodule/ Harddisk | Sata SSD and SATA Harddisk.possible |
| Graphics |
|
| LAN (RJ-45) |
|
| Audio |
|
| IDE, SATA, Flash | 2 x SATA2 3.0 Gb/s Connectors, supporting NCQ, AHCI and Hot Plug |
| Hardware Monitor + Power Management | Temperature, Voltage, Case open function, Watch Dog timer (manufacturing option) |
| Operating system | Windows 7, 8, 10 Linux, Win CE, Win7emb, Win10IOT. |

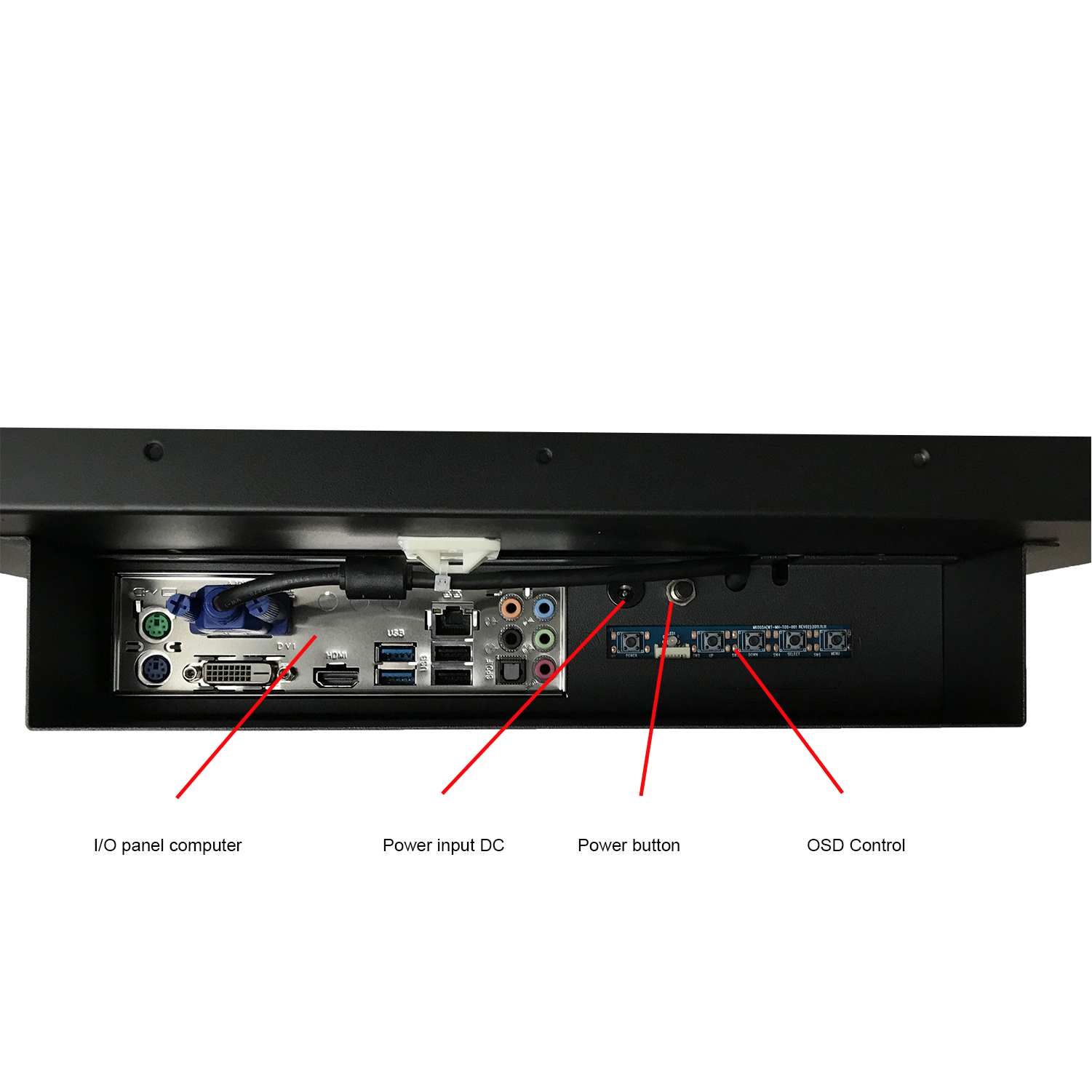

| I/O system: |
|
| Internal I/O: |
|
| Energy requirements | 35W normal use; 80 W max.; 5 W stand by. |
| Power | Power supply 84 W External |
| Weight | 4 Kg |

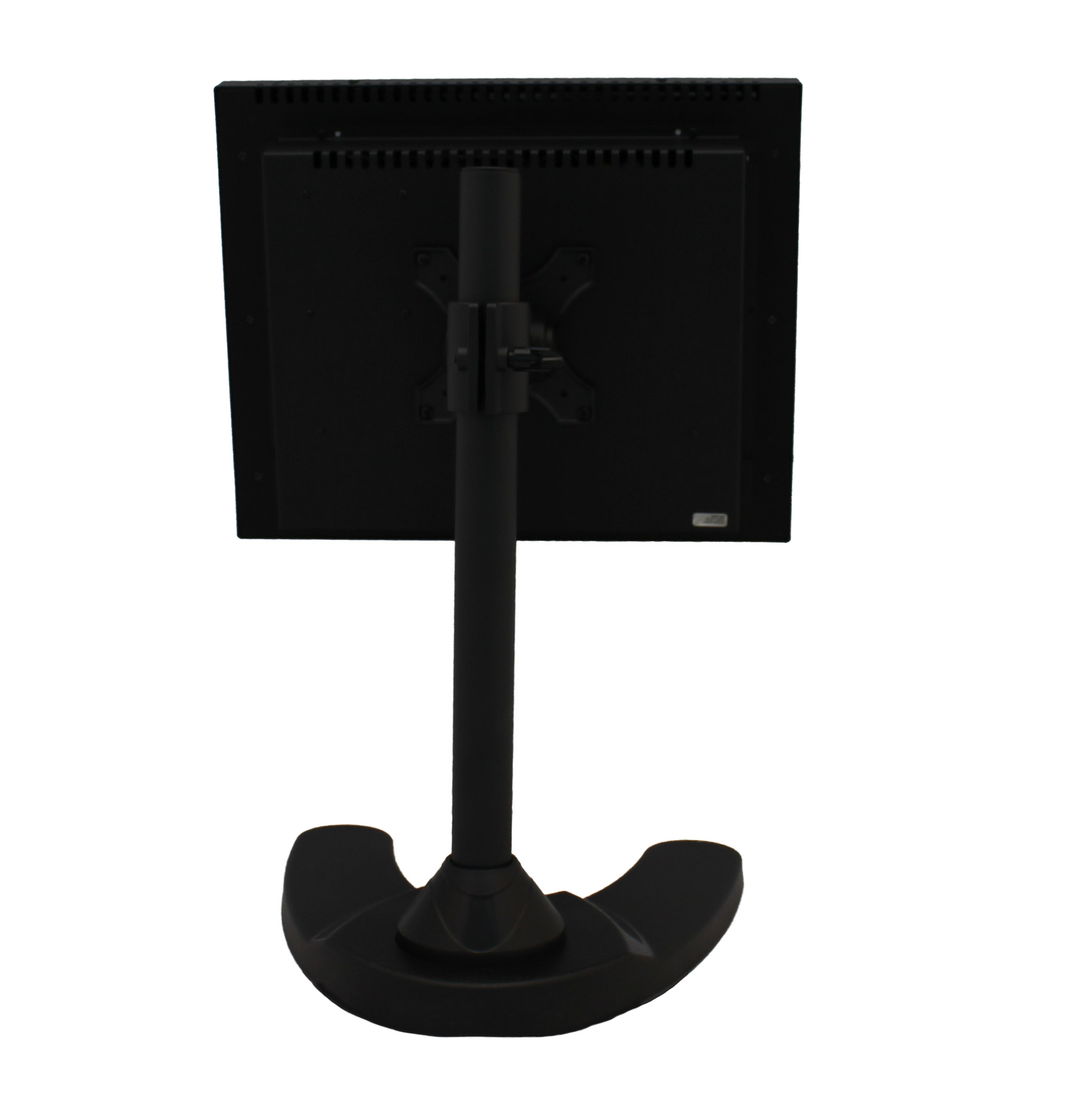

| Mounting: | VESA 100mm; (No bracket/ stand included in delivery; See: mounting_brackets) |
| Dimensions system(B x H x D) | 380x312x87 mm |
| Options: | |
| Standard delivery: | With psu, EU power cable and dvi cable but without vesa stand. Other options on request. |
| Functionality: | With or without touch |
| - without touch: | Acrylic or glass |
| - with touch: Type of Touch: | 5 wire resitive, Surface Accoustic Wave or Projected |
| Options: | |
| Standard delivery: | With psu, EU power cable and dvi cable but without vesa stand. Other options on request. |
| Functionality: | With or without touch |
| - without touch: | Acrylic or glass |
| - with touch: Type of Touch: | 5 wire resitive, Surface Accoustic Wave or Projected Capacitive Not sure what to use? Call us at +31 (0)45 5748190 or send us contactform |
| - 5 wire resistive : | -Standard non-glare. -Touchable with finger, glove and stylus. -Single touch -activation force less than 40 gramm. |
| - SAW: | -Standard glare. -Touchable with finger and glove. -Single touch -activation force less than 85 gramm. |
| - Projected Capacitive: | -Standard glare. -Touchable with finger, glove and pcap stylus. -10 points touch -activation force less than 1 gramm. |
| External protection: | Standard IP44 or IP65 or higher (not for SAW) |
| Memory capacity: | No memory (standard), 2, 4 or 8 Gb SoDimm |
| Storage capacity Sata: | No strage (standard), Harddisk 250/500 Gb or SSD in 60/120/240 or 480 Gb. |
| Operating system: | NO OS (standard), Win7 embedded WSP7 multilangual, Win7Pro, Win8Home and Pro, Win10Home and Pro. |
| Input equipment: | None (standard) or wireless keyboard/mouse |
|
Specifications / Manual : |
 |
| Dimensions : | |
| Driver downloads : |  |
You can purchase by selecting below mentioned options (if available). More info on tab "Options")
Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.
Discount on prices:
- Resellers/ installers and
You can purchase by selecting below mentioned options (if available). More info on tab "Options")
Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.
Discount on prices:
- Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
- For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
Options (incl. installation):
