13.3" Bezel Free Rear mount PCAP Touch PC
Net price (excl.VAT) €850,00
Art.No.:
1020153211 Brand:
A1Touch Solution

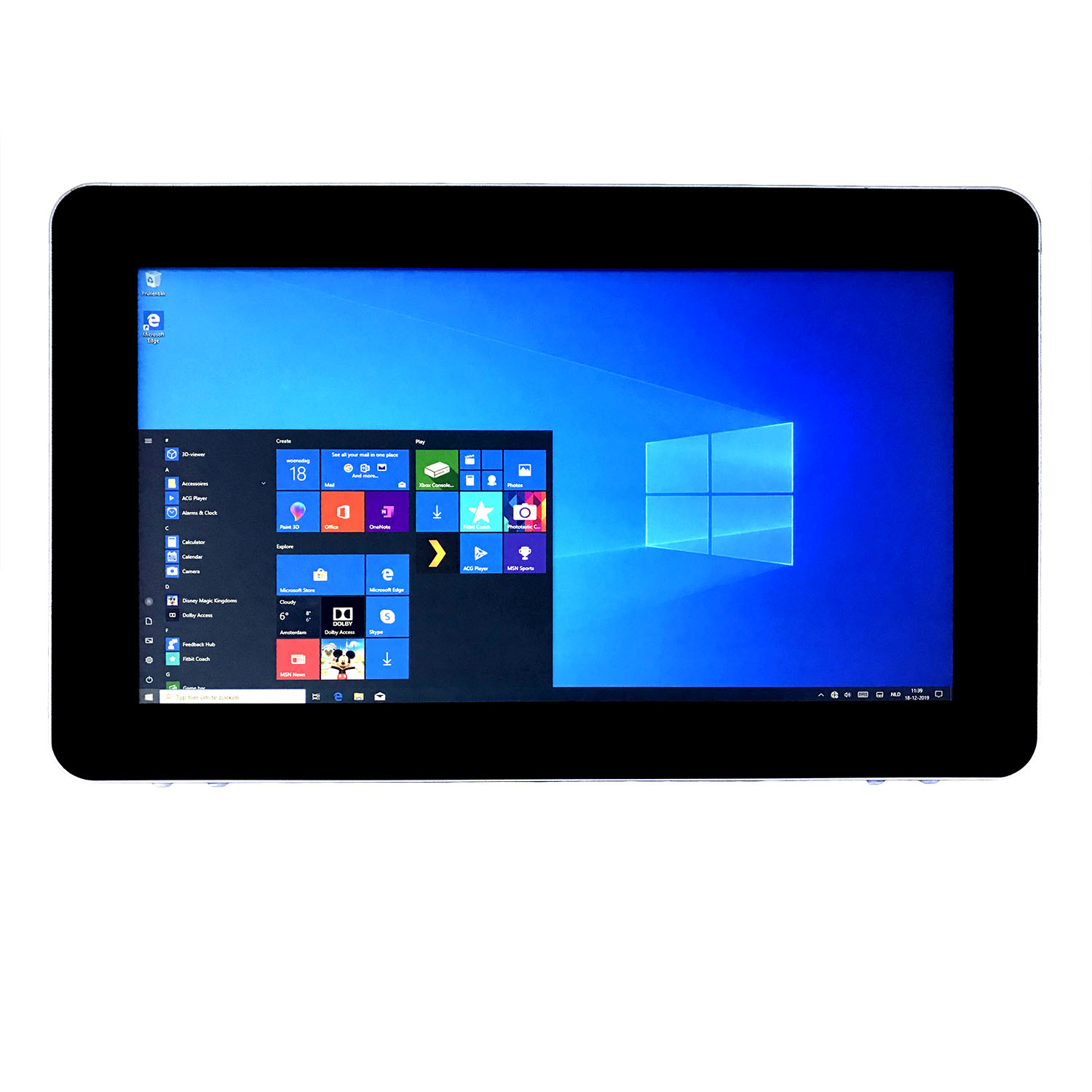

Type: BFR133-GPCAP-M3A-OF; 13.3" Rear mount projected capacitive touchscreen system with integrated computer type M3A, Intel J4125 quad core tot 2.7 Ghz, 6Gb ram, Flash 128 Gb eMMC with Win10 PRONL installed. (1x internet and 1x usb port external available).

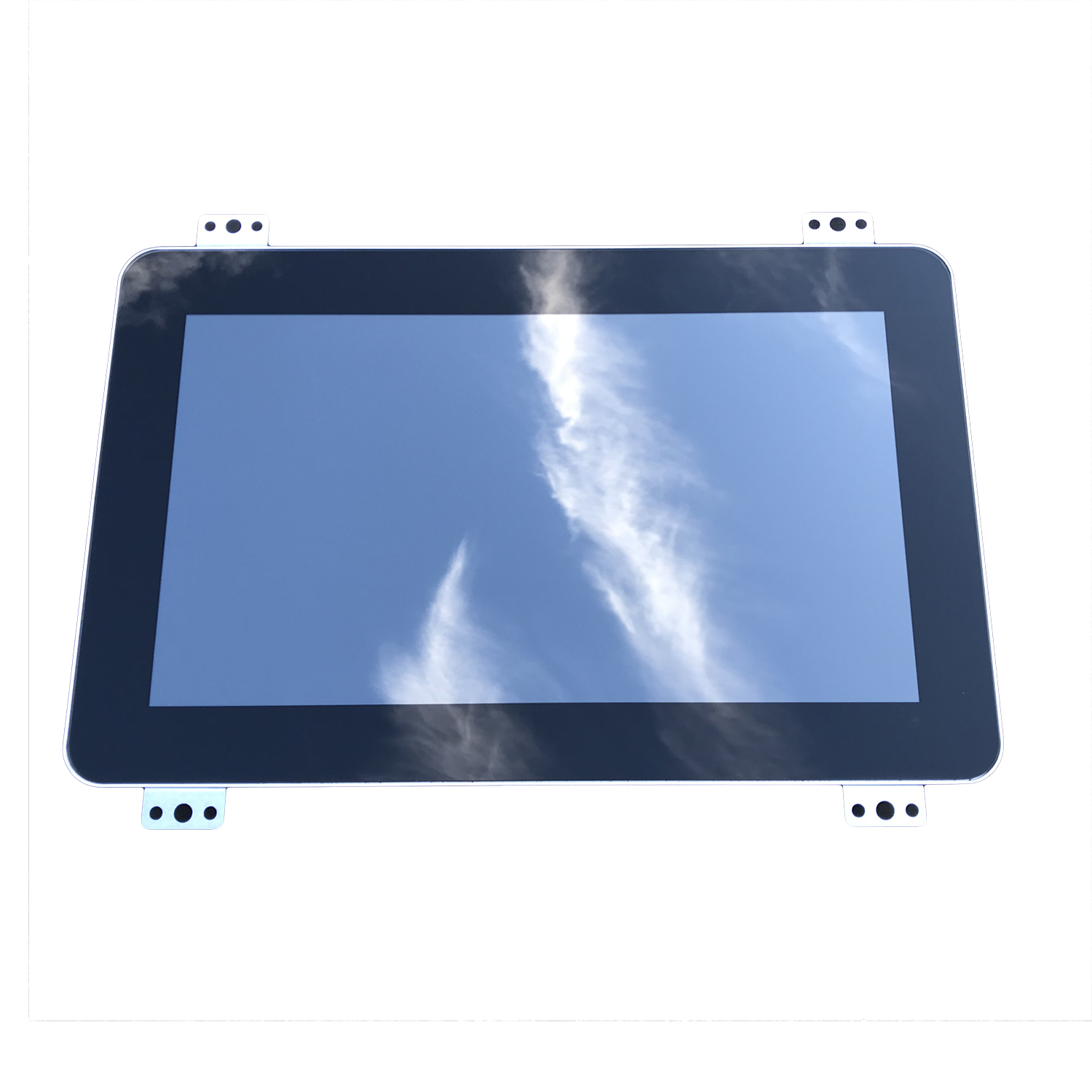

Description: 13.3 inch Full HD rear mount PCAP monitor to be assembled behind a finished hole of panel or control box. Touchscreen of full glass and black coated metal case for vandal proof 24/7 use is public spaces.
Unit is in stock
| Product Features: |
| - Win10 Pro multipurpose system. |
| - Bezel free design with glass surface. |
| - Precise multi-point (10 points) touching. |
| - Maintenance free. |
| - Complete metal monitor with strong stability. |
| - Auto on after power failure. |
| - Unit can be touched with finger, hand gloves or stylus pencil. |
| - Fast touch |
| Product Features: |
| - Win10 Pro multipurpose system. |
| - Bezel free design with glass surface. |
| - Precise multi-point (10 points) touching. |
| - Maintenance free. |
| - Complete metal monitor with strong stability. |
| - Auto on after power failure. |
| - Unit can be touched with finger, hand gloves or stylus pencil. |
| - Fast touch response (less than 10 ms). |
Specifications:
| General | |
| Model: | BFR133-M3A-OF |
| Size: | 13.3" |
| Panel Type: | IPS |
| Backlight: | LED |
| Display colour: | 262K |
| Color: | Black |
| Material: | Metal housing, Glass cover glass |
| Mounting Option: | VESA 75x75 and 100x100 mm |
| Video Inputs | Inputs: VGA/ HDMI/ BNC/ Composite/ USB |
| Dimensions | |
| Outside dimensions frame (wxhxd) | 354*224*38 mm |
| Active area (wxh) | 293.76*165.24 mm |
| Display | |
| Native resolution: | 1920*1080 @60HZ |
| Ratio: | 16:9 |
| Contrast: | 800:1 |
| Brightness: | 350 cd/m |
| Viewing Angle (H/V): | 178/178 |
| Backlight life: | Min.15.0000 hrs |
| Control: | OSD Control |
| Processor | |
| Type: | Intel® Celeron® Processor J4125 |
| Platform: | Intel Gemini lake Platform J4125 |
| Performance: | 4-core, 4-threads, 4MB Cache, up to 2.7 GHz |
| GPU: | Intel® UHD Graphics 600, DirectX 12.0, OpenGL 4.3, OpenCL 2.0 |
| Memory / Storage | |
| Ram: | 6GB Ram DDR4 -2400Mhz |
| Storage: | 128GB (Emmc) storage with Windows10Pro installed |

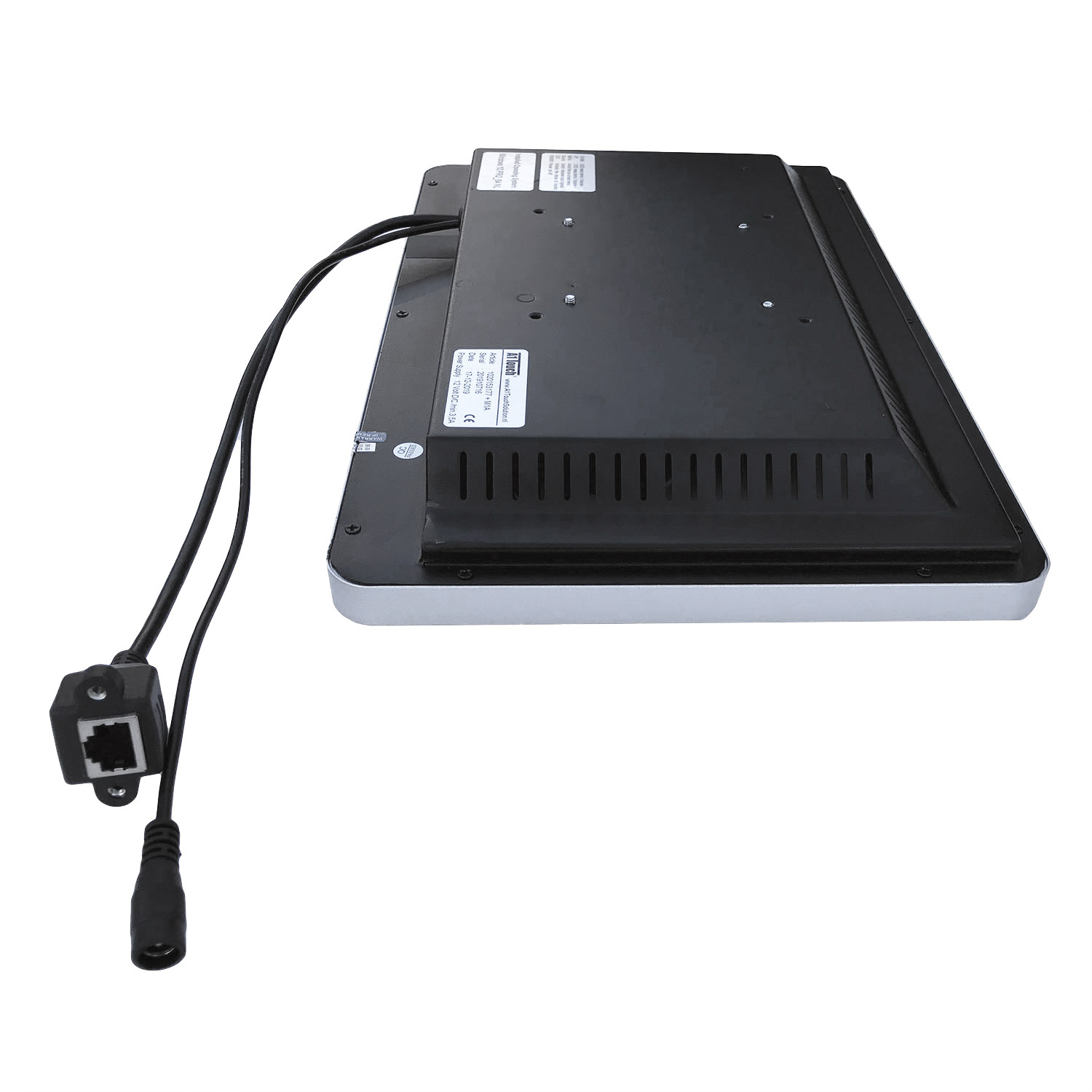

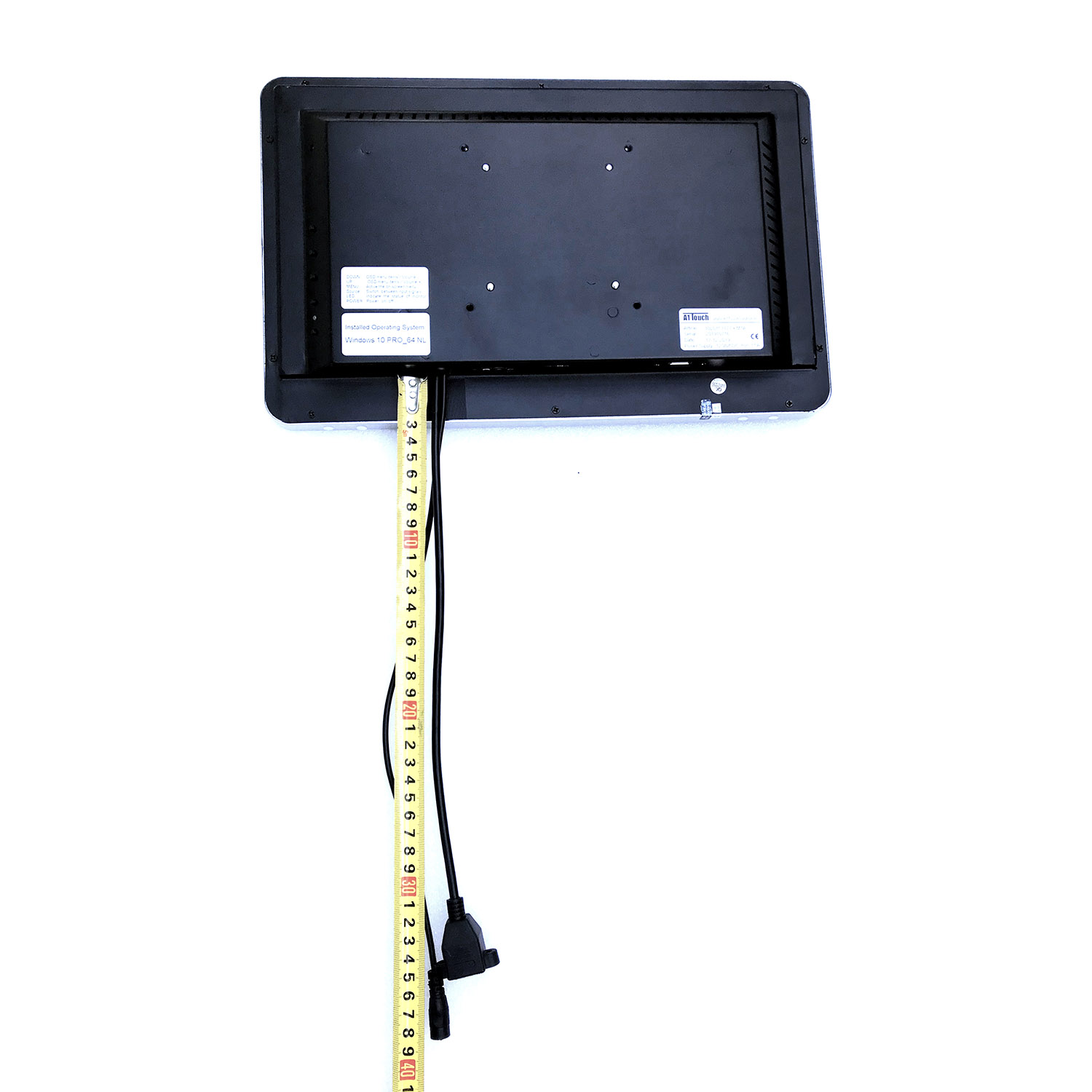

| Ports | |
| USB: | 1x USB3.0 external available, |
| Ethernet: | 1x ethernet RJ45, 1Gb external available. |
| Power: | 1x button (only on request) Normally unit starts when power on. |
| Touchscreen | |
| Touch Technology: | Projected capacitive Touch (G+G) |
| Detected touches | 10 touches. |
| Response time: | <10ms |
| Input Method: | Finger, hand gloves, or conductive stylus |
| Touch times: | Unlimited |
| Touch Activation Force: | No minimum touch activation force is required. |
| Controller type: | EETI chipset 31xx |
| Operating System Support: | Windows2000, XP, 7, 8, 10, Android, MAC and Linux. |
| Environment | |
| Temperature: | Operating: 0°C ~ 50°C Storage: -20°C ~ 60°C |
| Relative Humidity: | Operating: 90%(non-condensing at max 40°C) Storage: 90%(non-condensing at max 40°C) |
| Altitude: | Up to 3000m |
| Electrical | |
| Scan frequency: | 60Hz |
| Operation Voltage: | Typical +DC 12V, +/- 10% (24 volt option). |
| Power Supply: | 110-220V AC to 12Volt DC, min. 3.5A |
| Power: | 15 W |
| Packing | |
| Agency Approvals: | CE, FCC, RoHS |
| Weight net.: | 3.5 kg |
| Options: | |
| Standard delivery: Our touchscreen system standard includes: pcap touchscreen with integrated computer and windows10 plug and play installed + 220 – 12 Volt Power Supply. | |
| Cooling: - With active cooling (standard) : the silent cooler is ideal for rooms without ventilation to achieve optimal cooling of |
| Options: | |
| Standard delivery: Our touchscreen system standard includes: pcap touchscreen with integrated computer and windows10 plug and play installed + 220 – 12 Volt Power Supply. | |
| Cooling: - With active cooling (standard) : the silent cooler is ideal for rooms without ventilation to achieve optimal cooling of processor - With passive cooling : Use this option if you have dirty air or need absolute no noise (room should be ventilated to provide processor with cool air stream). | |

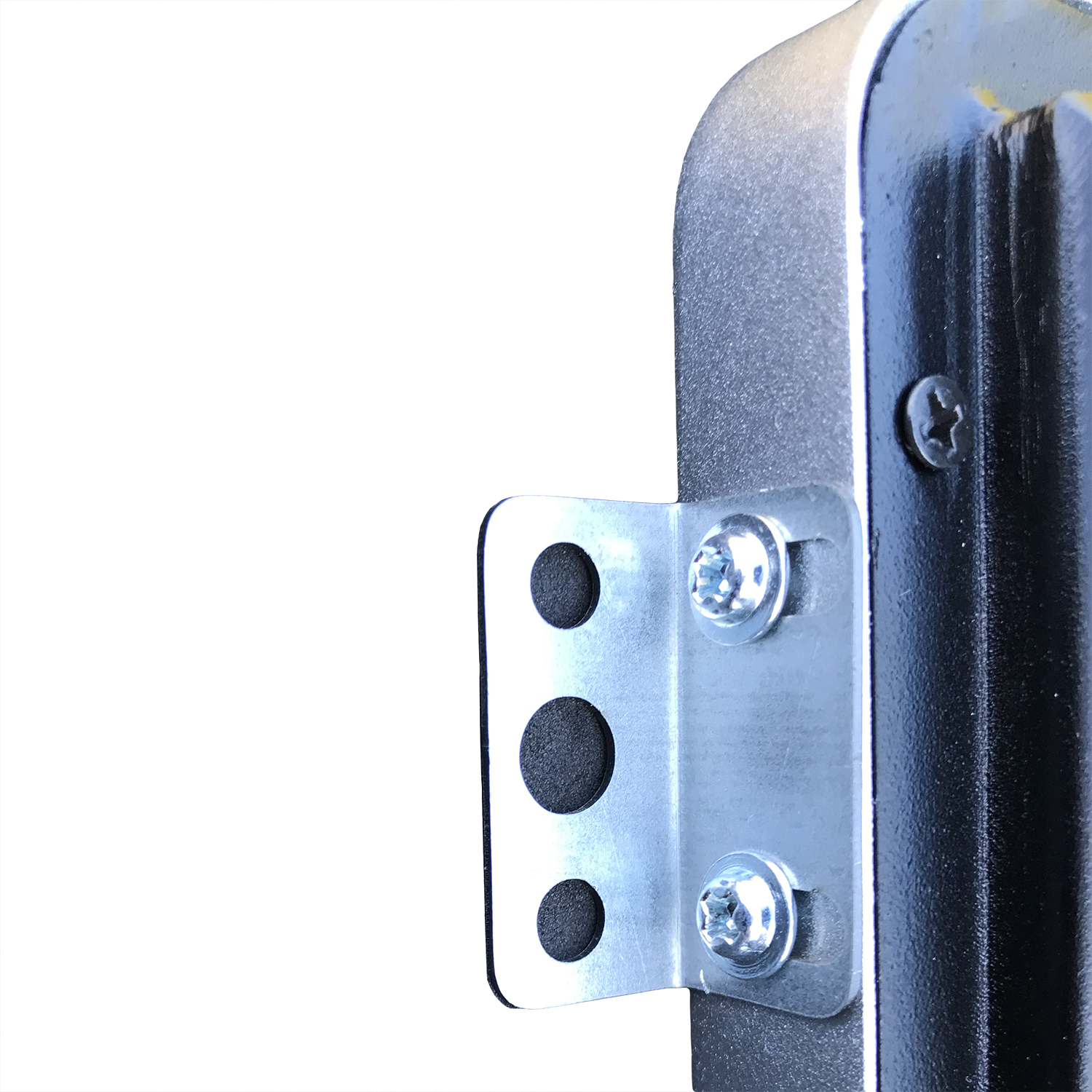

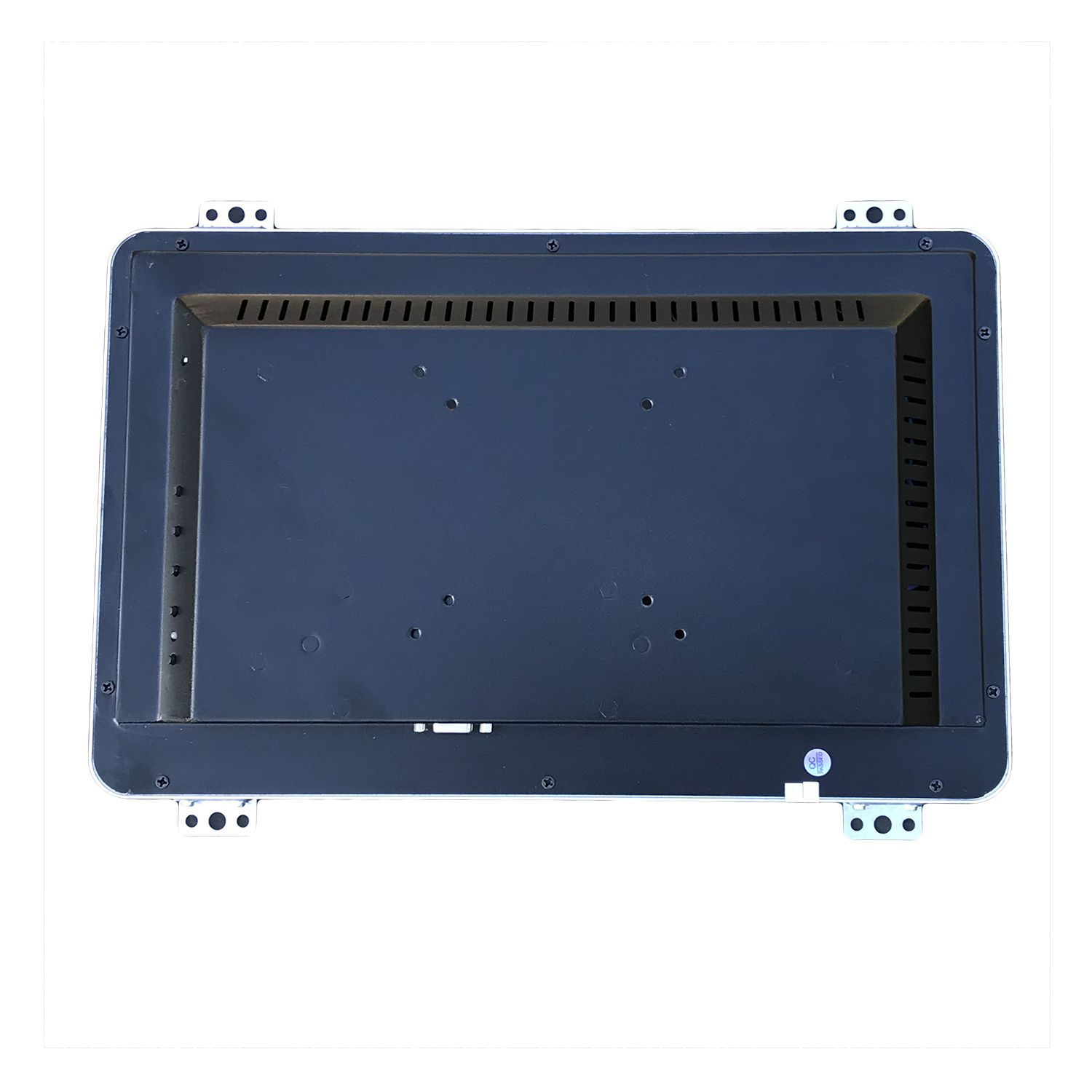

| Rear mount brackets: - No rear mount brackets (standard) : if you have your own brackets or mounting screen via vesa connection - Set of mounting brackets : if you would like to use our brackets for mounting monitor to your front plate. | |
| Input equipment: - None (standard) (if you do not need extra keyboard/ mouse but only use touchscreen. - Wireless keyboard + mouse. - Wireless keyboard with integrated mousepad. | |
| Accessories: - No accessories (standard) - With stylus pen and holder:  |
|
Specifications touchmonitor: |
 |
| General specs including integrated computer: | |
| Driver downloads : |  |
You can purchase by selecting below mentioned options (if available). More info on tab "Options")
Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.
Discount on prices:
- Resellers/ installers and
You can purchase by selecting below mentioned options (if available). More info on tab "Options")
Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.
Discount on prices:
- Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
- For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
Available options:
