10.5" PCAP In-wall mount PC (Passive Cooled)

10.5 inch pcap touchscreen system with camera front
10.5 inch pcap touchscreen system with camera front10.5 inch pcap touchscreen system back10.5 inch pcap touchscreen system with psudomo enclosure 10.5 inchdomo enclosure 10.5 inch
10.5" PCAP In-wall mount PC (Passive Cooled)
Net price (excl.VAT) €1322,00
Art.No.:
1020153261
Brand:
A1Touch Solution
Type: All in one A1Touch-Samsung-10.5-4-64-Android-Domo (passive cooled)
​​Description: 10.5" pcap touchsystem for IN-WALL mounting, 4mm glare floatglass, black borders, 325x240mm (wxh) with domo enclosure and psu.
ALTERNATIVE Unit is in stock
This touchscreen system can meet your highest expectations:
  • The panel pc for home automation has a borderless hufterproof 4mm extra clear touchscreen glass that can be used in all kind of buildings.
  • The unit can be made waterproof by sealing the frontglass, ideal for use in bathrooms or toilets.
  • We can deliver standard with a black border or on request with your design of logo and/or color.
  • Unit can be built inside all walls with minimum thickness of 5 cm.
  • Android apps like loxone can be installed to connect via Wifi or LAN with your other smart home devices
  • This unit is made based on Samsung technology with benefit of their worldwide platform of knowledge.
Display specs:
Hufterproof glass panel: Glare Extra clear floatglass with black borders, wxhxt= 325x240x4mm  (custom desing f.e. with logo on request).
Touchscreen type: Projected Capacitive PCAP 10 pts touch
LCD Type: Super AMOLED (WQXGA)
Size: 10.5 inches, 319.7 cm2
Resolution (max): 2560x1600 pixels, 16:10 ratio (~288 ppi density)
Brightness: 450 cd/m²
Computer specs:
OS: Android 9.0 (Pie), upgradable to Android 10, One UI 2.5
Chipset: Qualcomm SDM670 Snapdragon 670 (10 nm)
CPU: Octa-core (2x2.0 GHz 360 Gold & 6x1.7 GHz Kryo 360 Silver)
GPU: Adreno 615
Memory: 64GB 4GB RAM eMMC 5.1;  internal Card slot: microSDXC, Max 512Gb (option)
Camera / Video: 8 MP, f/2.0, 26mm, 1/4", 1.12µm / 1080p@30fps
Sound: With internal 4 stereo Speakers tuned by AKG/Harman
Power:  Delivered with PS 60W PSU 110/240V AC to 5 VDC,  Internal battery 7040 mAh typical (UPS function)
Power cable: Standard delivered with 1.1 meter power cable. On request we deliver 2 or max 3 meter cable length.
Communication:
  • LAN: 1Gbps ethernet port.
  • Wlan: Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, hotspot
  • Bluetooth: 5.0, A2DP, LE
  • GPS: Yes, with A-GPS, GLONASS, BDS, GALILEO
  • USB: 3.0
External connections:
  • 3x USB3.0,
  • 1x USB 3.1 (charge connection 5Vdc )
  • 1x Eternet RJ45 upto 1000Mb
  • 1x HDMI
  • 1x SD card slot
  • 1x TF card slot
  • input: 110/240V AC to 5 VDC. incl. psu PD 60W.
Dimensions:
  • Dimensions Front module: 325x240x35mm (WxHxD)

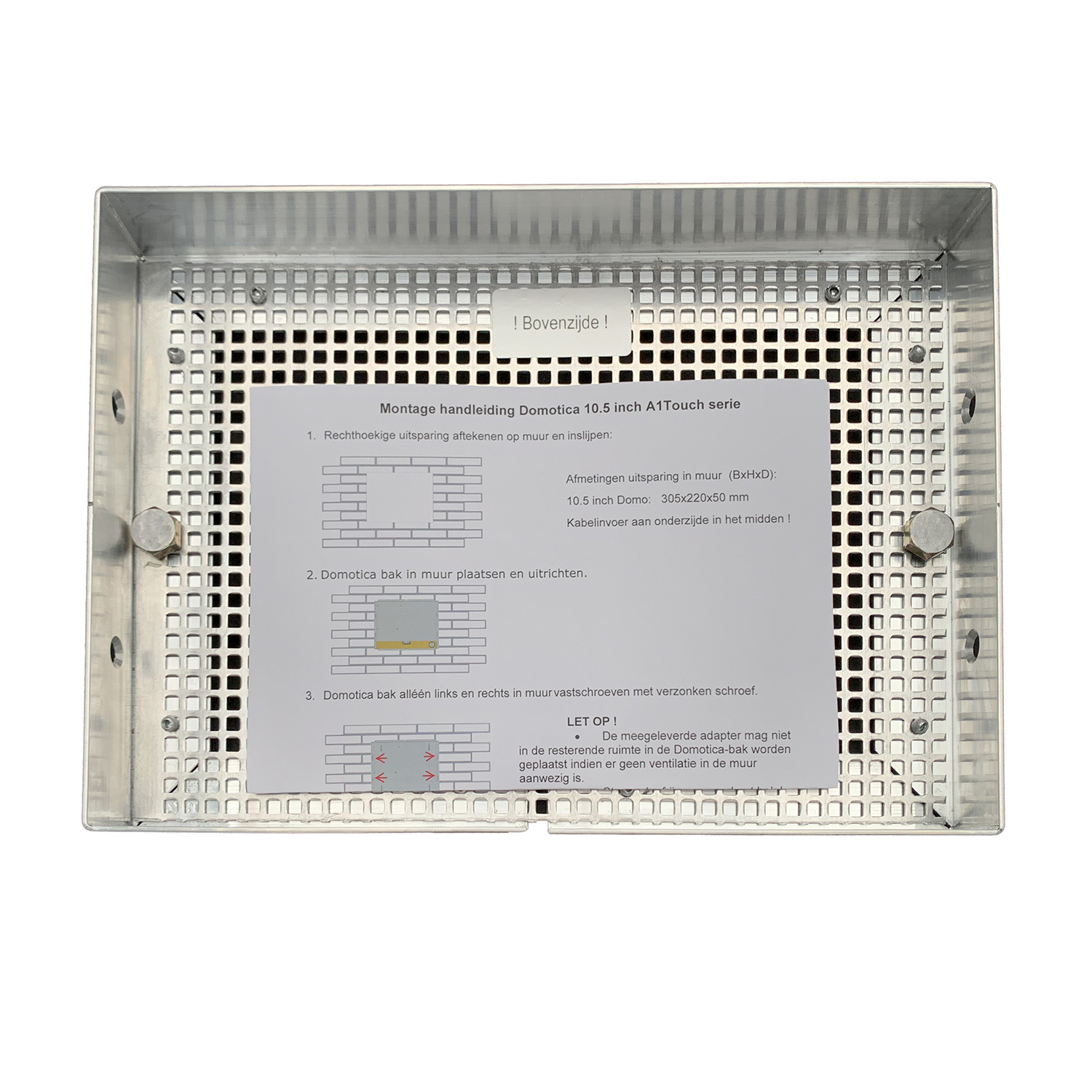

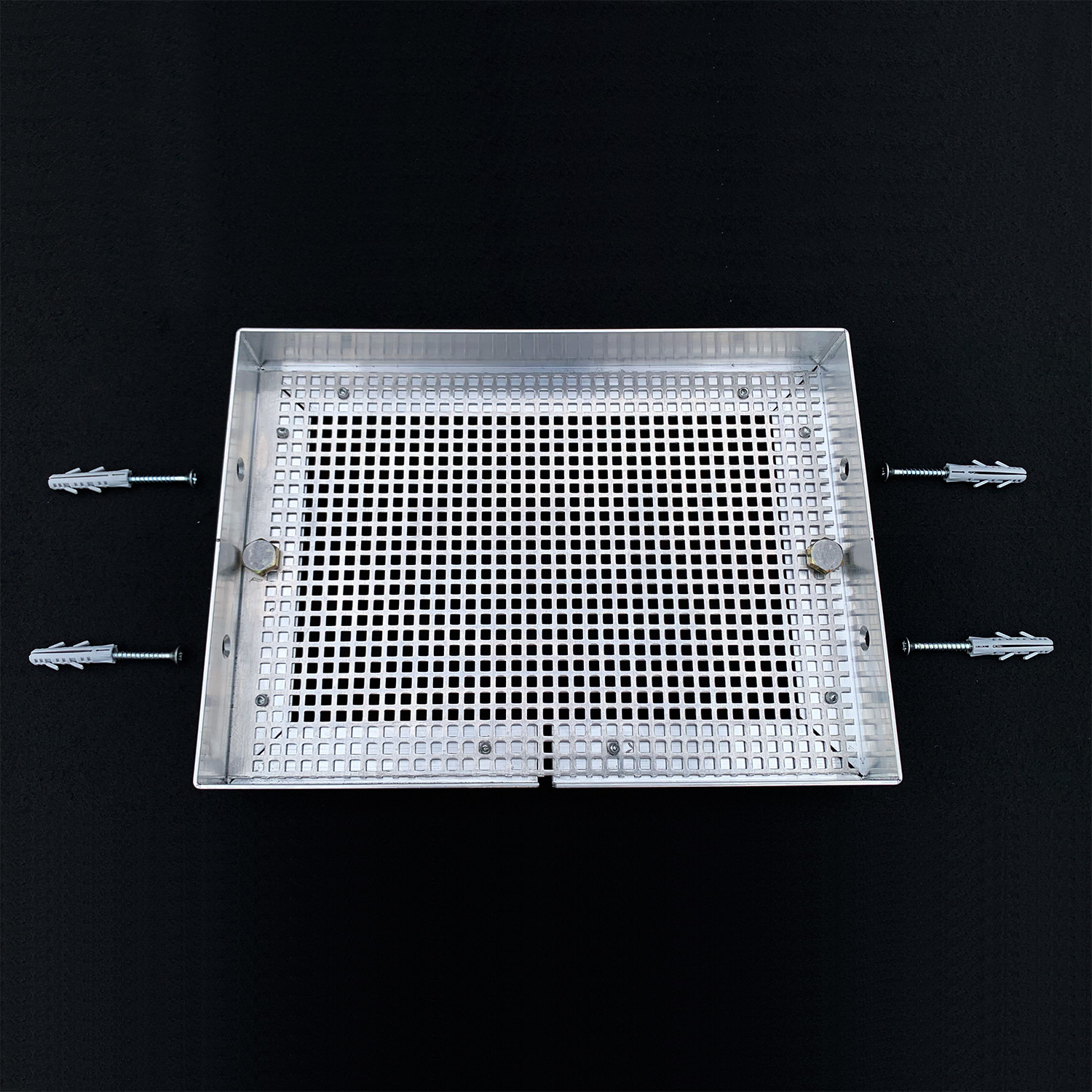

  • Dimensions Domo enclosure: 300x215x45mm (WxHxD)
  • Advised dimension hole in wall: 305x220x50mm (WxHxD)
Enclosure: Enclosure with magnetic closing system, height adjustable to cover wall thickness deviations.
Weight +/-4 Kg

Specifications / Manual :
Instruction built in unit :
Driver downloads : More Info
