17 inch 5wire resistive touchscreen kit

 5wr resistive
17 inch 5wire resistive touchscreen kit
Net price (excl.VAT) €107,00
Art.No.:
BI-TFT17-AN5WR-....
Brand:
Atouch
Model: 17" sensor 5WR1702FA5 with controller 5WRUSBS or 5WR232S
Name: BI-TFT 17 inch 5 wire.

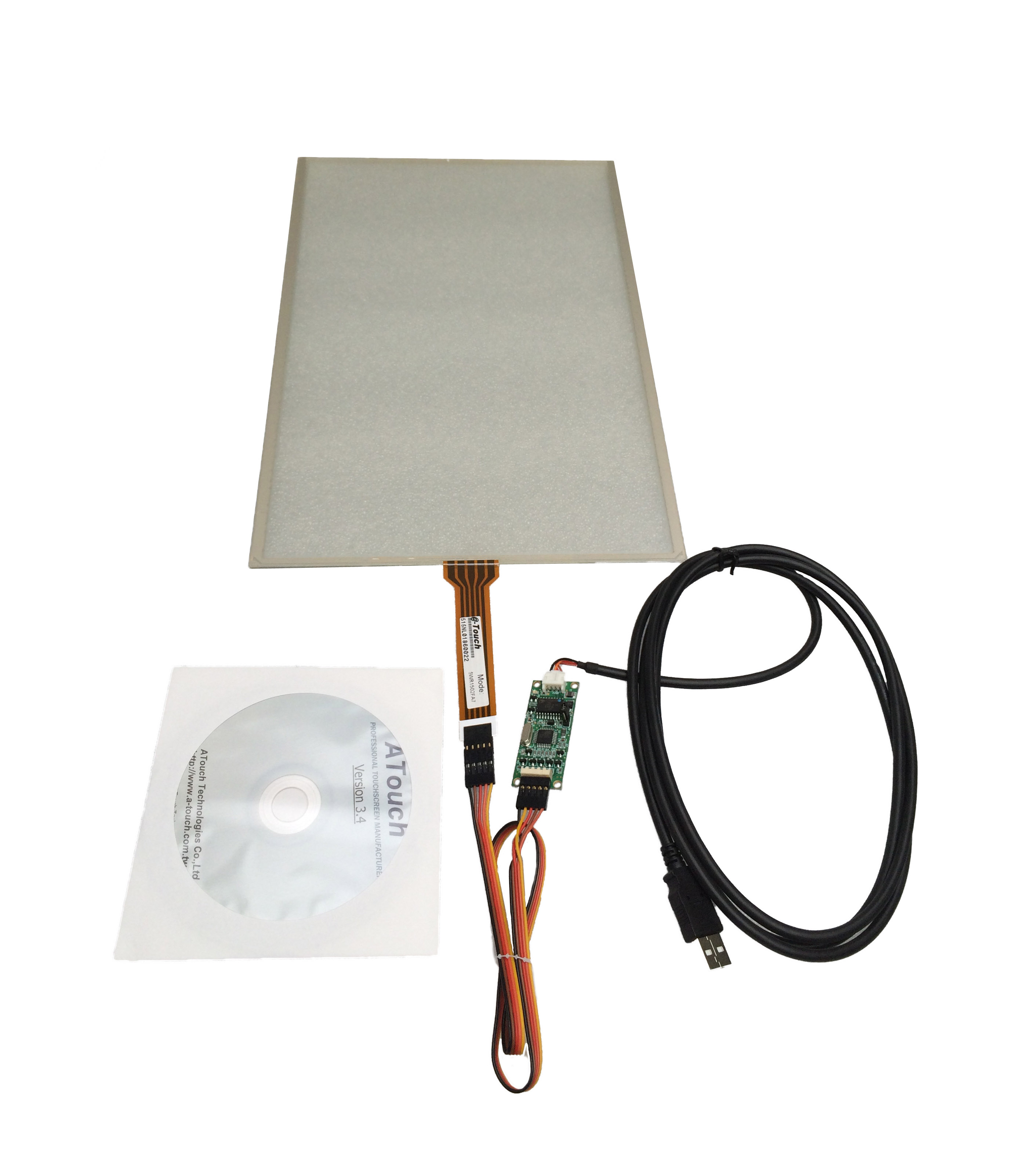

Description: The 17" touch kit contains a non-glare resistive sensor, usb touch controller or RS232 touch controller and cables
Unit is in stock
Dimensions:
359 x 295 x 2,1 mm

Standard provided is a driver cd.

The touch panel works on the following operating systems:
Touchkit mode:
 32 bit computers (jumper on controller not used):
MAC 9.x, 10.x until 10.5.6 (choose ELO mode for versions > 10.5.6)
RedHat 7.x, 8.x
Windows 95/98, ME, 2000, NT, CE.NET, CE3.0/5.0, XP, Vista, 7, 8 and 10

ELO mode: Use for 64 bit computers (jumper on controller used - bridge pin 1+2) or for MAC versions > 10.5.6.
In this mode only use Elo Compatible drivers.

Controller information:
USB, The signal is delivered to the USB port and the power also comes from the USB port.
RS232 with PS/2, The signal is delivered to the RS232 port and the power comes from the PS/2 port.
RS232 internal power, The signal is delivered to the RS232 port and the power you can get it from the monitor.

Spec. USB controller

Specs built in kit 17 inch  5wire resisitve  USB controller

Spec. RS232 controller

Specs built in kit 17 inch  5wire resisitve  RS 232 controller

Spec. sensor

Specs built in kit 17 inch  5wire resisitve  sensor
Dimensions : Dimensions  built in kit 17 inch  5wire resisitve
Driver downloads : Drivers  built in kit 17 inch  5wire resisitve touchscreen
General information : General information  built in kit 17 inch  5wire resisitve touchscreen

You can purchase by selecting below mentioned options (if available). More info on tab "Options")
​Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.

Discount on prices:

  • Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
  • For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
Available options:
