Add On IR Touchscreen 42 inch

Size:

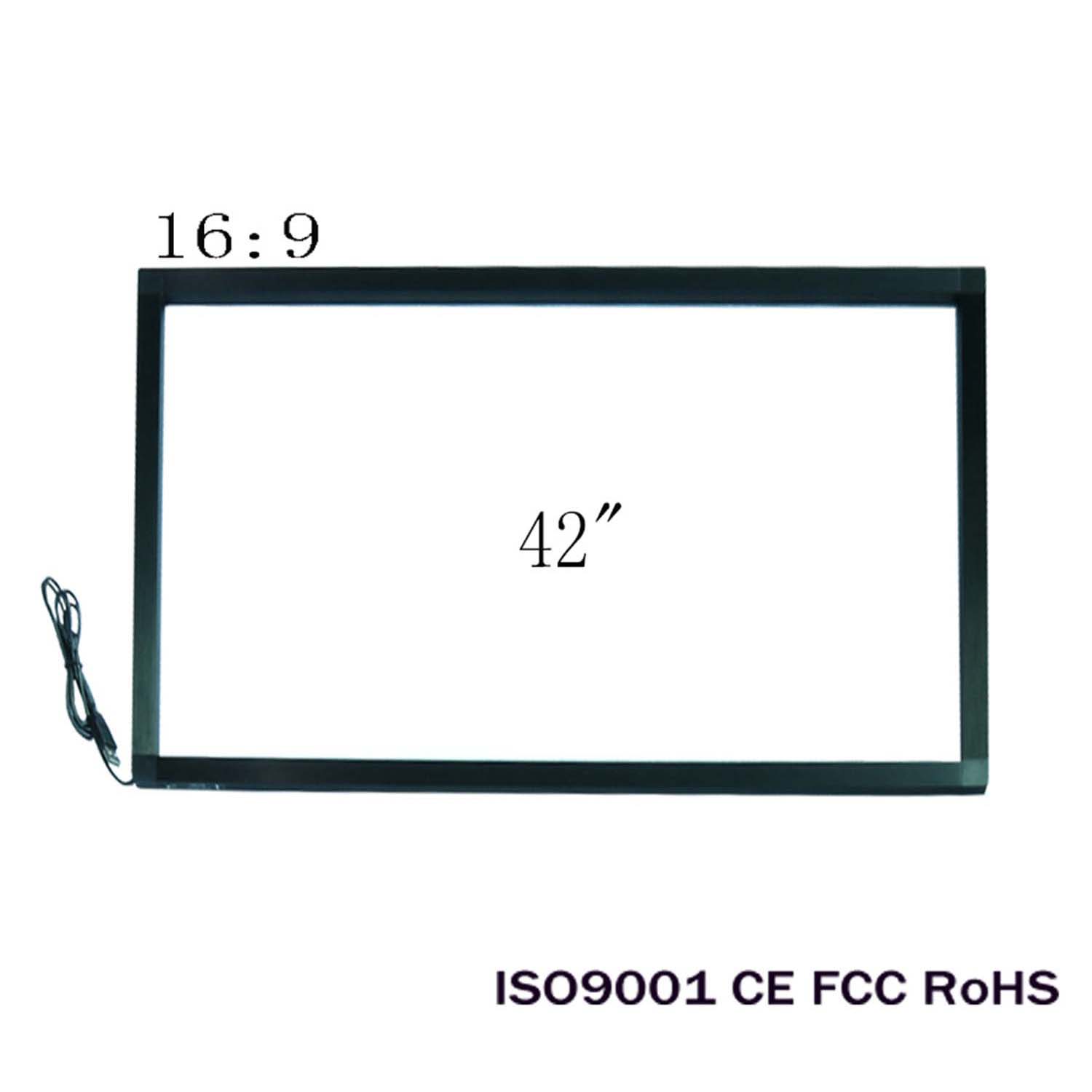

42" ( 42” active area)

Touch Technology:

Infrared Touch

Color:

Black

Material:

Brushed black aluminium

Dimensions

Outside dimensions frame (wxh)

980.2 x 573.3 +/- 1mm

Inside dimensions frame (wxh)

934.2 x 527.3 +/- 1mm

Active area (wxh)

930.2 x 523.26 mm +/- 1mm

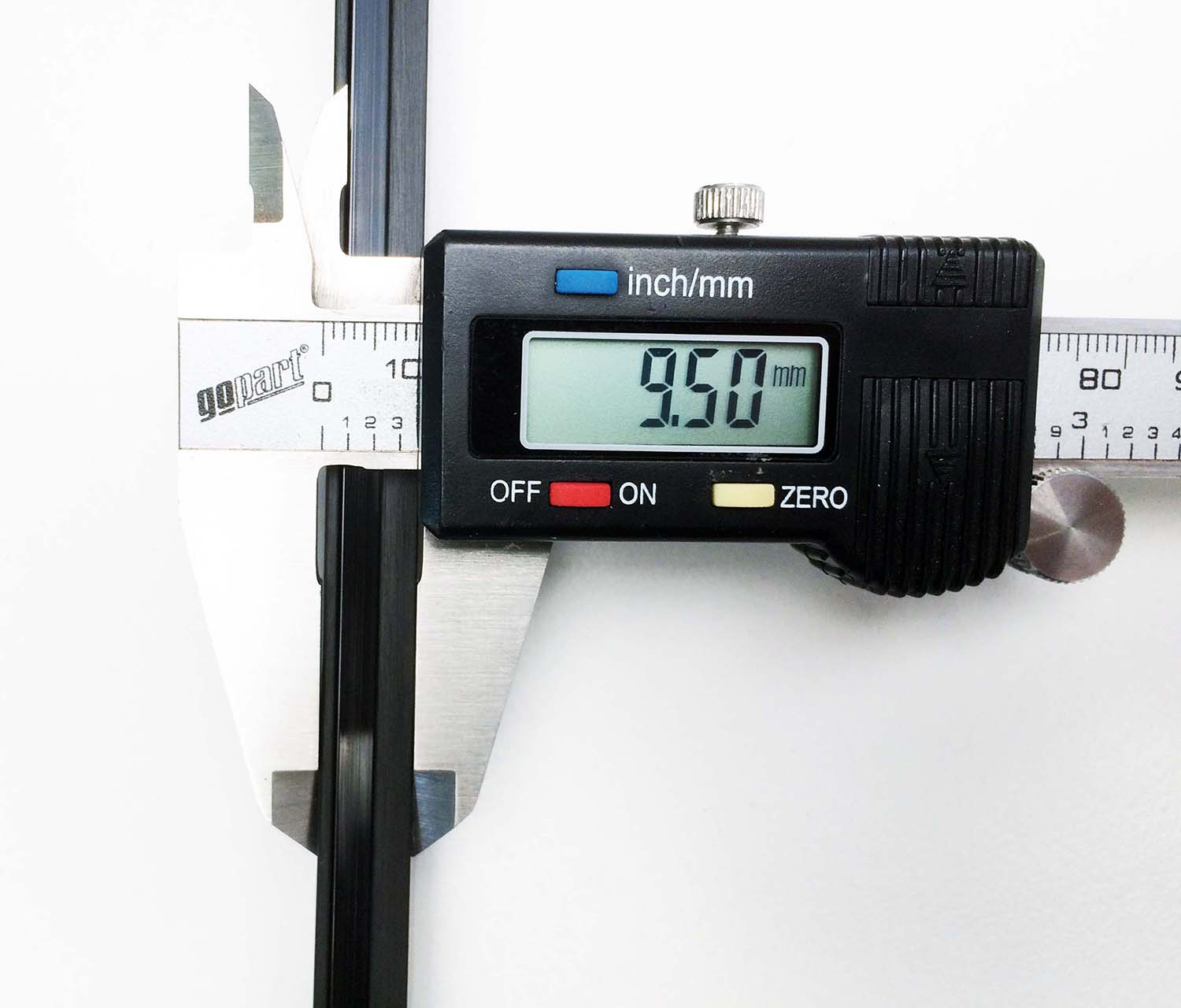

Thickness frame:

9.5 +/- 0.2 mm

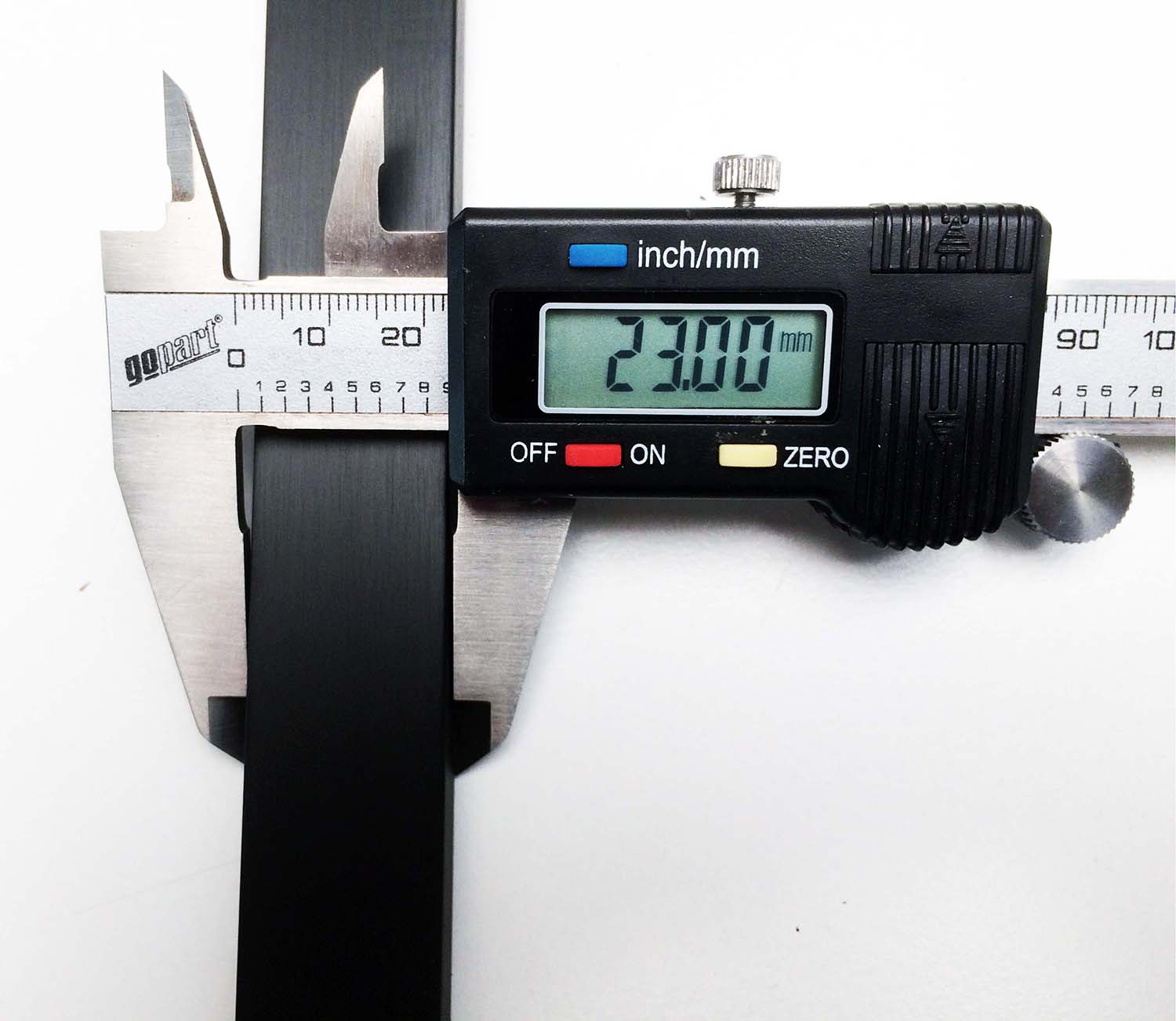

Width frame:

23 +/- 0.2 mm

Performance

Resolution(Interpolation):

4096*4096

Ratio:

16:9

Detected touches

10 touches.

Linearity error:

1.5 mm

Response time:

<15ms

Mechanical

Input Method:

Finger, gloved hand, or opaque object

Touch times:

Unlimited

Touch Activation Force:

No minimum touch activation force is required.

Minimum Touch Object:

5mm

Environmental suitablity

Temperature:

Operating: -20°C ~ 70°C

Storage: -40°C ~ 85°C

Relative Humidity:

Operating: 90%(non-condensing at max 40°C)

Storage: 90%(non-condensing at max 40°C)

Altitude:

Up to 3000m

Life Time (MTBF):

At least 7-year

Electrical

Scan frequency:

60Hz

Commnication interface:

USB 2.0 or RS232

Output Format:

Coordinate output

Touch Accuracy:

2mm (over 90% area)

Operation Voltage:

Typical +DC 5V, +4.75V to +5.25V

Power Supply:

Via USB, power ripple max. 200 mV rms

Power:

<2W, operating current<180mA

Operating System Support:

Windows2000, XP, 7, 8, 10, Android, MAC and Linux.

Agency Approvals:

CE, FCC Class B, RoHS
