20.1 inch PCAP touchkit Zytouch Zytronic®
Net price (excl.VAT) €90,00
Art.No.:
BI-TFT20.1-PCAP-USB Brand:
Zytronic
Model: ZYBX20-1.0001
Name: BI-TFT20.1-PCAP-USB

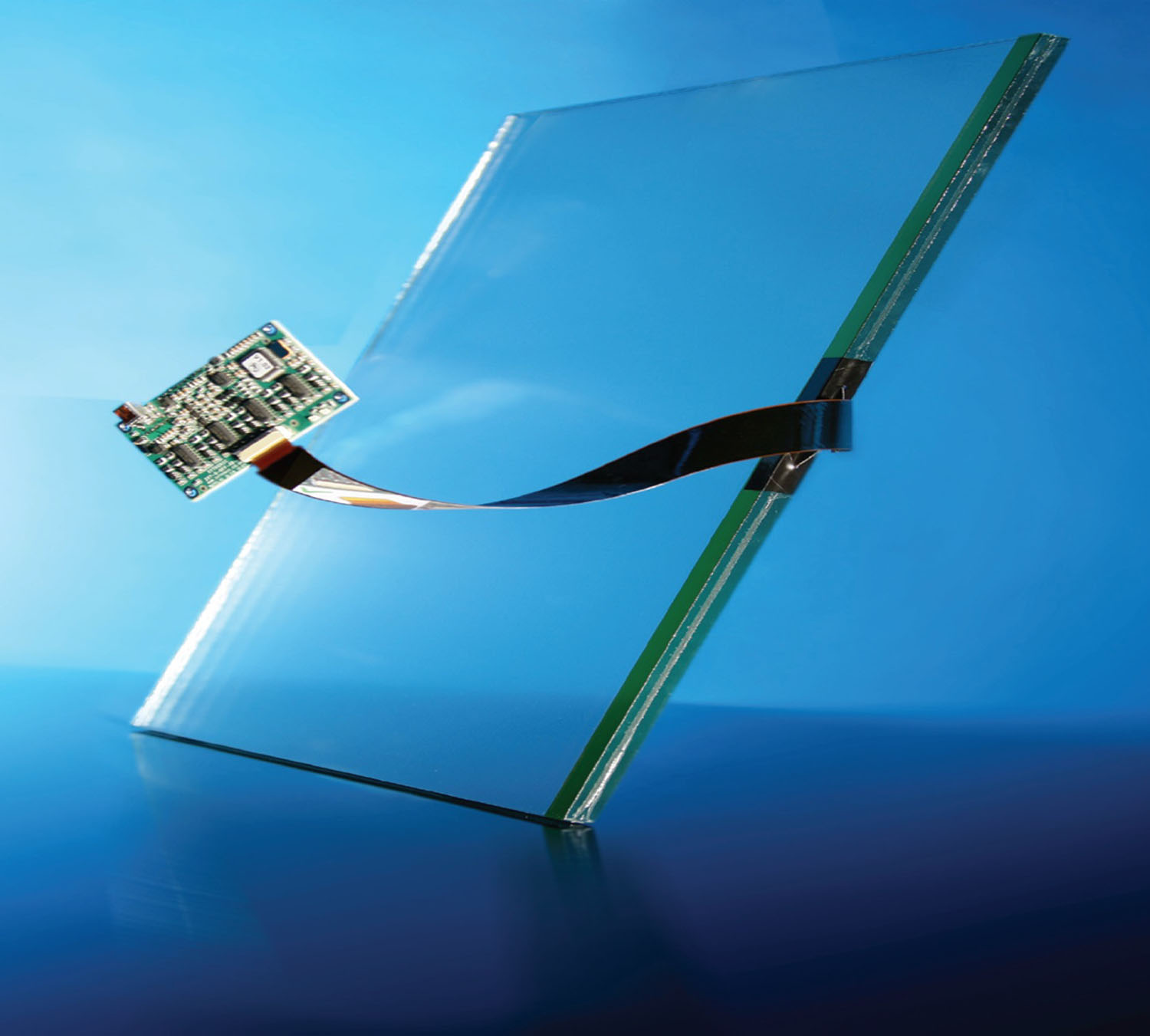

Description: The 20,1 inch touch panel is a non-glare pane which can be placed under glass of max 20mm thick (or 10mm acrylic glass) to build hufter proof single or dualtouch system for outside or inside applications.
NOT AVAILABLE ANY LONGER
Our kit includes: sensor + controller + cables.
Specs:
| Outside dimensions (wxhxt) | 439 x 328.5 x 3.23 mm |
| Active area (wxh) | 409 x 307 mm |
| Glass options: | touchable through max. 20mm float-, hardened- or laminated glass or max. 10mm acrylic/plexy glass |
| Detected touches | 1 or 2 touches (adjustable). |
| Detection Method: | PCT™ and MPCT™ |
| Connection: | USB |
| Controller type: | ZXY100-U-OFF-32-A |
| Operating System Support: | Windows 98, NT, 2000, XP, 7, 8, 10, Android, MAC en Linux. |
| Power Requirements: | Refer to Controller data sheet |
| Operating Temperature: | -35°C to +70°C |
| Humidity: | 0 to 90% RH @ 40°C. Unaffected by condensation |
| Speed of Response: | <10 mS |
| Durability: | Unsurpassed vandal and shock resistance |
| What it Detects: | Finger, gloved or ungloved. Conductive stylus |
| Resistance to Contamination: | Resistance to contamination – Sensing media protected by glass, exceeds requirements of ASTM-F1598-96 |
| Light Transmission: | 90% through standard ZYTOUCH® |
| Immunity to Damage: | Inert glass front – sensing media is not touched by the operator. No moving parts |
| Stability: | Use of fixed electrodes ensures one time calibration and no drift with usage or time |
| MTBF (Sensor): | Excellent, no known wear-out mechanism |
| Regulatory: | CE, FCC and UL when installed in system |
| Sealability: | Ability to be NEMA 12 or NEMA 4 compliant |
| Protocol: | Protocol available to allow users to customise their driver design |
| Connectivity: | Serial RS-232 or USB v1.1, compatible with USB v2.0 (refer to Controller data sheet) |
|
Spec. USB controller |
 |
|
Spec. sensor |
|
|
Dimensions sensor |
|
| Driver downloads : |  |
| General information : | |
