A1Touch-V4-2, I7 active cooled micro pc

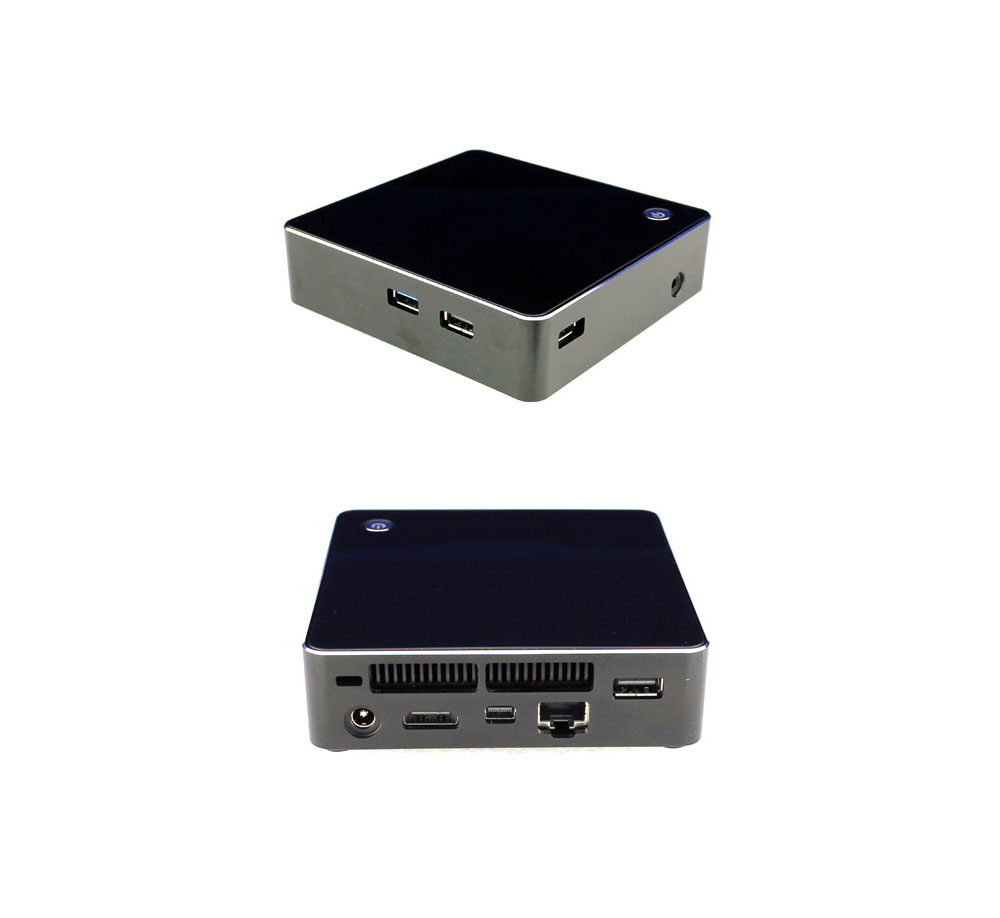

micro pc V4-2 i7 all sides
A1Touch-V4-2, I7 active cooled micro pc
Net price (excl.VAT) €425,00
Art.No.:
1020152760
Brand:
A1Touch Solution

Type A1Touch-V4-2-i7-7500U barebone in black..​

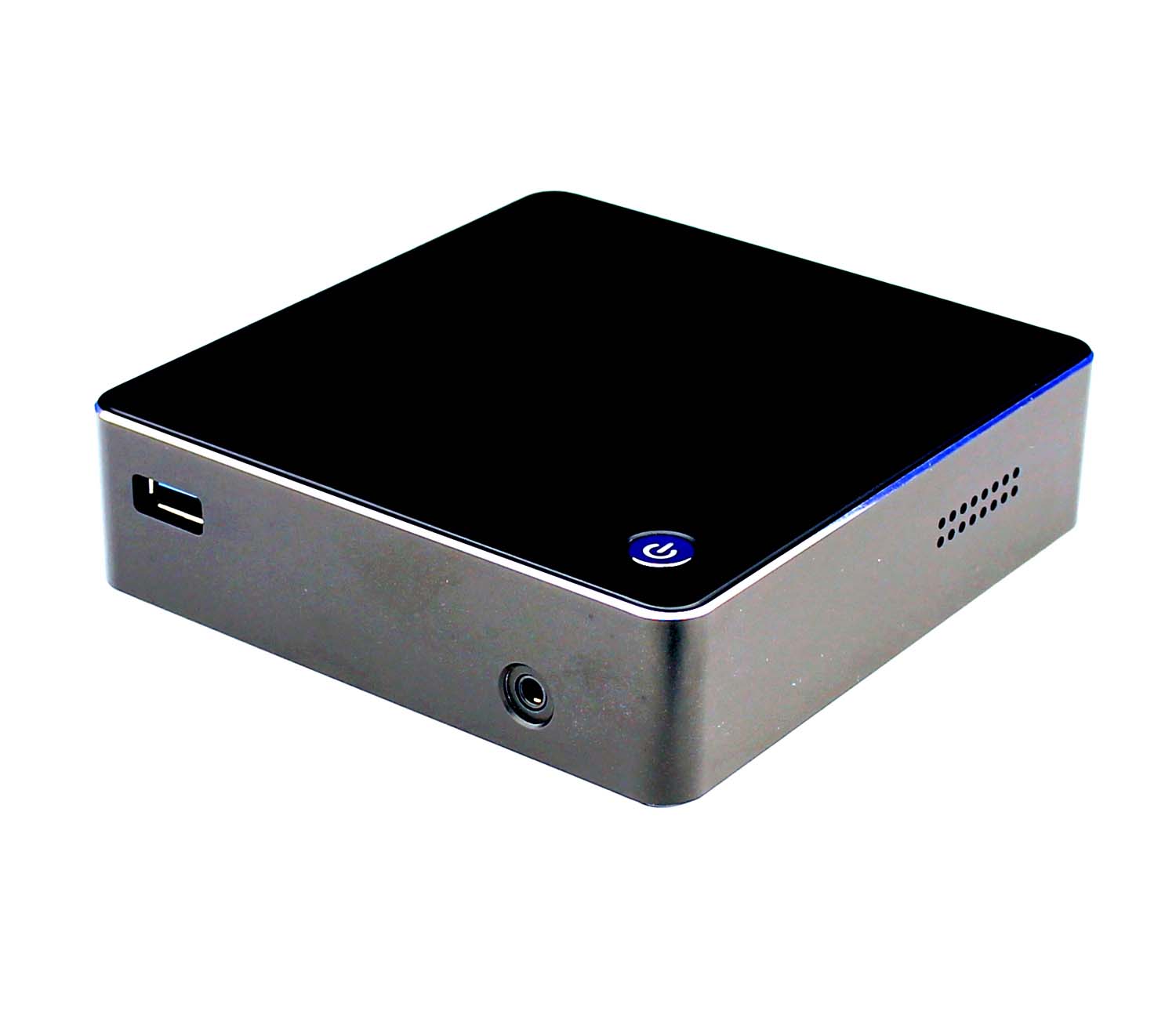

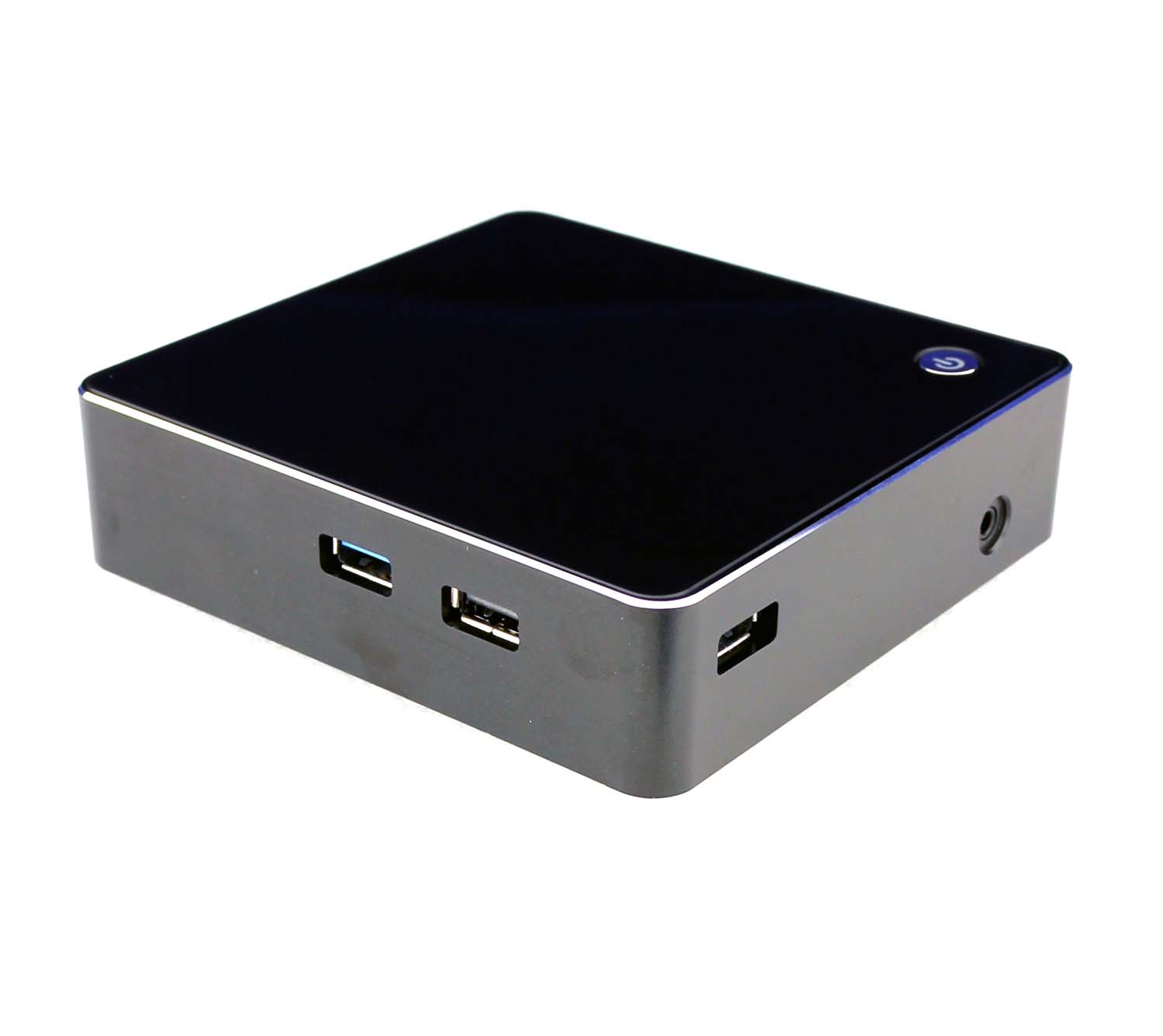

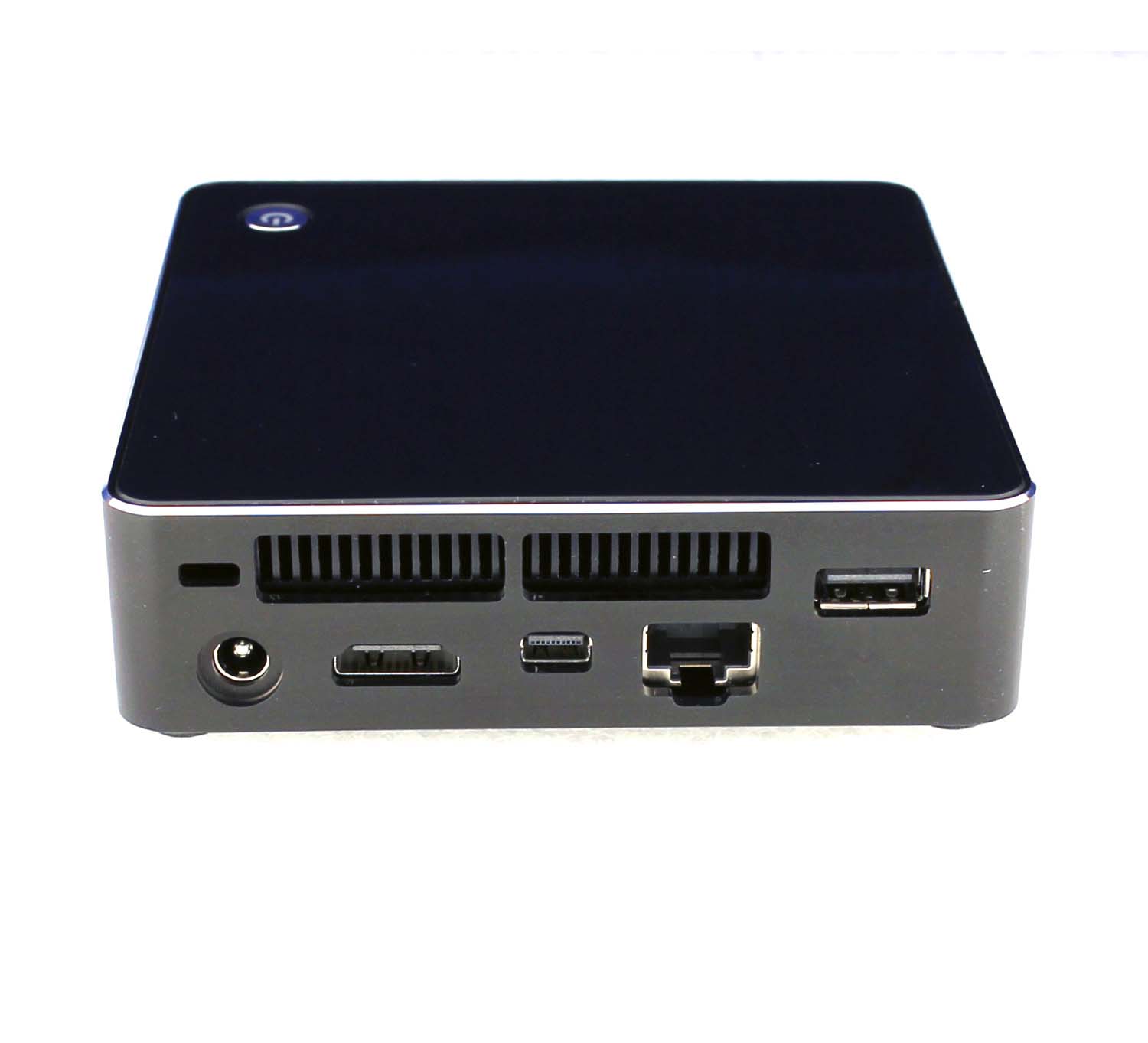

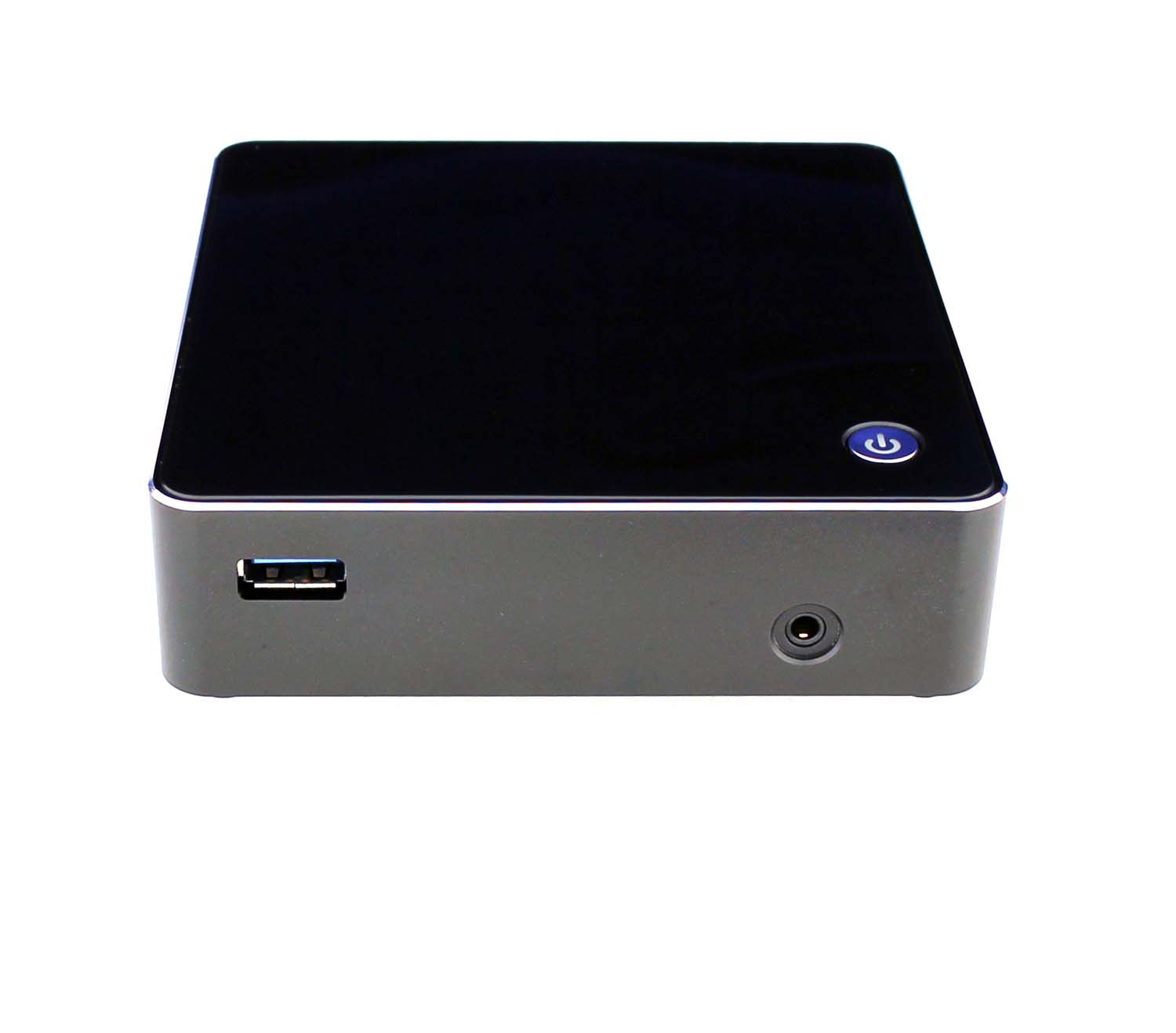

Description: Active cooled micro computer, model V4-2, with Intel i7 dc 2.7 upto 3.5 Ghz Processor.This black anodized aluminium pc with shiny plastic cover in Intel Nuc Format is build for space saving but high performance applications with connections: TOP: On/Off button, FRONT: 1xUSB3, 1x 3.5mm jack for mic/spk. BACK: 1xUSB2 1x Gb LAN, 1x HDMI. 1x Mini Display Port, 19Vdc in. Left Side: 1xUSB2, 1xUSB3. Dimension: 108x113x30MM.
​​Unit is NOT in stock.

Processor



Type

i7-7500U, Kaby Lake, FCBGA1356



Cores

64-bit 2 core, 4 thread



Clock speed

2.7 up to 3.5 Ghz



Cache

4 Mb smartCache



TDP

7.5 - 25W



Chipset

Intel Kaby Lake







Memory



Supported

2x SO-DIMM DDR4‐2133/2400 memory slots



Up to 32GB (2x 16GB) DDR4-2133/2400



Installed

None; option 1*4, 2*4, 1*8, 2*8, 1*16, 2*16 Gb







Storage



Supported

No SATA (pc too small for 2.5"ssd/hd)



1x PCIe slot, M2 cards up to 6 Gbps (SATA 3.0)



Installed mSATA SSD

None, Option: 120, 240, 500, 1000 Gb







Graphics



GPU

Intel® HD Graphics 620



Base Frequency 300 Mhz



Graphics Max Dynamic Frequency 1.05 Ghz



Graphics Video Max Memory 32 GB



Display Interface 1

HDMI 1.4 up to 4096x2304@24Hz



Display Interface 2

Mini Display port up to 4096x2304@60Hz



Supported:

Dual display mode supported





4K/ 3D blue ray mode supported





DirectX* Support: 12





OpenGL* Support 4.4





Intel® Quick Sync Video





Intel® InTru™ 3D Technology





Intel® Flexible Display Interface (Intel® FDI)





Intel® Clear Video HD Technology





Intel® Wireless Display





Intel® Insider™



Audio



Codec

Realtek High Definition Audio Azalia Codec support 2.1 channel output



Audio Input/Output

1X Headphone-out/ MIC-in phone jack







Networking



LAN

1x GbE LAN ports:



LAN1: Onboard RTL8168E PCI-E Gigabit Ethernet NIC



installed Wireless/ Bluetooth

Built in wifi-bluetooth (on M2 socket) Realtek RTL8821AE 80211 a/b/g/n/ac-BT Combo







Connectivity



USB

2x USB 3.0





2x USB 2.0



Serials

-



Special ports/connections

-



Expansion

1* Half-size M2 socket (occupied now for Wifi)







Advanced Technologies





Intel® Turbo Boost Technology 2.0

Intel® Hyper-Threading Technology





Intel® Virtualization Technology (VT-x)





Intel® Virtualization Technology for Directed I/O (VT-d)





Intel® VT-x with Extended Page Tables (EPT)





Intel® 64





Idle States





Enhanced Intel SpeedStep® Technology





Thermal Monitoring Technologies





Instruction Set Extensions: SSE4.1/4.2, AVX 2.0





Intel® HD Audio Technology





Intel® Identity Protection Technology





Intel® Rapid Storage Technology





Intel® Smart Connect Technology













Special Functionality

Auto-On



Wake-on-LAN



Wake-on-Timer



PXE Boot



Watchdog



Bootloader



Vendor

AMI (American Megatrends)



Features

ACPI supported



UEFI 2.4 supported



support call on function automatically



Operating System



Supported

Windows 7/8/10, 32-bit and 64-bit



Windows Server 2012/ 2016



Linux 32-bit and 64-bit



Embedded OS



Official Linux

Linux Ubuntu 16.04 LTS (64-bit)



Installed

None, Optional







Operating Conditions



Input Voltage

DC 19V



Power Consumption

6W – 15W, Idle: 0.5W



Storage Temperature

-20°C~80°C



Operating Termperature

0°C – 70°C




Humidity

10%-90%







Enclosure



Material

Full Aluminum enclosure, black or silver anodized



Cooling

Passive Cooling Fanless Design



Dimensions (WxDXH)

108x113x30MM



Weight computer

388 gramm



Weight total package

1076 gramm







Certifications



Documents

CE, FCC, ROHS







Package



In the Box

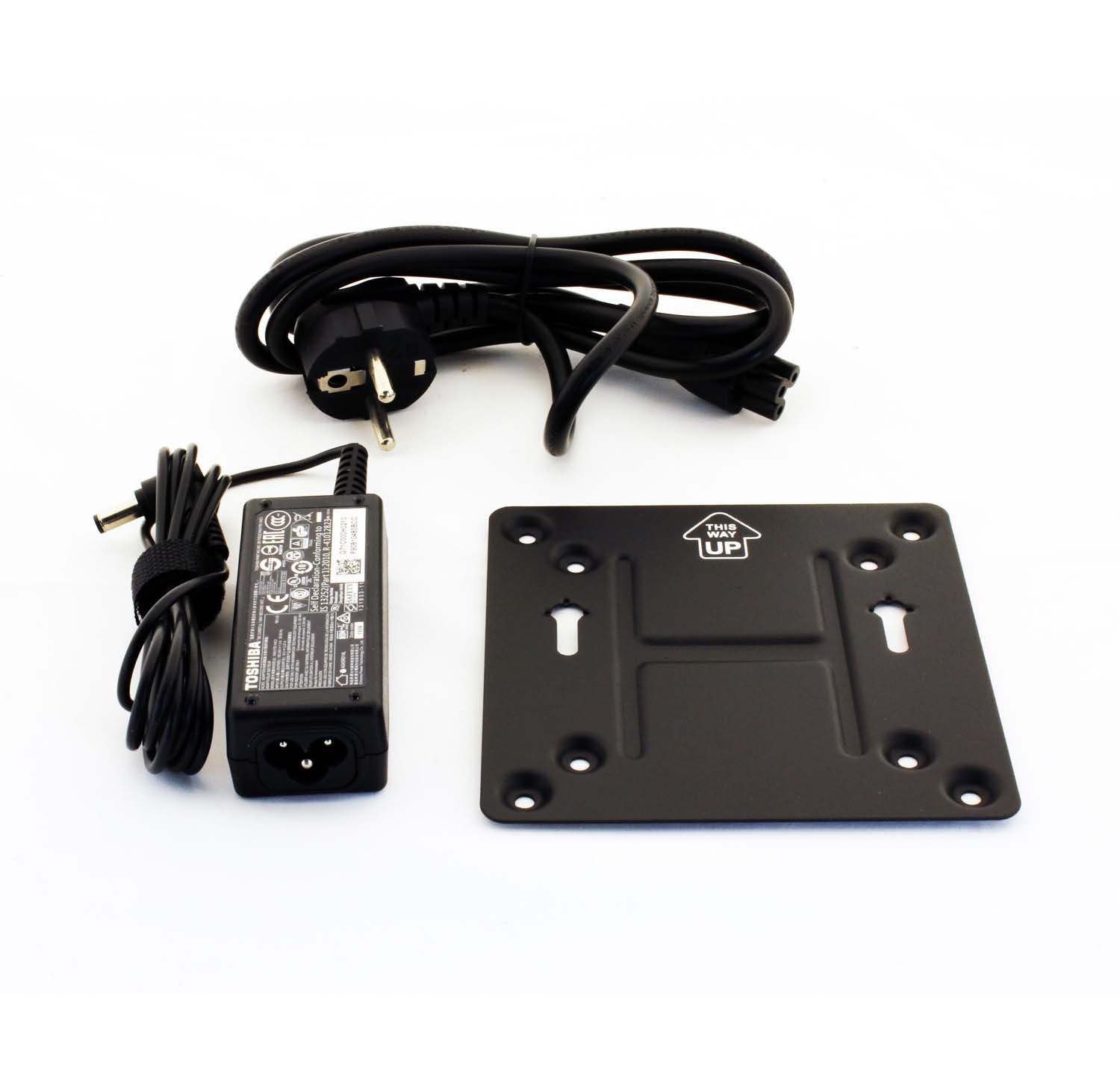

1. Computer



2. Power supply: input 100-240VAC 50/60Hz, 60W output 12VDC 5A, EU power cable (UK or USA on request)







3. Audio 3.5mm cable (option)



4. WiFi 2.4GHz/5GHz band 2 antennas (wifi option)



5. Vesa bracket



Warranty

2 years bring-in



General specifications :

Specs 15 inch desktop pc mini ITX Q1900B manual
Driver downloads : Driver downloads
Options: (including installation)
Standard delivery: With PSU and EU power cable, audio cable 3.5mm plug and vesa mount bracket.
Memory capacity: No memory (standard), 4, 8 or 16 Gb SoDimm
Storage capacity mSata: No storage (standard),  120/ 240 or 480 Gb mSata
Operating system (OS):
No OS (standard), Ubuntu 16.04LTS, Win7 embedded WSP7 multilangual, Win7Pro, Win10Home and Pro.
OS will be installed by default on the mSata SSD if sata and msata storage is chosen.
Wlan/ Bluetooth
-With Wlan/ Bluetooth (strandard)
Input equipment: None (standard) or wireless keyboard/ mouse

You can purchase by selecting below mentioned options (if available). More info on tab "Options")
​Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.

Discount on prices:

  • Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
  • For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
Options (incl. installation):
