17" Achter (glas) montage PC (Passief Gekoeld)

Brand:

A1Touch Solution

Type: All in one A1Touch J3455/AOD170-OF (passief gekoeld)

Omschrijving: 17 inch rear mount pc met of zonder touchscreen. Optie om te Touchen door glas of door een paneel met afgewerkt gat.

Product is op voorraad.

Specificaties
Opties
Downloads
Bestellen

Monitor specs:
Kleur:	Zwart gepoedercoat (andere kleuren op aanvraag)
Model:	17 inch XGA TFT LCD Monitor
Type:	17 inch Color Active Matrix TFT LCD (AUO M170ETN01.1)
Resolutie (max):	1280 x 1024 (WVGA)
Kleuren:	16,2 millioen
Pixel:	0.264 x 0.264 mm
Helderheid:	300 cd/m²
Contrast ratio:	1000:1
Kijkhoek:	88°/88° horizontaal & 85°/85° verticaal
Responstijd:	5 ms
Grootte actieve beeld:	337,9 (H) x 270,3 (V) mm
Touchscreen specs:	Zie tabblad "Opties"

Computer specs:
Type computerbord	Intel J3455 Quad core tot 2.3 Ghz, passief gekoeld
Chipset	Geen aparte chipset
Geheugen	2 x DDR3/DDR3L SO-DIMM Slots
Bios	64Mb AMI UEFI Legal BIOS with GUI support Supports Plug and Play ACPI 5.0 compliant wake up events Supports jumperfree SMBIOS 3.0 support
Processor	Intel J3455 Quad core tot 2.3 Ghz processor
Flashmodule/ Harddisk	Sata SSD en SATA Harddisk.mogelijk
Grafisch	Integrated Intel® HD Graphics 500: 12 EUs inside (Up to 750MHz) DirectX 12, Pixel Shader 5.0 Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI 2.0 monitor is required) Supports HW Accelerated Decoders: H.264 @ level 5.2, HEVC (H.265) 10b @MP level 5.1 (GPU accelerated), JPEG, VP8, VP9 Supports HDCP with DVI-D and HDMI 2.0 Ports Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI 2.0 Ports
LAN (RJ-45)	PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111GR Supports Wake-On-WAN Supports Wake-On-LAN Supports Lightning/ESD Protection (ASRock Full Spike Protection) Supports LAN Cable Detection Supports Energy Efficient Ethernet 802.3az Supports PXE
Audio	7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)* Premium Blu-ray Audio support Supports Surge Protection (ASRock Full Spike Protection) ELNA Audio Caps
IDE, SATA, Flash	2 x SATA2 3.0 Gb/s Connectors, ondersteuning NCQ, AHCI and Hot Plug
Hardware Monitor + Power Management	Temperatuur, Voltage, Case open functie, Watch Dog timer (fabrieksoptie)
Besturingssysteem:	Windows 10, 11, Linux, Win CE, Win10IOT

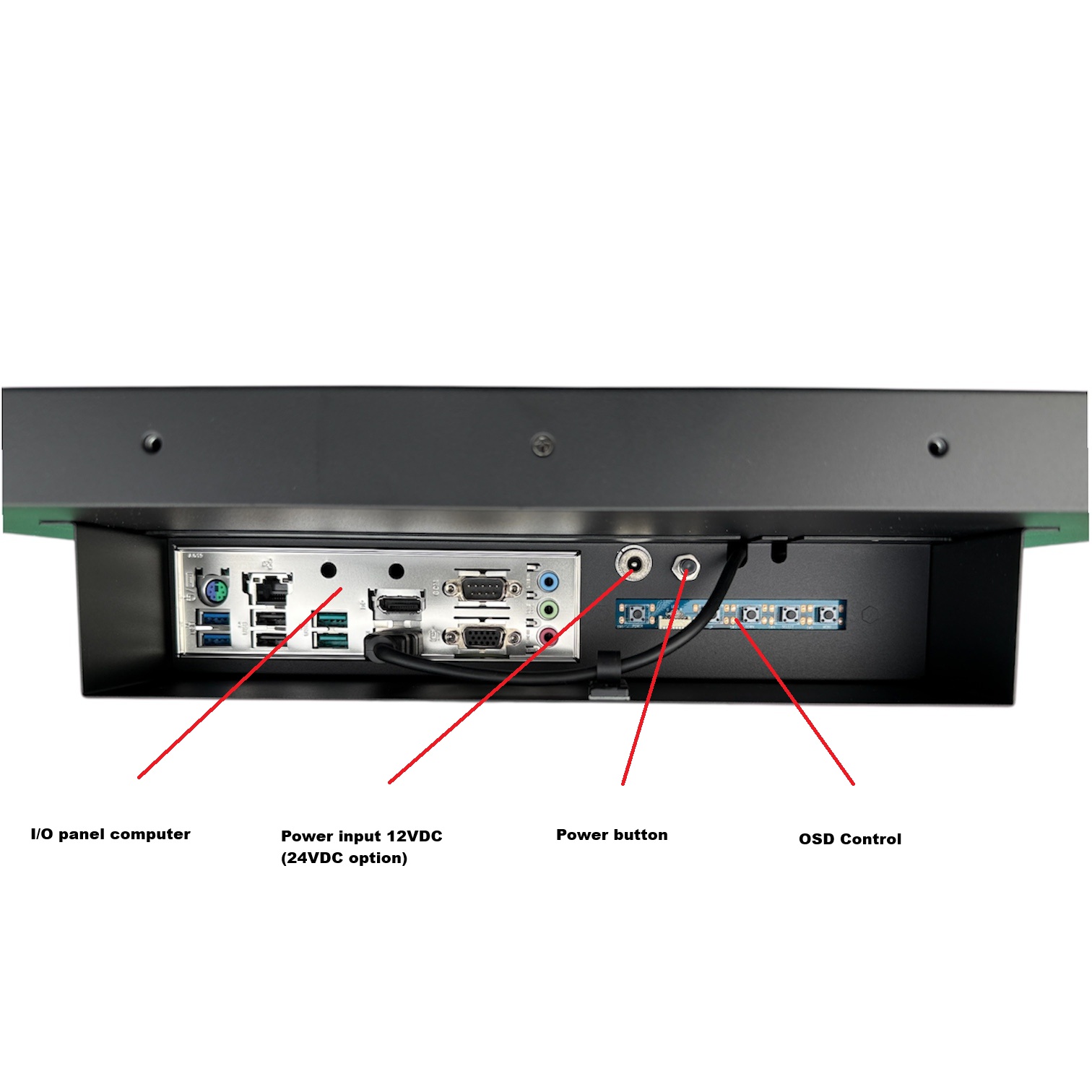

I/O achterzijde system:	1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 1 x D-Sub Port (occupied) 1 x DVI-D Port 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection)) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Interne I/O:	1 x PCI Express 2.0 x1 Slot 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module 1 x COM Port Header 1 x TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (3-pin) 1 x Chassis Fan Connector (3-pin) 1 x 24 pin ATX Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Stroomverbruik:	35W normal use; 80 W max.; 5 W stand by.
Voeding:	Tafelvoeding 84 W Extern.
Gewicht:	4.5 Kg
Montage:	VESA 100mm; (Excl. Beugel; Zie: armaturen)
Maatvoering systeem (B x H x D)	380x312x87 mm

Opties:
Functionaliteit:	Met of zonder touch
- zonder touch:	Acrylaatglas of glas
- met touch voor optie "Montage achter glas = JA":	Projected Capacitive A1touch en Zytronic®. Hulp nodig bij uw keuze? Bel ons op +31 (0)45 5748190 of stuur een bericht via: contactformulier
+ Projected Capacitive (A1touch):	-Voor glass tot 5mm of Acrylaat glas upto 2.5mm. -Touchbaar met vinger, handschoen en pcap stylus. -10 points touch -activatiekracht minder dan 1 gram.
+ Projected Capacitive (Zytronic®):	-Voor glas tot 20mm of Acrylaat glas tot 10mm. -Touchable met vinger, handschoen en pcap stylus. -2 points touch -activatiekracht minder dan 1 gram
met touch for optie "Montage achter glas = NEE":	5 draads resitief, Surface Accoustic Wave of Projected Capacitive
- 5 draads resistief :	-Standaard niet-glanzend. -Touchbaar via vinger, handschoen en stylus. -Single touch -activatiekracht minder dan 40 gram.
- SAW:	-Standarad glanzend. -Touchbaar via vinger en handschoen. -Single touch -activatiekracht minder dan 85 gram.
- Projected Capacitive:	-Standaard glanzend. -Touchbaar met vinger, handschoen en pcap stylus. -10 points touch -activatiekracht minder dan 1 gram.
Externe protectie:	Standaard IP44 or IP65 of hoger (niet voor SAW)
Geheugen capaciteit:	Geen geheugen (standarad), 2, 4 or 8 Gb SoDimm
Opslagcapacitiet Sata:	Geen opslag (standaard), Harddisk 250/500 Gb or SSD in 60/120/240 of 480 Gb.
Besturingssysteem:	Geen OS (standaard), Win7 embedded WSP7 multilangual, Win7Pro, Win8Home en Pro, Win10Home en Pro.
Invoer apparatuur:	Geen (standaard) or draadloos toetsenbord/muis

Monitor specs:
Kleur:	Zwart gepoedercoat (andere kleuren op aanvraag)
Model:	17 inch XGA TFT LCD Monitor
Type:	17 inch Color Active Matrix TFT LCD (AUO M170ETN01.1)
Resolutie (max):	1280 x 1024 (WVGA)
Kleuren:	16,2 millioen
Pixel:	0.264 x 0.264 mm
Helderheid:	300 cd/m²
Contrast ratio:	1000:1
Kijkhoek:	88°/88° horizontaal & 85°/85° verticaal
Responstijd:	5 ms
Grootte actieve beeld:	337,9 (H) x 270,3 (V) mm
Touchscreen specs:	Zie tabblad "Opties"

Computer specs:
Type computerbord	Intel J3455 Quad core tot 2.3 Ghz, passief gekoeld
Chipset	Geen aparte chipset
Geheugen	2 x DDR3/DDR3L SO-DIMM Slots
Bios	64Mb AMI UEFI Legal BIOS with GUI support Supports Plug and Play ACPI 5.0 compliant wake up events Supports jumperfree SMBIOS 3.0 support
Processor	Intel J3455 Quad core tot 2.3 Ghz processor
Flashmodule/ Harddisk	Sata SSD en SATA Harddisk.mogelijk
Grafisch	Integrated Intel® HD Graphics 500: 12 EUs inside (Up to 750MHz) DirectX 12, Pixel Shader 5.0 Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI 2.0 monitor is required) Supports HW Accelerated Decoders: H.264 @ level 5.2, HEVC (H.265) 10b @MP level 5.1 (GPU accelerated), JPEG, VP8, VP9 Supports HDCP with DVI-D and HDMI 2.0 Ports Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI 2.0 Ports
LAN (RJ-45)	PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111GR Supports Wake-On-WAN Supports Wake-On-LAN Supports Lightning/ESD Protection (ASRock Full Spike Protection) Supports LAN Cable Detection Supports Energy Efficient Ethernet 802.3az Supports PXE
Audio	7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)* Premium Blu-ray Audio support Supports Surge Protection (ASRock Full Spike Protection) ELNA Audio Caps
IDE, SATA, Flash	2 x SATA2 3.0 Gb/s Connectors, ondersteuning NCQ, AHCI and Hot Plug
Hardware Monitor + Power Management	Temperatuur, Voltage, Case open functie, Watch Dog timer (fabrieksoptie)
Besturingssysteem:	Windows 7, 8, 10 Linux, Win CE, Win7emb, Win10IOT.
I/O achterzijde system:	1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 1 x D-Sub Port (occupied) 1 x DVI-D Port 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection)) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Interne I/O:	1 x PCI Express 2.0 x1 Slot 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module 1 x COM Port Header 1 x TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (3-pin) 1 x Chassis Fan Connector (3-pin) 1 x 24 pin ATX Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Stroomverbruik:	35W normal use; 80 W max.; 5 W stand by.
Voeding:	Tafelvoeding 84 W Extern.
Gewicht:	4.5 Kg
Montage:	VESA 100mm; (Excl. Beugel; Zie: armaturen)
Maatvoering systeem (B x H x D)	380x312x87 mm

U kunt hier uw product bestellen na in te loggen of een account aan te maken door op de blauwe knop "login voor bestellen" te klikken.

Na inloggen ziet u dan de netto prijs excl. BTW voor het product.

Vul vervolgens onderstaande opties in, kies het aantal producten en klik op de blauwe knop "Aan winkelwagen toevoegen".

Opties (incl. installatie):
